Top » Piese de schimb » PIESE DEWALT » DPN9017PL Type 1

PISTOL DA BATUT CUIE DEWALT DPN9017PL Type 1
[DPN9017PL Type 1]
PISTOL DA BATUT CUIE DEWALT DPN9017PL Type 1
Click pentru a mari
Imagini suplimentare
PISTOL DA BATUT CUIE DEWALT DPN9017PL Type 1
Click pentru a mari
PISTOL DA BATUT CUIE DEWALT DPN9017PL Type 1
Click pentru a mari

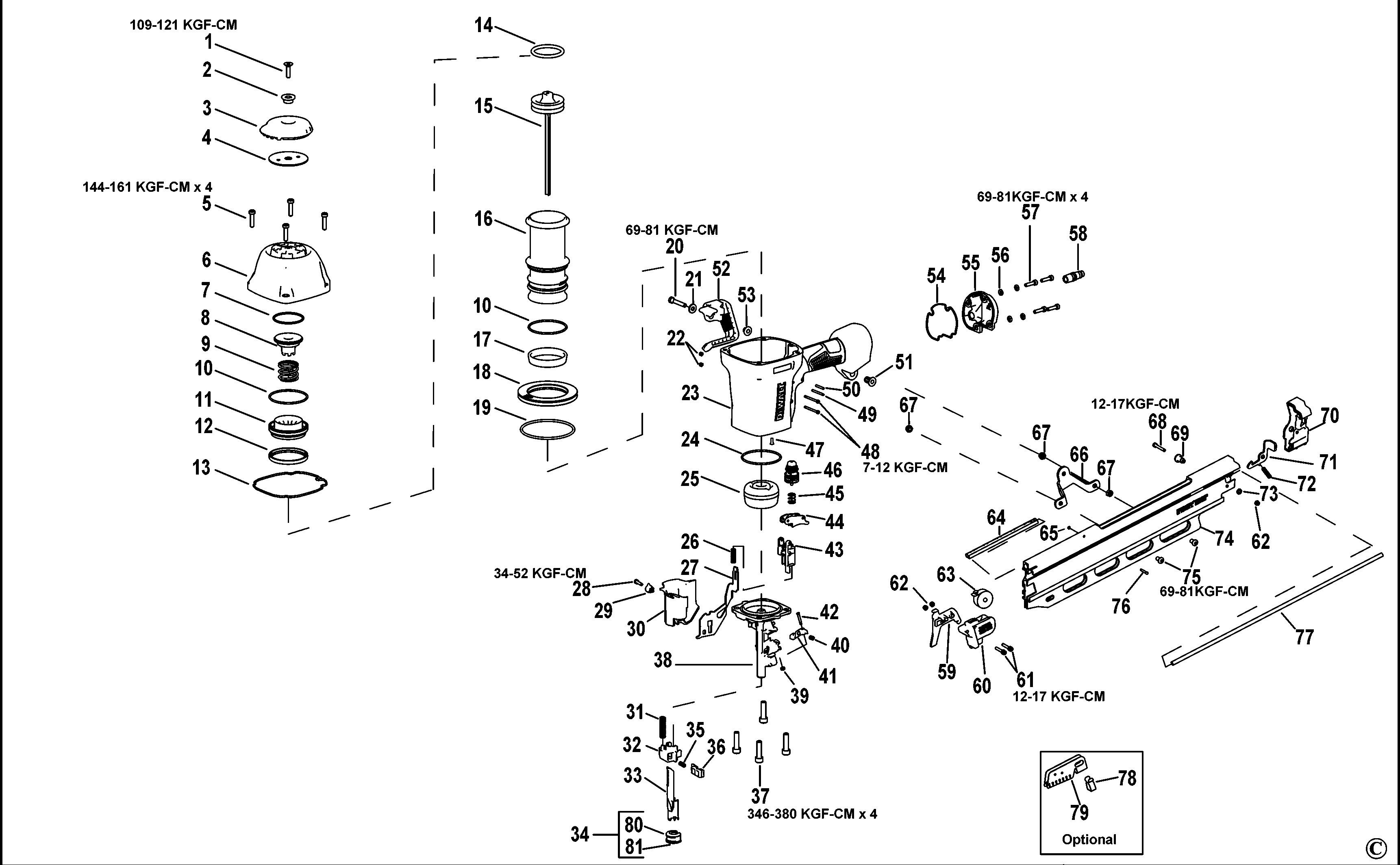

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW SFHCS M6X1.00X25 (MSF6100-25) 558 RON
2 1 1 BUSHING EXHAUST DEFLECTOR (163859) 2124 RON
3 1 1 DEFLECTOR EXHAUST (163818) 2795 RON
4 1 1 PLATE CAP (163830) 1229 RON
5 1 4 SCREW SHCS M6X1.00X25 (MSC6100-25) 558 RON
6 1 1 CAP (9R207477) 25728 RON
7 1 1 O-RING 1.929X.098 (105814) 5591 RON
8 1 1 BUMPER HEAD VALVE (163820) 190 RON
9 1 1 SPRING HEAD VALVE (163844) 893 RON
10 1 2 O-RING 2.487X.103XNBR (163822) 3018 RON
11 1 1 LOWER BODY HEAD VALVE (REV C) (163821) 1452 RON
12 1 1 SEAL HEAD VALVE (163823) 1229 RON
13 1 1 SEAL FRAME/CAP (163845) 893 RON
14 1 1 O-RING (851606) 82 RON
14 1 1 O-RING 1.850X.210 (851606-S) 781 RON
15 1 1 ASSEMBLY PISTON/DRIVER (163921) 34336 RON
16 1 1 SLEEVE CYLINDER (163824) 17335 RON
17 1 1 SEAL CHECK (175520) 105 RON
18 1 1 RING CYLINDER SLEEVE (163855) 2124 RON
19 1 1 O-RING 3.484X.139 (108718) 893 RON
20 1 1 SCREW SHCS M6X1.00X35 (MSC6100-35) 558 RON
21 1 1 WASHER.SPECIAL (MPW6.2) 558 RON
22 1 2 NUT ESN M3X0.5 (MHE3050-100) 558 RON
23 1 1 FRAME (9R207410) 48037 RON
24 1 1 O-RING 2.550X.103 (89673) 190 RON
25 1 1 BUMPER DRIVE (107231) 7940 RON
26 1 1 SPRING UPPER TRIP (166781) 558 RON
27 1 1 ARM UPPER CONTACT (163900) 1788 RON
28 1 1 SCREW SHCS M4X0.7X16 (MSC4070-16) 558 RON
29 1 1 BUSHING TRIP COVER (163903) 190 RON
30 1 1 TRIP COVER (171338) 190 RON
31 1 1 SPRING CONTACT ARM (166772) 558 RON
32 1 1 CASTING HOUSING CONTACT (108224) 4472 RON
33 1 1 ARM LOWER CONTACT (142941) 5591 RON
34 1 1 SEGMENT (121072) 1229 RON
35 1 1 SPRING HOUSING (115230) 558 RON
36 1 1 CASTING PLUNGER (166777) 3018 RON
37 1 4 SCREW SHCS M8X1.25X30 (MSC8125-30) 558 RON
38 1 1 NOSE,F21PL (163923) 32327 RON
39 1 1 WASHER (854004) 781 RON
40 1 1 SPRING CHECK PAWL (163878) 558 RON
41 1 1 PAWL (163877) 3018 RON
42 1 1 PIN CHECK PAWL (149882) 1452 RON
43 1 1 GUIDE ARM (163883) 1229 RON
44 1 1 KIT SEQUENTIAL TRIP CONVERSION (SEQ7) 3466 RON
45 1 1 SPRING COMPRESSION (100387) 558 RON
46 1 1 TRIGGER VALVE ASSEMBLY (TVA6) 10512 RON
47 1 1 PLUG EXHAUST (163858) 558 RON
48 1 2 SCREW TRIGGER PIVOT (108562) 558 RON
49 1 1 PIN SPRING M3X30MM (100298) 558 RON
50 1 1 PIN SPIROL M3X20MM (MPP030020) 558 RON
51 1 1 BUSHING FLANGED ISOLATION (123859) 781 RON
52 1 1 ASSEMBLY UTILITY HOOK (171354) 6821 RON
53 1 1 WASHER UTILITY HOOK (171342) 1117 RON
54 1 1 SEAL END CAP (163856) 781 RON
55 1 1 END CAP PAINT (163843) 5591 RON
56 1 4 WASHER PWW M5 (T50118) 558 RON
57 1 4 SCREW SOC HD. CAP M5 X 20 (MSC5080-20) 558 RON
58 1 1 ADAPTOR (159977) 1229 RON
59 1 1 PUSHER (163901) 11337 RON
60 1 1 HANDLE PUSHER (163902) 190 RON
61 1 2 SCREWS SHCS M4X0.70X25 (121052) 558 RON
62 1 3 NUT ESN M4 X 0.7 (MHE4070-100) 558 RON
63 1 1 SPRING CONSTANT FORCE (115143) 4472 RON
64 1 1 LINER, NAIL GUIDE (121406) 1772 RON
65 1 1 O-RING .056X.060 NBR (166797) 558 RON
66 1 1 BRACKET (163860) 3954 RON
67 1 3 NUT ESN M6X1 (MHE6100-100) 558 RON
68 1 1 SCREW SHCS M4X0.7X30 (100261) 781 RON
69 1 1 SPACER PUSHER LATCH (121472) 1229 RON
70 1 1 ASSEMBLY END CAP (163912) 3018 RON
71 1 1 LATCH PUSHER (166778) 105 RON
72 1 1 SPRING PUSHER LATCH (120878) 558 RON
73 1 1 WASHER PWN M4 (MPW4) 558 RON
74 1 1 MAGAZINE (9R209589) 39318 RON
75 1 2 SCREW SBHCS M6X1.00X12 (KN85) (MSB6100-12) 558 RON
76 1 1 PIN SPECIAL (121407) 781 RON
77 1 1 ROD,GUIDE (163867) 82 RON
78 1 1 SPRING CLIP (112631) 781 RON
79 1 1 SHIELD DUST (112630) 190 RON
80 1 1 CLIP TRIP FOOT (121071) 781 RON
81 1 1 FOOT TRIP (121070) 781 RON
