Top » Piese de schimb » PIESE DEWALT » DPN46RN Type 1

PISTOL DA BATUT CUIE DEWALT DPN46RN Type 1
[DPN46RN Type 1]
PISTOL DA BATUT CUIE DEWALT DPN46RN Type 1
Click pentru a mari
Imagini suplimentare
PISTOL DA BATUT CUIE DEWALT DPN46RN Type 1
Click pentru a mari
PISTOL DA BATUT CUIE DEWALT DPN46RN Type 1
Click pentru a mari
PISTOL DA BATUT CUIE DEWALT DPN46RN Type 1
Click pentru a mari

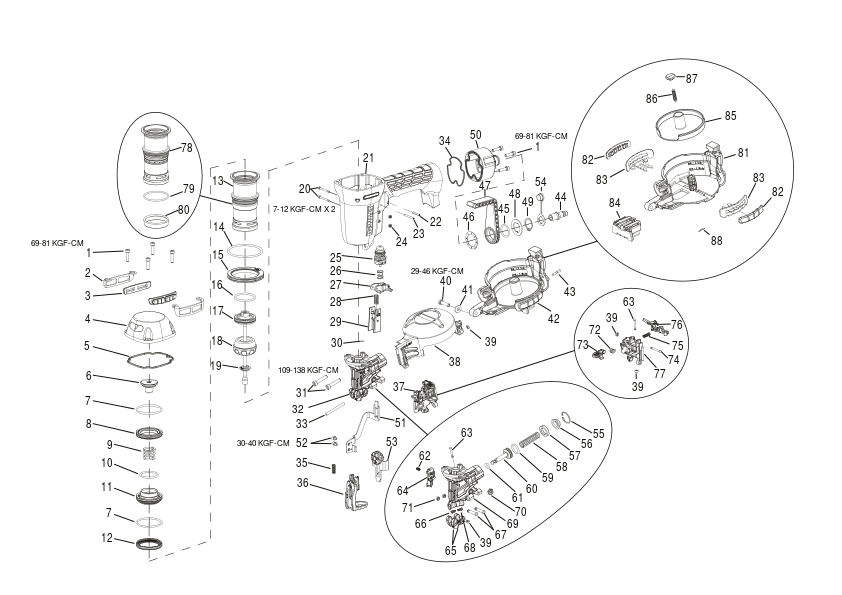

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 7 SCREW SOC HD. CAP M5 X 20 (MSC5080-20) 558 RON
2 1 2 PLATE (149833) 82 RON
3 1 2 WEAR GUIDE (149819) 781 RON
4 1 1 CAP (9R209580) 23244 RON
5 1 1 SEAL, FRAME/CAP (149832) 82 RON
6 1 1 BUMPER, HEAD VALVE (149838) 82 RON
7 1 2 O-RING 1.925X.103XNBR (149828) 82 RON
8 1 1 UPPER BODY, HEAD VALVE (149836) 82 RON
9 1 1 SPRING, HEAD VALVE (149806) 82 RON
10 1 1 O-RING 1.299X.103XNBR (149842) 82 RON
11 1 1 LOWER BODY, HEAD VALVE (149839) 944 RON
12 1 1 SEAL, SLEEVE (149840) 82 RON
13 1 1 9R207544 - Indisponibil
13 1 1 SLEEVE SA (9R217792) 4827 RON
14 1 1 O-RING,2.609X.139 (KN85) (850766) 114 RON
15 1 1 RING, SLEEVE (149814) 82 RON
16 1 1 O-RING 1.484X.139 (850607) 1452 RON
17 1 1 PISTON SA (9R195148) 28836 RON
18 1 1 BUMPER (191777) 4472 RON
19 1 1 GUIDE, DRIVER (149820) 82 RON
20 1 2 SCREW,TRIGGER PIVOT (105811) 82 RON
21 1 1 FRAME (9R209582) 63720 RON
22 1 1 PIN SPIROL M3X20MM (MPP030020) 558 RON
23 1 1 PIN SPRING M3X30MM (100298) 558 RON
24 1 2 NUT ESN M3X0.5 (MHE3050-100) 558 RON
25 1 1 TRIGGER VALVE KIT (TVA11) 24962 RON
26 1 1 SPRING COMPRESSION (100387) 558 RON
27 1 1 ASSEMBLY,S.T.TRIGGER (107582) 82 RON
28 1 1 SPRING, CONTACT ARM (149871) 82 RON
29 1 1 GUIDE,TRIP (107522) 1933 RON
30 1 1 O-RING .145X.070 CP (149885) 82 RON
31 1 2 SCREW SHCS M6X1.00X30 (MSC6100-30) 558 RON
32 1 1 NOSE (9R217784) 125542 RON
33 1 1 PIN, DOOR/COVER (149905) 82 RON
34 1 1 SEAL, END CAP (149816) 82 RON
35 1 1 SPRING, DEPTH ADJUST CAM (149874) 82 RON
36 1 1 ARM LINK (9R193689) 11337 RON
37 1 1 DOOR (9R195146) 21676 RON
38 1 1 COVER (161234) 3268 RON
39 1 4 PIN, RETAINER (N12112) 82 RON
40 1 1 SCREW SHCS M6X1.00X25 (MSC6100-25) 558 RON
41 1 1 WASHER.SPECIAL (MPW6.2) 558 RON
42 1 1 ASSEMBLY, CANISTER (149939) 25728 RON
43 1 1 PIN, COVER/CANISTER (149907) 82 RON
44 1 1 ADAPTOR (159977) 1229 RON
45 1 1 O-RING (175557) 82 RON
46 1 1 SEAT PLATE, HOOK (175582) 82 RON
47 1 1 HOOK (175583) 82 RON
48 1 1 CAP, HOOK (175585) 82 RON
49 1 1 RING, RETAINING (175586) 82 RON
50 1 1 END CAP (193702) 5370 RON
51 1 1 ARM LINK (9R195374) 4827 RON
52 1 2 SCREW (9R195377) 588 RON
53 1 1 CONTACT SA (9R199758) 4355 RON
54 1 1 COVER (9R195380) 588 RON
55 1 1 RETAINING RING, INCH (149854) 82 RON
56 1 1 COLLAR, SPRING (149853) 82 RON
57 1 1 STOP, FEED PISTON (149855) 82 RON
58 1 1 SPRING C78, FEED PISTON (149887) 82 RON
59 1 1 O-RING,.674X.103 (88998) 1630 RON
60 1 1 149852 - Indisponibil
60 1 1 FEED PISTON (9R210352) 9012 RON
61 1 1 O-RING .299X.103 NBR (149883) 82 RON
62 1 1 SPRING, FEED PAWL (149859) 82 RON
63 1 2 PIN CHECK PAWL (149882) 1452 RON
64 1 1 149897 - Indisponibil
64 1 1 PAWL (9R205576) 741 RON
66 1 1 SPRING (9R195371) 668 RON
67 1 2 193692 - Indisponibil
67 1 2 PIN (9R193692) 1318 RON
68 1 1 SPRING (9R195372) 82 RON
69 1 1 195141 - Indisponibil
69 1 1 NOSE (9R195141) 73079 RON
70 1 1 NUT ESN M6X1 (MHE6100-100) 558 RON
71 1 2 PIN (9R195750) 944 RON
72 1 1 SPRING TORSION (9R205484) 588 RON
73 1 1 LATCH (149861) 5370 RON
74 1 1 PIN,DOOR LATCH (149886) 82 RON
75 1 1 APS ORDER ONLY (SPRING, CHECK PAWL) (149898) 82 RON
77 1 1 DOOR (195150) 13697 RON
78 1 1 9R207543 - Indisponibil
78 1 1 SLEEVE SA (9R217792) 4827 RON
79 1 1 O-RING,1.862X.103 NBR (149829) 82 RON
80 1 1 SEAL, CHECK (149812) 82 RON
81 1 1 PLATFORM (9R201803) 12361 RON
82 1 2 WEAR PAD, CANISTER (149866) 82 RON
83 1 2 GUARD,CANISTER (161236) 82 RON
84 1 1 ASSY, SHINGLE GUIDE (149940) 3268 RON
85 1 1 CANISTER (149908) 2556 RON
86 1 1 SPRING (101773) 82 RON
87 1 1 CAP NAIL TRAY (149910) 558 RON
88 1 1 RETAINER (149909) 588 RON
