Top » Piese de schimb » PIESE DEWALT » DPN250MCN Type 1

PISTOL DA BATUT CUIE DEWALT DPN250MCN Type 1
[DPN250MCN Type 1]
PISTOL DA BATUT CUIE DEWALT DPN250MCN Type 1
Click pentru a mari
Imagini suplimentare
PISTOL DA BATUT CUIE DEWALT DPN250MCN Type 1
Click pentru a mari
PISTOL DA BATUT CUIE DEWALT DPN250MCN Type 1
Click pentru a mari

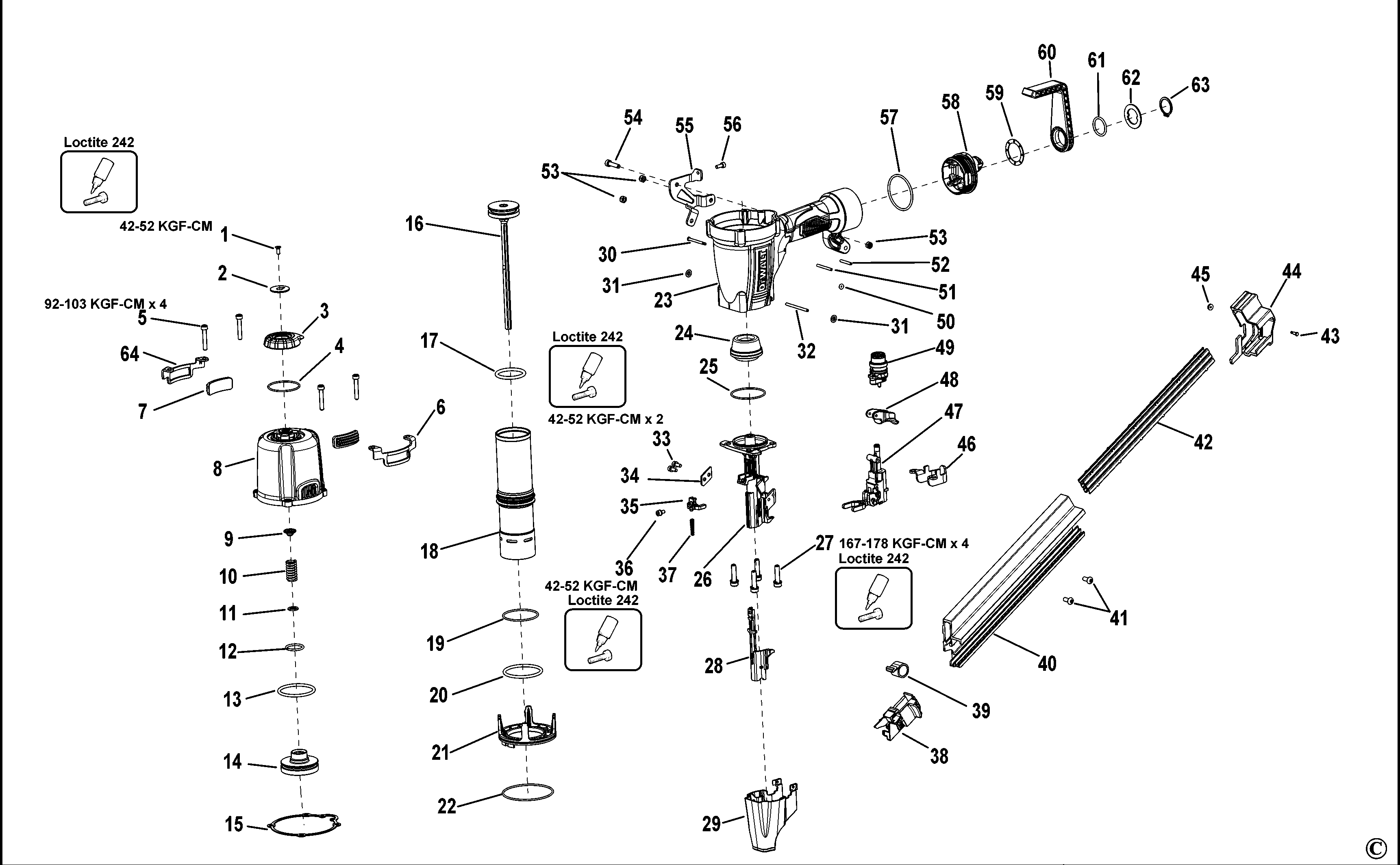

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW,SFHCS,M40X0.7X10 CF15 (174041) 588 RON
2 1 1 SPACER,EXHAUST COVER (174042) 668 RON
3 1 1 COVER,EXHAUST (174043) 944 RON
4 1 1 O RING (S06A003000) 588 RON
5 1 4 SCREW, SHCD, M5X0.80X3 (175554) 588 RON
6 1 1 BRACKET LH (9R203792) 1933 RON
7 1 2 RUBBER PAD (9R203791) 588 RON
8 1 1 CAP SA (9R209549) 15469 RON
9 1 1 SEAL, DEFLECTOR (174049) 82 RON
10 1 1 SPRING, COMPRESSION (174051) 82 RON
11 1 1 WASHER, SPECIAL (174052) 82 RON
12 1 1 O-RING, 20.8MMX2.4MM (174053) 82 RON
13 1 1 O-RING, 44.7MMX3.5MM (174055) 82 RON
14 1 1 PISTON, HEAD VALVE (174054) 1772 RON
15 1 1 GASKET (9R203793) 3268 RON
16 1 1 PISTON SA (9R199716) 4825 RON
17 1 1 O-RING, 36.0 MM X 4.0 MM (174060) 82 RON
18 1 1 SLEEVE (175558) 17335 RON
19 1 1 O-RING, 45.5MMX2.0MM (174058) 82 RON
20 1 1 O-RING,1.859X.139 (86460) 2556 RON
21 1 1 COLLAR,CYLINDER SLEEVE,N755 (175556) 1772 RON
22 1 1 O-RING, 66.5MMX2.0MM (174056) 82 RON
23 1 1 FRAME (9R203805) 32327 RON
24 1 1 BUMPER (175562) 3954 RON
25 1 1 O-RING,1.739X.070 (851483-S) 82 RON
26 1 1 NOSE SA (9R209476) 60451 RON
27 1 4 SCREW (174078) 558 RON
28 1 1 NOSE (9R209479) 6688 RON
29 1 1 COVER (175569) 1452 RON
30 1 1 STEPPED PIN (174062) 82 RON
31 1 2 PLUG (174087) 558 RON
32 1 1 ROLL PIN (174086) 558 RON
33 1 2 SCREW SHCS M4X0.7X10 (174069) 558 RON
34 1 1 SPACER (175577) 893 RON
35 1 1 FOLLOWER MOVABLE NOSE (174081) 3466 RON
36 1 1 SCREW SHCS M4X0.7X8 (174080) 558 RON
37 1 1 SPRING COMPRESSION (174082) 558 RON
38 1 1 PUSHER (9R205723) 4137 RON
39 1 1 PUSHER (175576) 5591 RON
40 1 1 MAGAZINE (9R199710) 25164 RON
41 1 2 SCREW (9R199719) 558 RON
42 1 2 LINER (9R199712) 3466 RON
43 1 1 PIN (174092) 781 RON
44 1 1 COVER (9R199711) 190 RON
45 1 1 WASHER SPECIAL (174093) 558 RON
46 1 1 BRACKET (174085) 190 RON
47 1 1 ASSEMBLY CT HOUSING (174084) 40599 RON
48 1 1 ASSEMBLY TRIGGER (174072) 1117 RON
49 1 1 VALVE (174117) 9282 RON
50 1 1 O RING (174073) 82 RON
51 1 1 PIN SPRING M3X30MM (100298) 558 RON
52 1 1 PIN (174070) 82 RON
53 1 3 LOCK-NUT (MHE5080-100) 82 RON
54 1 1 SCREW (9R199720) 558 RON
55 1 1 BRACKET (9R209550) 3268 RON
56 1 1 SCREW (MSC4070-10) 82 RON
57 1 1 O-RING,45.7MMX2.62MM N66C (174067) 588 RON
58 1 1 CAP END (175561) 4137 RON
59 1 1 SEAT PLATE, HOOK (175582) 82 RON
60 1 1 HOOK (175583) 82 RON
61 1 1 O-RING (175557) 82 RON
62 1 1 CAP, HOOK (175585) 82 RON
63 1 1 RING, RETAINING (175586) 82 RON
64 1 1 BRACKET RH (9R203794) 1933 RON
