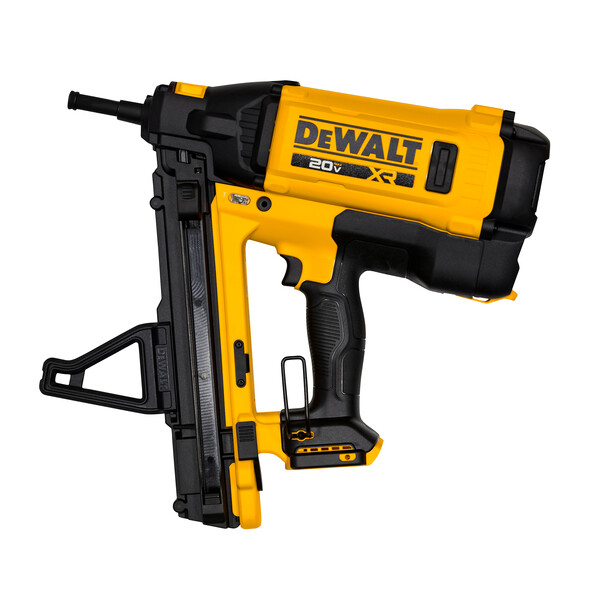

PISTOL DA BATUT CUIE DEWALT DGN845D1 Type 1
[DGN845D1 Type 1]
PISTOL DA BATUT CUIE DEWALT DGN845D1 Type 1
Click pentru a mari
Imagini suplimentare
PISTOL DA BATUT CUIE DEWALT DGN845D1 Type 1
Click pentru a mari
PISTOL DA BATUT CUIE DEWALT DGN845D1 Type 1
Click pentru a mari
PISTOL DA BATUT CUIE DEWALT DGN845D1 Type 1
Click pentru a mari
PISTOL DA BATUT CUIE DEWALT DGN845D1 Type 1
Click pentru a mari
PISTOL DA BATUT CUIE DEWALT DGN845D1 Type 1
Click pentru a mari

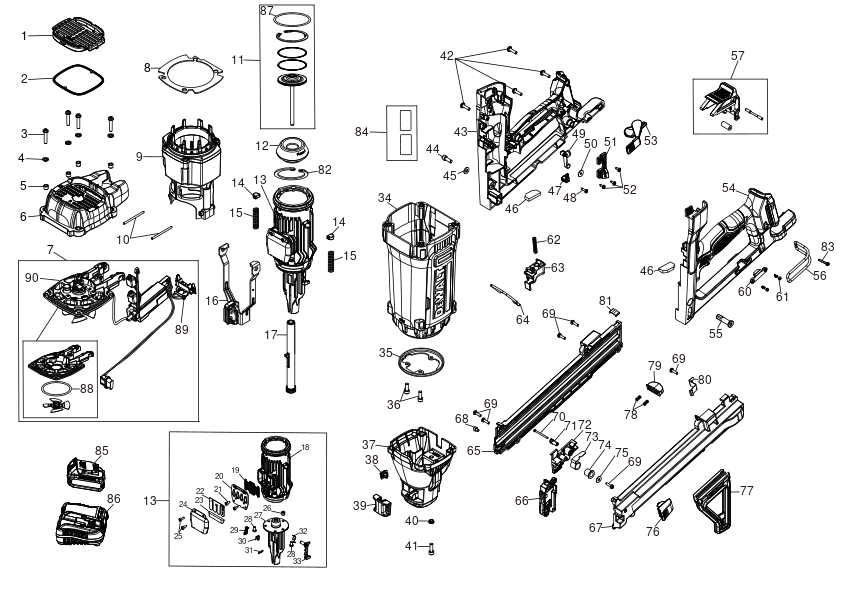

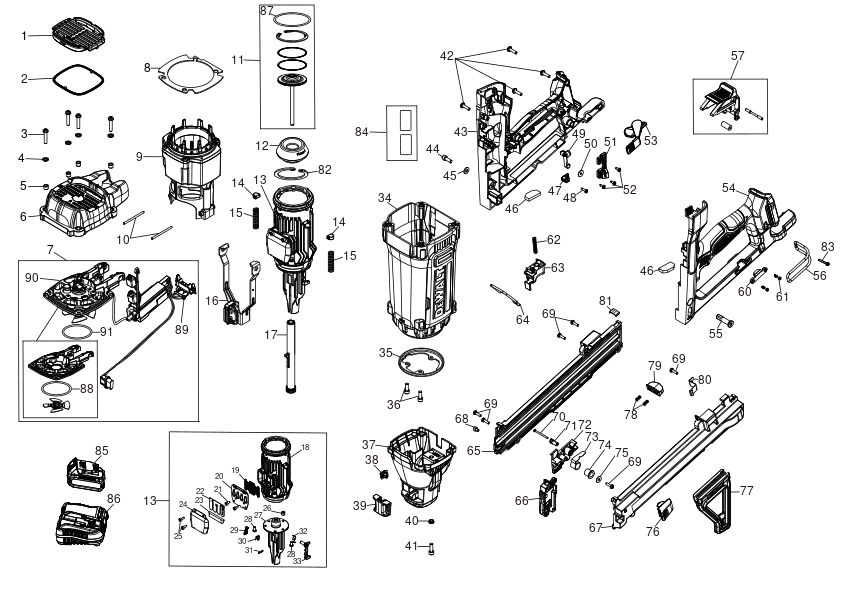

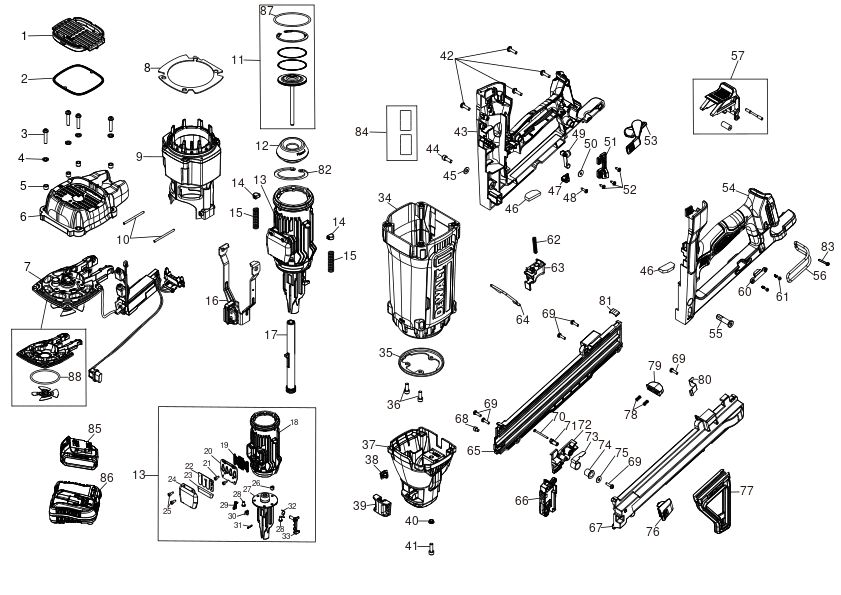

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 COVER-TOP (NA253872) 2556 RON
2 1 1 FILTER (5170080-77) 15469 RON
3 1 4 SCREW (5170080-78) 668 RON
4 1 4 WASHER (5170080-79) 588 RON
5 1 4 SPACER (5170080-80) 944 RON
6 1 1 CAP (NA236281) 9012 RON
7 1 1 CAP SA (NA620034) 425786 RON
8 1 1 SPACER (NA600396) 5370 RON
9 1 1 C5 CHAMBER KIT (NA600020) 67932 RON
10 1 2 LOCKING PIN (5170080-81) 2182 RON
11 1 1 DRIVER SA (NA600442) 148269 RON
12 1 1 BUMPER (NA600428) 15469 RON
13 1 1 CYLINDER SA (5170080-82) 327869 RON
14 1 2 BUSHING (5170080-83) 944 RON
15 1 2 SPRING (5170080-84) 588 RON
16 1 1 TRIP SA (5170080-85) 78485 RON
17 1 1 PIECE (NA291806) 104961 RON
18 1 1 CYLINDER (5170080-86) 85494 RON
19 1 1 GASKET (5170080-87) 3268 RON
20 1 1 DIAPHRAGM (5170080-88) 5370 RON
21 1 2 SCREW (5170080-89) 668 RON
22 1 1 PLATE (5170080-90) 9012 RON
23 1 1 FILTER (5170080-91) 3954 RON
24 1 1 COVER (5170080-92) 4827 RON
25 1 2 SCREW (5170080-93) 588 RON
26 1 1 SLEEVE (5170080-94) 3954 RON
27 1 1 NOSE (NA60038) 161583 RON
28 1 2 SCREW (5170080-95) 82 RON
29 1 1 LEVER (5170080-96) 5370 RON
30 1 1 SPRING (5170080-97) 668 RON
31 1 1 PIN (5170080-98) 588 RON
32 1 1 SPRING (5170080-99) 668 RON
33 1 1 BLOCK (5170081-00) 30769 RON
34 1 1 HOUSING (NA236277) 42426 RON
35 1 1 RETAINER (5170081-01) 741 RON
36 1 2 SCREW (5170081-02) 114 RON
37 1 1 HOUSING (NA236282) 11337 RON
38 1 1 BUTTON (NA315948) 82 RON
39 1 1 SLIDER (NA260001) 1933 RON
40 1 1 WASHER (5170081-03) 1933 RON
41 1 1 SCREW (5170081-04) 114 RON
42 1 4 SCREW (5170081-05) 588 RON
43 1 1 COVER (NA236280) 33797 RON
44 1 1 SCREW (5170081-06) 114 RON
45 1 1 WASHER (5170081-07) 588 RON
46 1 2 PAD (5170081-08) 114 RON
47 1 1 TRIGGER (5170081-09) 1630 RON
48 1 1 SCREW (5170081-10) 588 RON
49 1 1 CAM LEVER (5170081-11) 9012 RON
50 1 1 WASHER (5170081-12) 588 RON
51 1 1 PLATE (5170081-13) 114 RON
52 1 3 SCREW (5170081-14) 588 RON
53 1 1 CAM LEVER (NA377311) 2556 RON
54 1 1 CLAMP (NA236279) 33797 RON
55 1 1 NUT (5170081-15) 3268 RON
56 1 1 RAFTER HOOK CCN (N412549) 1933 RON
57 1 1 DOOR (5170081-16) 5370 RON
60 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
61 1 2 SCREW (N831593) 588 RON
62 1 1 SPRING (5170081-18) 588 RON
63 1 1 TRIGGER (NA265237) 2796 RON
64 1 1 BAR (5170081-19) 1933 RON
65 1 1 MAGAZINE SA (NA240835) 18568 RON
66 1 1 MAGAZINE INTERFACE (NA240802) 35435 RON
67 1 1 COVER (NA240836) 20216 RON
68 1 1 SCREW MACH M4X4.75 T20 (N123971) 558 RON
69 1 6 SCREW (N330019) 588 RON
70 1 1 SCREW (N054948) 588 RON
71 1 1 PIN (N545647) 114 RON
72 1 1 PUSHER (NA245621) 2796 RON
73 1 1 SPRING (N545684) 5370 RON
74 1 1 BUSHING (N547019) 82 RON
75 1 1 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
76 1 1 CAP LATCH 1IN(SUBC) (N545675) 82 RON
77 1 1 FOOT (NA364895) 5370 RON
78 1 2 LATCH PUSHER SPRING (N466546) 588 RON
79 1 1 MAGAZINE LATCH PUSHER (N464508) 82 RON
80 1 1 LATCH LOCK (N114100) 781 RON
81 1 1 MAGAZINE END CLIP (N464365) 588 RON
82 1 1 RING (NA600542) 4355 RON
83 1 1 SCREW (5170081-20) 944 RON
84 1 1 LABEL (5170081-21) 3954 RON
85 1 1 BATTERY 18V - 2.0AH - 36WH-DCB183-XJ (N546910) 40734 RON
86 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
87 1 1 O RING (5170087-82) 5370 RON
88 1 1 O RING (5170087-83) 9012 RON
89 1 1 PCB SA-PCBASSEMBLY UNIT (5170118-19) 200340 RON
90 1 1 CAP SA-COMBUSTION CAP UNIT (5170118-20) 308517 RON
91 1 1 5170134-32 - Indisponibil
