Top » Piese de schimb » PIESE DEWALT » DCN890 Type 2

PISTOL DA BATUT CUIE DEWALT DCN890 Type 2
[DCN890 Type 2]
PISTOL DA BATUT CUIE DEWALT DCN890 Type 2
Click pentru a mari
Imagini suplimentare
PISTOL DA BATUT CUIE DEWALT DCN890 Type 2
Click pentru a mari

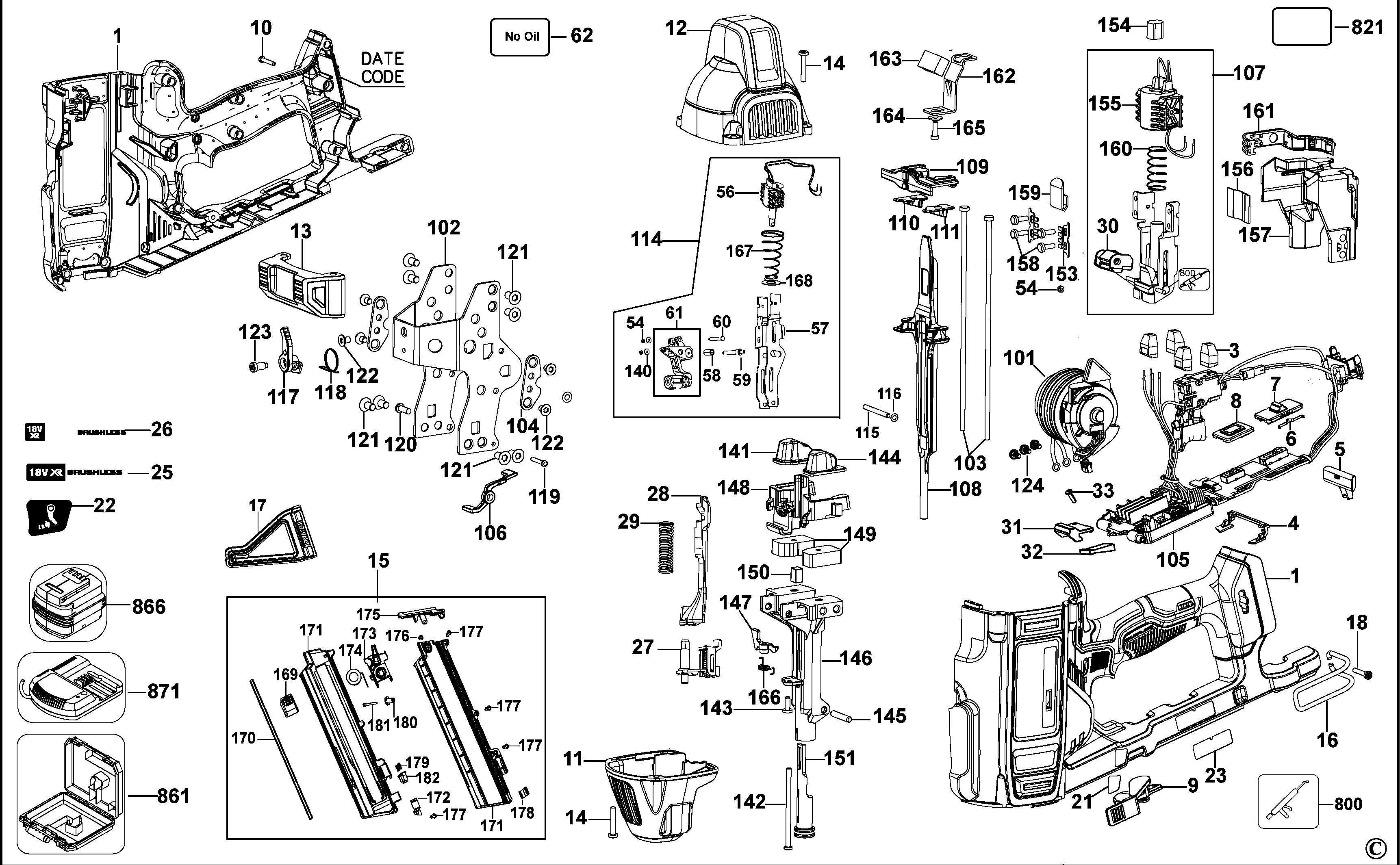

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SERVICE PACKED CCN HOUSINGS PRINTED (N534155) 27287 RON
3 1 4 CONNECTOR (650974-00) 668 RON
4 1 1 LIGHT PIPE CCN (N447434) 944 RON
5 1 1 TRIGGER LOCK OFF (UP26) (N039287) 781 RON
6 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
7 1 1 SELECTOR CAP (N403393) 82 RON
8 1 1 MODE SELECT CAP (N463655) 944 RON
9 1 1 MAGAZINE CAM (N401889) 668 RON
10 1 9 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
11 1 1 NOSE COVER (N389136) 2796 RON
12 1 1 HOUSING END CAP (N388647) 741 RON
13 1 1 REMOVABLE TOP STAND (N454225) 1318 RON
14 1 6 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
15 1 1 SERVICE PACKED 30 PIN MAGAZINE (N534148) 42426 RON
16 1 1 RAFTER HOOK CCN (N412549) 1933 RON
17 1 1 MAGAZINE SUPPORT LEG (N398048) 2556 RON
18 1 1 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
21 1 1 LABEL OPERATIONAL BATTERY INDICATOR (N475982) 944 RON
22 1 1 LABEL OPERATIONAL STALL INDICATOR (N475980) 944 RON
23 1 1 LABEL OPERATIONAL SPEED SELECT (N475979) 114 RON
25 1 1 LABEL IDENTIFICATION EURO 18V COVER (N475978) 1933 RON
26 1 1 LABEL IDENTIFICATION EURO 18V ASSY (N475977) 1933 RON
27 1 1 SERVICE PACKED SA UPPER TRIP (N541801) 15469 RON
28 1 1 HAMMER LOCK PLASTIC (N404477) 1630 RON
29 1 1 SPRING CONTACT TRIP (N384840) 588 RON
30 1 1 SERVICE PACKED SA KNOCKOVER (N608536) 5370 RON
31 1 1 N607133 - Indisponibil
32 1 1 BRUSH (N481219) 1630 RON
33 1 1 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
54 1 3 GROMMET (391814-00) 781 RON
56 1 1 PRIMARY ACTIVATION SOLENOID AND PLUNGER (N516575) 18568 RON
57 1 1 CARRIAGE (N340206) 15469 RON
58 1 1 SLEEVE (N465069) 2556 RON
59 1 1 CARRIER PIN, SPRINGLESS, LOCKOUT (N450991) 1772 RON
60 1 1 SOLENOID PIN (N340201) 944 RON
61 1 1 SERVICE PACK. SA SPRING BEAM + PINCH ROL (N604230) 67932 RON
62 1 1 1 Inch Magazine No Oil Label DCN891 (N569936) 1318 RON
101 1 1 SERVICE PACKED CCN SA MOTOR (N534153) 91363 RON
102 1 1 N387214 - Indisponibil
102 1 1 FRAME G2 (N527636) 24962 RON
103 1 2 RAIL (N339981) 6688 RON
104 1 2 MOTOR LOCATOR LEFT (N463410) 114 RON
105 1 1 SSA MODULE SERV KIT FOR CONCRETE NAILER (N750899) 104961 RON
105 1 1 N512762 - Indisponibil
106 1 1 CONTACT TRIP LINKAGE (N391224) 668 RON
107 1 1 SERVICE PACKED SA RETURN (N534184) 39318 RON
108 1 1 SERVICE PACKED CCN PROFILE (N534154) 96047 RON
109 1 1 N339980 - Indisponibil
109 1 1 RETAINER (N595152) 2796 RON
110 1 1 UPPER RIGHT BUMPER (N339985) 588 RON
111 1 1 UPPER LEFT BUMPER (N339986) 588 RON
114 1 1 SERVICE PACKED CCN SA ACTIVATION (N534149) 96047 RON
115 1 1 DOWEL PIN PTO (N389357) 944 RON
116 1 2 O-RING ID 4MM (N468984) 588 RON
117 1 1 LEVER, STALL RELEASE (N465817) 82 RON
118 1 1 TORSION SPRING (N086806) 893 RON
119 1 1 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
120 1 1 LATCH LOCK (N114100) 781 RON
121 1 8 SCREW, FLAT HEAD M6X1 (N477247) 588 RON
122 1 5 SCREW FLAT HD M5X8 (N093608) 558 RON
122 1 5 SCREW (N666247) 668 RON
123 1 1 SCREW STALL RELEASE (N113536) 781 RON
124 1 3 SCREW,MACHINE W/ EXTERNAL LOCK WASHER (N400753) 588 RON
140 1 2 WASHER PLAIN 8.25X4.25X0.607 (330016-25) 558 RON
141 1 1 N489693 - Indisponibil
141 1 1 FS- LOWER RIGHT BUMPER V2 (N744341) 2182 RON
142 1 1 GUIDE ROD CONTACT TRIP (N339966) 4827 RON
143 1 1 PIN, LOWER TRIP RELEASE (N489384) 1772 RON
144 1 1 N489694 - Indisponibil
144 1 1 FS- LOWER LEFT BUMPER V2 (N744342) 2182 RON
145 1 1 N401261 - Indisponibil
145 1 1 N718162 - Indisponibil
145 1 1 PIN-KNURLED NOSE PIN (N563121) 2182 RON
146 1 1 BRUSH NOSE MACHINED, GH (N598707) 40734 RON
147 1 1 LEVER LOWER TRIP RELEASE (N384734) 9012 RON
148 1 1 LOWER BUMPER RETAINER (N340040) 2796 RON
149 1 2 N340044 - Indisponibil
149 1 2 FS BUMPER DAMPNER (N718794) 2182 RON
150 1 1 MAGNET LIFTER CONCRETE NAILER (N446748) 1933 RON
151 1 1 SERVICE PACKED SA LOWER CONTACT TRIP FI (N534151) 20216 RON
153 1 2 SOLENOID LOCKING PLATE CCN (N471559) 668 RON
154 1 1 RETURN SOLENOID PLUNGER DAMPER (N494853) 114 RON
155 1 1 SECONDARY RETURN SOLENOID AND PLUNGER (N516576) 20216 RON
156 1 1 GAP PAD (N463179) 5370 RON
157 1 1 N387436 - Indisponibil
157 1 1 LOCATOR (N589347) 24962 RON
158 1 8 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
159 1 1 UPPER SKID PLATE, CCN (N494832) 588 RON
160 1 1 RETURN RESET SPRING (N405418) 944 RON
161 1 1 CCN SOLENOID WIRE TRAP (N461432) 1630 RON
162 1 1 REBOUND PLATE (N454679) 82 RON
163 1 1 REBOUND DAMPER (N454680) 114 RON
164 1 1 WASHER (941633-00) 558 RON
165 1 1 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
166 1 1 TORSION SPRING RELEASE (N393391) 588 RON
167 1 1 SOLENOID SPRING CDFN (N219872) 558 RON
168 1 1 SOLENOID WASHER (N114861) 558 RON
169 1 1 CAP LATCH (SUBC) (N061505) 1117 RON
170 1 1 RETAINING GUARD 30 PIN (N405025) 1933 RON
171 1 1 SERVICE PACKED CCN MAGAZINE HOUSINGS (N534257) 11337 RON
172 1 1 LATCH LOCK (N114100) 781 RON
173 1 1 CONCRETE PUSHER (MOULD) (N339965) 2182 RON
174 1 1 SPRING AND HUB (N395217) 2796 RON
175 1 1 MAGAZINE RAMPED INTERFACE, GH (N600879) 741 RON
176 1 1 SCREW MACH M4X4.75 T20 (N123971) 558 RON
177 1 5 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
178 1 1 MAGAZINE END CLIP (N464365) 588 RON
179 1 2 LATCH PUSHER SPRING (N466546) 588 RON
180 1 1 PIN LATCH (MOULD) (N061506) 781 RON
181 1 1 SCREW PLSTC THD FORM M3 12X25 (330019-62) 558 RON
182 1 1 MAGAZINE LATCH PUSHER (N464508) 82 RON
800 1 1 GREASE (N017298) 4825 RON
821 1 1 N636350 - Indisponibil
861 1 1 SA KITBOX CONCRETE NAILER (MOULD) (N466963) 23244 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
