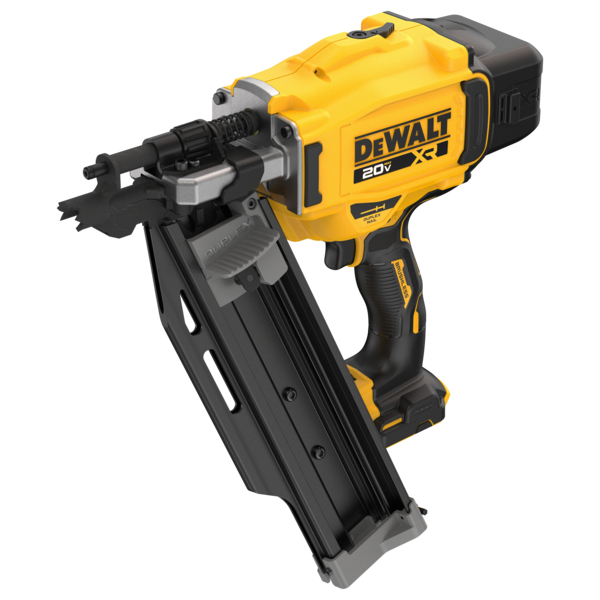

PISTOL DE BATUT CUIE CU ACUMULATOR DEWALT DCN910N Type 1
[DCN910N Type 1]
PISTOL DE BATUT CUIE CU ACUMULATOR DEWALT DCN910N Type 1
Click pentru a mari
Imagini suplimentare
PISTOL DE BATUT CUIE CU ACUMULATOR DEWALT DCN910N Type 1
Click pentru a mari
PISTOL DE BATUT CUIE CU ACUMULATOR DEWALT DCN910N Type 1
Click pentru a mari

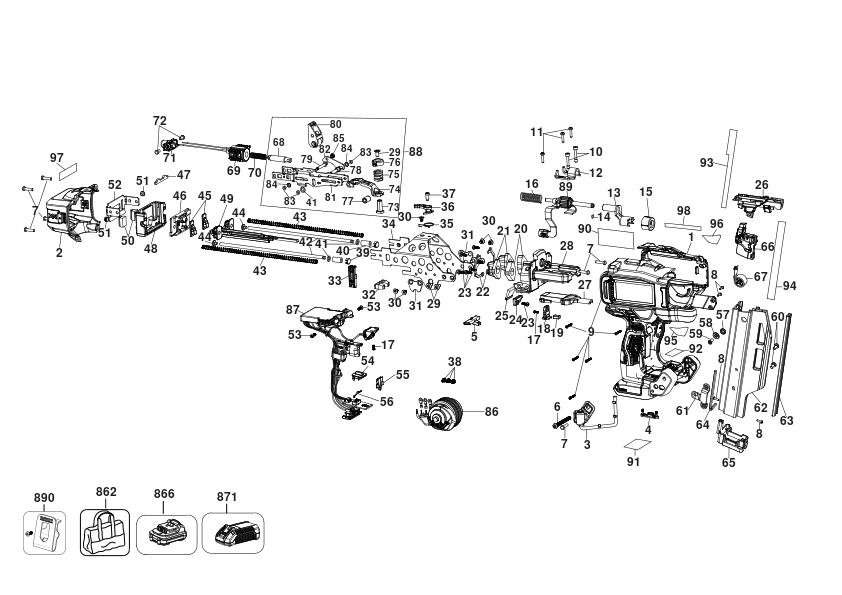

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA644503) 23244 RON
2 1 1 END CAP SA (NA610859) 23244 RON
3 1 1 HOOK-SA RAFTER HOOK (NA104184) 3268 RON
4 1 1 COVER (N791558) 588 RON
5 1 1 BUTTON LOCK-OFF (NA257998) 668 RON
6 1 1 SCREW (NA232544) 588 RON
7 1 7 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
8 1 2 SCREW PLASTIC (330019-41) 588 RON
9 1 6 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
10 1 2 BOLT (NA381864) 588 RON
11 1 3 SCREW, MACH, M4X17 T20 TAMPERPROOF (N432422) 588 RON
12 1 1 TRIP SUPPORT AND STOP (N034374) 2124 RON
13 1 1 BARREL (NA455856) 741 RON
14 1 1 CLIP (N536265) 588 RON
16 1 1 SPRING (N587227) 668 RON
17 1 2 Screw Taptite (330045-43) 558 RON
18 1 1 HOLDER (NA552189) 588 RON
19 1 1 MAGNET (N659195) 1772 RON
20 1 2 DAMPER (N868561) 1772 RON
21 1 2 BUMPER (NA206021) 9012 RON
22 1 2 RETAINER (N851295) 114 RON
23 1 7 SCREW TAPTITE M4 (324006-16) 2124 RON
24 1 1 MOUNT (NA090285) 588 RON
25 1 1 BRUSH (N481219) 1630 RON
26 1 1 MAGAZINE INTERFACE (NA670693) 27287 RON
27 1 1 INSERT (NA670690) 25728 RON
28 1 1 NOSE SA (NA309161) 13697 RON
29 1 5 SCREW, FLAT HEAD M6X1 (N477247) 588 RON
30 1 5 SCREW (N666247) 668 RON
31 1 2 MOTOR LOCATOR (N506404) 668 RON
32 1 2 CONNECTOR (650974-00) 668 RON
33 1 1 CABLE CLAMP (NA167655) 588 RON
34 1 1 FRAME (N855838) 23244 RON
35 1 1 TORSION SPRING (N086806) 893 RON
36 1 1 LEVER RELEASE (NA094894) 944 RON
37 1 1 SCREW STALL RELEASE (N113536) 781 RON
38 1 3 SCREW,MACHINE W/ EXTERNAL LOCK WASHER (N400753) 588 RON
39 1 2 SPRING RAIL CLIP (N192671) 558 RON
40 1 2 SPRING BUMPER (N088831) 1788 RON
41 1 3 WASHER HARDENED (N088833) 558 RON
42 1 2 RAIL-NO NEED FOR SCREW OR LOCTIGHT (NA318699) 588 RON
43 1 2 SA PACKED RETURN SPRING (SERVICE) (N233943) 22144 RON
44 1 2 SCREW M3.5X6 PAN (N088832) 2124 RON
45 1 2 BUMPER (NA018403) 668 RON
46 1 1 RETAINER (N855834) 1772 RON
47 1 1 LIFTER (N624713) 114 RON
48 1 1 HOLDER (NA296374) 2182 RON
49 1 1 DRIVER (NA723470) 10889 RON
50 1 2 DAMPER (NA165657) 114 RON
51 1 2 SCREW (NA309197) 588 RON
52 1 1 PLATE (NA292207) 2182 RON
53 1 2 SCREW (330065-07) 558 RON
54 1 1 MODE SELECT CAP (N515453) 1630 RON
55 1 1 LENS (NA145281) 588 RON
56 1 1 DETENT SPRING (N388602) 82 RON
57 1 1 SPACER (NA044621) 588 RON
58 1 1 SPACER (NA044620) 944 RON
59 1 1 SCREW (NA044628) 588 RON
60 1 2 SCREW M5X.8X10 MACHINE (609932-00) 558 RON
61 1 1 MOUNT-MAGAZINE 21 DEGREE (NA073727) 1933 RON
62 1 1 MAGAZINE (NA723449) 28836 RON
63 1 1 LINER-21 DEGREE (NA044618) 4355 RON
64 1 1 WRENCH HEX (N061664) 781 RON
65 1 1 END CAP (NA706188) 944 RON
66 1 1 PUSHER-21 DEGREE (NB423118) 5370 RON
67 1 1 SPRING SA (NA044317) 2556 RON
68 1 1 PLUNGER (N720305) 2182 RON
69 1 1 SOLENOID ASSEMBLY (N657871) 16689 RON
70 1 1 SPRING (NA412352) 668 RON
71 1 1 MOUNT (NA477635) 1772 RON
72 1 2 SCREW (330019-10) 558 RON
73 1 1 MOUNT (NA036268) 2556 RON
74 1 1 BEAM (NA669729) 13697 RON
75 1 1 PINCH ROLLER SPRING (N309239) 4472 RON
76 1 1 CAP (N825150) 6688 RON
77 1 1 BUSH (N631775) 82 RON
78 1 1 PIN (NA091358) 1772 RON
79 1 1 PIN (NA098846) 1630 RON
80 1 1 CARRIER (NA094062) 13697 RON
81 1 1 CARRIAGE (NA266115) 20216 RON
82 1 1 PLATE (NA382827) 944 RON
83 1 3 WASHER (854004) 781 RON
84 1 2 WASHER (NA815316) 588 RON
85 1 1 SCREW (NA385042) 588 RON
86 1 1 MOTOR SA (NA495396) 99395 RON
87 1 1 CONTROL MODULE SA (NA495397) 104961 RON
88 1 1 CARRIAGE SA (NA495400) 91363 RON
88 1 1 NB461747 - Indisponibil
89 1 1 CONTACT BAR (NB423119) 73079 RON
90 1 1 WASHER (NA815316) 588 RON
91 1 1 LABEL (NA815317) 588 RON
92 1 1 LED LABEL (NA190909) 588 RON
95 1 1 LABEL (NA815318) 588 RON
96 1 1 LABEL (NA815319) 588 RON
97 1 1 LABEL (NA815320) 588 RON
98 1 1 LABEL INFORMATION 18V XR EANZ (NA392954) 944 RON
