PISTOL DE BATUT CUIE CU ACUMULATOR DEWALT DCN692 Type 3
[DCN692 Type 3]
PISTOL DE BATUT CUIE CU ACUMULATOR DEWALT DCN692 Type 3
Click pentru a mari
Imagini suplimentare
PISTOL DE BATUT CUIE CU ACUMULATOR DEWALT DCN692 Type 3
Click pentru a mari
PISTOL DE BATUT CUIE CU ACUMULATOR DEWALT DCN692 Type 3
Click pentru a mari

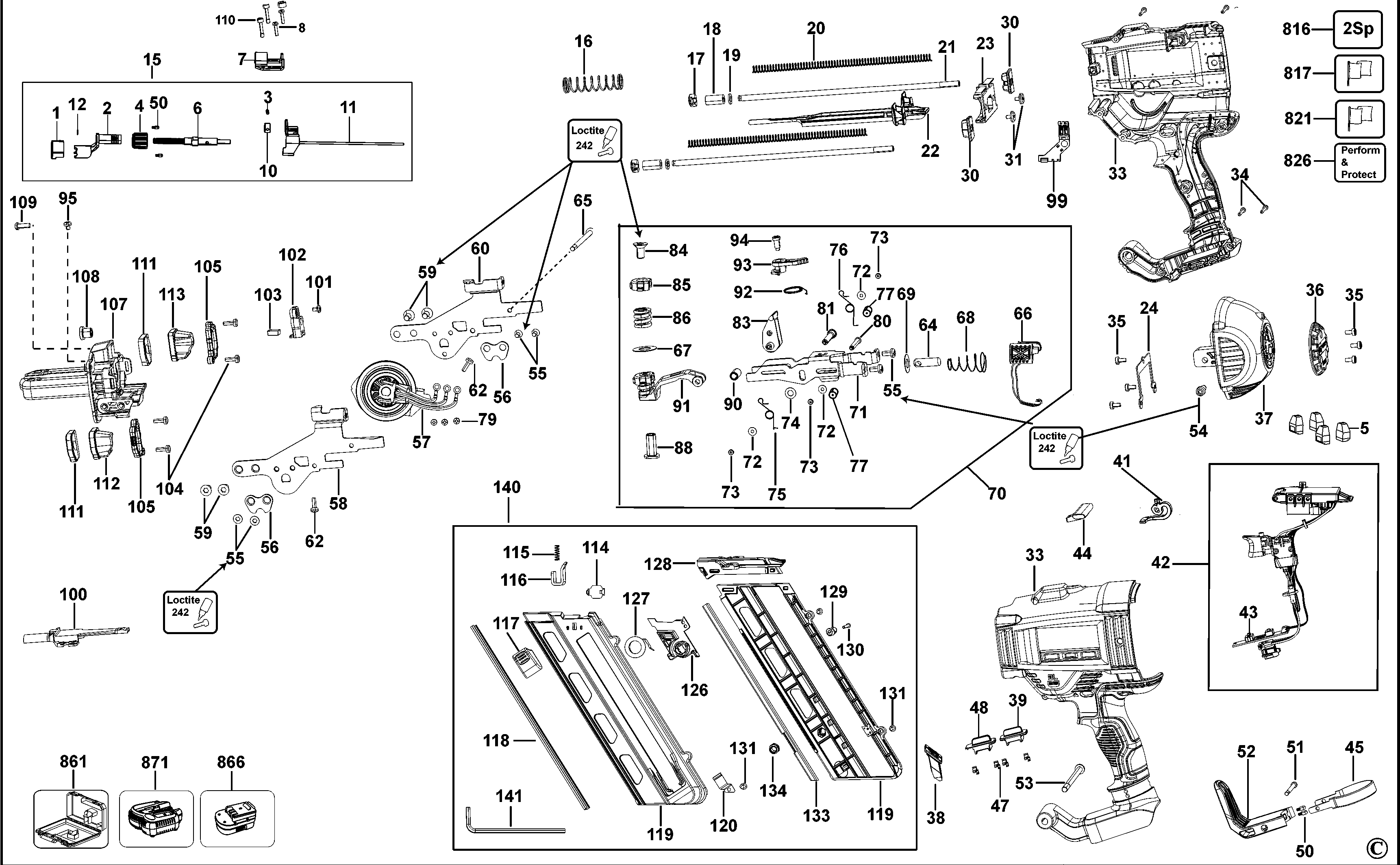

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 NOMAR COVER CDFN (N116163) 1452 RON
2 1 1 N604316 - Indisponibil
2 1 1 N535993 - Indisponibil
2 1 1 SA BARREL AND STAMPING (N604786) 741 RON
3 1 1 PIN, COILED M3 X 12 (N506583) 588 RON
4 1 1 DEPTH KNOB YELLOW (MOULD) (N402075) 3268 RON
4 1 1 NA166128 - Indisponibil
5 1 4 CONNECTOR (650974-00) 668 RON
6 1 1 INNER SHAFT (N535992) 4355 RON
7 1 1 TRIP SUPPORT AND STOP (N034374) 2124 RON
8 1 2 SCREW, MACH, M4X17 T20 TAMPERPROOF (N432422) 588 RON
10 1 1 RETAINING SLEEVE (N044294) 1117 RON
11 1 1 SA TRIP ROD AND UPPER (SERVICE) (N380152) 10512 RON
12 1 1 N514939 - Indisponibil
12 1 1 CLIP (N536265) 588 RON
15 1 1 SERVICE KIT SA CONTACT TRIP TY03 (N601072) 25728 RON
16 1 1 SPRING TRIP (N061508) 781 RON
17 1 2 SPRING RAIL CLIP (N192671) 558 RON
18 1 2 SPRING BUMPER (N088831) 1788 RON
19 1 2 WASHER HARDENED (N088833) 558 RON
20 1 1 SA PACKED RETURN SPRING (SERVICE) (N233943) 22144 RON
21 1 2 RAIL (N036350) 7940 RON
22 1 1 SERVICE KIT HI-CLEARANCE PROFILE COATED (N601077) 49114 RON
23 1 1 N422047 - Indisponibil
23 1 1 CAP (N593125) 1772 RON
24 1 1 ENDCAP RETAINER PLATE (N121870) 781 RON
30 1 1 SA PACKED MCN UPPER BUMBERS (SERVICE) (N469514) 1318 RON
31 1 2 SCREW M3.5X6 PAN (N088832) 2124 RON
33 1 1 SERVICE KIT SA GEN 3 HOUSING W/PAD PRINT (N601074) 16689 RON
34 1 8 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
35 1 6 SCREW FORM M4X8 (N123731) 781 RON
36 1 1 HOUSING END CAP COVER (MOULD) (N061544) 2347 RON
37 1 1 HOUSING END CAP (N586670) 10241 RON
38 1 1 STALL INDICATOR LENS (N497221) 668 RON
39 1 1 MODE SELECT CAP (N515453) 1630 RON
41 1 1 ACTUATOR SPRING (N055786) 1229 RON
42 1 1 SSA MODULE SERV.KIT FOR FRAMING NAILER (N512734) 96047 RON
43 1 1 000000-00 - Indisponibil
44 1 1 TRIGGER LOCK OFF (UP26) (N039287) 781 RON
45 1 1 BAND, RAFTER HOOK (N501977) 1933 RON
47 1 4 DETENT SPRING (N388602) 82 RON
48 1 1 SPEED SELECT CAP (N485355) 114 RON
50 1 4 DETENT (326467-00) 558 RON
51 1 1 M4x35 T15 (N093728) 781 RON
52 1 1 WINDOWED RAFTER HOOK (N496890) 944 RON
53 1 1 SCREW MACH M6X80 (N123751) 105 RON
54 1 2 SCREW SHOULDER M5 (N093611) 105 RON
55 1 6 SCREW FLAT HD M5X8 (N093608) 558 RON
55 1 6 SCREW (N666247) 668 RON
56 1 2 MOTOR LOCATOR (N506404) 668 RON
57 1 1 MOTOR SA (N601145) 113822 RON
58 1 1 FRAME LH (N675837) 5370 RON
58 1 1 N491708 - Indisponibil
59 1 4 SCREW, FLAT HEAD M6X1 (N477247) 588 RON
60 1 1 GEN 3 RIGHT FRAME (N495030) 5370 RON
62 1 2 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
64 1 1 PIN (N126788) 15469 RON
64 1 1 SOLENOID PLUNGER (N083640) 190 RON
65 1 1 SCREW, SHOULDER, M5X75 (N439516) 944 RON
66 1 1 SOLENOID ASSEMBLY (N519574) 18568 RON
67 1 1 SOLENOID WASHER (N114861) 558 RON
68 1 1 SOLENOID SPRING CDFN (N219872) 558 RON
69 1 1 SOLENOID WASHER (N114861) 558 RON
70 1 1 SERVICE KIT SA ACTIVATION G3, RIDGED (N601142) 91363 RON
71 1 1 N401895 - Indisponibil
71 1 1 CARRIAGE (N586801) 15469 RON
72 1 3 WASHER PLAIN 8.25X4.25X0.607 (330016-25) 558 RON
73 1 3 GROMMET (391814-00) 781 RON
74 1 1 SOLENOID WASHER 1 (N114961) 558 RON
75 1 1 N231397 - Indisponibil
75 1 1 TORSION SPRING SHOT PEENED (SUBC) cod vechi N231397 (N613043) 190 RON
76 1 1 TORSION SPRING SHOT PEENED (SUBC) (N231398) 190 RON
76 1 1 SPRING (N613044) 1772 RON
77 1 2 TORSION SPRING ISOLATOR (N235059) 588 RON
79 1 3 SCREW,MACHINE W/ EXTERNAL LOCK WASHER (N400753) 588 RON
80 1 1 N083553R - Indisponibil
80 1 1 SOLENOID PIN (N083553) 190 RON
81 1 1 COATED CARRIER PIN (N496675) 3268 RON
83 1 1 SA PACKED PINCH ROLLER CARRIER (SERVICE) (N233950) 22144 RON
84 1 1 SCREW, FLAT HEAD M6X1 (N477247) 588 RON
85 1 1 SPRING CAP G3 (N547209) 741 RON
86 1 1 PINCH ROLLER SPRING (N309239) 4472 RON
88 1 1 SPRING KEEPER (N035104) 3466 RON
90 1 1 SLEEVE (N465069) 2556 RON
91 1 1 SERVICE KIT SA SPRING BEAM G3 (N601076) 27287 RON
92 1 1 TORSION SPRING (N086806) 893 RON
93 1 1 LEVER STALL RELEASE (MOULD X) (N086157) 893 RON
94 1 1 SCREW STALL RELEASE (N113536) 781 RON
95 1 1 SCREW MACH M4X4.75 T20 (N123971) 558 RON
99 1 1 SERVICE KIT WIRE TRAP, FRAMER GEN 3 (N601147) 3268 RON
99 1 1 WIRE TRAP, FRAMER GEN 3 (N497012) 588 RON
100 1 1 SA PACKED NOSE INSERT ROUND (SERVICE) (N233939) 20467 RON
100 1 1 INSERT-NOSE, ROUND (N093798) 18568 RON
101 1 1 FILLISTER HEAD SCREW (949894-06) 558 RON
102 1 1 HOLDER HOME MAGNET (MOULD) (N390881) 668 RON
103 1 1 MAGNET LIFTER (N089554) 4137 RON
104 1 4 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
105 1 2 BUMPER RETAINER (MOULD X) (N082940) 558 RON
107 1 1 BACKBONE, MACH GEN 3 (N481055) 12361 RON
108 1 1 BUSHING TRIP (N061668) 2124 RON
109 1 2 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
110 1 2 BOLT MAGAZINE (N061605) 893 RON
111 1 2 BUMPER DAMPER (N133209) 781 RON
112 1 1 N207633 - Indisponibil
112 1 1 SA PACKED LWR RH + LH BUMPERS (SERVICE) (N233940) 2795 RON
113 1 1 N207632 - Indisponibil
113 1 1 SA PACKED LWR RH + LH BUMPERS (SERVICE) (N233940) 2795 RON
114 1 1 DRY-FIRE LOCK RETAINER (N034726) 558 RON
115 1 1 DRY-FIRE LOCK SPRING (N061545) 558 RON
116 1 1 DRYFIRE LOCK 24 DEG (N307220) 1229 RON
117 1 1 CAP LATCH (SUBC) (N061505) 1117 RON
118 1 1 RETAINING GUARD (N034716) 2124 RON
119 1 1 SA MAGAZINE PARTS (SERVICE) (N380178) 12861 RON
120 1 1 LATCH LOCK (N114100) 781 RON
126 1 1 SA PUSHER (MOULD) (N054935) 2347 RON
127 1 1 SA SPRING AND HUB (N128653) 3018 RON
128 1 1 MAGAZINE INTERFACE NOTCHED (N397144) 21676 RON
129 1 1 PIN LATCH (MOULD) (N061506) 781 RON
130 1 1 SCREW PLSTC THD FORM M3 12X25 (330019-62) 558 RON
131 1 3 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
133 1 1 NAIL LINER (N034743) 2347 RON
134 1 1 NUT (397893-00) 558 RON
134 1 1 NUT STOP ELASTIC M6X1 (330021-07) 558 RON
140 1 1 SA PACKED SA MAGAZINE (SERVICE) (N260859) 59725 RON
141 1 1 WRENCH HEX (N061664) 781 RON
816 1 1 LABEL 2 SPEED DCN692 EURO (N377936) 105 RON
817 1 1 LOGO LABEL EURO 2 SPEED (N363160) 1117 RON
821 1 1 N561840 - Indisponibil
821 1 1 RATING LABEL (NA126037) 944 RON
826 1 1 PERFORM AND PROTECT 2 SPEED LOGO LABEL (N363139) 1117 RON
861 1 1 SA KITBOX NAILER (MOULD) (N137841) 25164 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
900 1 1 WINDOW (N576034) 588 RON
