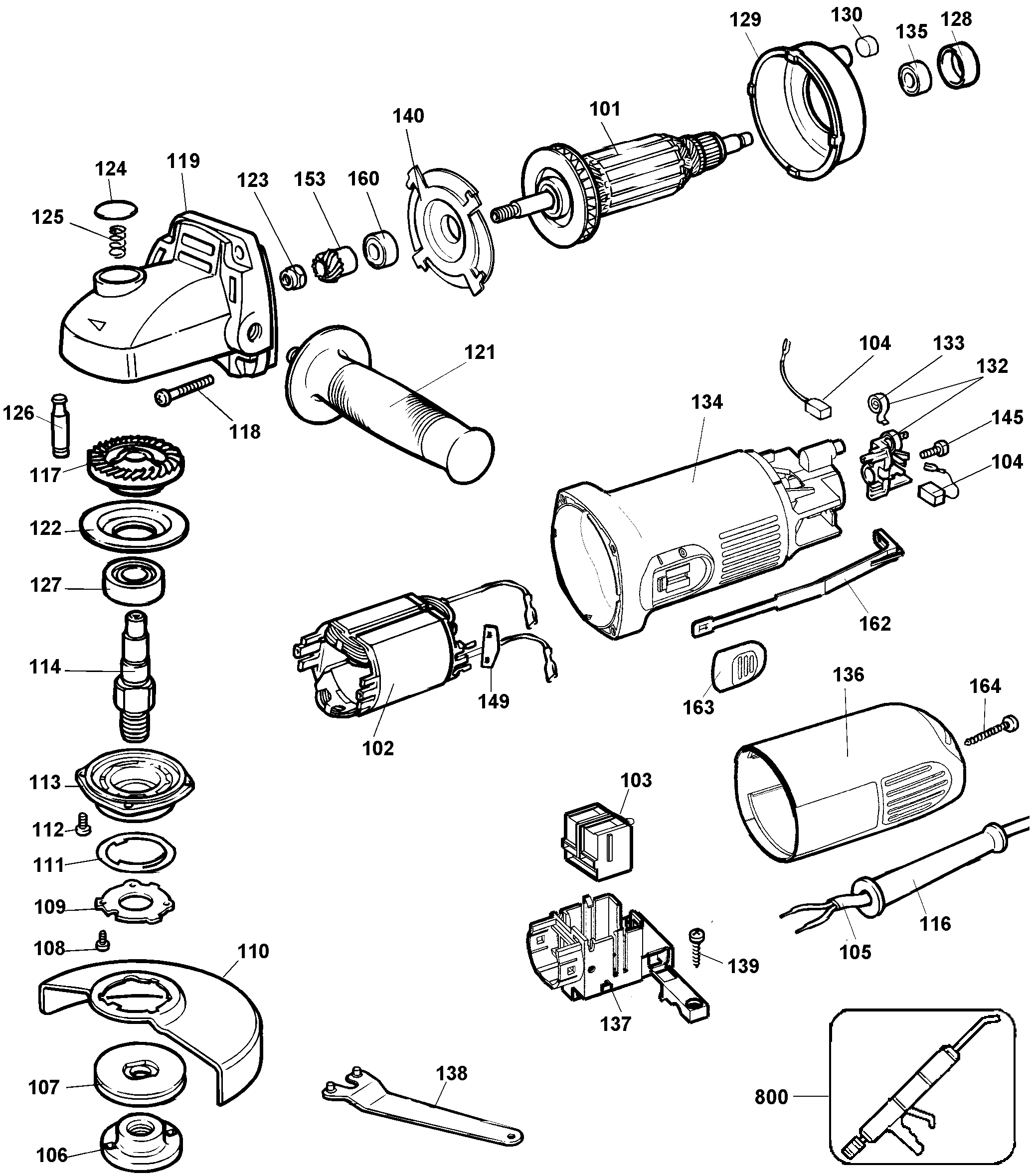

OEM BERNER SAG DEWALT BWS31 Type 3
[BWS31 Type 3]
OEM BERNER SAG DEWALT BWS31 Type 3
Click pentru a mari
Imagini suplimentare
OEM BERNER SAG DEWALT BWS31 Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 ARMATURE FOR DW824 (393921-07) 23598 RON
101 1 1 ARMATURE (949631-02) 20467 RON
102 1 1 FIELD 230V DW818/DW824 (395990-00) 15993 RON
103 1 1 SWITCH (945614-00) 4137 RON
103 1 1 NA952688 - Indisponibil
104 1 2 BRUSH 230V CUT OFF (949646-02) 3018 RON
105 1 1 CABLE (562226-08) 6821 RON
106 1 1 WASHER OUTER CLAMP (401678-01) 2795 RON
106 1 1 WASHER OUTER CLAMP PAINTED (401678-05) 2795 RON
107 1 1 INNER FLANGE (391969-00) 1788 RON
108 1 3 SCREW (562160-06) 558 RON
109 1 1 Flange For Wheel Guard (944674-00) 781 RON
109 1 1 FLANGE (605415-00) 781 RON
110 1 1 GUARD (944586-00) 2795 RON
111 1 1 Spring Guard(Ring) (944577-00) 781 RON
111 1 1 Guard Spring (393576-00) 781 RON
112 1 4 SCREW (330045-46) 558 RON
112 1 4 SCREW (562160-07) 558 RON
113 1 1 Gear Case Cover DW831 (390521-00) 3018 RON
114 1 1 AXLE FOR DW818 (391971-00) 5031 RON
116 1 1 N542553 - Indisponibil
116 1 1 PROTECTOR CORD (330005-01) 105 RON
116 1 1 CORD PROTECTOR (N918736) 668 RON
117 1 1 391489-00 - Indisponibil
118 1 4 SCREW (562097-01) 558 RON
119 1 1 569599-03 - Indisponibil
119 1 1 945303-02 - Indisponibil
119 1 1 SERVICE KIT (610704-00) 6821 RON
121 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
121 1 1 SIDE HANDLE (573115-00) 1452 RON
122 1 1 FLANGE WS45 (403156-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 BUTTON (944574-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 BEARING (949625-02) 7940 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 SLEEVE BEARING (930275-00) 558 RON
129 1 1 BAFFLE (401623-00) 781 RON
130 1 2 PLUG (949638-01) 558 RON
132 1 2 395982-00 - Indisponibil
133 1 2 TORSION SPRING (562204-00) 558 RON
134 1 1 FIELD CASE KIT (610612-03) 4137 RON
134 1 1 395243-05 - Indisponibil
135 1 1 BEARING (390821-00) 5591 RON
135 1 1 BEARING (605040-02) 1788 RON
136 1 1 394938-04 - Indisponibil
136 1 1 HANDLE SA (392038-00) 2795 RON
137 1 1 SWITCH SUPPORT (569625-00) 1452 RON
137 1 1 SWITCH SUPPORT (5140000-13) 190 RON
138 1 1 Wrench(Spanner) DW831 (401680-00) 2124 RON
139 1 1 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
145 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
149 1 2 PAD (402489-00) 558 RON
153 1 1 PINION (945592-01) 4472 RON
160 1 1 390821-01 - Indisponibil
160 1 1 BEARING BALL (330003-60) 190 RON
160 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
162 1 1 LINK WS31 (569626-01) 1117 RON
162 1 1 LINK (611737-00) 893 RON
163 1 1 BUTTON (569624-02) 558 RON
163 1 1 BUTTON (569624-01) 781 RON
164 1 1 SCREW (562097-13) 558 RON
800 1 1 GREASE (286436-00) 70239 RON
816 1 1 396158-00 - Indisponibil
821 1 1 396162-00 - Indisponibil
