Top » Piese de schimb » PIESE DEWALT » DCMCST635N Type 1

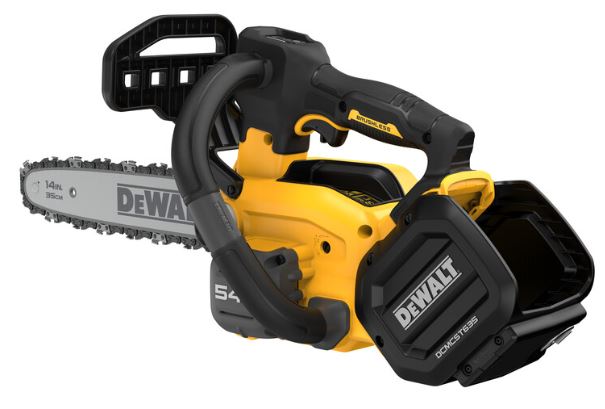

MOTOFIERASTRAU DEWALT DCMCST635N Type 1
[DCMCST635N Type 1]
MOTOFIERASTRAU DEWALT DCMCST635N Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU DEWALT DCMCST635N Type 1
Click pentru a mari
MOTOFIERASTRAU DEWALT DCMCST635N Type 1
Click pentru a mari
MOTOFIERASTRAU DEWALT DCMCST635N Type 1
Click pentru a mari

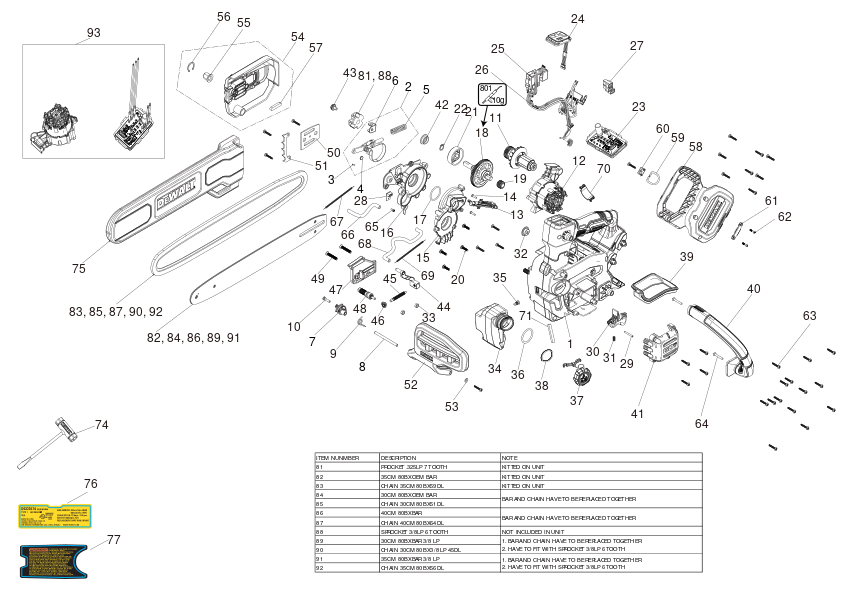

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA354638) 23244 RON
2 1 1 BRAKE SA (NA597016) 10241 RON
3 1 1 PIN (90594864) 588 RON
4 1 1 N572224 - Indisponibil
5 1 1 SPRING (NA047674) 668 RON
6 1 1 BRAKE (NA237802) 668 RON
7 1 1 CAM (NA490214) 5370 RON
8 1 1 PIN-5MM (N837653) 82 RON
9 1 1 SPRING (NA292778) 588 RON
10 1 1 SCREW (90500654) 558 RON
11 1 1 ROTOR SA (NA407548) 25728 RON
12 1 1 BAFFLE SA (NA410483) 36994 RON
13 1 1 PUMP (NA018750) 13697 RON
14 1 2 SCREW (330019-28) 588 RON
15 1 1 GEARCASE SA (NA049165) 13697 RON
16 1 1 GEARCASE COVER (NA490205) 15469 RON
17 1 1 O RING (N439121) 588 RON
18 1 1 OUTPUT SHAFT SA (NA410492) 12361 RON
19 1 1 Gear (N682600) 668 RON
20 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
21 1 1 DRUM (NA063524) 2796 RON
22 1 1 LOCKING RING (624521-00) 558 RON
23 1 1 MODULE (NA411008) 55455 RON
24 1 1 MODULE (NA240739) 27287 RON
25 1 1 WIRE HARNESS (NA257985) 20216 RON
26 1 1 WIRE HARNESS (NA257991) 6688 RON
27 1 2 CONNECTOR (650974-00) 668 RON
28 1 1 SENSOR (N576084) 4827 RON
29 1 1 PIN (5119820-00) 588 RON
30 1 1 TRIGGER (NA354641) 2556 RON
31 1 1 SPRING (N433343) 588 RON
32 1 1 SEAL (NA304771) 588 RON
33 1 2 NUT (N506901) 588 RON
34 1 1 TANK (NA088784) 3268 RON
35 1 1 VALVE (90618295) 588 RON
36 1 1 GASKET (N564358) 588 RON
37 1 1 CAP SA (N615366) 2556 RON
38 1 1 O RING (N654901) 588 RON
39 1 1 FINGER (NA205539) 1630 RON
40 1 1 HANDLE (NA045756) 5370 RON
41 1 1 CAP (NA354640) 4355 RON
42 1 1 SEAL (N859252) 588 RON
43 1 1 BOLT (90639221) 588 RON
43 1 1 BOLT (NA791848) 588 RON
44 1 1 TENSION BLOCK (N855253) 2556 RON
45 1 1 SCREW (N855275) 1318 RON
46 1 1 Gear (NA231996) 1933 RON
47 1 1 COVER (NA293416) 3954 RON
48 1 1 GEAR SA (NA304068) 3268 RON
49 1 2 SCREW (N858609) 588 RON
50 1 1 PLATE (NA085313) 944 RON
51 1 1 PLATE (NA232411) 944 RON
52 1 1 GUARD (NA073594) 3268 RON
53 1 1 WASHER PLAIN (330016-01) 558 RON
54 1 1 COVER SPOOL (NA411012) 11337 RON
55 1 1 NUT (NA217422) 1630 RON
56 1 1 RING (NA128407) 588 RON
57 1 1 SEAL (90622086) 588 RON
58 1 1 BATTERY CASE SA (NA366335) 6688 RON
58 1 1 BATTERY CASE SA (NA779811) 9012 RON
58 1 1 BATTERY CASE SA (NA772602) 6688 RON
59 1 1 RING (NA200828) 588 RON
59 1 1 NA612560 - Indisponibil
59 1 1 BATTERY CASE SA (NA779811) 9012 RON
60 1 1 BRAKE (NA278231) 588 RON
60 1 1 NA612560 - Indisponibil
60 1 1 BATTERY CASE SA (NA779811) 9012 RON
61 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
62 1 2 SCREW (N831593) 588 RON
63 1 30 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
64 1 2 SCREW (330019-05) 558 RON
65 1 1 SCREW (90566914) 588 RON
66 1 1 TUBE (NA291826) 82 RON
67 1 1 SPRING (NA291975) 588 RON
67 1 1 SPRING (NA630195) 588 RON
68 1 1 TUBE (NA291827) 944 RON
69 1 1 SPRING (NA291976) 588 RON
70 1 1 COVER (NA375014) 588 RON
71 1 1 FOAM (NA388447) 588 RON
74 1 1 WRENCH (NA209088) 3268 RON
75 1 1 SHEATH (NA318119) 4355 RON
76 1 1 RATING LABEL (NA352522) 588 RON
77 1 1 WARNING LABEL (NA352521) 588 RON
81 1 1 SPROCKET (NA265339) 2556 RON
82 1 1 BAR (NA373390) 16689 RON
83 1 1 CHAIN (NA291649) 18568 RON
84 1 1 BAR (NA373392) 16689 RON
85 1 1 CHAIN (NA291648) 16689 RON
86 1 1 BAR (NA373387) 21676 RON
87 1 1 CHAIN (NA291650) 20216 RON
88 1 1 SPROCKET (90585879) 1933 RON
89 1 1 BAR (N594322) 12361 RON
90 1 1 CHAIN (N580237) 10241 RON
91 1 1 BAR (N594320) 23244 RON
92 1 1 CHAIN (N594321) 12361 RON
93 1 1 MOTOR SA (NA427114) 91363 RON
101 1 1 SPRING (NB159959) 588 RON
801 1 1 GREASE TUBE (583534-00) 29862 RON
900 1 1 SCREW (NA730652) 588 RON
