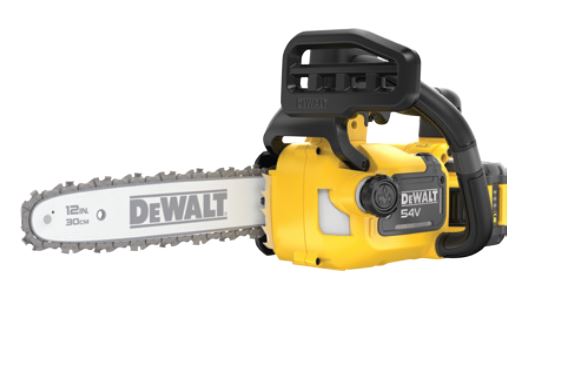

MOTOFIERASTRAU DEWALT DCMCST632X1 Type 1
[DCMCST632X1 Type 1]
MOTOFIERASTRAU DEWALT DCMCST632X1 Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU DEWALT DCMCST632X1 Type 1
Click pentru a mari
MOTOFIERASTRAU DEWALT DCMCST632X1 Type 1
Click pentru a mari
MOTOFIERASTRAU DEWALT DCMCST632X1 Type 1
Click pentru a mari
MOTOFIERASTRAU DEWALT DCMCST632X1 Type 1
Click pentru a mari

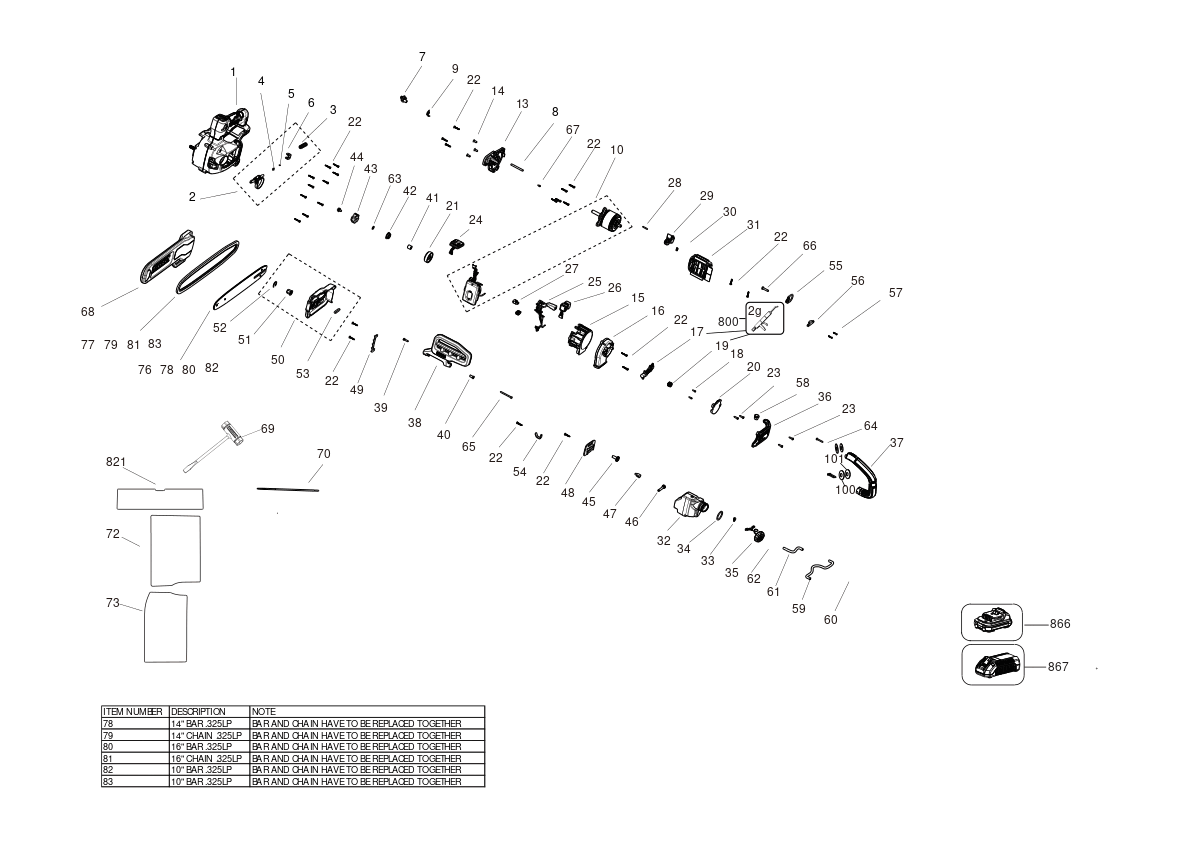

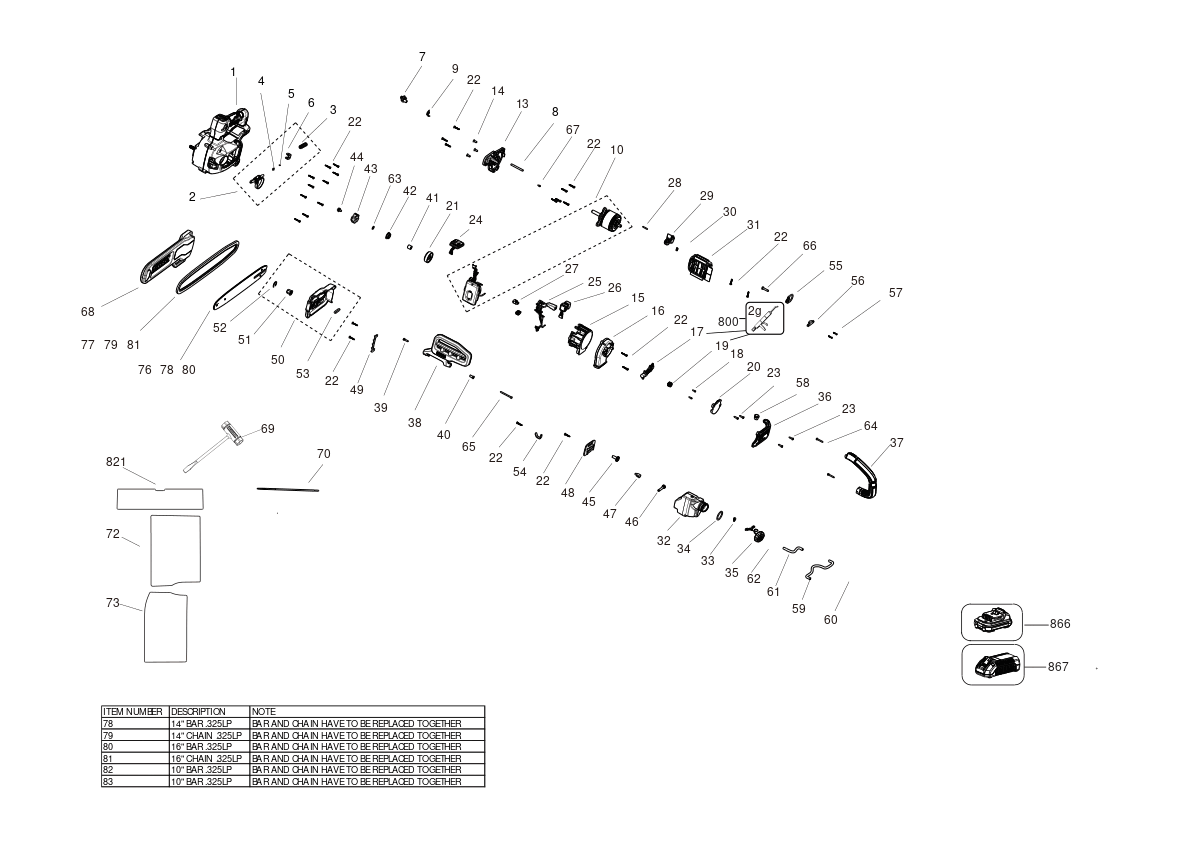

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA694336) 28836 RON
2 1 1 BRAKE SA (NA597016) 10241 RON
3 1 1 SPRING (NA047674) 668 RON
5 1 1 PIN (90594864) 588 RON
6 1 1 BRAKE (NA237802) 668 RON
7 1 1 CAM (NA490214) 5370 RON
8 1 1 PIN (90608944) 588 RON
9 1 1 SPRING (NA292778) 588 RON
10 1 1 MOTOR SA-MOTOR & MODULE (NB038345) 125542 RON
13 1 1 PLATE (NA553056) 4827 RON
14 1 3 SCREW-M5*0.8 (NA940623) 4827 RON
15 1 1 SHROUD (NA341882) 4827 RON
16 1 1 BAFFLE (NA638885) 4827 RON
17 1 1 ADAPTOR SA (NA595567) 6688 RON
18 1 2 SCREW PLASTIC (330019-41) 588 RON
19 1 1 Gear (NA670459) 4827 RON
20 1 1 SHROUD (NA607646) 4827 RON
21 1 1 DRUM-10MM (NA578449) 4827 RON
22 1 26 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
23 1 4 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
24 1 1 MODULE (NB104833) 23244 RON
25 1 1 WIRE HARNESS (NA588855) 4827 RON
26 1 1 TRIGGER (NA557505) 4827 RON
27 1 2 CONNECTOR (650974-00) 668 RON
28 1 1 PIN (N516878) 588 RON
29 1 1 TRIGGER (NA292176) 2556 RON
30 1 1 SPRING (N433343) 588 RON
31 1 1 INSERT (NA342036) 4827 RON
32 1 1 TANK (NA512253) 4827 RON
33 1 1 VALVE (90618295) 588 RON
34 1 1 GASKET (N564358) 588 RON
35 1 1 CAP SA (N615366) 2556 RON
36 1 1 PLATE (NA694234) 3268 RON
37 1 1 HANDLE (NA512252) 4827 RON
38 1 1 GUARD (NB118770) 11337 RON
39 1 1 SCREW (90500654) 558 RON
40 1 1 ADAPTOR (NA643059) 4827 RON
41 1 1 SPACER (NA591113) 4827 RON
42 1 1 SEAL (NA593205) 4827 RON
43 1 1 SPROCKET (NA265339) 2556 RON
44 1 1 BOLT (NA791848) 588 RON
45 1 1 KNOB (NA389861) 3268 RON
46 1 1 SHAFT (NA556679) 4827 RON
47 1 1 BARREL (NA591304) 4827 RON
48 1 1 MOUNT (NA520735) 4827 RON
49 1 1 PLATE (NA232411) 944 RON
50 1 1 COVER SA (NB038357) 12361 RON
51 1 1 NUT (NA217422) 1630 RON
52 1 1 RING (NA128407) 588 RON
53 1 1 SEAL (90622086) 588 RON
54 1 1 BRACKET (NA123777) 588 RON
55 1 1 NA612560 - Indisponibil
56 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
57 1 2 SCREW (N831593) 588 RON
58 1 1 GROMMET (NA596800) 4827 RON
59 1 1 TUBE (NA291827) 944 RON
60 1 1 SPRING (NA291976) 588 RON
61 1 1 TUBE OIL (N511675) 4827 RON
62 1 1 SPRING (N511677) 4827 RON
63 1 1 O RING (N110454) 588 RON
64 1 2 SCREW (330019-05) 558 RON
65 1 1 SCREW PLASTIC THREAD FORM M3.5 * 45 T15 (330019-08) 558 RON
66 1 1 SCREW (NA730652) 588 RON
67 1 1 SCREW (90566914) 588 RON
68 1 1 SHEATH (NA318117) 4827 RON
69 1 1 WRENCH (NA209088) 3268 RON
70 1 1 FILE-OREGON CHAIN FILE 5/32 X 8 INCH FOR (NA016177) 4827 RON
72 1 1 WARNING LABEL (NA625441) 588 RON
73 1 1 WARNING LABEL (NA625440) 668 RON
76 1 1 BAR (NA373392) 16689 RON
77 1 1 CHAIN (NA291648) 16689 RON
78 1 1 BAR (NA373390) 16689 RON
79 1 1 CHAIN (NA291649) 18568 RON
80 1 1 BAR (NA373387) 21676 RON
81 1 1 CHAIN (NA291650) 20216 RON
82 1 1 BAR-10" (NA373388) 741 RON
83 1 1 CHAIN-10" (NA291647) 6688 RON
100 1 2 WASHER SPRING (569639-00) 588 RON
101 1 1 WASHER PLAIN (330016-01) 558 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
821 1 1 RATING LABEL (NA625443) 588 RON
866 1 1 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
871 1 1 CHARGER QW (N473860) 73079 RON
