Top » Piese de schimb » PIESE DEWALT » DCMCS574N Type 1

MOTOFIERASTRAU DEWALT DCMCS574N Type 1
[DCMCS574N Type 1]
MOTOFIERASTRAU DEWALT DCMCS574N Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU DEWALT DCMCS574N Type 1
Click pentru a mari
MOTOFIERASTRAU DEWALT DCMCS574N Type 1
Click pentru a mari
MOTOFIERASTRAU DEWALT DCMCS574N Type 1
Click pentru a mari

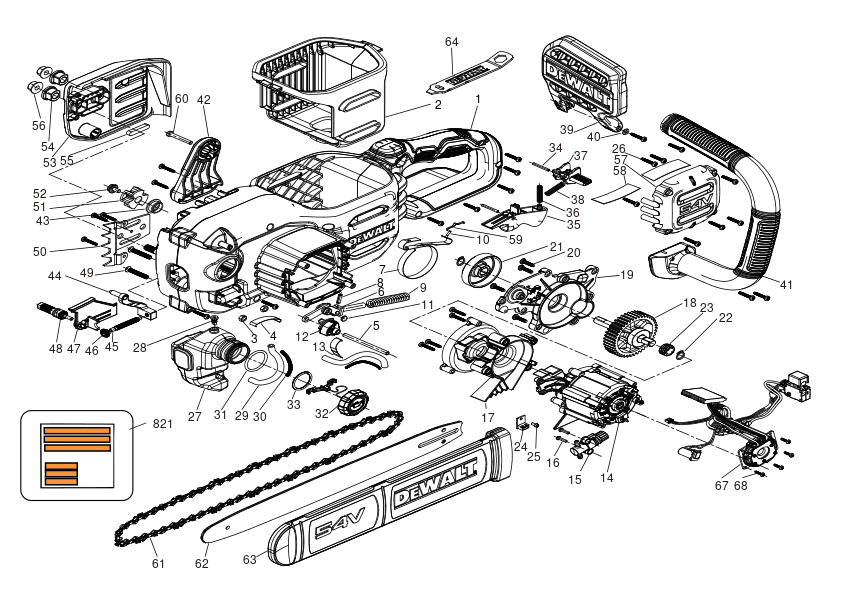

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 NA005772 - Indisponibil
1 1 1 HOUSING SA (NA562941) 33797 RON
2 1 1 CAGE (NA007335) 2556 RON
3 1 2 NUT (N506901) 588 RON
4 1 1 LEAF SPRING (90621730) 588 RON
5 1 1 PIN-5MM (N837653) 82 RON
6 1 1 BRAKE SA (N561356) 5370 RON
7 1 1 STRAP (90638025) 944 RON
8 1 1 SPIROL PIN (90627301) 588 RON
9 1 1 SPRING (N533060) 588 RON
10 1 1 PIN (90594864) 588 RON
11 1 1 N572224 - Indisponibil
12 1 1 BRAKE (N835336) 6688 RON
13 1 1 90622670 - Indisponibil
13 1 1 LEAF SPRING (NA247458) 588 RON
14 1 1 ROTOR SA (NA075899) 67932 RON
14 1 1 ROTOR SA (NA736514) 161583 RON
15 1 1 PUMP SA (N824644) 3954 RON
16 1 2 SCREW (330019-28) 588 RON
17 1 1 GEARCASE SA (N838844) 9012 RON
18 1 1 OUTPUT SHAFT SA (N848267) 15469 RON
19 1 1 GEARCASE COVER (N838846) 9012 RON
20 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
21 1 1 BRAKE (N834893) 2796 RON
22 1 2 LOCKING RING (624521-00) 558 RON
23 1 1 Gear (N847224) 588 RON
24 1 1 SENSOR (N576084) 4827 RON
25 1 1 SCREW (90566914) 588 RON
26 1 25 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
27 1 1 NA119950 - Indisponibil
27 1 1 TANK (NA562940) 3268 RON
27 1 1 SERVICE KIT-OIL TANK OIL TUBE FOAM (NA621303) 5370 RON
28 1 1 VALVE (90618295) 588 RON
29 1 1 TUBE OIL (N847773) 588 RON
29 1 1 TUBE OIL (NA562901) 668 RON
30 1 1 SPRING (N847775) 588 RON
30 1 1 SPRING (NA562902) 588 RON
31 1 1 GASKET (N564358) 588 RON
32 1 1 CAP SA (N615366) 2556 RON
33 1 1 O RING (N654901) 588 RON
34 1 2 PIN (590312-00) 781 RON
35 1 1 TRIGGER (N915410) 944 RON
36 1 1 SPRING COMPRESSION (90623323) 588 RON
37 1 1 LEVER LOCK (90613569) 82 RON
38 1 1 SPRING (90620179) 588 RON
39 1 1 GUARD FRONT (NA005776) 2556 RON
40 1 1 WASHER PLAIN (330016-01) 558 RON
41 1 1 HANDLE (N832633) 3268 RON
42 1 1 HANDLE (N914325) 1630 RON
43 1 1 SEAL (N859252) 588 RON
44 1 1 TENSION BLOCK (N855253) 2556 RON
45 1 1 SCREW (N855275) 1318 RON
46 1 1 Gear (90617659) 82 RON
46 1 1 Gear (NA231996) 1933 RON
46 1 1 GEAR SA (NA408902) 4827 RON
47 1 1 PLATE (NA126784) 668 RON
48 1 1 GEAR SA (NA144512) 2556 RON
48 1 1 GEAR SA (NA408902) 4827 RON
48 1 1 GEAR SA (NA304068) 3268 RON
49 1 2 SCREW (N858609) 588 RON
50 1 1 MOUNTING BRACKET (N687148) 2182 RON
51 1 1 SPROCKET (90585879) 1933 RON
52 1 1 BOLT (90639221) 588 RON
52 1 1 BOLT (NA791848) 588 RON
53 1 1 COVER (N832636) 2556 RON
54 1 2 BUSHING (N692439) 668 RON
55 1 1 SEAL (90622086) 588 RON
56 1 2 NUT-M8 X 1.25 FLANGE SERRATED (645043-00) 588 RON
57 1 1 CAP (NA007214) 1933 RON
58 1 2 FILTER (N876026) 668 RON
59 1 1 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
60 1 5 SCREW (330019-05) 558 RON
61 1 1 CHAIN-18 INCH 62 LINKS (N500152) 9012 RON
62 1 1 BAR CHAIN (NA044386) 21676 RON
63 1 1 SHEATH (NA007519) 4827 RON
64 1 1 WRENCH (N856669) 1772 RON
67 1 1 CONTROL MODULE SA (NA205269) 139195 RON
67 1 1 ROTOR SA (NA736514) 161583 RON
68 1 4 SCREW (N034545) 588 RON
100 1 1 FOAM (NA564406) 588 RON
821 1 1 RATING PLATE (NA011211) 588 RON
