Top » Piese de schimb » PIESE DEWALT » DCMCS565P1 Type 1

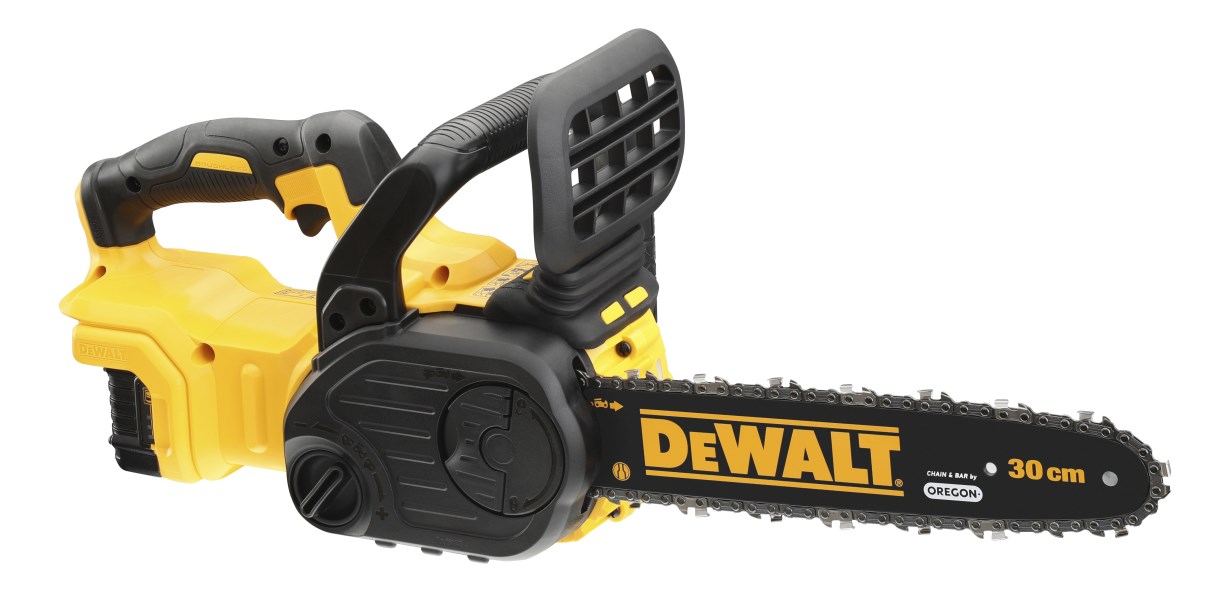

MOTOFIERASTRAU DEWALT DCMCS565P1 Type 1
[DCMCS565P1 Type 1]
MOTOFIERASTRAU DEWALT DCMCS565P1 Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU DEWALT DCMCS565P1 Type 1
Click pentru a mari
MOTOFIERASTRAU DEWALT DCMCS565P1 Type 1
Click pentru a mari
MOTOFIERASTRAU DEWALT DCMCS565P1 Type 1
Click pentru a mari

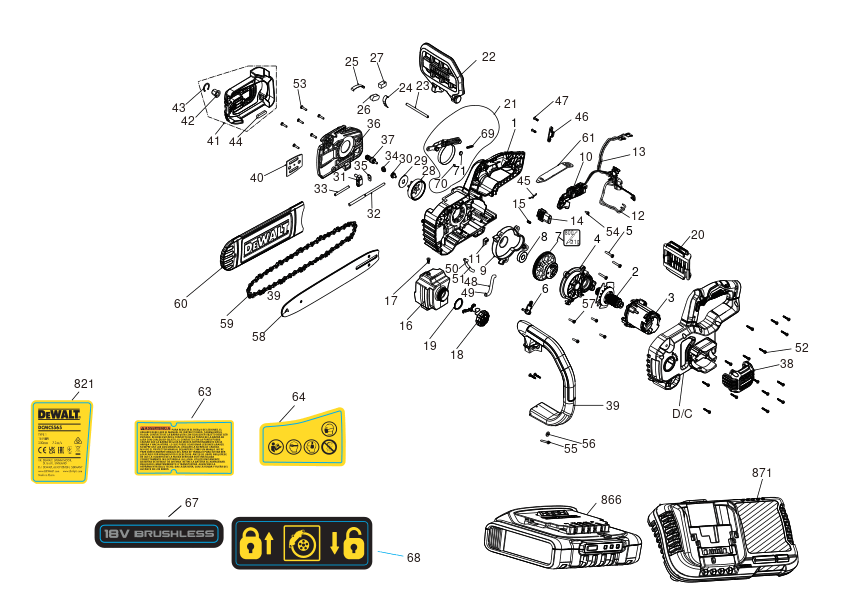

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA533764) 13697 RON
2 1 1 ROTOR SA (NA678783) 23244 RON
3 1 1 MOTOR SA (NA720676) 40734 RON
4 1 1 GEARCASE SA (NA533778) 2796 RON
5 1 3 SCREW (330019-14) 558 RON
6 1 1 PUMP SA (90624557) 3954 RON
7 1 1 OUTPUT SHAFT SA (NA378127) 10241 RON
8 1 1 BEARING (N150961) 190 RON
9 1 1 GEARCASE COVER (NA533781) 1772 RON
10 1 1 TRIGGER (N752676) 741 RON
11 1 1 SENSOR (N576084) 4827 RON
12 1 1 WIRE HARNESS (NA568834) 6688 RON
13 1 1 WIRE HARNESS (N864982) 1318 RON
13 1 1 NA595961 - Indisponibil
14 1 1 BUTTON LOCK-OFF (N503277) 668 RON
15 1 1 SPRING (N433343) 588 RON
16 1 1 TANK (NA533787) 3268 RON
17 1 1 VALVE (90618295) 588 RON
18 1 1 CAP SA (N615366) 2556 RON
19 1 1 O RING (N654901) 588 RON
20 1 1 INSERT (NA564101) 1933 RON
21 1 1 BRAKE SA (NA678785) 6688 RON
22 1 1 GUARD (NA533784) 2796 RON
23 1 1 PIN (NA568885) 944 RON
24 1 1 LEAF SPRING (NA247458) 588 RON
25 1 1 LEAF SPRING (90621730) 588 RON
26 1 1 FOAM (90625343) 588 RON
27 1 1 FOAM (NA629865) 588 RON
28 1 1 SPROCKET (NA377614) 3268 RON
29 1 1 WASHER (90618229) 588 RON
30 1 1 BOLT (90639221) 588 RON
30 1 1 BOLT (NA791848) 588 RON
31 1 1 CLAMP SA (N558327) 2796 RON
32 1 1 SHAFT (NA553812) 2556 RON
33 1 1 PIN (90608944) 588 RON
34 1 1 Gear (NA231996) 1933 RON
35 1 1 WASHER (90629979) 588 RON
36 1 1 COVER (NA553482) 1630 RON
37 1 1 GEAR SA (NA561756) 2796 RON
38 1 1 END CAP (NA550717) 1630 RON
39 1 1 HANDLE SA (NA550718) 4355 RON
40 1 1 PLATE (NA085313) 944 RON
41 1 1 COVER SA (NA678786) 10241 RON
42 1 1 NUT (NA217422) 1630 RON
43 1 1 RING (NA128407) 588 RON
44 1 1 SEAL (90622086) 588 RON
45 1 1 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
46 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
47 1 2 SCREW (N831593) 588 RON
48 1 1 TUBE (NA291826) 82 RON
49 1 1 SPRING (NA630194) 588 RON
50 1 1 TUBE (90609542) 668 RON
51 1 1 SPRING (90620845) 588 RON
52 1 20 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
53 1 6 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
54 1 1 SCREW (330019-48) 558 RON
54 1 1 SCREW (N601444) 588 RON
55 1 1 SCREW (330019-05) 558 RON
56 1 1 SCREW (330016-27) 588 RON
57 1 4 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
58 1 1 BAR (NA616843) 11337 RON
59 1 1 CHAIN (N580237) 10241 RON
60 1 1 SHEATH (NA597404) 2182 RON
61 1 1 WRENCH (N856669) 1772 RON
63 1 1 WARNING LABEL (NA597812) 588 RON
64 1 1 WARNING LABEL (NA597818) 588 RON
67 1 1 LABEL (NA597817) 588 RON
68 1 1 LABEL (NA597819) 588 RON
69 1 1 SPRING (N533060) 588 RON
70 1 1 PIN (90594864) 588 RON
71 1 1 N572224 - Indisponibil
100 1 1 TUBE (NA706078) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
821 1 1 RATING LABEL (NA597815) 588 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
