MOTOFIERASTRAU DEWALT DCM585 Type 1
[DCM585 Type 1]
MOTOFIERASTRAU DEWALT DCM585 Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU DEWALT DCM585 Type 1
Click pentru a mari
MOTOFIERASTRAU DEWALT DCM585 Type 1
Click pentru a mari

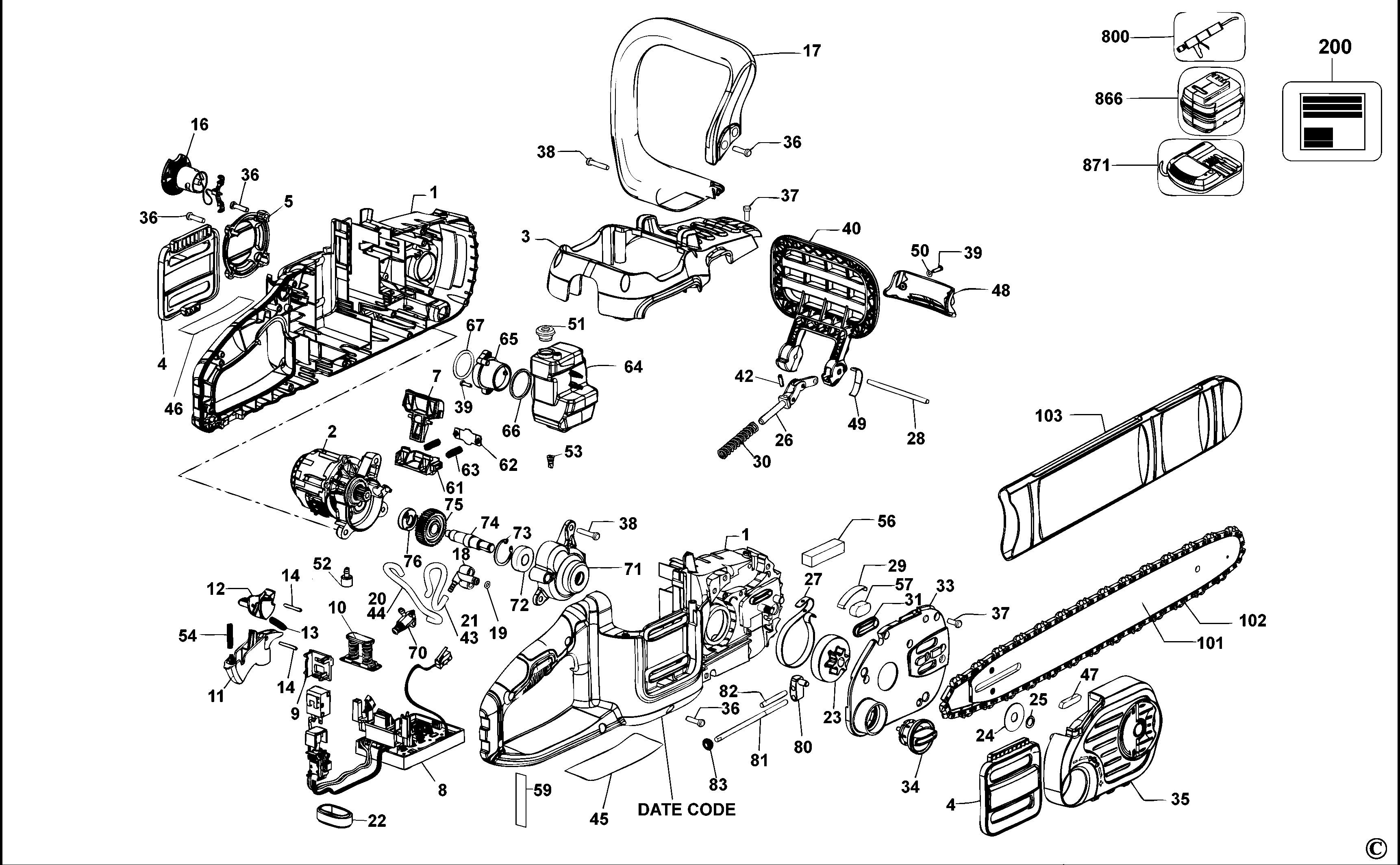

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 90619964 - Indisponibil
2 1 1 90612950 - Indisponibil
3 1 1 90620684 - Indisponibil
4 1 2 90617820 - Indisponibil
5 1 1 N513784 - Indisponibil
7 1 1 90606556 - Indisponibil
8 1 1 90619645 - Indisponibil
9 1 1 SWITCH (90605114) 588 RON
10 1 1 EJECTOR (90605769) 944 RON
11 1 1 TRIGGER (90613570) 114 RON
12 1 1 LEVER LOCK (90613569) 82 RON
13 1 1 SPRING (90620179) 588 RON
14 1 2 PIN (5119820-00) 588 RON
16 1 1 CAP (90618141) 2556 RON
17 1 1 HANDLE (90630455) 741 RON
18 1 1 PLUG (90104269) 944 RON
19 1 1 O RING (90104270) 588 RON
20 1 1 TUBE (90609541) 944 RON
21 1 1 TUBE (90609542) 668 RON
22 1 1 90617047 - Indisponibil
23 1 1 SPROCKET (90618228) 3268 RON
24 1 1 WASHER (90618229) 588 RON
25 1 1 90624303 - Indisponibil
26 1 1 BRAKE SA (90619644) 5370 RON
27 1 1 90618523 - Indisponibil
28 1 1 PIN (90618528) 944 RON
29 1 1 LEAF SPRING (90621730) 588 RON
30 1 1 SPRING (N533060) 588 RON
30 1 1 SPRING (90609777) 588 RON
31 1 1 SEAL (90618051) 588 RON
33 1 1 COVER (90609778) 2182 RON
34 1 1 90617753 - Indisponibil
35 1 1 COVER (N723753) 9012 RON
35 1 1 90615044 - Indisponibil
36 1 16 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
37 1 12 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
38 1 5 SCREW (330019-14) 558 RON
39 1 6 SCREW (330019-28) 588 RON
40 1 1 GUARD (90609587) 3268 RON
42 1 1 SPIROL PIN (90627301) 588 RON
43 1 1 SPRING (90620845) 588 RON
44 1 1 SPRING (90620889) 588 RON
45 1 1 90641933 - Indisponibil
46 1 1 90641932 - Indisponibil
47 1 1 SEAL (90622086) 588 RON
48 1 1 90622146 - Indisponibil
49 1 1 90622670 - Indisponibil
49 1 1 LEAF SPRING (NA247458) 588 RON
50 1 2 90625146 - Indisponibil
51 1 1 SEAL (90104259) 588 RON
52 1 1 FILTER SA (90622705) 82 RON
53 1 1 VALVE (90618295) 588 RON
54 1 1 SPRING COMPRESSION (90623323) 588 RON
56 1 1 90625339 - Indisponibil
57 1 1 FOAM (90625343) 588 RON
61 1 1 90606555 - Indisponibil
62 1 1 SUPPORT (90607453) 588 RON
63 1 2 SPRING (90606558) 588 RON
64 1 1 TANK (90618137) 2796 RON
64 1 1 TANK (NA013490) 4827 RON
65 1 1 ADAPTOR (90618138) 588 RON
66 1 1 SEAL (90618142) 588 RON
67 1 1 O RING (90618339) 588 RON
70 1 1 PUMP SA (90624557) 3954 RON
71 1 1 90612949 - Indisponibil
72 1 1 BEARING (N150961) 190 RON
73 1 1 RING (90551022) 588 RON
74 1 1 90612955 - Indisponibil
75 1 1 Gear (90618517) 3268 RON
76 1 1 90594615 - Indisponibil
80 1 1 90619596 - Indisponibil
80 1 1 000000-00 - Indisponibil
80 1 1 CLAMP SA (N558327) 2796 RON
80 1 1 PIN (90090721) 558 RON
81 1 1 PIN (N555910) 2182 RON
81 1 1 90617660 - Indisponibil
82 1 1 PIN (90090721) 558 RON
82 1 1 90617662 - Indisponibil
83 1 2 Gear (90617659) 82 RON
83 1 1 Gear (NA231996) 1933 RON
101 1 1 BAR (N594320) 23244 RON
101 1 1 90641855 - Indisponibil
102 1 1 CHAIN (N594321) 12361 RON
102 1 1 90618541 - Indisponibil
102 1 1 CHAIN-18 INCH 62 LINKS (N500152) 9012 RON
103 1 1 SHEATH (90619707) 3954 RON
871 1 1 CHARGER (N517085) 78485 RON
