Top » Piese de schimb » PIESE DEWALT » DCM575 Type 2

MOTOFIERASTRAU DEWALT DCM575 Type 2
[DCM575 Type 2]
MOTOFIERASTRAU DEWALT DCM575 Type 2
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU DEWALT DCM575 Type 2
Click pentru a mari

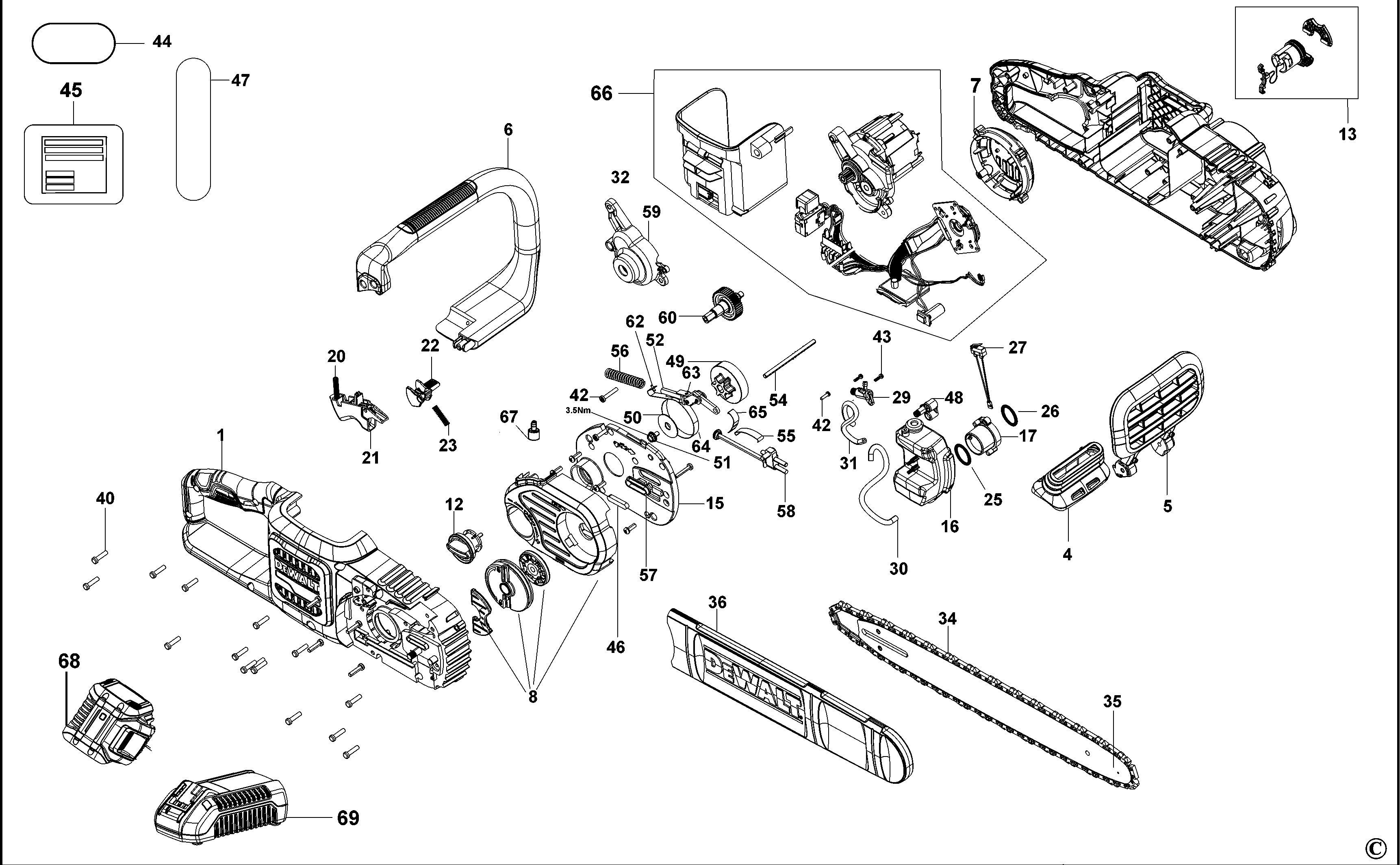

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (90630448) 30769 RON
4 1 1 SEAL (90636798) 2796 RON
5 1 1 GUARD (90609587) 3268 RON
6 1 1 HANDLE (90630455) 741 RON
7 1 1 CAP SA (90635490) 2796 RON
8 1 1 COVER (N723753) 9012 RON
12 1 1 KNOB SA (N738912) 1933 RON
12 1 1 90626482 - Indisponibil
13 1 1 CAP (90618141) 2556 RON
15 1 1 COVER (90609778) 2182 RON
16 1 1 TANK (90618137) 2796 RON
16 1 1 TANK (NA013490) 4827 RON
17 1 1 ADAPTOR (90618138) 588 RON
18 1 1 VALVE (90618295) 588 RON
20 1 1 SPRING COMPRESSION (90623323) 588 RON
21 1 1 TRIGGER (90613570) 114 RON
22 1 1 LEVER LOCK (90613569) 82 RON
23 1 1 SPRING (90620179) 588 RON
25 1 1 SEAL (90618142) 588 RON
26 1 1 O RING (90618339) 588 RON
27 1 1 WIRE (90637896) 2796 RON
29 1 1 PUMP SA (N734718) 4355 RON
30 1 1 TUBE (90609541) 944 RON
31 1 1 TUBE (90609542) 668 RON
32 1 1 TERMINAL (N416900) 2796 RON
34 1 1 CHAIN (N594321) 12361 RON
35 1 1 BAR (N594320) 23244 RON
36 1 1 SHEATH (90619707) 3954 RON
40 1 19 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
41 1 6 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
42 1 5 SCREW (330019-14) 558 RON
43 1 2 SCREW (330019-28) 588 RON
44 1 1 LABEL (90641858) 588 RON
45 1 1 RATING PLATE (N776091) 668 RON
46 1 1 SEAL (90622086) 588 RON
47 1 1 LABEL (90625494) 588 RON
48 1 1 PLUG (90104269) 944 RON
49 1 1 SPROCKET (90618228) 3268 RON
49 1 1 OUTPUT SHAFT SA (NA532073) 11337 RON
49 1 1 SPROCKET (NA394502) 3954 RON
50 1 1 WASHER (90618229) 588 RON
51 1 1 BOLT (90639221) 588 RON
52 1 1 BRAKE SA (90619644) 5370 RON
54 1 1 PIN (90618528) 944 RON
55 1 1 LEAF SPRING (90621730) 588 RON
56 1 1 SPRING (90609777) 588 RON
57 1 1 SEAL (90618051) 588 RON
58 1 1 ADJUSTER (90626481) 5370 RON
59 1 1 N722863 - Indisponibil
59 1 1 TRANSMISSION SA (N925500) 188451 RON
60 1 1 OUTPUT SHAFT SA (N898446) 5370 RON
60 1 1 OUTPUT SHAFT SA (NA532073) 11337 RON
60 1 1 OUTPUT SHAFT SA (NA532064) 741 RON
62 1 1 PIN (90594864) 588 RON
63 1 1 SPIROL PIN (90627301) 588 RON
64 1 1 STRAP (90638025) 944 RON
65 1 1 90622670 - Indisponibil
65 1 1 LEAF SPRING (NA247458) 588 RON
66 1 1 MOTOR AND SWITCH SA (N863206) 99395 RON
66 1 1 TRANSMISSION SA (N925500) 188451 RON
67 1 1 FILTER SA (90622705) 82 RON
68 1 1 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
69 1 1 CHARGER QW (N473860) 73079 RON
70 1 1 SEAL (N687543) 668 RON
