Top » Piese de schimb » PIESE DEWALT » DCM565N Type 3

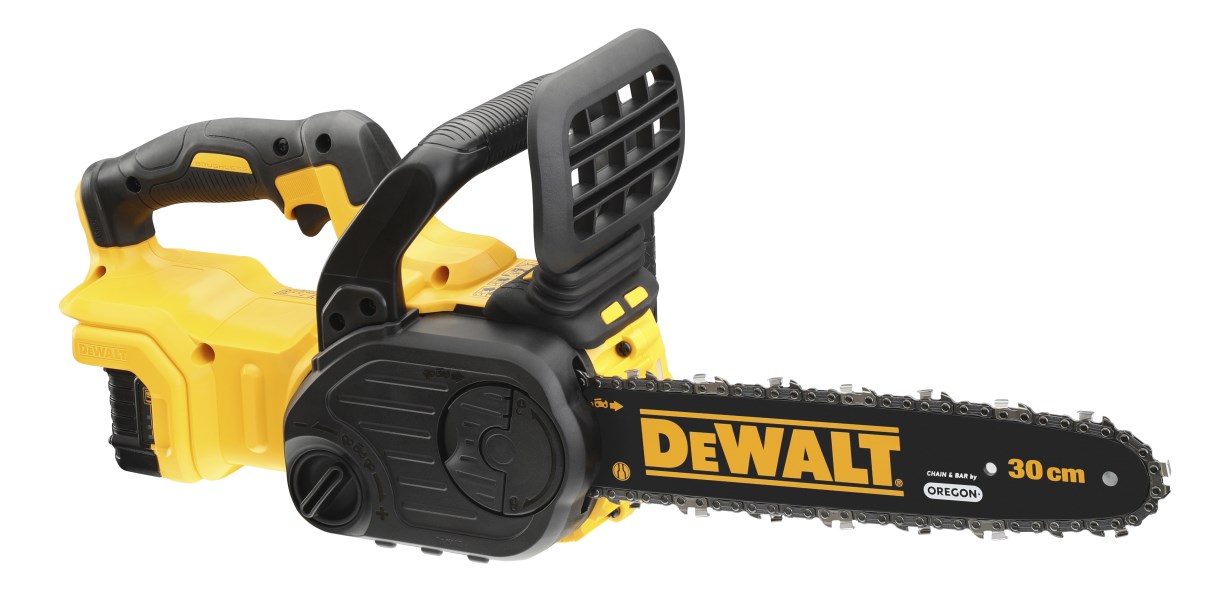

MOTOFIERASTRAU DEWALT DCM565N Type 3
[DCM565N Type 3]
MOTOFIERASTRAU DEWALT DCM565N Type 3
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU DEWALT DCM565N Type 3
Click pentru a mari
MOTOFIERASTRAU DEWALT DCM565N Type 3
Click pentru a mari
MOTOFIERASTRAU DEWALT DCM565N Type 3
Click pentru a mari

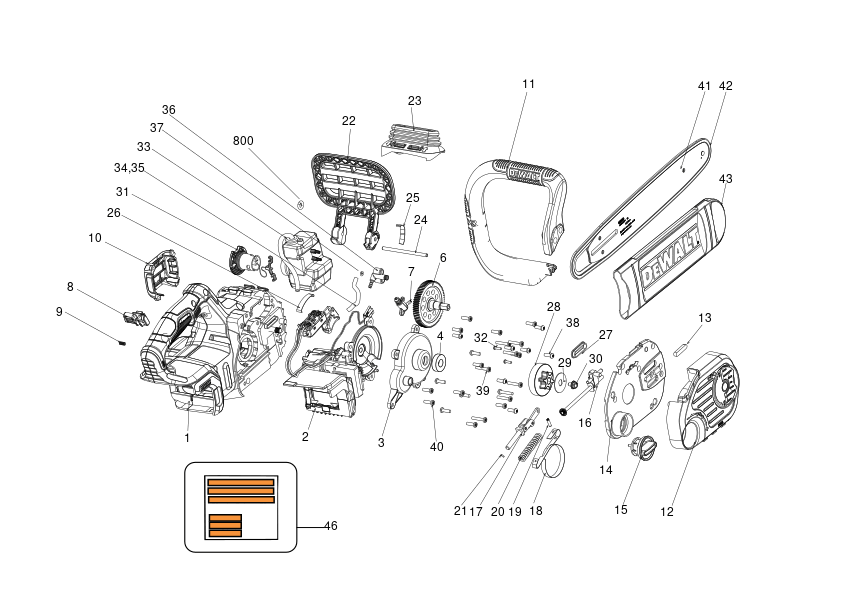

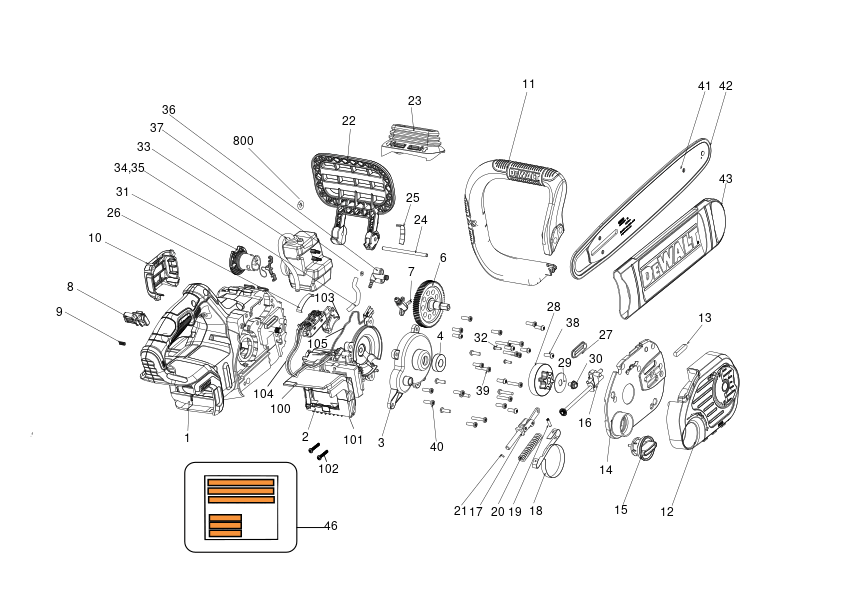

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N871950) 20216 RON
2 1 1 MOTOR SA (NA226204) 91363 RON
3 1 1 COVER SA (N604398) 3268 RON
4 1 1 BEARING (N150961) 190 RON
6 1 1 N539694 - Indisponibil
6 1 1 OUTPUT SHAFT SA (NA378048) 13697 RON
6 1 1 OUTPUT SHAFT SA (NA378127) 10241 RON
7 1 1 PUMP SA (90624557) 3954 RON
8 1 1 BUTTON LOCK-OFF (N503277) 668 RON
9 1 1 SPRING (N433343) 588 RON
10 1 1 END CAP (N871958) 1772 RON
11 1 1 HANDLE SA (N872036) 4827 RON
12 1 1 COVER (N723753) 9012 RON
13 1 1 SEAL (90622086) 588 RON
14 1 1 COVER (90609778) 2182 RON
15 1 1 KNOB SA (N738912) 1933 RON
16 1 1 ADJUSTER (NA023456) 4355 RON
17 1 1 BRAKE (N752681) 3268 RON
18 1 1 STRAP (90638025) 944 RON
19 1 1 SPIROL PIN (90627301) 588 RON
20 1 1 SPRING (N533060) 588 RON
21 1 1 PIN (90594864) 588 RON
22 1 1 GUARD (90609587) 3268 RON
23 1 1 SEAL (N507145) 2556 RON
24 1 1 PIN (90618528) 944 RON
25 1 1 LEAF SPRING (90621730) 588 RON
26 1 1 LEAF SPRING (NA247458) 588 RON
27 1 1 SEAL (90618051) 588 RON
28 1 1 SPROCKET (90618228) 3268 RON
28 1 1 OUTPUT SHAFT SA (NA378048) 13697 RON
28 1 1 SPROCKET (NA377614) 3268 RON
29 1 1 WASHER (90618229) 588 RON
30 1 1 BOLT (90639221) 588 RON
30 1 1 BOLT (NA791848) 588 RON
31 1 1 CAP (90618141) 2556 RON
32 1 1 SCREW (330019-28) 588 RON
33 1 1 TANK (N539697) 6688 RON
34 1 1 TUBE (90609542) 668 RON
35 1 1 SPRING (90620845) 588 RON
36 1 1 PLUG (90104269) 944 RON
37 1 1 O RING (90104270) 588 RON
38 1 1 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
39 1 1 SCREW (330019-14) 558 RON
40 1 4 SCREW (NA015562) 588 RON
41 1 1 BAR (N594322) 12361 RON
42 1 1 CHAIN (N580237) 10241 RON
43 1 1 SHEATH (N693518) 2182 RON
46 1 1 RATING LABEL (NA077118) 588 RON
100 1 1 INSERT (N501974) 2182 RON
101 1 1 INSERT (N501975) 1772 RON
102 1 2 SCREW PLASTITE (682211-00) 781 RON
103 1 1 TRIGGER (N752676) 741 RON
104 1 1 WIRE HARNESS (NA033989) 9012 RON
105 1 1 WIRE HARNESS (N864982) 1318 RON
800 1 1 O RING (90618339) 588 RON
