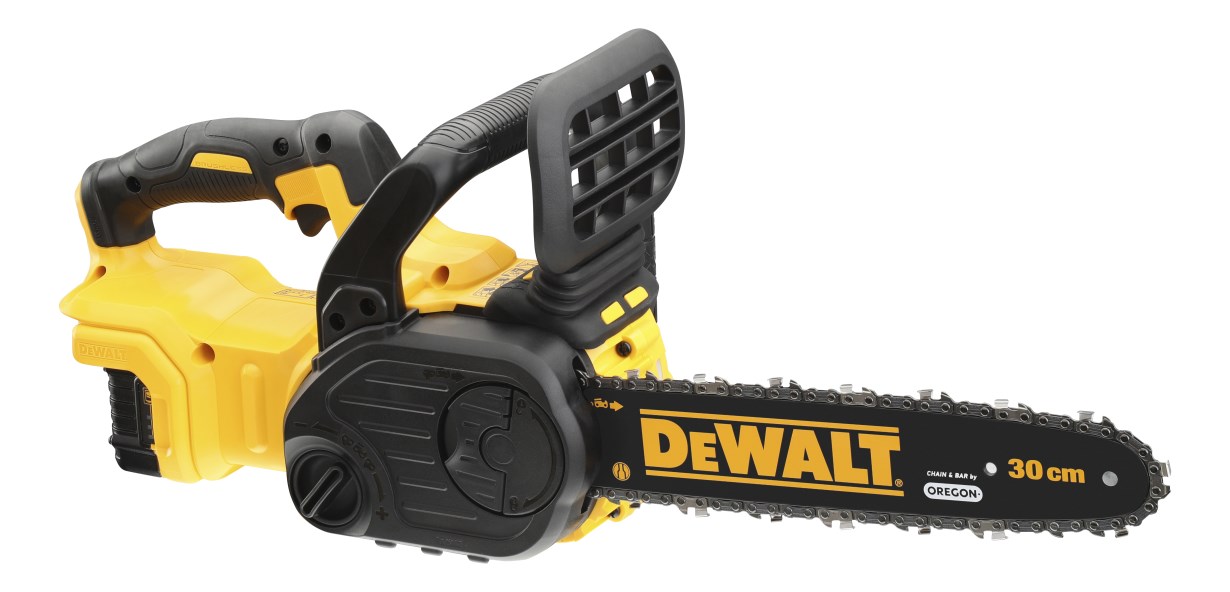

MOTOFIERASTRAU DEWALT DCM565 Type 1
[DCM565 Type 1]
MOTOFIERASTRAU DEWALT DCM565 Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU DEWALT DCM565 Type 1
Click pentru a mari
MOTOFIERASTRAU DEWALT DCM565 Type 1
Click pentru a mari

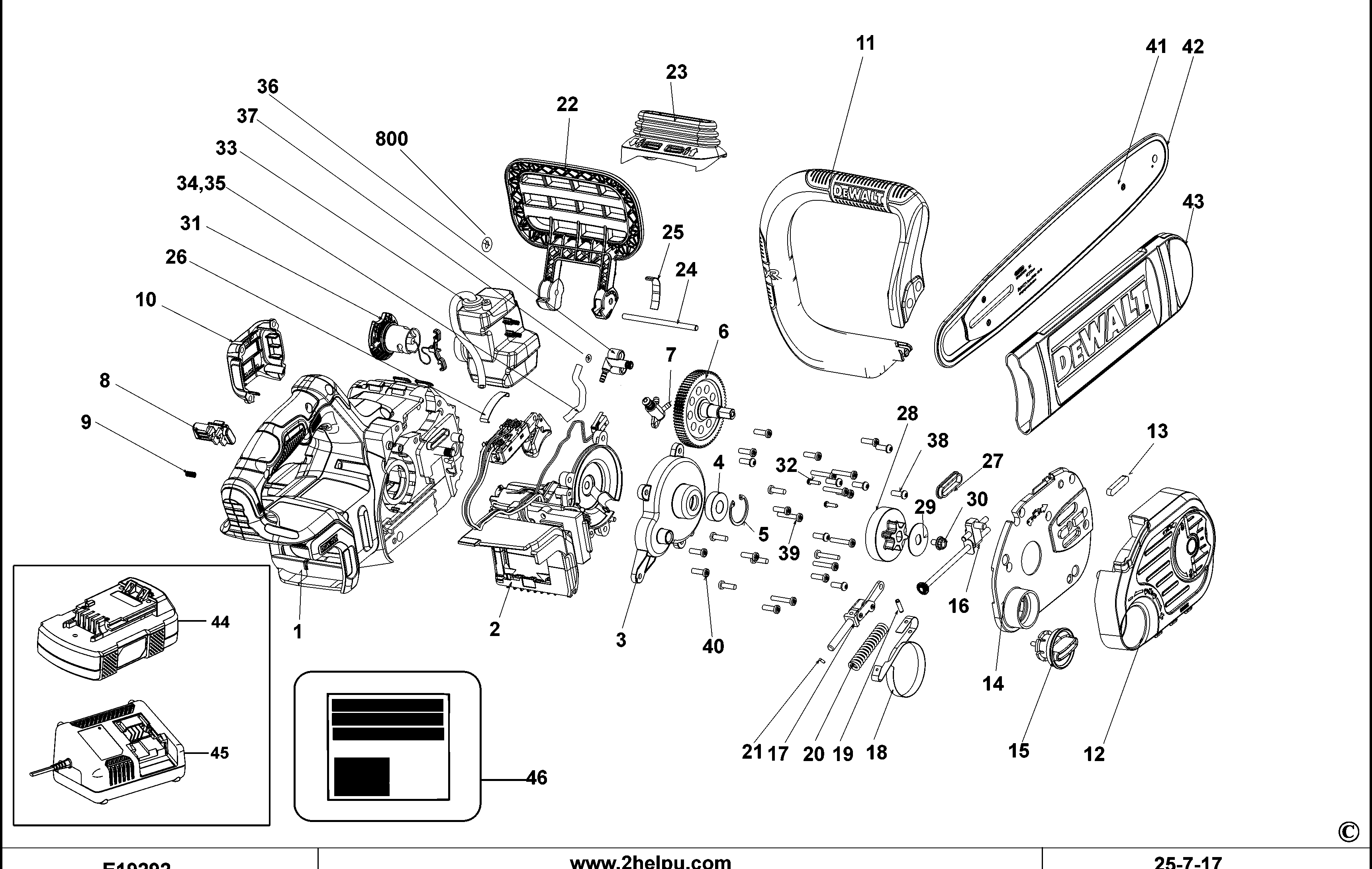

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N496647 - Indisponibil
1 1 1 HOUSING SA (N871950) 20216 RON
2 1 1 MOTOR SA (N539696) 91363 RON
3 1 1 GEARCASE COVER SA (N503590) 6688 RON
4 1 1 BEARING (N150961) 190 RON
5 1 1 RING (90551022) 588 RON
6 1 1 N539694 - Indisponibil
6 1 1 OUTPUT SHAFT SA (NA378048) 13697 RON
6 1 1 OUTPUT SHAFT SA (NA378127) 10241 RON
7 1 1 PUMP SA (90624557) 3954 RON
8 1 1 BUTTON LOCK-OFF (N503277) 668 RON
9 1 1 SPRING (N433343) 588 RON
10 1 1 END CAP (N507146) 2182 RON
11 1 1 HANDLE (N505189) 6688 RON
11 1 1 HANDLE SA (N872036) 4827 RON
12 1 1 COVER (N723753) 9012 RON
12 1 1 90615044 - Indisponibil
13 1 1 SEAL (90622086) 588 RON
14 1 1 COVER (90609778) 2182 RON
15 1 1 KNOB SA (N738912) 1933 RON
15 1 1 90626482 - Indisponibil
16 1 1 ADJUSTER (90626481) 5370 RON
17 1 1 N523178 - Indisponibil
18 1 1 STRAP (90638025) 944 RON
19 1 1 SPIROL PIN (90627301) 588 RON
20 1 1 SPRING (N533060) 588 RON
20 1 1 SPRING (90609777) 588 RON
21 1 1 PIN (90594864) 588 RON
22 1 1 GUARD (90609587) 3268 RON
23 1 1 SEAL (N507145) 2556 RON
24 1 1 PIN (90618528) 944 RON
25 1 1 LEAF SPRING (90621730) 588 RON
26 1 1 90622670 - Indisponibil
26 1 1 LEAF SPRING (NA247458) 588 RON
27 1 1 SEAL (90618051) 588 RON
28 1 1 SPROCKET (90618228) 3268 RON
28 1 1 OUTPUT SHAFT SA (NA378048) 13697 RON
28 1 1 SPROCKET (NA377614) 3268 RON
29 1 1 WASHER (90618229) 588 RON
30 1 1 BOLT (90639221) 588 RON
30 1 1 BOLT (NA791848) 588 RON
31 1 1 CAP (90618141) 2556 RON
32 1 1 SCREW (330019-28) 588 RON
33 1 1 TANK (N539697) 6688 RON
34 1 1 TUBE (90609542) 668 RON
35 1 1 SPRING (90620845) 588 RON
36 1 1 PLUG (90104269) 944 RON
37 1 1 O RING (90104270) 588 RON
38 1 1 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
39 1 1 SCREW (330019-14) 558 RON
40 1 1 screw dw744 (330019-12) 558 RON
41 1 1 BAR (N594322) 12361 RON
41 1 1 N507302 - Indisponibil
42 1 1 CHAIN (N580237) 10241 RON
42 1 1 90586162 - Indisponibil
43 1 1 N517988 - Indisponibil
43 1 1 SHEATH (N693518) 2182 RON
44 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
45 1 1 N450536 - Indisponibil
45 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
45 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
46 1 1 N520898 - Indisponibil
800 1 1 O RING (90618339) 588 RON
