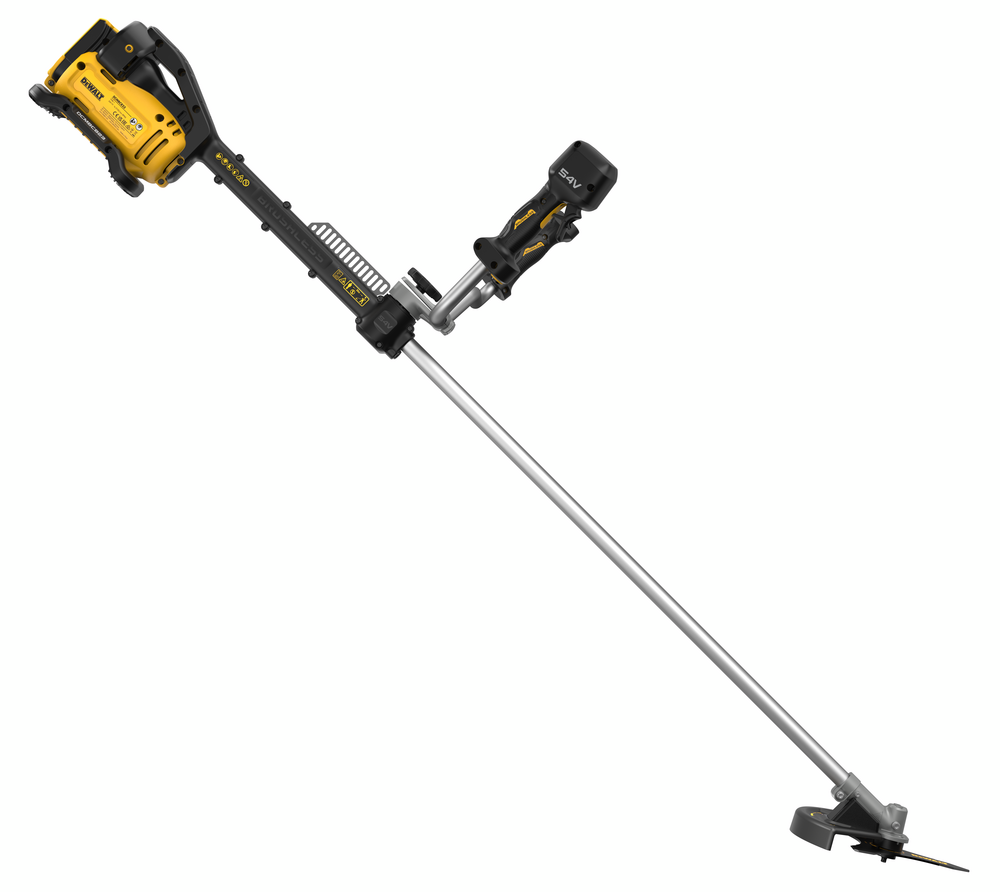

MOTOCOASA DEWALT DCMBC823N Type 1
[DCMBC823N Type 1]
MOTOCOASA DEWALT DCMBC823N Type 1
Click pentru a mari
Imagini suplimentare
MOTOCOASA DEWALT DCMBC823N Type 1
Click pentru a mari
MOTOCOASA DEWALT DCMBC823N Type 1
Click pentru a mari
MOTOCOASA DEWALT DCMBC823N Type 1
Click pentru a mari
MOTOCOASA DEWALT DCMBC823N Type 1
Click pentru a mari

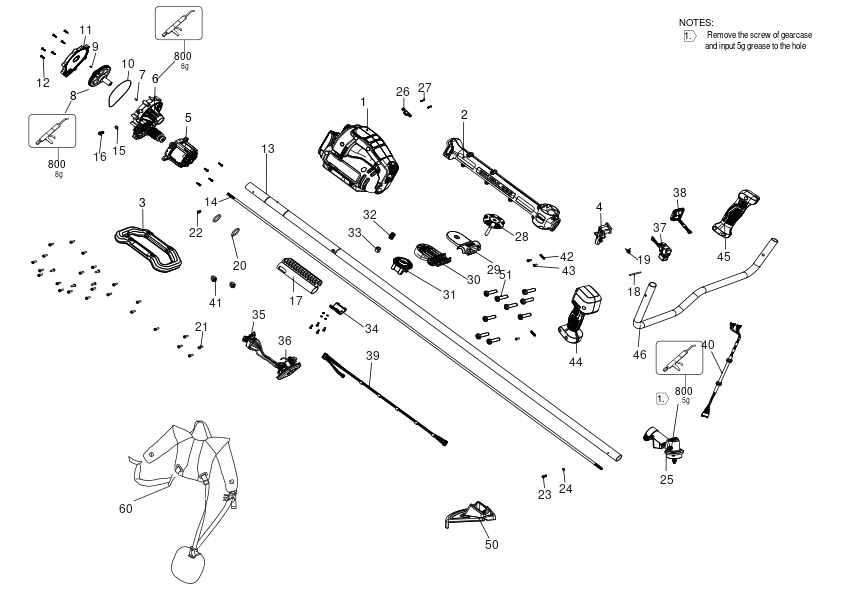

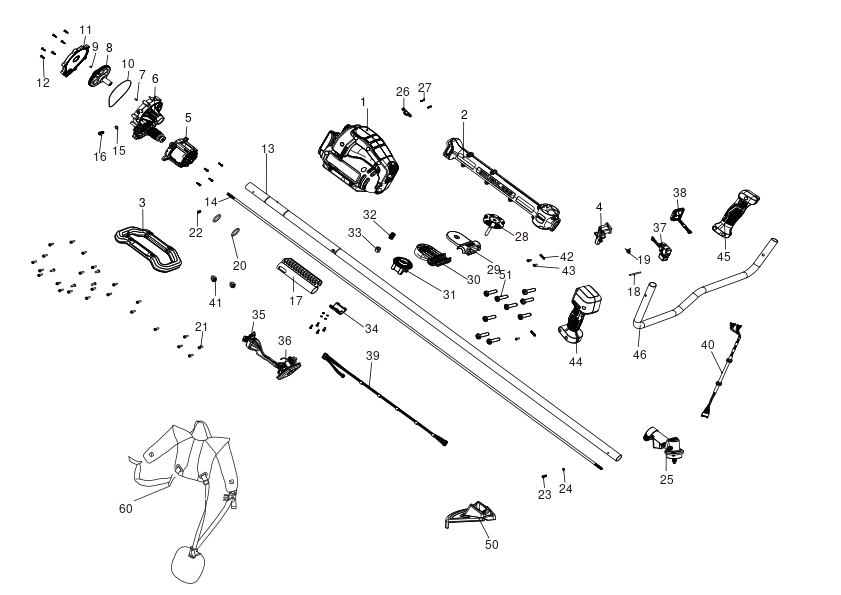

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA209144) 30769 RON
2 1 1 HANDLE SA (NA606215) 16689 RON
3 1 1 SUPPORT (NA209172) 4355 RON
4 1 1 TRIGGER (NA317837) 4355 RON
5 1 1 STATOR SA (NA623037) 20216 RON
6 1 1 GEARCASE SA (NA678374) 57833 RON
7 1 1 PLUG (NA598837) 588 RON
8 1 1 OUTPUT SHAFT SA (NA291784) 24962 RON
9 1 1 PLUG (90621610) 588 RON
10 1 1 O RING (NA424435) 114 RON
11 1 1 GEARCASE COVER (NA286749) 13697 RON
12 1 14 SCREW-METAL FORM THD M3.5 X 12 T15 (NA130331) 588 RON
13 1 1 TUBE (NA627185) 21676 RON
14 1 1 DRIVE SHAFT (NA246602) 10241 RON
15 1 1 WASHER (NA630387) 588 RON
16 1 1 SCREW (NA622209) 588 RON
17 1 1 BRACKET (NA247816) 741 RON
18 1 1 PIN (90608942) 588 RON
19 1 1 SPRING (NA355514) 588 RON
20 1 2 RUBBER (90602632) 588 RON
21 1 29 screw dw744 (330019-12) 558 RON
22 1 1 SCREW (NA427056) 588 RON
23 1 1 SCREW (NA427062) 588 RON
24 1 5 WASHER (NA416736) 588 RON
25 1 1 GEARCASE (NA273254) 28836 RON
26 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
27 1 2 SCREW (N831593) 588 RON
28 1 1 BOLT (NA248509) 3954 RON
29 1 1 CLAMP SA (NA248506) 741 RON
30 1 1 COVER (NA248507) 10241 RON
31 1 1 CLAMP (NA325260) 741 RON
32 1 1 SPRING (NA248508) 588 RON
33 1 1 NUT (NA425688) 82 RON
34 1 1 COVER (NA409852) 4355 RON
35 1 1 WIRE HARNESS (NA328158) 6688 RON
36 1 1 CONTROL MODULE SA (NA688009) 48037 RON
37 1 1 SWITCH (NA415892) 10241 RON
38 1 1 MODULE (NA296124) 24962 RON
39 1 1 WIRE HARNESS (NA591152) 5370 RON
40 1 1 WIRE HARNESS (NA352146) 12361 RON
41 1 2 CONNECTOR (650974-00) 668 RON
42 1 2 CLAMP CORD CORNER (329301-00) 558 RON
43 1 3 Screw M3.5 X9.5 (330019-01) 558 RON
44 1 1 HANDLE SA (NA606207) 24962 RON
45 1 1 GRIP (NA298933) 18568 RON
46 1 1 BAR (NA197827) 12361 RON
50 1 1 GUARD SA (NA723132) 25728 RON
51 1 9 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
60 1 1 STRAP (NA730646) 48037 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
