Top » Piese de schimb » PIESE DEWALT » DWD241 Type 1

MIXER DEWALT DWD241 Type 1
[DWD241 Type 1]
MIXER DEWALT DWD241 Type 1
Click pentru a mari
Imagini suplimentare
MIXER DEWALT DWD241 Type 1
Click pentru a mari
MIXER DEWALT DWD241 Type 1
Click pentru a mari
MIXER DEWALT DWD241 Type 1
Click pentru a mari
MIXER DEWALT DWD241 Type 1
Click pentru a mari
MIXER DEWALT DWD241 Type 1
Click pentru a mari

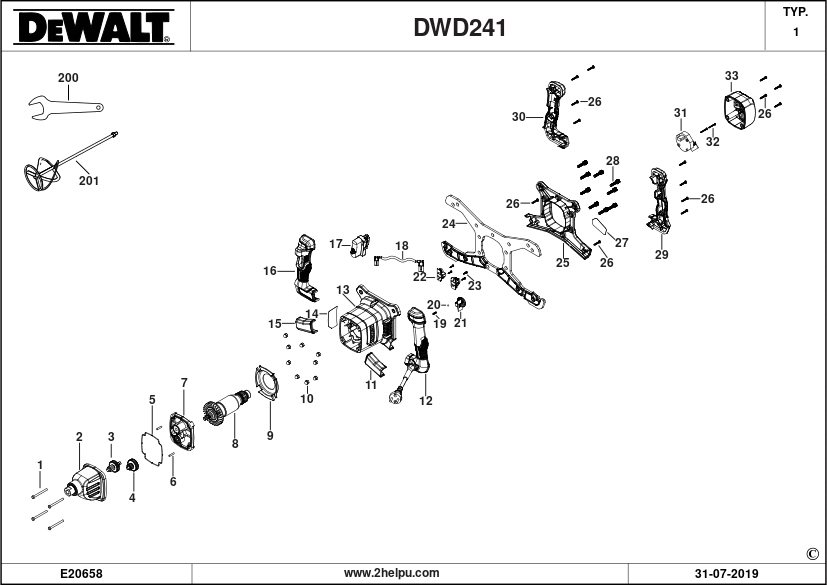

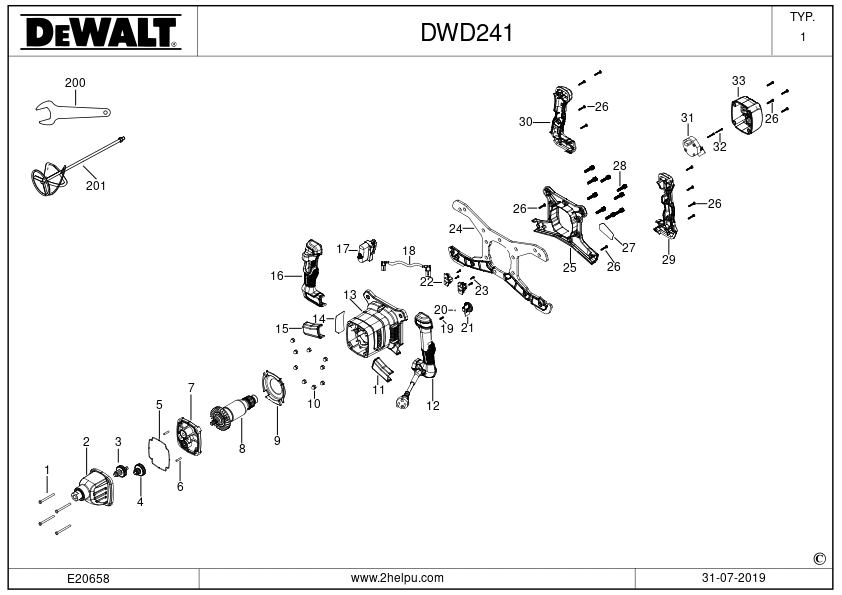

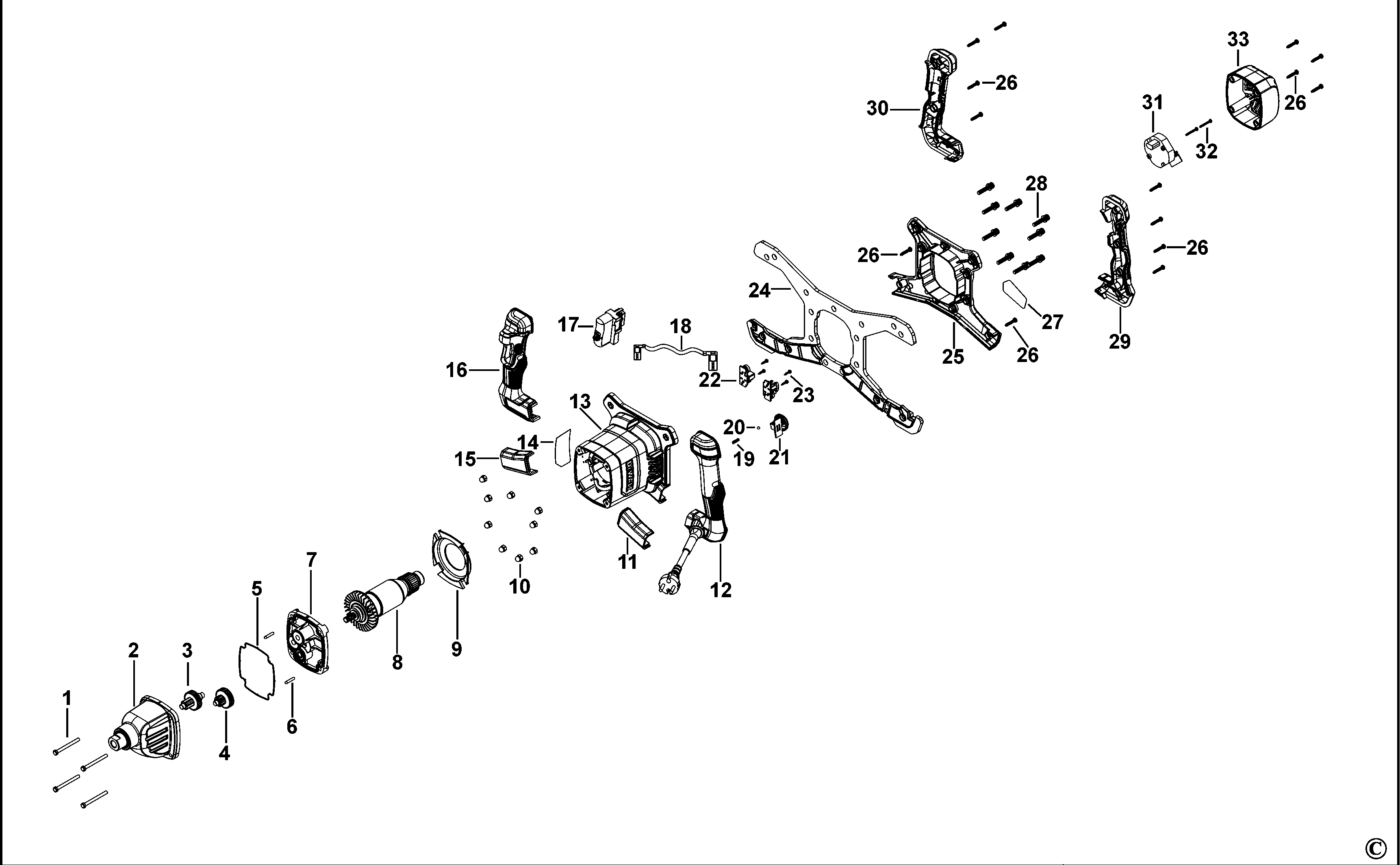

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (N681077) 1772 RON
2 1 1 GEARCASE SA (N681002) 38463 RON
3 1 1 GEAR SA (N681016) 6688 RON
4 1 1 GEAR SA (N681025) 5370 RON
5 1 1 GASKET (N681020) 82 RON
6 1 2 PIN (N681019) 82 RON
7 1 1 GEARCASE COVER SA (N681012) 12361 RON
8 1 1 ARMATURE 230V (N681023) 30769 RON
9 1 1 BAFFLE FAN (N681038) 1933 RON
10 1 9 NUT M6 (N499349) 668 RON
11 1 1 COVER LH (N681063) 3954 RON
12 1 1 HANDLE SA LH (N747737) 20216 RON
13 1 1 FIELDCASE SA (N681040) 32327 RON
14 1 1 RATING PLATE (N715267) 944 RON
15 1 1 COVER RH (N681065) 3954 RON
16 1 1 HANDLE SA RH (N681059) 4827 RON
17 1 1 SWITCH (N681046) 21676 RON
18 1 1 LEAD SA (N732160) 1933 RON
19 1 1 SPRING (N691084) 588 RON
20 1 1 BALL (N691085) 588 RON
21 1 1 SPEED REGULATOR (N747725) 5370 RON
22 1 2 BRUSH AND HOLDER 230V (N681075) 741 RON
23 1 4 SCREW (N681079) 588 RON
24 1 1 SUPPORT PLATE (N747726) 24962 RON
25 1 1 HOUSING REAR (N691086) 741 RON
26 1 14 SCREW (N498377) 944 RON
27 1 1 LABEL (N715276) 944 RON
28 1 9 SCREW (N499344) 1772 RON
29 1 1 COVER LH (N681060) 4827 RON
30 1 1 COVER RH (N681058) 4827 RON
31 1 1 PCB 230V (N681072) 32327 RON
32 1 2 SCREW (N681080) 588 RON
33 1 1 END CAP (N681073) 741 RON
200 1 1 SPANNER (N519648) 2796 RON
201 1 1 PADDLE (N519652) 16689 RON
