MIXER DEWALT DW134 Type A1
[DW134 Type A1]
MIXER DEWALT DW134 Type A1
Click pentru a mari
Imagini suplimentare
MIXER DEWALT DW134 Type A1
Click pentru a mari

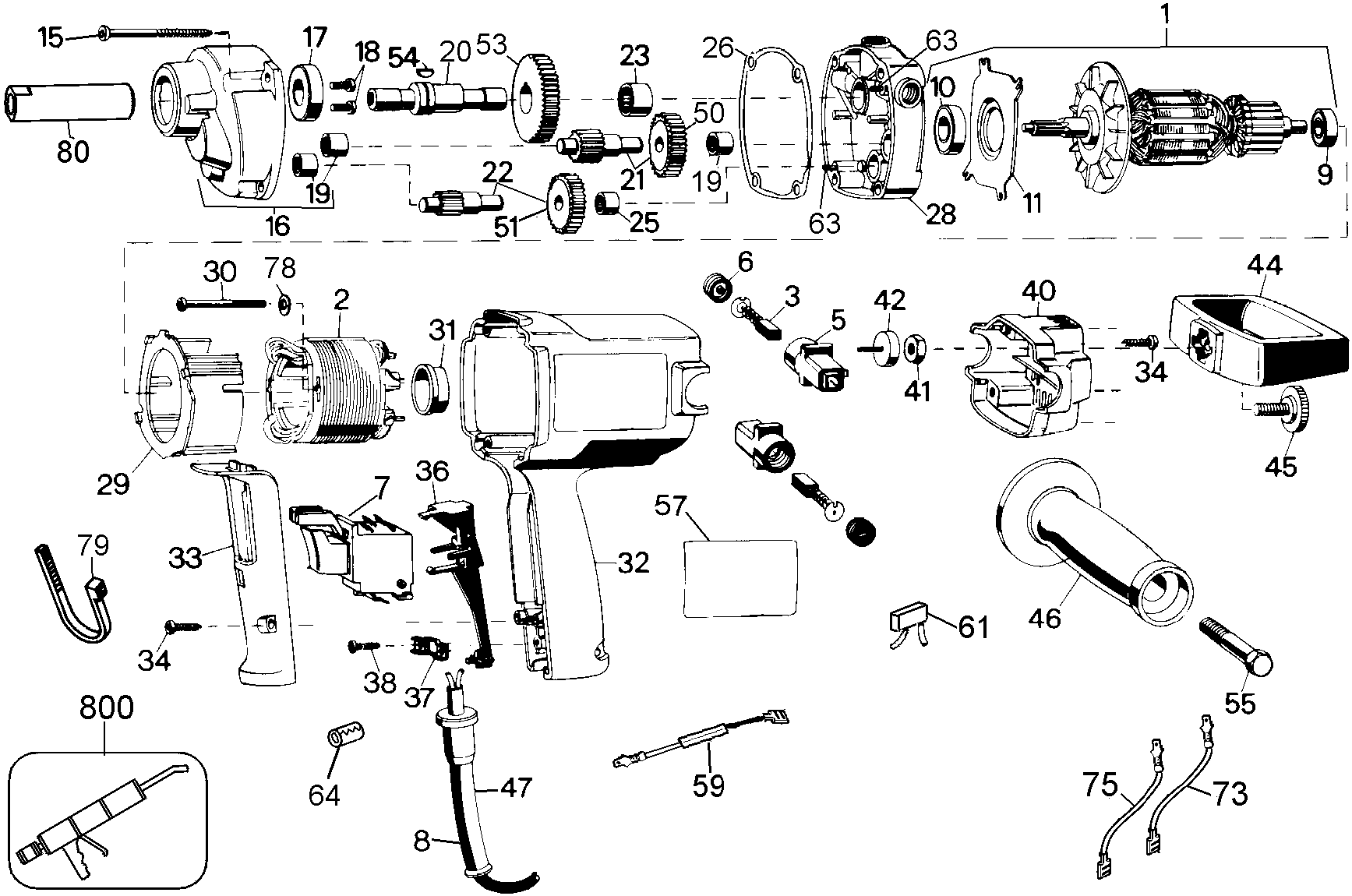

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE & FAN DW130 TYPE 2 (450130-05) 39145 RON
1 1 1 ARMATURE & FAN (450130-05SV) 34336 RON
2 1 1 450379-00SV - Indisponibil
2 1 1 FIELD DW290 (450379-00) 14315 RON
3 1 2 BRUSH SA (450374-07) 3466 RON
3 1 2 BRUSH & SPRING (450374-99) 2795 RON
3 1 2 BRUSH & SPRING (450374-12) 3018 RON
5 1 2 BRUSH HOLDER (448083-01) 3466 RON
6 1 2 BRUSH CAP (448084-01) 781 RON
7 1 1 SWITCH (88324-04) 10512 RON
8 1 1 CORDSET (330048-72) 1891 RON
9 1 1 BEARING BALL (330003-09) 2795 RON
9 1 1 Ball Brg (605040-20) 2182 RON
10 1 1 330003-04 - Indisponibil
10 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
11 1 1 PLATE (448079-00) 1229 RON
15 1 4 SCREW PLASTIC THREAD FORM M4 * 57 T20 (330019-30) 558 RON
16 1 1 449481-00SV - Indisponibil
16 1 1 N209034 - Indisponibil
16 1 1 N098316 - Indisponibil
16 1 1 GEARCASE SA (N763396) 15469 RON
17 1 1 BEARING DW130 TYPE 2 (700964-00) 4472 RON
18 1 2 SCREW TEMP (052819-00) 558 RON
18 1 2 52819-00 - Indisponibil
19 1 3 BEARING (131790-00) 1117 RON
19 1 3 BEARING NEEDLE (330004-02) 1229 RON
20 1 1 SPINDLE DW130 TYPE 2 (147195-00) 14315 RON
21 1 1 PINION & GEAR DW130 TYPE 2 (449489-00) 12861 RON
21 1 1 GEAR AND SPINDLE (449489-00SV) 24962 RON
22 1 1 GEAR & PINION DW130 TYPE 2 (449486-00) 23598 RON
22 1 1 GEAR AND PINION (449486-00SV) 48037 RON
23 1 1 BEARING (135937-00) 190 RON
25 1 1 BEARING, NEEDLE (330004-27) 944 RON
25 1 1 BEARING DW130 TYPE 2 (449493-00) 1117 RON
26 1 1 GASKET DW130 TYPE 2 (450485-00) 781 RON
28 1 1 GEARCASE COVER (449483-00) 20467 RON
28 1 1 449483-00SV - Indisponibil
29 1 1 BAFFLE FAN (447786-00) 781 RON
30 1 1 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
30 1 1 SCREW PLASTITE (330019-18) 558 RON
31 1 1 SLEEVE (445217-02) 781 RON
32 1 1 429939-00 - Indisponibil
33 1 1 HANDLE COVER (392273-00) 1891 RON
33 1 1 392273-01 - Indisponibil
34 1 6 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
36 1 1 449915-00 - Indisponibil
37 1 1 CORD CLAMP (86634-00) 558 RON
38 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
40 1 1 END CAP DW130 TYPE 2 (449492-02) 2347 RON
41 1 1 NUT DW130 (99371-06) 558 RON
42 1 1 cap dw130 type 2 (449700-00) 781 RON
44 1 1 HANDLE DW130 TYPE 2 (96511-00) 3018 RON
44 1 1 HANDLE (628037-00) 4137 RON
45 1 1 KNOB (382531-00) 7940 RON
46 1 1 HANDLE DW130 TYPE 2 (130814-06) 2795 RON
46 1 1 SIDE HANDLE (625712-00) 3018 RON
47 1 1 N542553 - Indisponibil
47 1 1 PROTECTOR CORD (330005-01) 105 RON
47 1 1 CORD PROTECTOR (N918736) 668 RON
50 1 1 449490-00 - Indisponibil
51 1 1 GEAR DW130 TYPE 2 (449487-00) 190 RON
53 1 1 GEAR DW130 TYPE 2 (400147-00) 3018 RON
54 1 1 KEY DW130 TYPE 2 (007027-00) 781 RON
54 1 1 7027-00 - Indisponibil
55 1 1 screw dw130 (99173-36) 781 RON
57 1 1 LABEL (395681-00) 781 RON
57 1 1 BRAND LABEL (627212-00) 781 RON
59 1 1 CHOKE (146975-02) 6821 RON
61 1 1 CAPACITOR DW130 TYPE 2 (135107-05) 12861 RON
63 1 2 91286-00 - Indisponibil
63 1 2 PIN (091286-00) 558 RON
64 1 2 TERMINAL (64787-00) 558 RON
64 1 2 444262-00 - Indisponibil
73 1 1 LEAD (146976-00) 26730 RON
75 1 1 LEAD DW130 TYPE 2 (146956-00) 893 RON
78 1 1 98197-03 - Indisponibil
78 1 1 WASHER (098197-03) 558 RON
79 1 1 71025-00 - Indisponibil
79 1 1 071025-07 - Indisponibil
79 1 1 clamp dw744 (071025-00) 558 RON
79 1 1 TIE (690673) 558 RON
80 1 1 ADAPTOR (395839-00) 14315 RON
800 1 1 GREASE (429698-00) 62298 RON
