MIXER DEWALT DCD240 Type 2
[DCD240 Type 2]
MIXER DEWALT DCD240 Type 2
Click pentru a mari
Imagini suplimentare
MIXER DEWALT DCD240 Type 2
Click pentru a mari
MIXER DEWALT DCD240 Type 2
Click pentru a mari
MIXER DEWALT DCD240 Type 2
Click pentru a mari

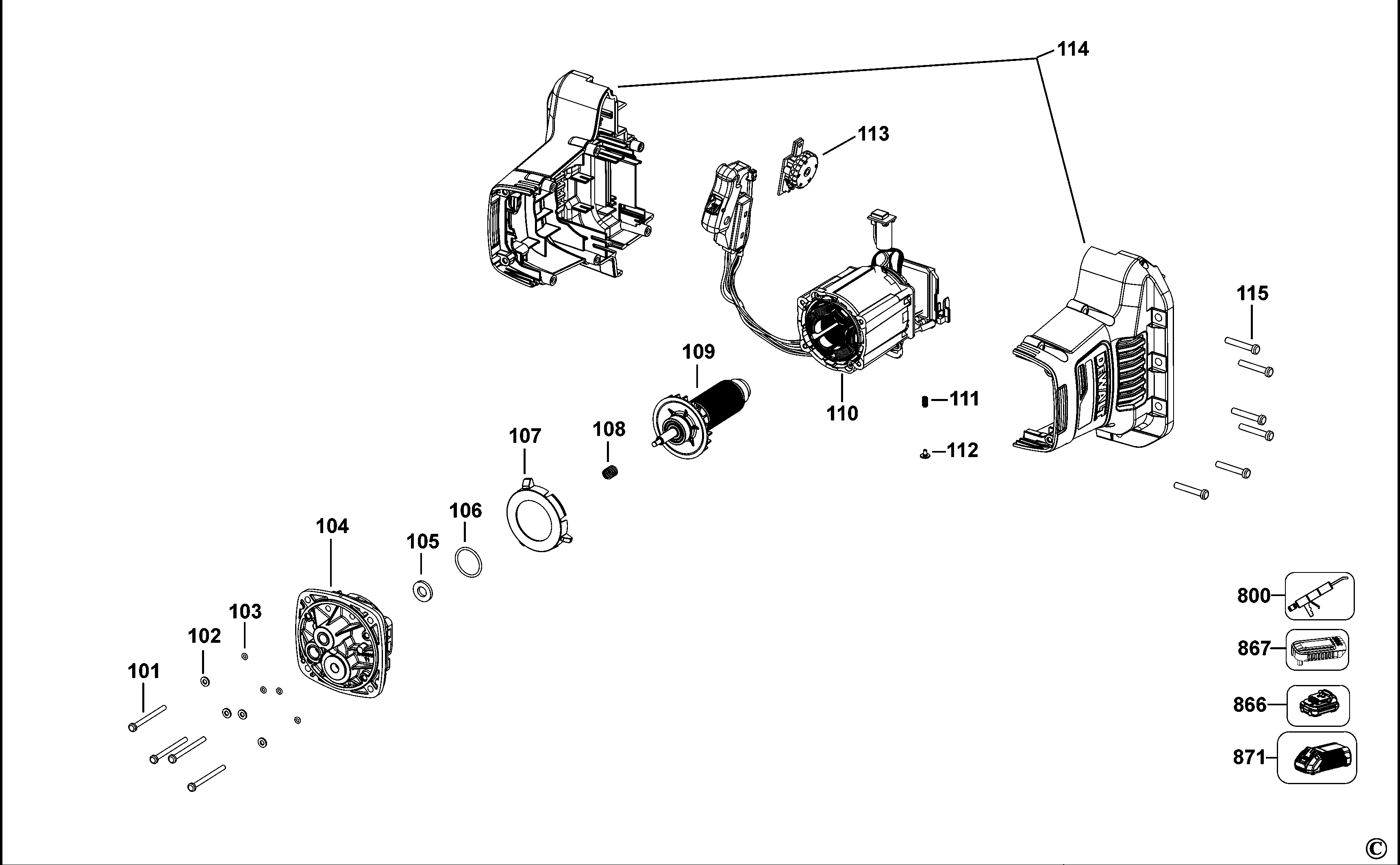

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (N498448) 668 RON
2 1 1 GEARCASE SA (N531233) 27287 RON
3 1 1 GEAR SA (N530918) 5370 RON
4 1 1 GEAR SA (N530904) 6688 RON
5 1 1 GASKET (N460098) 668 RON
6 1 8 SCREW (N499344) 1772 RON
8 1 1 LABEL (N519714) 588 RON
9 1 1 PIN (N511831) 1772 RON
10 1 1 SPRING TORSION (N511832) 82 RON
11 1 1 LABEL (N519722) 588 RON
12 1 1 BATTERY COVER (N530879) 4827 RON
13 1 1 PIN (N499441) 588 RON
14 1 1 COVER (N530875) 1772 RON
15 1 1 RATING LABEL (NA121552) 588 RON
16 1 1 CLAMSHELL SET (N463912) 13697 RON
17 1 8 SCREW (N498473) 588 RON
18 1 1 CLAMSHELL SET (N530847) 1772 RON
19 1 1 SWITCH COVER (N510871) 668 RON
20 1 1 SUPPORT (N517515) 82 RON
21 1 1 CLAMSHELL SET (N463905) 12361 RON
22 1 1 BASE PLATE (N455327) 24962 RON
23 1 8 SCREW (N498377) 944 RON
24 1 1 BATTERY COVER (N501243) 12361 RON
25 1 8 NUT M6 (N499349) 668 RON
26 1 1 LABEL (N519720) 588 RON
27 1 1 403123-01 - Indisponibil
28 1 1 PIN (N559812) 588 RON
101 1 4 SCREW PLASTIC THREAD FORM M3.5 * 45 T15 (330019-08) 558 RON
102 1 4 WASHER (N462739) 588 RON
103 1 4 O RING (N504446) 588 RON
104 1 1 ADAPTOR SA (N527278) 24962 RON
105 1 1 WASHER FELT (N493856) 588 RON
106 1 1 O RING (N493854) 588 RON
107 1 1 BAFFLE (N493809) 668 RON
108 1 1 SPRING (N498620) 588 RON
109 1 1 ROTOR SA (N538840) 36994 RON
110 1 1 STATOR SA (NA136621) 139195 RON
111 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
112 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
113 1 1 WHEEL SPEED (N460556) 741 RON
114 1 1 CLAMSHELL SET (N527102) 24962 RON
115 1 6 SCREW (330019-45) 558 RON
200 1 2 SPANNER (N519648) 2796 RON
201 1 1 PADDLE (N519652) 16689 RON
800 1 1 GREASE (429698-00) 62298 RON
862 1 1 BAG (N037466) 10512 RON
862 1 1 BAG SA (NA705139) 741 RON
866 1 1 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
