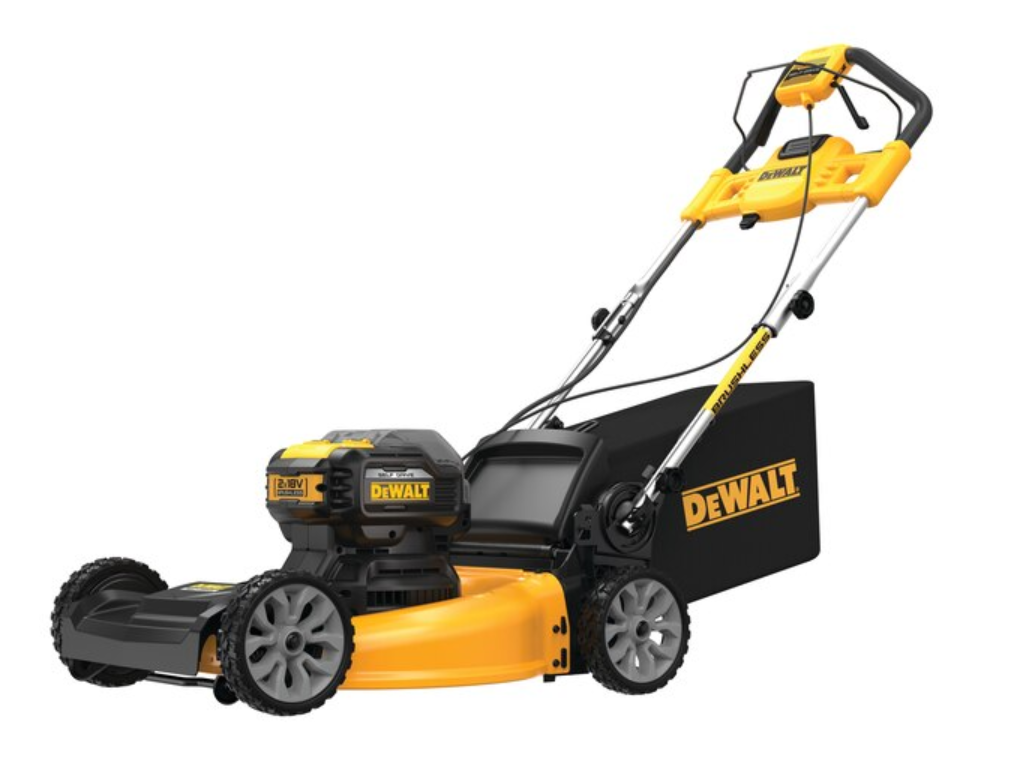

MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP564N Type 1
[DCMWSP564N Type 1]
MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP564N Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP564N Type 1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP564N Type 1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP564N Type 1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP564N Type 1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP564N Type 1
Click pentru a mari

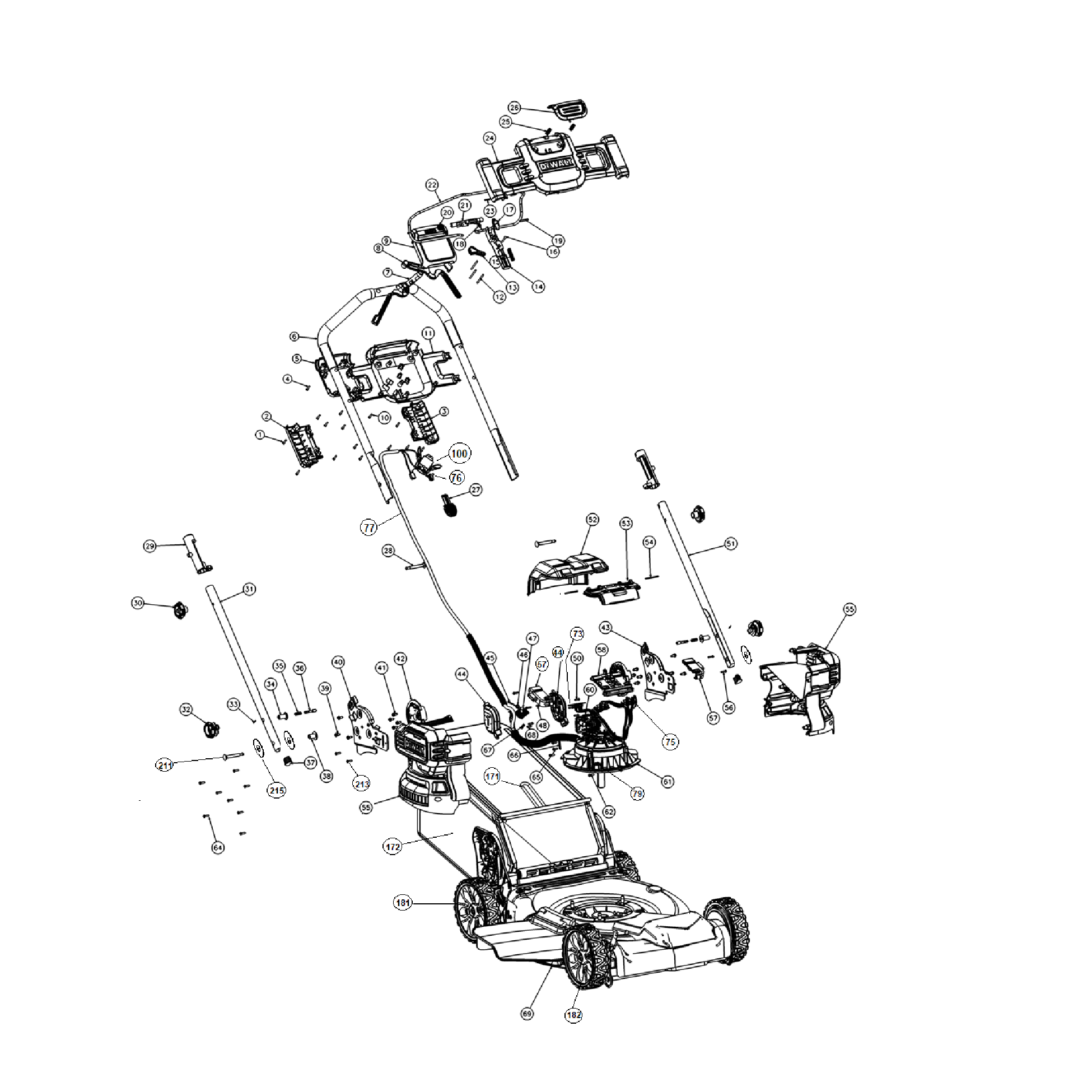

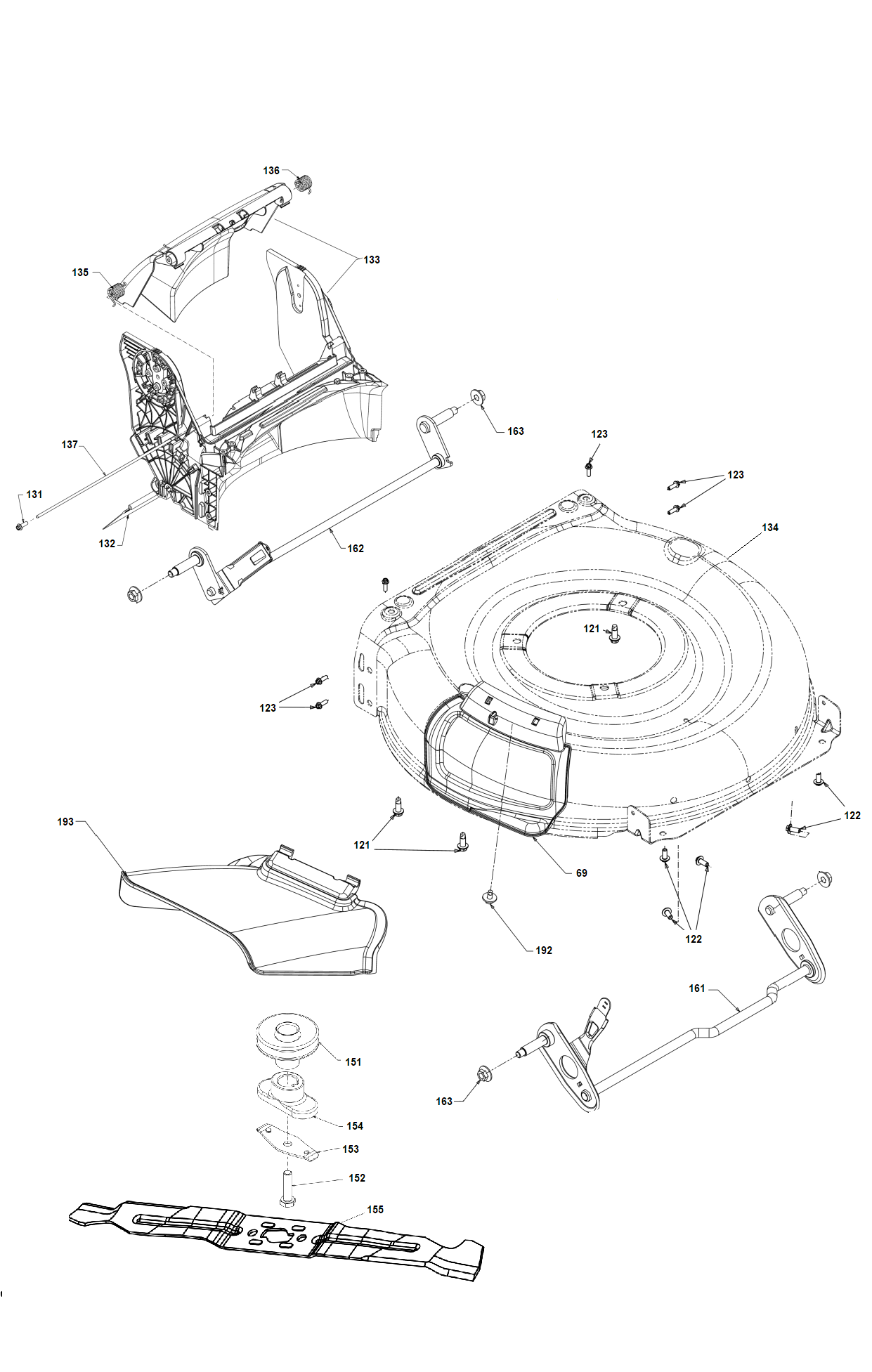

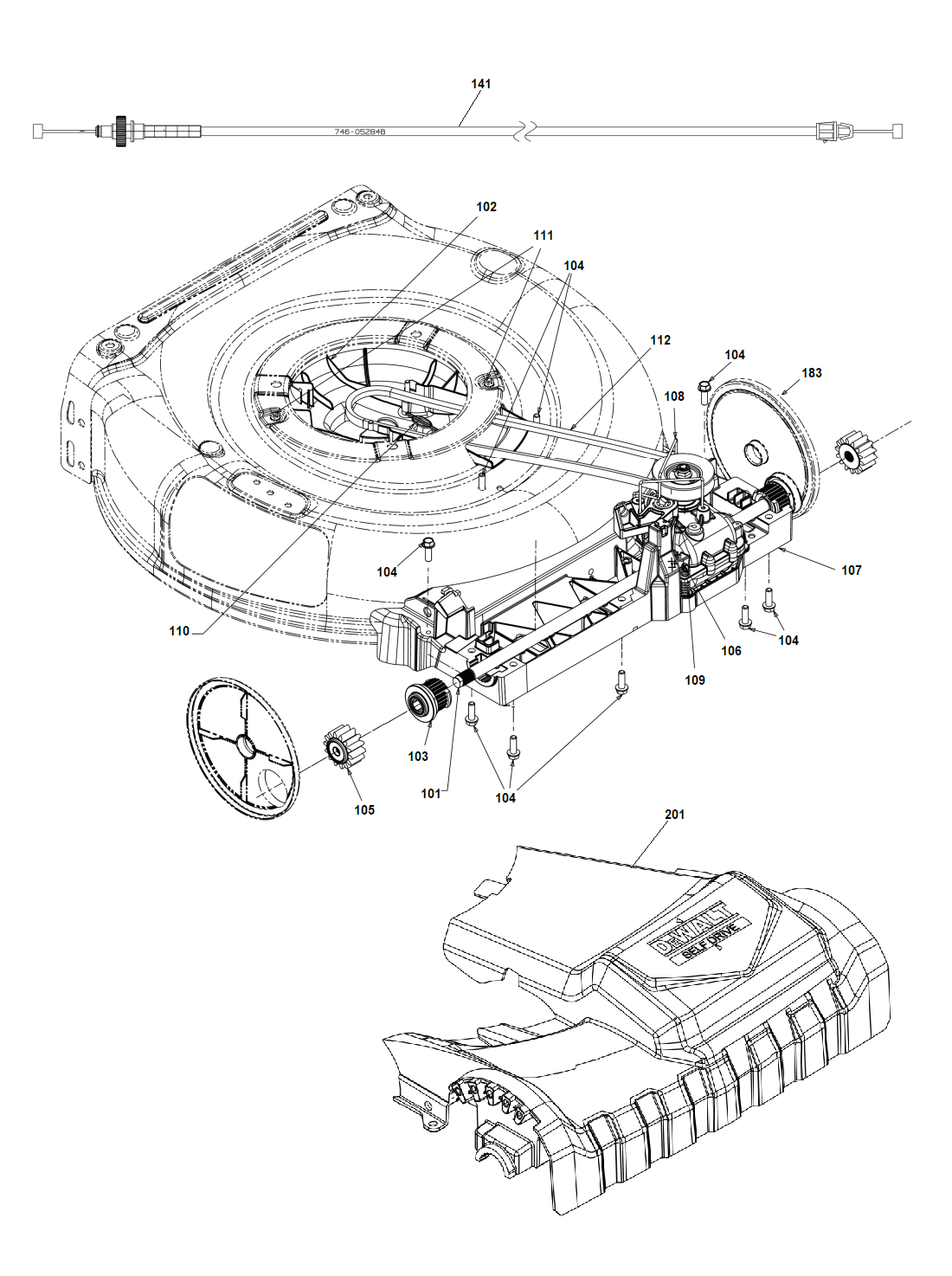

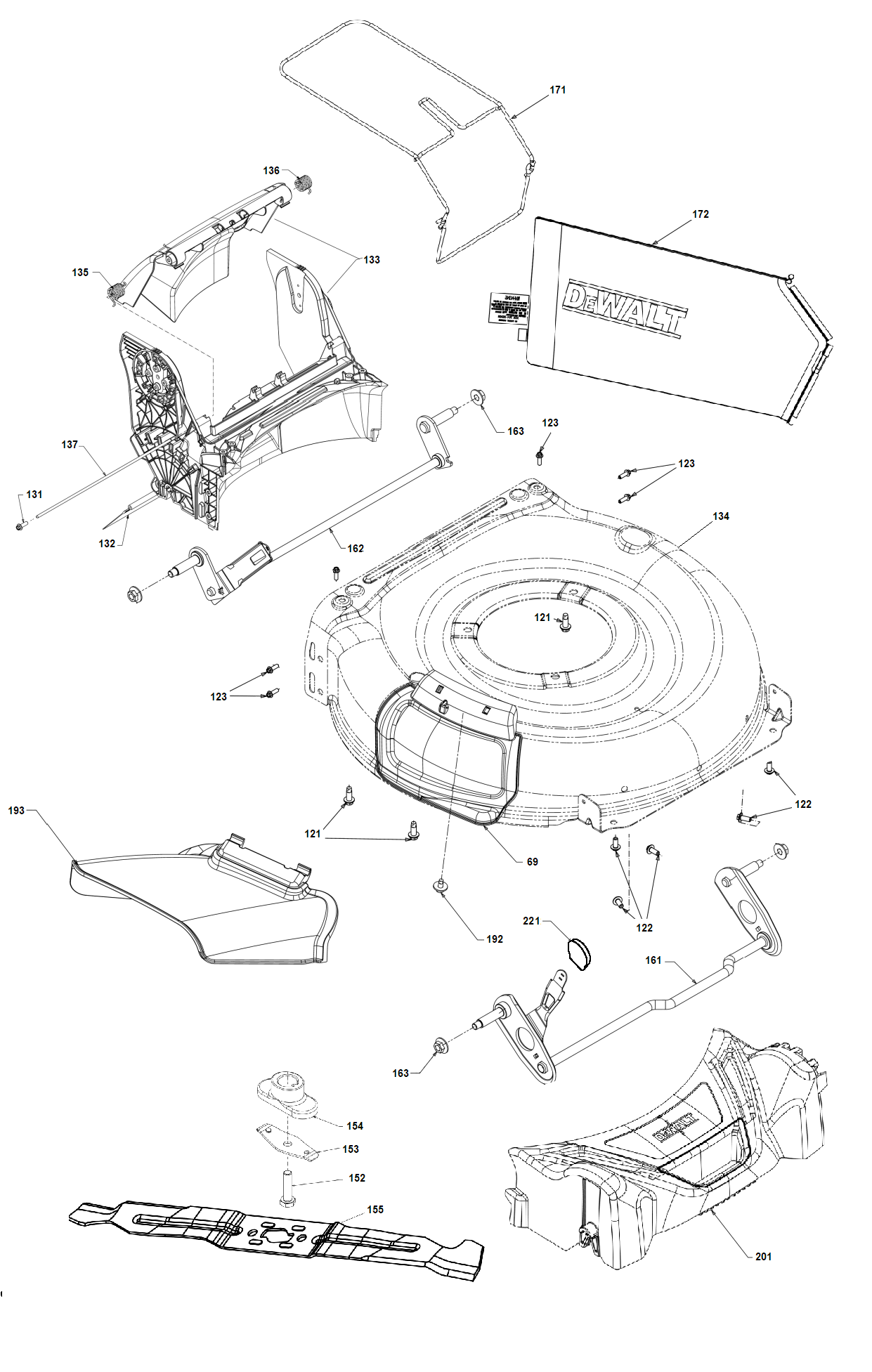

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 8 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
2 1 1 COVER RH (BD-N854821) 5370 RON
3 1 1 COVER LH (BD-N854820) 5370 RON
5 1 1 HOUSING (BD-N852311) 6688 RON
6 1 1 HANDLE (BD-N816201) 104961 RON
7 1 1 LEVER (BD-N846742) 6688 RON
8 1 1 LEVER (BD-N846741) 6688 RON
9 1 1 HOUSING (BD-N925875) 16689 RON
10 1 7 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
11 1 1 HOUSING LOWER (N851699) 4827 RON
12 1 3 PIN (N533427) 588 RON
13 1 1 CAM (N835302) 668 RON
14 1 1 CONNECTING ROD (N516531) 114 RON
15 1 1 SPRING (N534693) 588 RON
16 1 1 PIN (N535718) 588 RON
17 1 1 CATCH (N529982) 668 RON
18 1 1 SPRING (N531187) 588 RON
19 1 1 PIN (N535718) 588 RON
20 1 1 SPRING TORSION (N534932) 588 RON
21 1 1 HANDLE (N516529) 1318 RON
22 1 1 HANDLE (N839423) 4827 RON
23 1 2 PIN (N516878) 588 RON
24 1 1 HOUSING (N851698) 741 RON
25 1 2 SPRING (N534694) 588 RON
26 1 1 BUTTON (N572300) 1933 RON
27 1 1 PARTS PACK (N892640) 49114 RON
27 1 1 SAFETY KEY (N835578) 668 RON
28 1 1 PARTS PACK (N892640) 49114 RON
29 1 1 HANDLE SA (NA074187) 32327 RON
30 1 1 PARTS PACK (N892640) 49114 RON
31 1 1 HANDLE RH (BD-N815447) 39318 RON
32 1 2 KNOB (N642431) 944 RON
33 1 2 SPRING (90564730) 558 RON
35 1 2 SPRING COMPRESSION (90101536) 558 RON
36 1 2 PIN (N514100) 944 RON
37 1 2 INSERT (N566731) 944 RON
38 1 2 SPACER (N535178) 668 RON
39 1 14 SCREW (710-04261-CM) 2796 RON
40 1 1 BRACKET RH (BD-N808271) 16689 RON
41 1 8 SCREW (710-04261-CM) 2796 RON
42 1 2 MOUNT (BD-N812266) 12361 RON
43 1 1 BRACKET LH (BD-N808269) 16689 RON
44 1 1 HOUSING SWITCH (N855073) 1933 RON
45 1 1 PIN (N597886) 588 RON
46 1 1 SPRING (N591385) 588 RON
47 1 1 ACTUATOR (N844401) 588 RON
48 1 1 SCREW (N601444) 588 RON
50 1 3 Screw M3.5X16 T15 (330019-03) 558 RON
51 1 1 HANDLE LH (BD-N876073) 49114 RON
52 1 1 LID (N822066) 12361 RON
53 1 1 PANEL (N822082) 4355 RON
54 1 2 PIN (N557735) 114 RON
55 1 1 HOUSING MOTOR (N838630) 52855 RON
56 1 6 Screw M3.5X16 T15 (330019-03) 558 RON
57 1 1 HOUSING (N857602) 1772 RON
58 1 1 RAIL (N802708) 2182 RON
60 1 1 CONTROL MODULE SA (NA575573) 91363 RON
61 1 1 MOTOR SA (NA359083) 214180 RON
62 1 2 screw dw744 (330019-12) 558 RON
64 1 8 screw dw744 (330019-12) 558 RON
65 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
66 1 1 CLAMP (N592599) 588 RON
67 1 2 CLAMP CORD CORNER (329301-00) 558 RON
68 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
69 1 1 BRACKET (787-01779-CM) 2796 RON
69 1 1 SPRING TORSION (732-1014C-CM) 2796 RON
69 1 1 PIN (747-0710A-CM) 2796 RON
70 1 1 WIRE HARNESS (N820908) 741 RON
71 1 1 CONNECTOR-WAGO, 3-WIRE (N590958) 1772 RON
72 1 2 CONNECTOR (N590957) 1318 RON
73 1 1 PCB (N833650) 6688 RON
74 1 1 LABEL (N850094) 668 RON
75 1 1 TERMINAL BLOCK (N820909) 12361 RON
76 1 1 MICRO SWITCH (N836436) 3268 RON
77 1 1 WIRE HARNESS (N836437) 18568 RON
78 1 2 CONNECTOR (650974-00) 668 RON
79 1 3 NUT (N680521) 1630 RON
100 1 1 SWITCH (N736727) 10241 RON
101 1 1 TRANSMISSION SA (618P07464D-DW) 49827 RON
102 1 1 BAFFLE (931-04535C-DW) 11337 RON
103 1 2 BEARING SA (941-00019-CM) 3268 RON
104 1 9 SCREW (710-0895-CM) 2796 RON
105 1 2 Gear (717-05432-CM) 3268 RON
106 1 1 SPRING (731-07355-CM) 2796 RON
107 1 1 TRAY (731-26715-DW) 20216 RON
108 1 1 WIRE (732-04675A-CM) 2796 RON
109 1 1 SPRING (732-04704-CM) 2796 RON
111 1 2 SCREW (738-04502-CM) 2796 RON
112 1 1 V-BELT (954-04260-CM) 15469 RON
121 1 3 SCREW (710-04683C-CM) 3268 RON
122 1 5 SCREW (710-04995A-CM) 3268 RON
123 1 6 SCREW (710-05108-CM) 2796 RON
131 1 1 SCREW (710-05108-CM) 2796 RON
132 1 1 SHIELD (731-07203-CM) 3954 RON
133 1 1 BAFFLE (631P08141) 60451 RON
134 1 1 CUTTER DECK (787-01871B-DW) 48037 RON
135 1 1 SPRING (732-05061B-CM) 2796 RON
136 1 1 SPRING (732-05062B-CM) 2796 RON
137 1 1 ROD (747-05183-CM) 2796 RON
141 1 1 CABLE (946-05284B-CM) 16689 RON
151 1 1 ADAPTOR (687-06020-DW) 10241 RON
152 1 1 BLADE BOLT (710-1044-CM) 3268 RON
153 1 1 736-0524B-CM - Indisponibil
153 1 1 SUPPORT (736-0524B-1) 9012 RON
154 1 1 ADAPTOR (748-06644-DW) 5370 RON
155 1 1 BLADE (742P05642-DW) 18568 RON
161 1 1 AXLE FRONT (911-04150-CM) 30769 RON
162 1 1 AXLE REAR (611-05629-DW) 48037 RON
163 1 4 NUT (712-04217-CM) 2796 RON
171 1 1 FRAME (647-04271-CM) 16689 RON
172 1 1 GRASSBAG (664-05761-DW) 28836 RON
181 1 2 WHEEL (634-07619-DW) 13697 RON
182 1 2 WHEEL FRONT (634-07620-DW) 16689 RON
183 1 2 COVER (731-07240A-CM) 2796 RON
192 1 1 SCREW (710-05073-CM) 3268 RON
193 1 1 CHUTE (731-26695) 6688 RON
201 1 1 COVER (731-26479-DW) 18568 RON
211 1 2 SCREW (710-0395-CM) 3268 RON
213 1 2 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
214 1 2 NUT (712-04063-CM) 3268 RON
221 1 1 KNOB (720-04130-CM) 3268 RON
