Top » Piese de schimb » PIESE DEWALT » DCMWSP550N Type 1

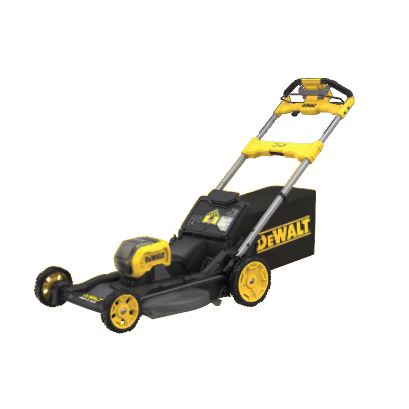

MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP550N Type 1
[DCMWSP550N Type 1]
MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP550N Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP550N Type 1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP550N Type 1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP550N Type 1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR DEWALT DCMWSP550N Type 1
Click pentru a mari

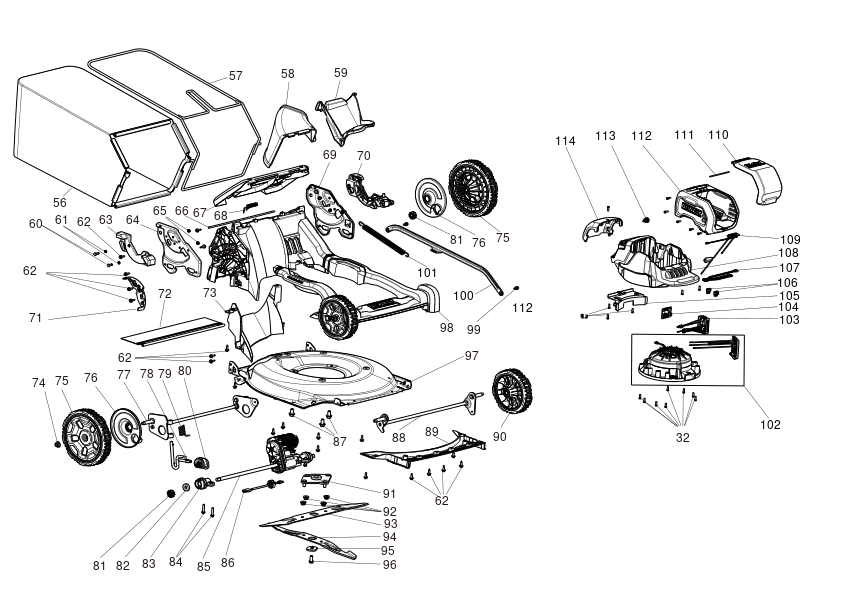

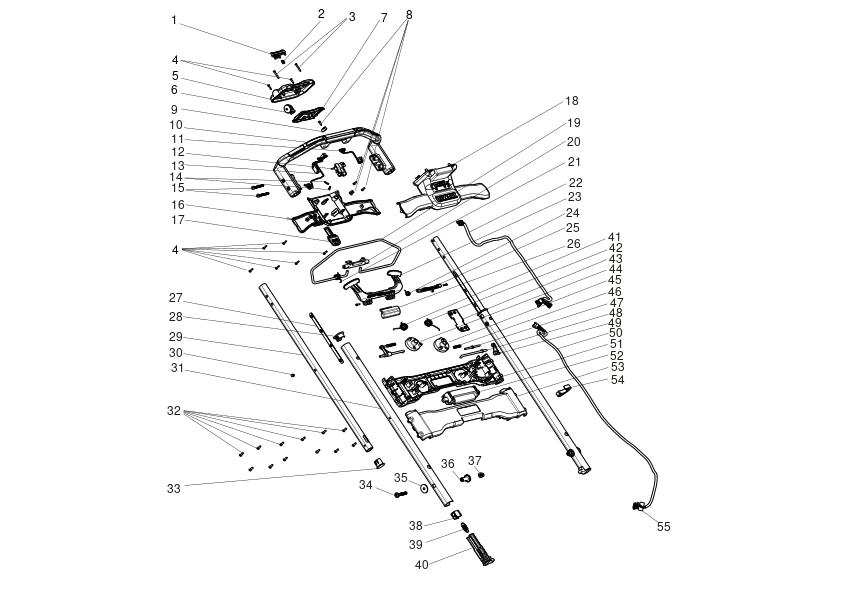

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BUTTON (NA291684) 588 RON
2 1 1 SPRING (NA213502) 588 RON
3 1 2 SCREW (90617442) 588 RON
4 1 8 Screw M3.5X16 T15 (330019-03) 558 RON
5 1 1 COVER (NA168487) 1933 RON
6 1 1 POTENTIOMETER SA (NA168483) 4355 RON
7 1 1 CONTROL (NA171938) 38463 RON
8 1 7 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
9 1 1 BUTTON (NA255730) 588 RON
10 1 1 HANDLE (NA305144) 10241 RON
11 1 1 NA211460 - Indisponibil
11 1 1 WIRE HARNESS (NA569673) 3268 RON
12 1 1 SWITCH (NA172919) 668 RON
13 1 1 NA211458 - Indisponibil
13 1 1 WIRE (NA561361) 9012 RON
14 1 2 CAP (N261987) 588 RON
15 1 4 SCREW TAPTITE M6 * 45 (330045-29) 2347 RON
16 1 1 SWITCHBOX (NA168486) 2796 RON
17 1 1 KEY (NA262050) 82 RON
18 1 1 HOUSING SA (NA168485) 4827 RON
19 1 1 CATCH (NA291636) 3268 RON
20 1 1 CAM (NA168480) 668 RON
21 1 1 SPRING TORSION (N534932) 588 RON
22 1 1 NA172974 - Indisponibil
22 1 1 WIRE HARNESS (NA570400) 12361 RON
23 1 1 PADDLE (NA168488) 2182 RON
24 1 1 PADDLE (NA175920) 588 RON
25 1 1 PIVOT (NA177963) 82 RON
26 1 1 COVER (NA173660) 668 RON
27 1 2 STRIP (NA302113) 588 RON
28 1 2 SLEEVE (NA302157) 588 RON
29 1 2 TUBE UPPER (NA302156) 5370 RON
30 1 2 STOP (NA377608) 588 RON
31 1 2 TUBE LOWER (NA302154) 741 RON
32 1 31 screw dw744 (330019-12) 558 RON
33 1 2 SLEEVE (NA302159) 588 RON
34 1 2 BOLT (NA291227) 668 RON
35 1 2 WASHER (NA302168) 588 RON
36 1 2 SCREW (NA302166) 944 RON
37 1 2 NUT (N526931) 588 RON
38 1 2 HOOK (NA302103) 588 RON
39 1 2 SPRING (NA302114) 668 RON
40 1 1 LOCK (NA302073) 114 RON
41 1 1 SPRING (NA302117) 588 RON
42 1 1 SPRING (NA302116) 588 RON
43 1 1 COVER (NA302176) 588 RON
44 1 1 DISC (NA302109) 82 RON
45 1 1 DISC (NA302110) 82 RON
46 1 2 SPRING (NA302115) 588 RON
47 1 2 PIN (NA302149) 588 RON
48 1 2 ROD (NA302148) 668 RON
49 1 2 HOLDER (NA302105) 588 RON
50 1 1 HARNESS (NA217316) 11337 RON
51 1 1 COVER (NA302165) 3268 RON
52 1 1 BUTTON (NA301663) 2556 RON
53 1 1 COVER (NA302164) 3268 RON
54 1 1 CLIP (NA302177) 668 RON
54 1 1 CLIP (NA754430) 588 RON
55 1 1 CORE (NA390861) 3268 RON
56 1 1 GRASSBAG (NA324042) 25728 RON
57 1 1 FRAME (NA301420) 11337 RON
58 1 1 CHUTE (NA301422) 5370 RON
59 1 1 PLUG (NA301421) 3954 RON
60 1 4 BOLT (N507564) 588 RON
61 1 4 SPACER (NA302167) 588 RON
62 1 27 SCREW (NA301430) 588 RON
63 1 1 SUPPORT (NA301696) 2796 RON
64 1 1 BRACKET (NA302173) 5370 RON
65 1 4 LOCK-NUT (N541610) 588 RON
66 1 1 ROD (NA301429) 114 RON
67 1 1 DOOR (NA302912) 6688 RON
68 1 1 SPRING (N572158) 668 RON
69 1 1 BRACKET (NA302172) 5370 RON
70 1 1 SUPPORT (NA301667) 2796 RON
71 1 1 BRACKET (NA302175) 2796 RON
72 1 1 SHIELD (NA301427) 2796 RON
73 1 1 INSERT (NA301426) 3954 RON
74 1 4 NUT (NA301415) 588 RON
75 1 1 WHEEL SA (NA171660) 12361 RON
76 1 2 COVER LH (NA219359) 944 RON
77 1 1 AXLE REAR (NA301394) 12361 RON
78 1 1 ROD (NA301402) 2556 RON
79 1 1 SPRING (NA301404) 82 RON
80 1 1 ROD (NA301417) 1630 RON
81 1 2 Gear (NA302767) 1318 RON
82 1 2 BEARING (90136109) 1933 RON
83 1 2 HOLDER (NA302766) 114 RON
84 1 4 SCREW (NA302768) 588 RON
85 1 1 TRANSMISSION SA (NA302939) 91363 RON
86 1 1 HARNESS (NA383315) 5370 RON
87 1 3 BOLT (NA301557) 668 RON
88 1 1 AXLE FRONT (NA300158) 9012 RON
89 1 1 CLIP (NA301425) 3268 RON
90 1 2 WHEEL SA (NA171658) 9012 RON
91 1 1 PLATE (NA323873) 10241 RON
92 1 4 NUT (NA301435) 588 RON
93 1 1 BLADE MOUNT (NA302153) 12361 RON
94 1 1 BLADE MOUNT (NA302151) 12361 RON
95 1 1 WASHER (NA301433) 2182 RON
96 1 1 BOLT (NA301437) 944 RON
97 1 1 CUTTER DECK (NA300055) 40734 RON
98 1 1 BODY (NA301424) 28836 RON
99 1 2 BOLT (NA301416) 588 RON
100 1 1 LINK (NA301407) 741 RON
101 1 1 SPRING (NA301418) 3268 RON
102 1 1 MOTOR SA (NA423565) 228616 RON
103 1 1 MODULE (NA423566) 48037 RON
103 1 1 SA HANDLE PANEL KIT (NA654189) 38463 RON
104 1 1 PCB SA (NA149905) 10241 RON
105 1 1 BAFFLE (NA132154) 114 RON
106 1 2 CONNECTOR (NA096216) 588 RON
107 1 1 HARNESS (NA172915) 5370 RON
108 1 1 MOTOR COVER (NA165684) 6688 RON
109 1 1 HARNESS (NA241409) 741 RON
110 1 1 DOOR (NA268443) 741 RON
111 1 1 PIN (NA225940) 668 RON
112 1 1 HOUSING (NA225533) 741 RON
113 1 1 BUSHING (NA392699) 668 RON
114 1 1 COVER (NA165685) 1772 RON
900 1 2 SPACER (NA709894) 588 RON
