Top » Piese de schimb » PIESE DEWALT » DCMPH566N Type 1

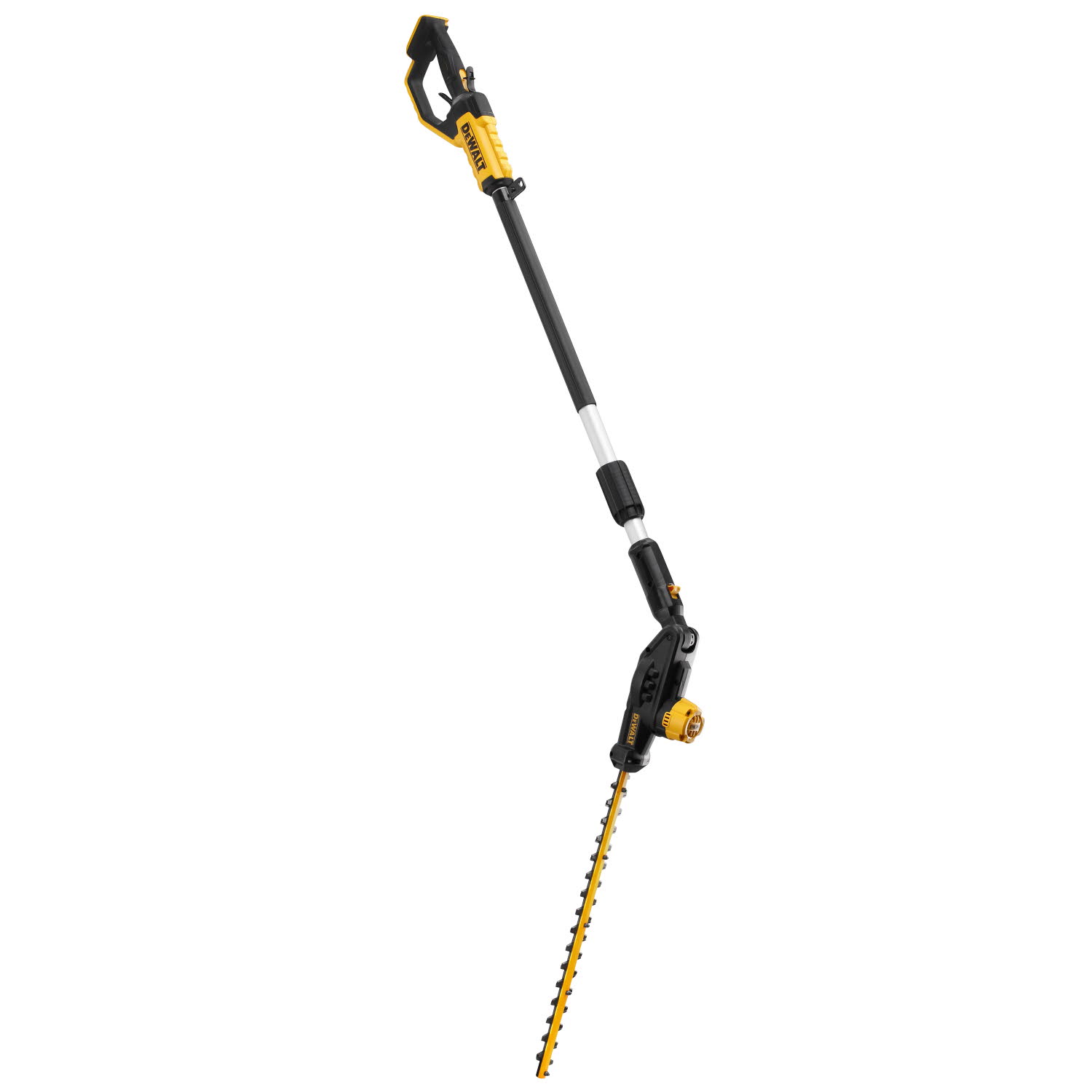

MASINA DE TUNS GARD VIU CU ACUMULATOR DEWALT DCMPH566N Type 1
[DCMPH566N Type 1]
MASINA DE TUNS GARD VIU CU ACUMULATOR DEWALT DCMPH566N Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS GARD VIU CU ACUMULATOR DEWALT DCMPH566N Type 1
Click pentru a mari
MASINA DE TUNS GARD VIU CU ACUMULATOR DEWALT DCMPH566N Type 1
Click pentru a mari
MASINA DE TUNS GARD VIU CU ACUMULATOR DEWALT DCMPH566N Type 1
Click pentru a mari

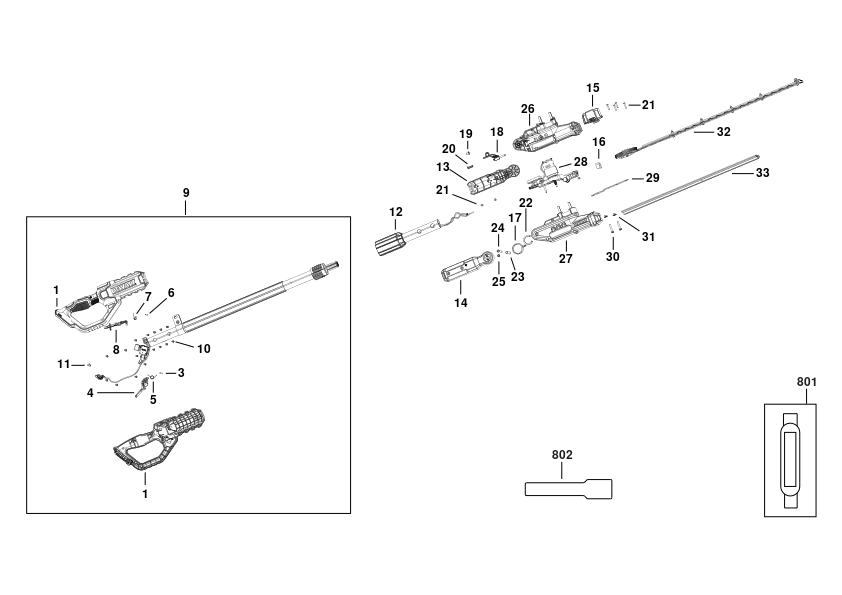

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL PAIR (N870427) 15469 RON
3 1 1 PIVOT (N670326) 588 RON
4 1 1 TRIGGER (N646128) 1630 RON
5 1 1 SPRING (N659016) 588 RON
6 1 1 PIVOT (N664030) 588 RON
7 1 1 SPRING (N664433) 588 RON
8 1 1 ACTUATOR (N674967) 1772 RON
9 1 1 SWITCH SA (N738134) 49827 RON
9 1 1 NB432394 - Indisponibil
10 1 16 Screw M3.5X16 T15 (330019-03) 558 RON
11 1 1 SCREW PLSTC THD FORM M3.5x32 T15 (330019-06) 558 RON
12 1 1 POLE PIECE SA (N727014) 10241 RON
12 1 1 NB437080 - Indisponibil
13 1 1 PIVOT (N695769) 2796 RON
14 1 1 PIVOT (N695770) 2796 RON
15 1 1 CAP (N702834) 2556 RON
16 1 1 FELT (N692632) 82 RON
17 1 1 RING (N683090) 1772 RON
18 1 1 BUTTON (N695743) 2556 RON
19 1 1 PIN (N695742) 588 RON
20 1 12 SPRING (N719624) 588 RON
21 1 12 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
22 1 1 WASHER (N715112) 668 RON
23 1 1 SLEEVE (N714562) 1630 RON
24 1 1 SCREW (N753977) 588 RON
25 1 1 NUT (N461154) 588 RON
26 1 1 COVER (N677751) 5370 RON
27 1 1 COVER (N677752) 741 RON
28 1 1 MOTOR SA (N875115) 38463 RON
29 1 1 PLATE (90570808) 1452 RON
30 1 1 BOLT (N778918) 588 RON
31 1 2 SPACER (N603748) 588 RON
32 1 1 BLADE SA (N814522) 49114 RON
33 1 1 SHEATH (N767711) 2182 RON
801 1 1 STRAP (N502343) 4355 RON
802 1 1 NA653037 - Indisponibil
