Top » Piese de schimb » PIESE DEWALT » DCG430E2T Type 1

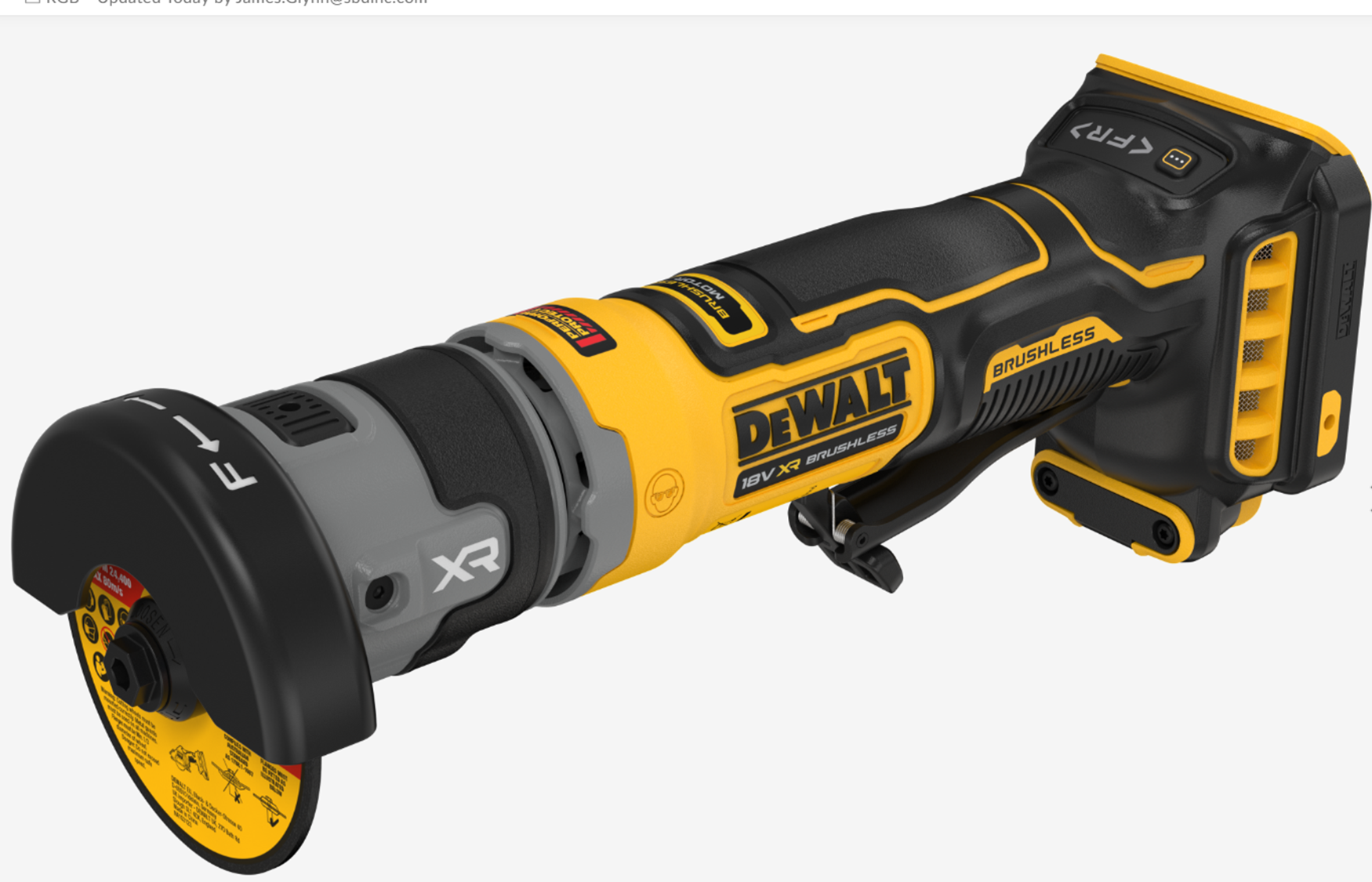

MASINA DE TAIAT DEWALT DCG430E2T Type 1
[DCG430E2T Type 1]
MASINA DE TAIAT DEWALT DCG430E2T Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE TAIAT DEWALT DCG430E2T Type 1
Click pentru a mari
MASINA DE TAIAT DEWALT DCG430E2T Type 1
Click pentru a mari
MASINA DE TAIAT DEWALT DCG430E2T Type 1
Click pentru a mari

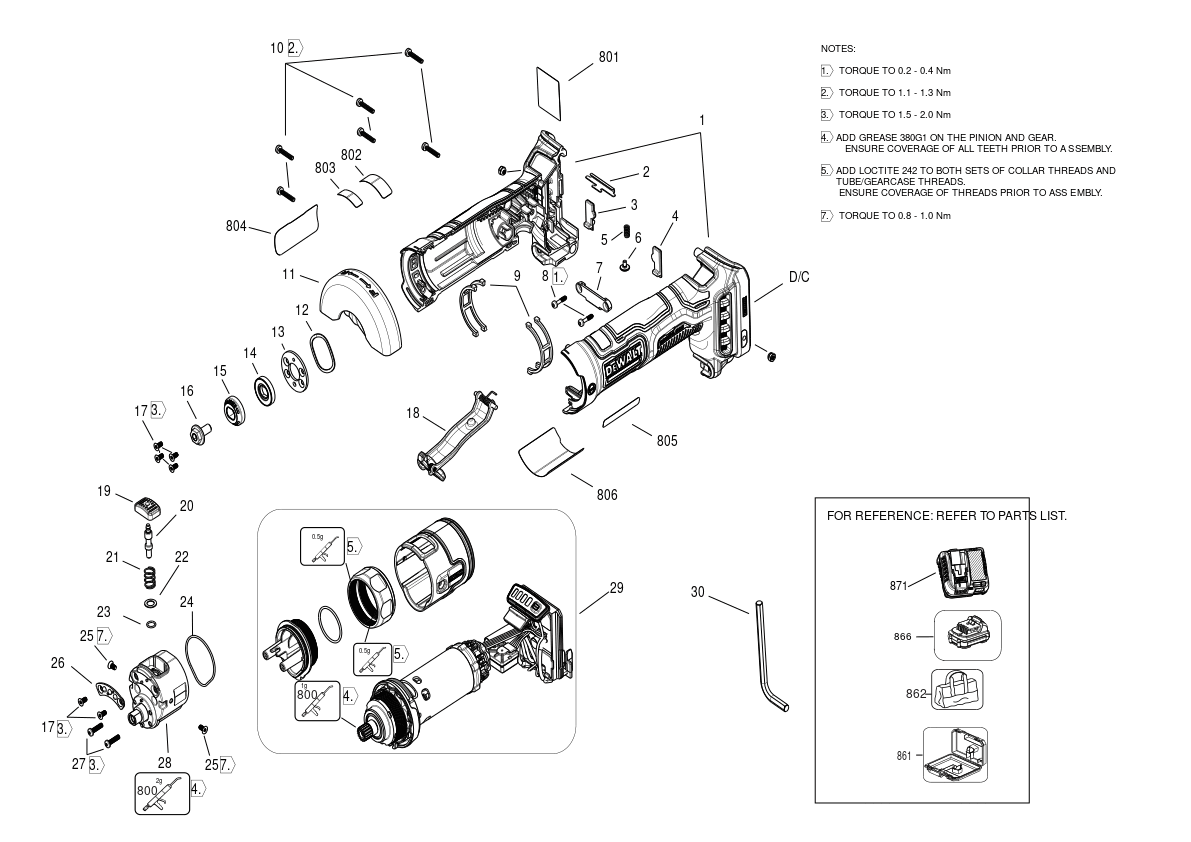

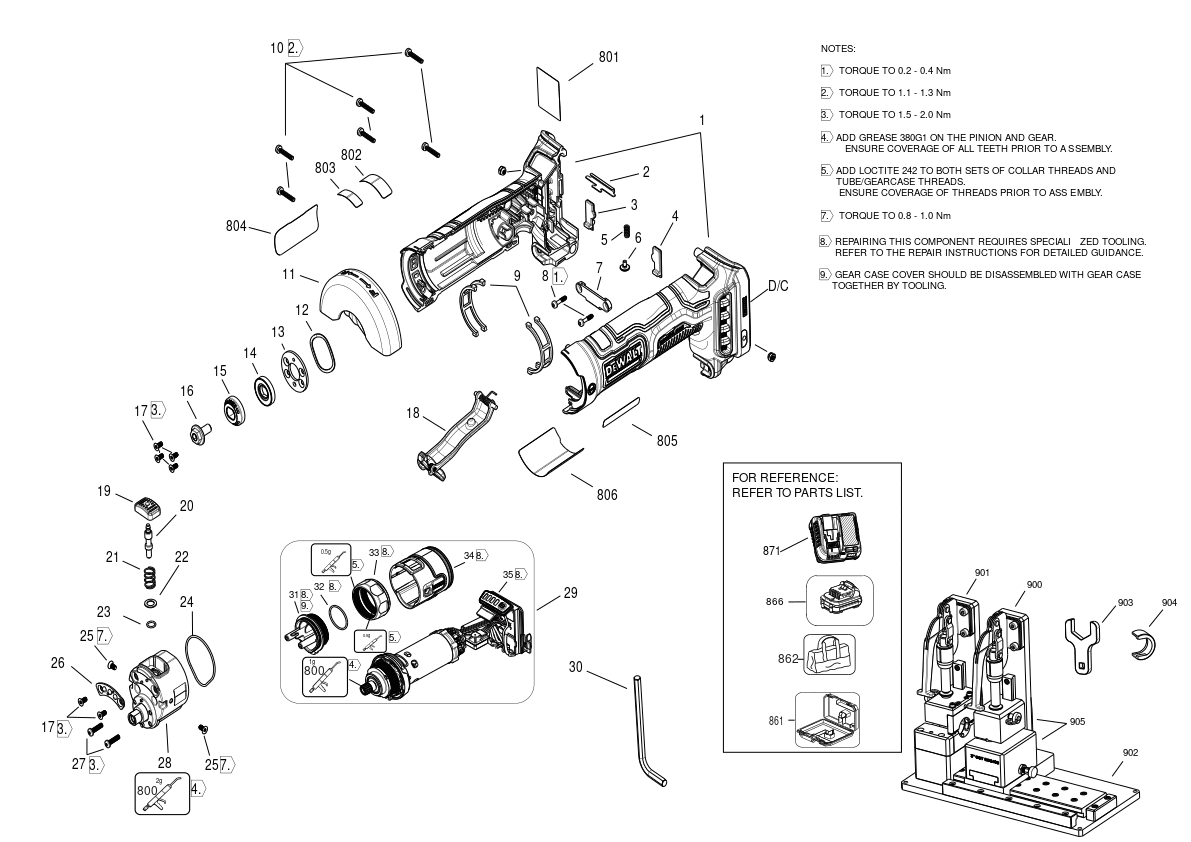

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA (NA602585) 5370 RON
2 1 1 STRIKE PLATE (N467560) 588 RON
3 1 1 INSERT (N728012) 588 RON
4 1 1 INSERT (N728013) 588 RON
5 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
6 1 1 SPRING GUIDE (N091479) 558 RON
7 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
8 1 2 SCREW (N831593) 588 RON
9 1 2 SEAL-SEAL MOTOR CAN (NA590653) 588 RON
10 1 6 SCREW PLASTIC THD FORM (330019-00) 558 RON
11 1 1 GUARD-GUARD FOR 3 CUTOFF (NA703752) 741 RON
12 1 1 SPRING-WAVE SPRING ID 25MM (NA689049) 588 RON
13 1 1 GUARD PLATE-PLATE GUARD RETAINER (NA712198) 944 RON
14 1 1 INNER FLANGE (NA609121) 588 RON
15 1 1 OUTER FLANGE (NA533849) 668 RON
16 1 1 BOLT (NA571712) 588 RON
17 1 4 SCREW-M3X0.5X10 FLAT HEAD (NA658466) 588 RON
18 1 1 PADDLE (NB145290) 6688 RON
19 1 1 LOCK BUTTON (NA630191) 588 RON
20 1 1 LOCKING PIN (N767774) 1772 RON
21 1 1 SPRING COMPRESSION (N895855) 588 RON
22 1 1 WASHER SPACER (N895853) 588 RON
23 1 1 O RING (N895854) 588 RON
24 1 1 O RING (NA618714) 588 RON
25 1 2 SCREW (NA356205) 588 RON
26 1 1 STOP (N907155) 588 RON
27 1 1 SCREW (330045-74) 558 RON
28 1 1 GEARCASE SA (NB416566) 16689 RON
29 1 1 MOTOR SWITCHBOX SA-SA MOTOR-MODULE-GCC (NB416364) 176482 RON
30 1 1 WRENCH (NA071697) 82 RON
31 1 1 NA616206 - Indisponibil
32 1 1 O RING (NA497886) 588 RON
33 1 1 CLAMP NUT (NA407522) 3268 RON
34 1 1 NA620067 - Indisponibil
35 1 1 NB423407 - Indisponibil
800 1 1 GREASE TUBE (583534-00) 29862 RON
801 1 1 LABEL (NA694243) 588 RON
802 1 1 LABEL-LABEL BRUSHLESS (NA678173) 588 RON
803 1 1 LABEL (NA678176) 588 RON
804 1 1 RATING LABEL (NA663421) 588 RON
805 1 1 LABEL (NA669213) 588 RON
806 1 1 WARNING LABEL (NA851833) 588 RON
861 1 1 KITBOX DWST1-17807 (N279261) 30769 RON
866 1 2 BATTERY 18V 1.6AH 28.8WH (NA132874) 91363 RON
871 1 1 CHARGER (NA373501) 38463 RON
900 1 1 CLAMP SA-TOOLING (NB186333) 65612 RON
901 1 1 MOUNT SA-TOOLING (NB186345) 953727 RON
902 1 1 BASE SA-TOOLING (NB186339) 716010 RON
903 1 1 WRENCH-TOOLING (NA382867) 425786 RON
904 1 1 COLLAR-TOOLING (NA917348) 425786 RON
905 1 1 S.T.INSERTION TOOL-TOOLING (NB414562) 402943 RON
