MASINA DE SPALAT CU PRESIUNE DEWALT DXPW010E Type 1
[DXPW010E Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW010E Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW010E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW010E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW010E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW010E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW010E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW010E Type 1
Click pentru a mari

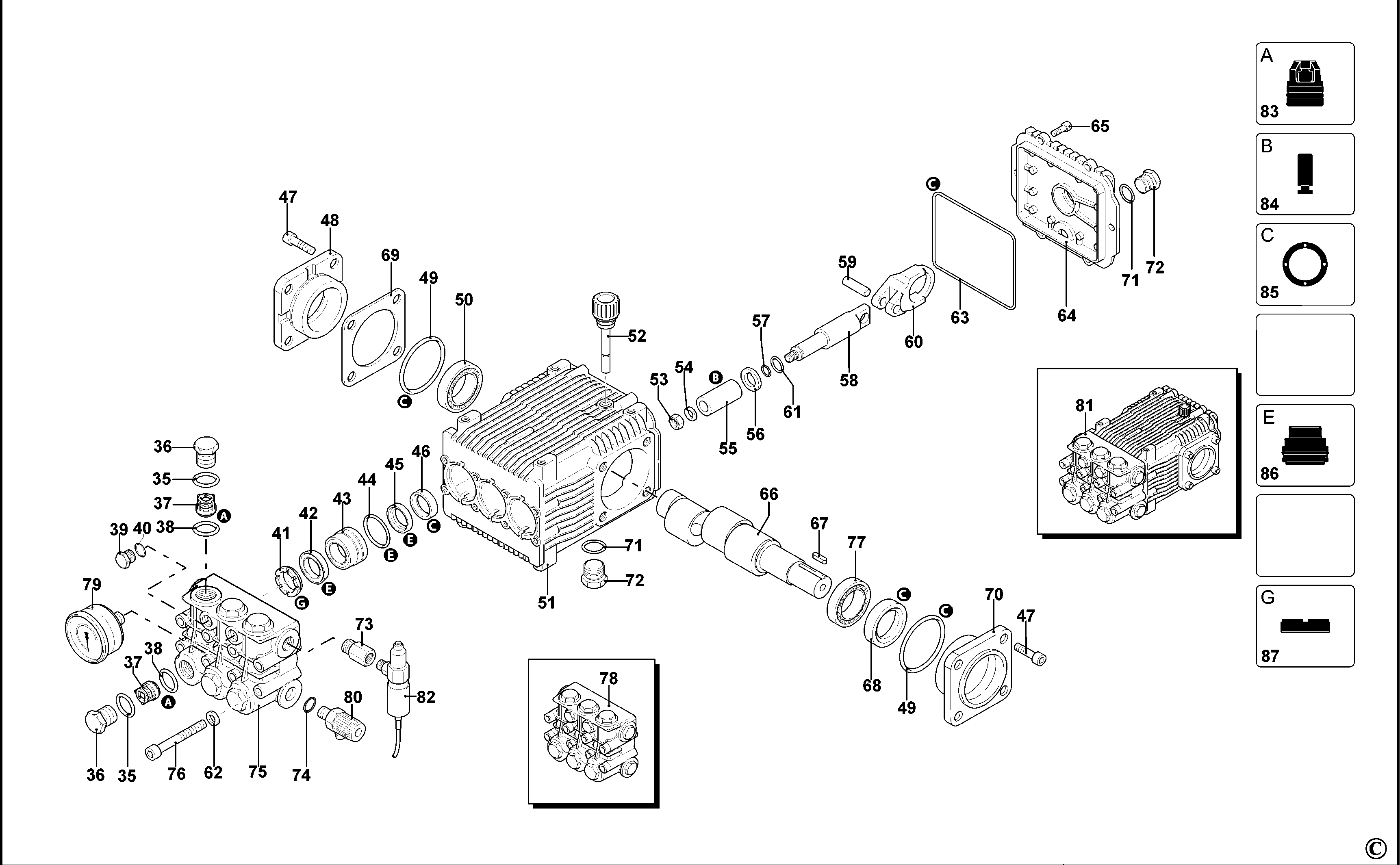

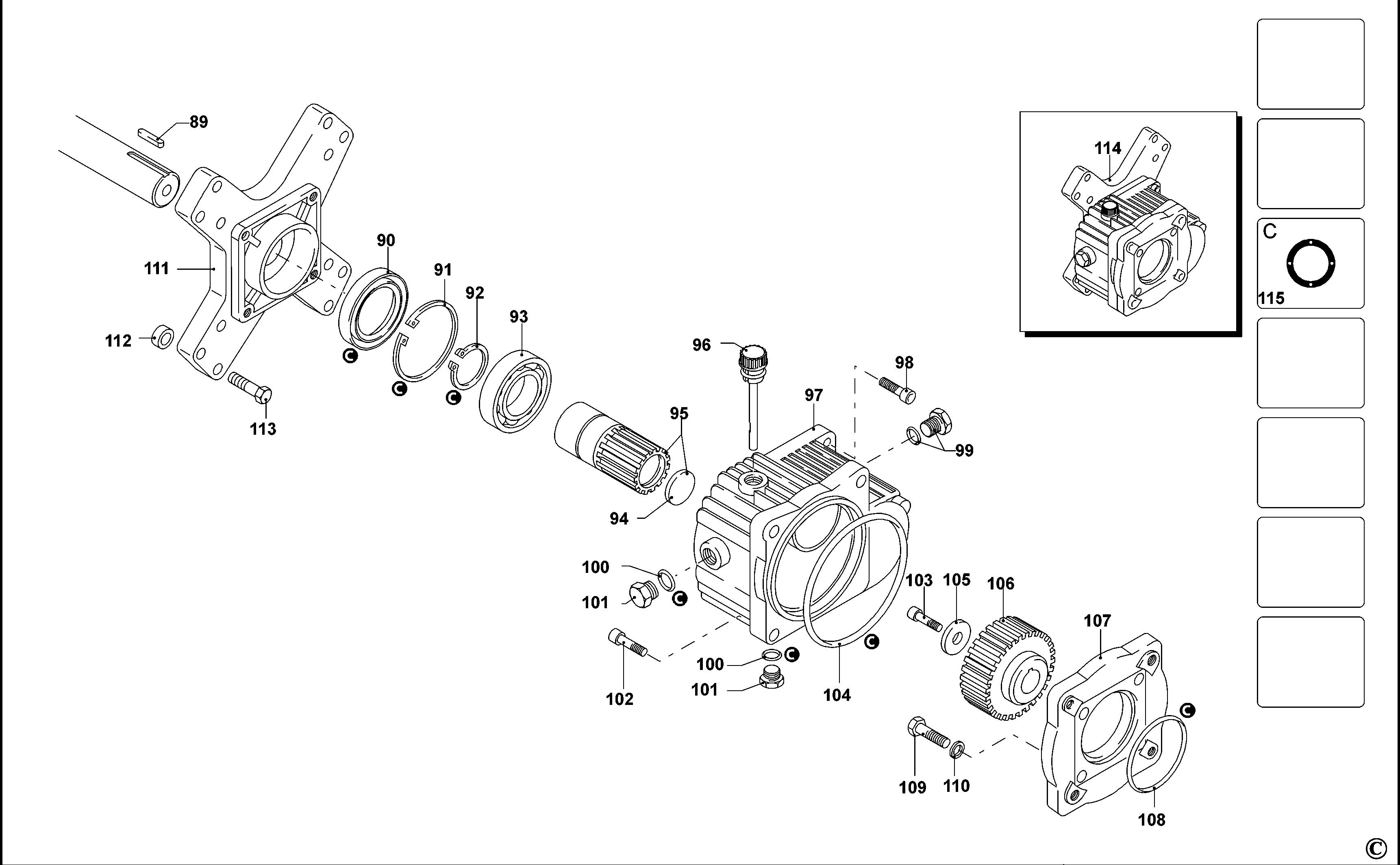

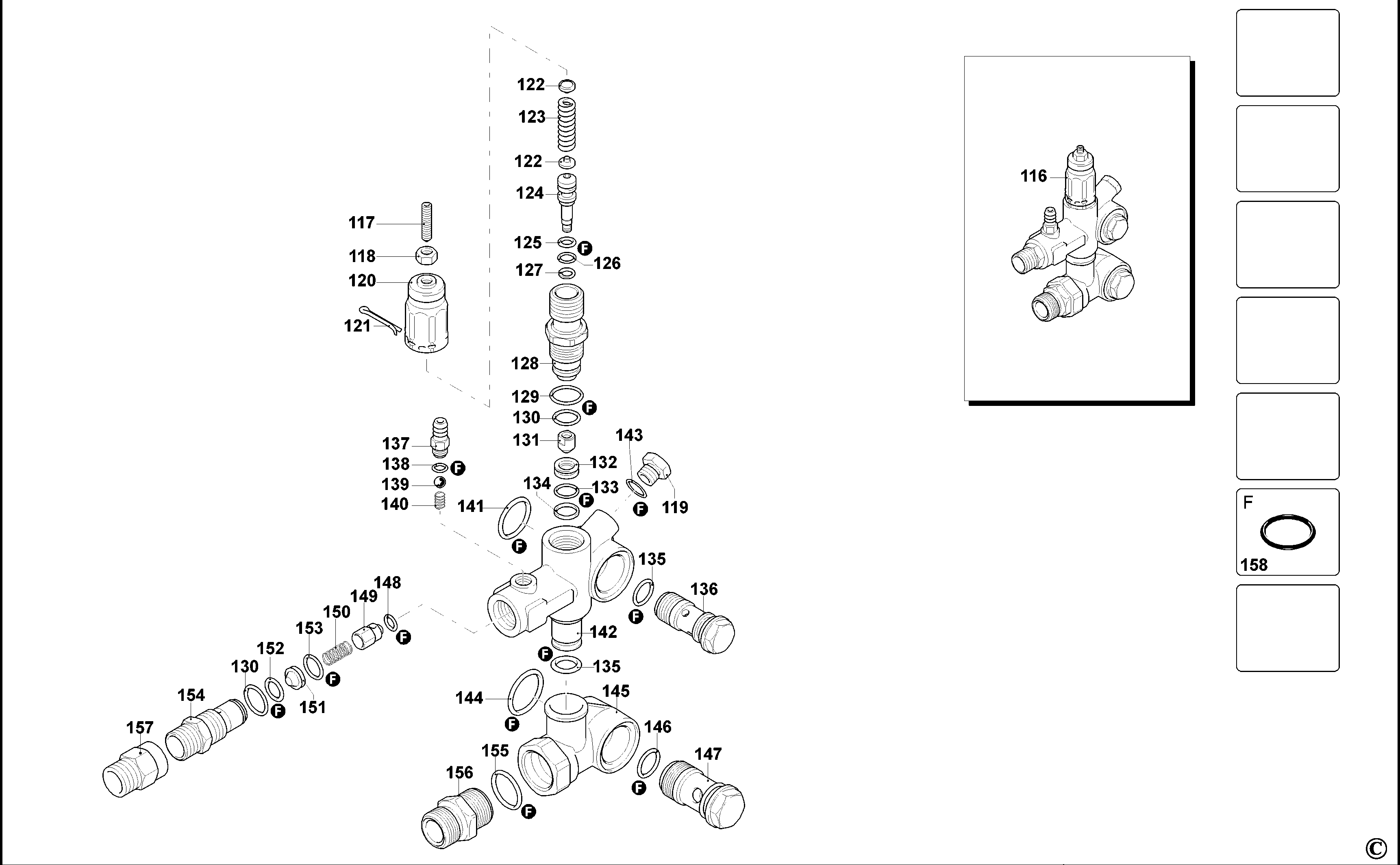

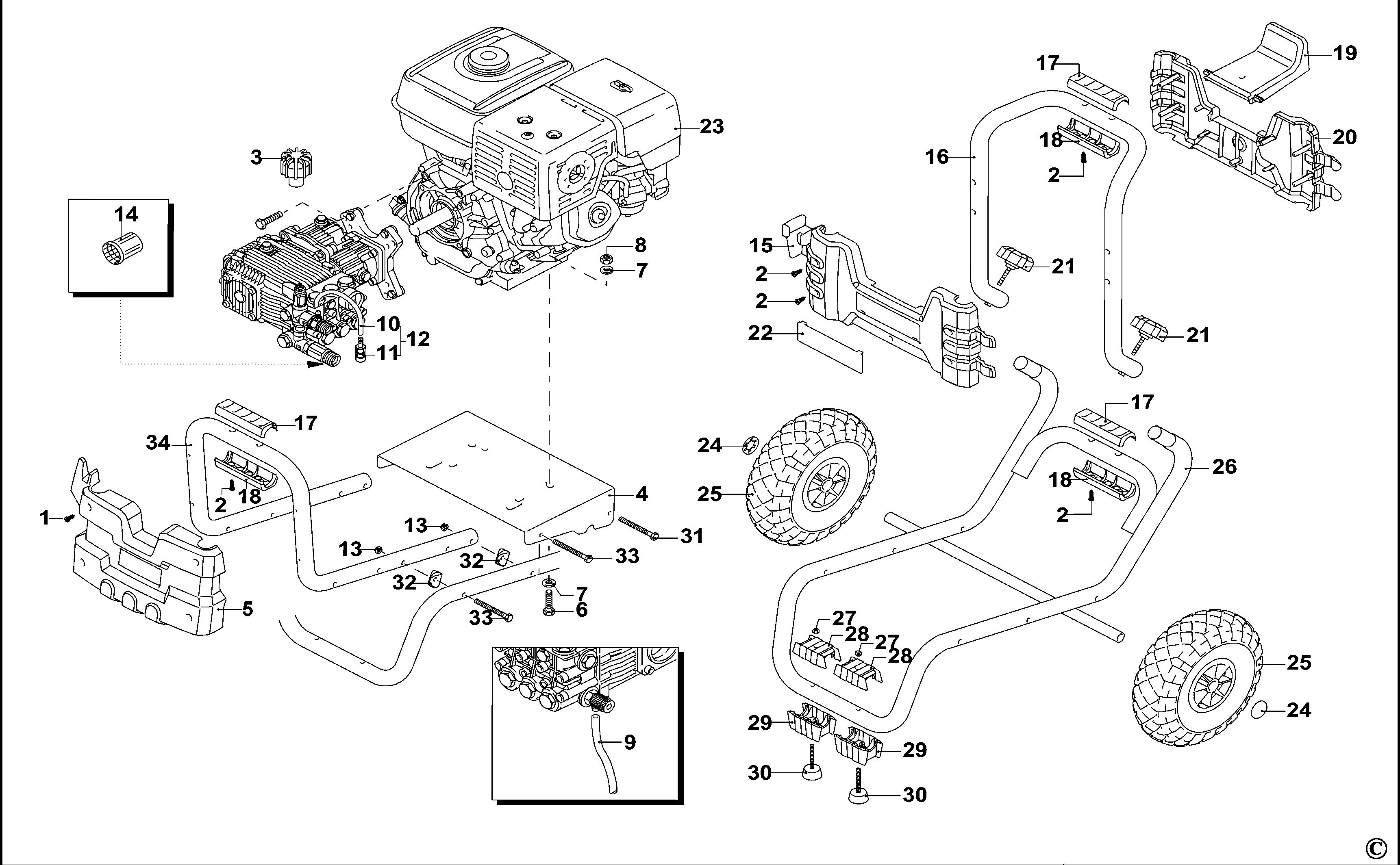

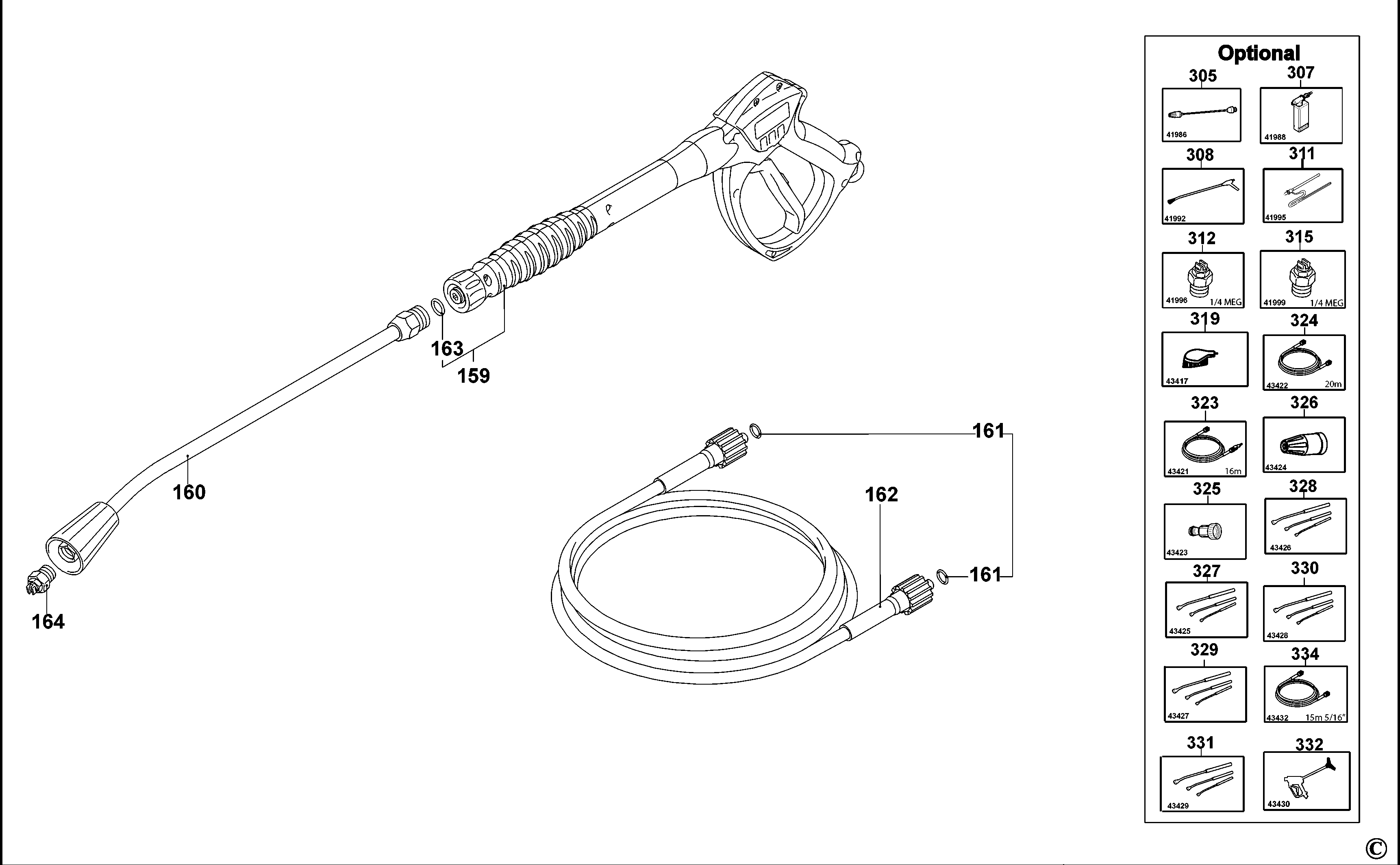

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (1004712-12) 668 RON
2 1 13 SCREW (1004712-13) 668 RON
3 1 1 KNOB (1004712-40) 3268 RON
4 1 1 SUPPORT (1004713-86) 32327 RON
5 1 1 GUARD (1004713-78) 16689 RON
6 1 4 SCREW (1004709-62) 668 RON
7 1 8 WASHER (1004709-65) 668 RON
8 1 4 NUT (1004712-19) 114 RON
9 1 1 HOSE (1004712-15) 668 RON
10 1 1 HOSE (1004710-70) 2556 RON
11 1 1 FILTER (1004710-89) 9012 RON
12 1 1 HOSE SA (1004710-68) 6688 RON
13 1 1 NUT (1004712-94) 668 RON
14 1 1 FILTER (1004710-83) 1318 RON
15 1 1 GUARD (1004713-77) 16689 RON
16 1 1 HANDLE (1004713-75) 33797 RON
17 1 3 GUARD (1004713-64) 2796 RON
18 1 3 GUARD (1004713-65) 2796 RON
19 1 1 CARRIER (1004713-85) 9012 RON
20 1 1 GUARD (1004713-76) 15469 RON
21 1 2 KNOB (1004714-12) 9012 RON
22 1 1 GUARD (1004714-01) 9012 RON
23 1 1 MOTOR SA (1004709-01) 738737 RON
24 1 2 CAP (1004709-52) 3954 RON
25 1 2 WHEEL (1004713-89) 48037 RON
26 1 1 FRAME (1004713-87) 85494 RON
27 1 2 NUT (1004710-34) 668 RON
28 1 2 GUARD (1004713-80) 4355 RON
29 1 2 GUARD (1004713-79) 5370 RON
30 1 2 DAMPER (1004713-81) 13697 RON
31 1 2 SCREW (1004709-68) 82 RON
32 1 4 SPACER (1004713-90) 2556 RON
33 1 4 SCREW (1004709-66) 1318 RON
34 1 1 FRAME (1004713-88) 27287 RON
35 1 6 O RING (1004710-22) 668 RON
36 1 6 PLUG (1004710-24) 10241 RON
37 1 6 VALVE (1004710-19) 3954 RON
38 1 6 O RING (1004710-15) 668 RON
39 1 1 PLUG (1004710-14) 2182 RON
40 1 1 O RING (1004710-05) 668 RON
41 1 3 RING (1004710-21) 1772 RON
42 1 3 SEAL (1004711-38) 13697 RON
43 1 3 GUIDE (1004711-25) 6688 RON
44 1 3 O RING (1004710-25) 3954 RON
45 1 3 SEAL (1004710-13) 6688 RON
46 1 3 RING (1004711-42) 4827 RON
47 1 8 SCREW (1004710-06) 668 RON
48 1 1 SUPPORT (1004711-23) 11337 RON
49 1 2 O RING (1004709-84) 668 RON
50 1 1 BEARING (1004712-28) 16689 RON
51 1 1 PUMP SA (1004711-39) 96047 RON
52 1 1 PLUG (1004710-10) 4355 RON
53 1 3 NUT (1004710-32) 1318 RON
54 1 3 WASHER (1004710-31) 668 RON
55 1 3 PISTON (1004711-31) 20216 RON
56 1 3 PLATE (1004711-32) 668 RON
57 1 3 O RING (1004709-81) 668 RON
58 1 3 PISTON (1004711-30) 16689 RON
59 1 3 PIN (1004711-24) 1630 RON
60 1 3 CON ROD (1004711-41) 20216 RON
61 1 3 RING (1004710-41) 668 RON
62 1 8 WASHER (1004711-35) 668 RON
63 1 1 O RING (1004711-82) 82 RON
64 1 1 COVER (1004711-85) 18568 RON
65 1 6 SCREW (1004710-97) 668 RON
66 1 1 CRANKSHAFT (1004712-27) 73079 RON
67 1 1 KEY (1004711-28) 668 RON
68 1 1 RING (1004709-61) 4355 RON
69 1 1 SHIM (1004711-26) 1933 RON
69 1 1 SHIM (1004711-27) 668 RON
69 1 1 SHIM (1004711-29) 1318 RON
69 1 1 SHIM (1004711-40) 668 RON
70 1 1 SUPPORT (1004711-22) 12361 RON
71 1 3 O RING (1004709-90) 668 RON
72 1 2 PLUG (1004711-91) 1933 RON
73 1 1 COUPLING (1004713-98) 6688 RON
74 1 1 O RING (1004709-60) 668 RON
75 1 1 HEAD SA (1004712-29) 161583 RON
76 1 8 SCREW (1004710-02) 82 RON
77 1 1 BEARING (1004711-43) 10241 RON
78 1 1 HEAD SA (1004712-30) 327869 RON
79 1 1 PRESSURE GAUGE (1004711-34) 25728 RON
80 1 1 VALVE (1004709-53) 32327 RON
81 1 1 PUMP SA (1004709-11) 285362 RON
82 1 1 VALVE (1004709-55) 39318 RON
83 1 1 VALVE KIT (1004708-95) 13697 RON
84 1 1 PISTON KIT (1004708-94) 188451 RON
85 1 1 SEALS KIT (1004708-83) 25728 RON
86 1 1 SEALS KIT (1004708-84) 46247 RON
87 1 1 RING SA (1004708-82) 5370 RON
89 1 1 KEY (1004710-23) 1318 RON
90 1 1 RING (1004710-29) 5370 RON
91 1 1 CIRCLIP (1004710-28) 1630 RON
92 1 1 RING (1004709-64) 944 RON
93 1 1 BEARING (1004710-27) 15469 RON
94 1 1 SEAL (1004711-37) 3954 RON
95 1 1 PINION (1004711-36) 73079 RON
96 1 1 PLUG (1004710-46) 4355 RON
97 1 1 GEARBOX (1004710-74) 36994 RON
98 1 4 SCREW (1004710-18) 2556 RON
99 1 1 GAUGE (1004711-88) 2796 RON
100 1 2 O RING (1004709-90) 668 RON
101 1 2 PLUG (1004711-91) 1933 RON
102 1 4 SCREW (1004709-58) 944 RON
103 1 1 SCREW (1004710-12) 668 RON
104 1 1 O RING (1004711-59) 668 RON
105 1 1 WASHER (1004709-95) 944 RON
106 1 1 Gear (1004710-78) 91363 RON
107 1 1 FLANGE (1004710-75) 27287 RON
108 1 1 O RING (1004709-84) 668 RON
109 1 4 SCREW (1004709-72) 82 RON
110 1 4 WASHER (1004710-52) 668 RON
111 1 1 FLANGE (1004710-76) 24962 RON
112 1 4 SPACER (1004710-26) 2182 RON
113 1 4 SCREW (1004710-30) 944 RON
114 1 1 GEARBOX SA (1004708-79) 263063 RON
115 1 1 SEALS KIT (1004708-89) 10241 RON
116 1 1 VALVE (1004709-10) 10889 RON
117 1 1 SCREW (1004712-72) 668 RON
118 1 1 NUT (1004710-34) 668 RON
119 1 1 PLUG (1004713-51) 9012 RON
120 1 1 INSERT (1004712-45) 12361 RON
121 1 1 PIN (1004712-46) 668 RON
122 1 2 PLATE (1004711-87) 668 RON
123 1 1 SPRING (1004712-59) 2556 RON
124 1 1 PISTON (1004712-58) 9012 RON
125 1 1 O RING (1004712-21) 944 RON
126 1 1 O RING (1004709-88) 668 RON
127 1 1 RING (1004712-52) 1318 RON
128 1 1 GUIDE (1004712-60) 15469 RON
129 1 1 O RING (1004710-49) 668 RON
130 1 5 O RING (1004709-75) 668 RON
131 1 1 SHUTTER (1004712-20) 12361 RON
132 1 1 SEAT (1004712-62) 6688 RON
133 1 1 O RING (1004709-91) 668 RON
134 1 1 RING (1004712-61) 944 RON
135 1 2 O RING (1004709-69) 668 RON
136 1 1 SCREW (1004711-61) 944 RON
137 1 1 COUPLING (1004711-96) 1630 RON
138 1 1 O RING (1004709-78) 668 RON
139 1 1 BALL (1004710-50) 668 RON
140 1 1 SPRING (1004711-70) 668 RON
141 1 1 O RING (1004712-22) 668 RON
142 1 1 VALVE BODY (1004713-47) 32327 RON
143 1 1 O RING (1004709-81) 668 RON
144 1 1 O RING (1004711-65) 668 RON
145 1 1 BODY (1004713-48) 13697 RON
146 1 1 O RING (1004710-11) 668 RON
147 1 1 SCREW (1004712-23) 4827 RON
148 1 1 O RING (1004712-14) 668 RON
149 1 1 SHUTTER (1004712-50) 11337 RON
150 1 1 SPRING (1004712-51) 668 RON
151 1 1 INSERT (1004712-49) 2556 RON
152 1 1 O RING (1004711-57) 668 RON
153 1 1 O RING (1004712-56) 668 RON
154 1 1 COUPLING (1004712-54) 9012 RON
155 1 1 O RING (1004709-77) 668 RON
156 1 1 COUPLING (1004713-46) 15469 RON
157 1 1 COUPLING (1004710-45) 4355 RON
158 1 1 GASKET SET (1004709-40) 13697 RON
159 1 1 HANDLE SA (1004709-17) 42426 RON
160 1 1 1004709-15 - Indisponibil
160 1 1 EXTENSION (1004772-35) 28836 RON
161 1 2 O RING (1004712-02) 1318 RON
162 1 1 HOSE (1004714-11) 125542 RON
163 1 1 O RING (1004709-73) 668 RON
164 1 1 NOZZLE (1004708-96) 18568 RON
305 1 1 EXTENSION (1004719-43) 67932 RON
307 1 1 EXTENSION (1004719-45) 104961 RON
308 1 1 EXTENSION (1004719-46) 48037 RON
311 1 1 EXTENSION (1004719-49) 148269 RON
312 1 1 NOZZLE (1004719-50) 18568 RON
315 1 1 NOZZLE (1004719-53) 15469 RON
319 1 1 BRUSH (1004719-57) 85494 RON
323 1 1 HOSE (1004719-61) 36994 RON
324 1 1 1004719-62 - Indisponibil
325 1 1 COUPLING (1004719-63) 36994 RON
326 1 1 COUPLING (1004719-64) 78485 RON
327 1 1 EXTENSION (1004719-65) 20216 RON
328 1 1 EXTENSION (1004719-66) 24962 RON
329 1 1 EXTENSION (1004719-67) 39318 RON
330 1 1 EXTENSION (1004719-68) 32327 RON
331 1 1 EXTENSION (1004719-69) 36994 RON
332 1 1 HANDLE SA (1004719-70) 278024 RON
334 1 1 HOSE (1004719-72) 188451 RON
