Top » Piese de schimb » PIESE DEWALT » DXPW005E Type 1

MASINA DE SPALAT CU PRESIUNE DEWALT DXPW005E Type 1
[DXPW005E Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW005E Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW005E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW005E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW005E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW005E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW005E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW005E Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara

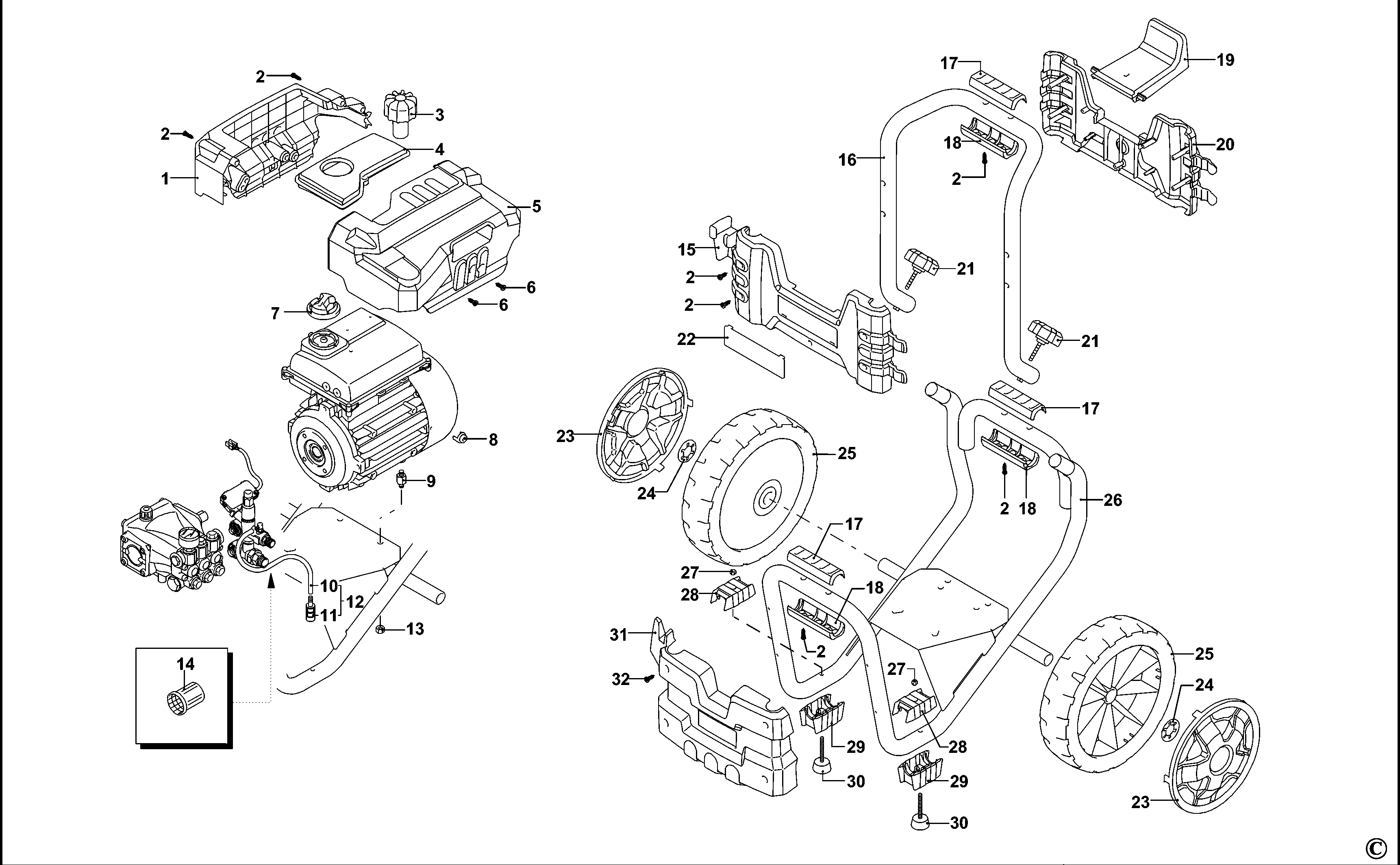

1 1 1 CASING (1004714-00) 18568 RON
2 1 17 SCREW (1004712-13) 668 RON
3 1 1 KNOB (1004712-40) 3268 RON
4 1 1 SUPPORT (1004714-24) 9012 RON
5 1 1 CASING (1004713-99) 15469 RON
6 1 4 SCREW (1004709-59) 668 RON
7 1 1 KNOB (1004713-73) 3954 RON
8 1 4 SPACER (1004714-10) 3268 RON
9 1 4 BOLT (1004712-37) 1933 RON
10 1 1 HOSE (1004710-70) 2556 RON
11 1 1 FILTER (1004710-89) 9012 RON
12 1 1 HOSE SA (1004710-68) 6688 RON
13 1 4 NUT (1004709-67) 668 RON
14 1 1 FILTER (1004710-83) 1318 RON
15 1 1 GUARD (1004713-77) 16689 RON
16 1 1 HANDLE (1004713-75) 33797 RON
17 1 3 GUARD (1004713-64) 2796 RON
18 1 3 GUARD (1004713-65) 2796 RON
19 1 1 CARRIER (1004713-85) 9012 RON
20 1 1 GUARD (1004713-76) 15469 RON
21 1 2 KNOB (1004714-12) 9012 RON
22 1 1 GUARD (1004714-01) 9012 RON
23 1 2 GUARD (1004713-82) 9012 RON
24 1 2 WASHER (1004713-45) 1933 RON
25 1 2 WHEEL (1004713-44) 20216 RON
26 1 1 FRAME (1004713-74) 10889 RON
27 1 2 NUT (1004710-34) 668 RON
28 1 2 GUARD (1004713-80) 4355 RON
29 1 2 GUARD (1004713-79) 5370 RON
30 1 2 DAMPER (1004713-81) 13697 RON
31 1 1 GUARD (1004713-78) 16689 RON
32 1 4 SCREW (1004712-12) 668 RON
33 1 5 PLUG (1004713-04) 2796 RON
34 1 6 O RING (1004710-49) 668 RON
35 1 6 VALVE (1004712-63) 2796 RON
36 1 8 SCREW (1004709-98) 668 RON
37 1 8 WASHER (1004711-33) 668 RON

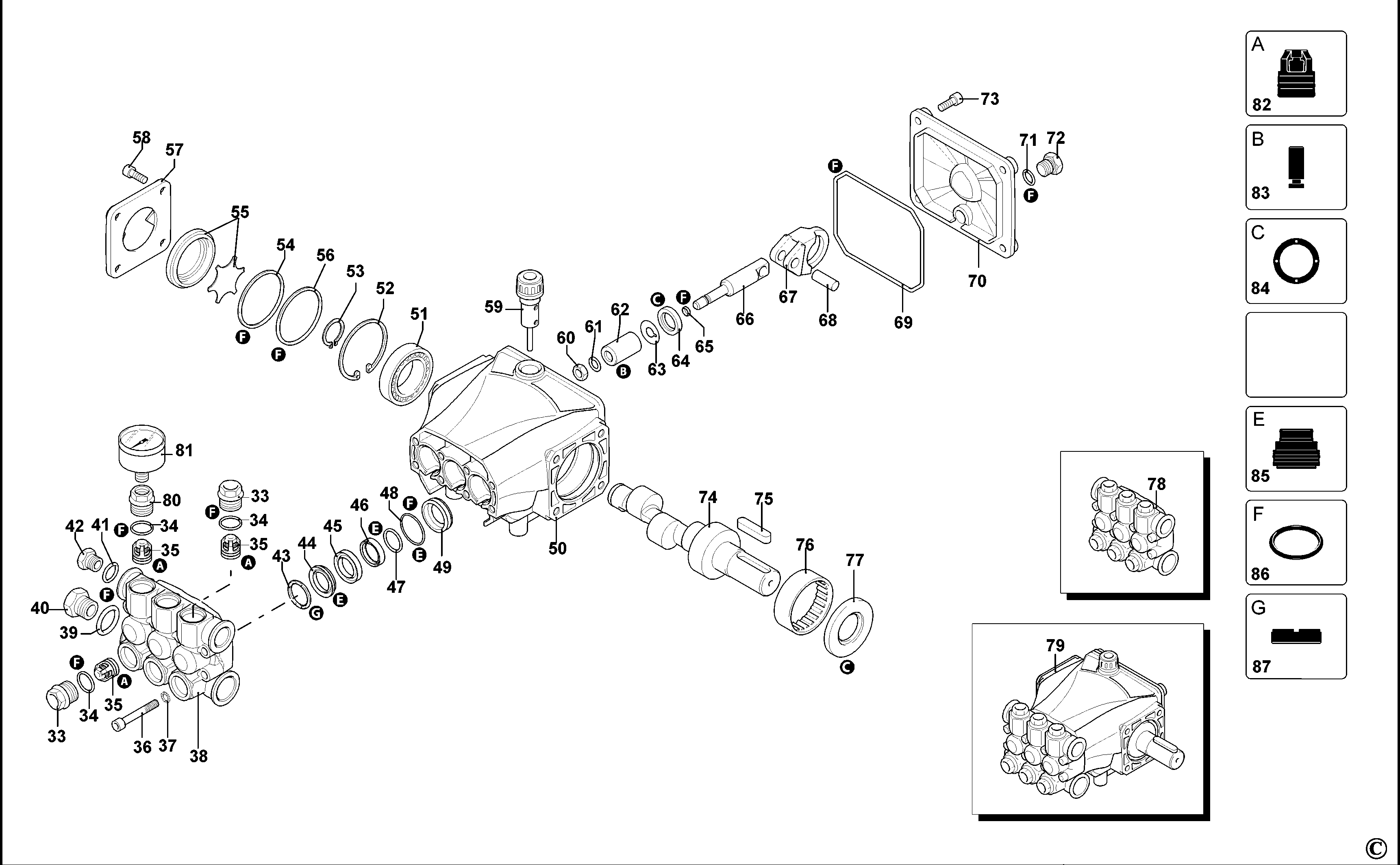

38 1 1 HEAD (1004712-96) 67932 RON
39 1 1 O RING (1004709-60) 668 RON
40 1 1 PLUG (1004710-03) 3268 RON
41 1 1 O RING (1004709-90) 668 RON
42 1 1 PLUG (1004711-91) 1933 RON
43 1 3 RING (1004711-80) 82 RON
44 1 3 SEAL (1004711-84) 9012 RON
45 1 3 GUIDE (1004713-06) 3954 RON
46 1 3 GASKET (1004713-07) 1630 RON
47 1 3 RING (1004713-11) 82 RON
48 1 3 O RING (1004709-93) 668 RON
49 1 3 GUIDE (1004713-05) 2796 RON
50 1 1 BODY (1004712-95) 60451 RON
51 1 1 BEARING (1004711-81) 13697 RON
52 1 1 RING (1004710-61) 944 RON
53 1 1 RING (1004711-83) 668 RON
54 1 1 O RING (1004709-76) 114 RON
55 1 1 LEVEL (1004727-72) 9012 RON
56 1 1 RING (1004729-45) 82 RON
57 1 1 SUPPORT (1004713-01) 4355 RON
58 1 4 SCREW (1004710-48) 668 RON
59 1 1 PLUG (1004710-10) 4355 RON
60 1 3 NUT (1004710-53) 1318 RON
61 1 3 WASHER (1004710-52) 668 RON
62 1 3 PISTON (1004710-54) 12361 RON
63 1 3 PLATE (1004710-51) 668 RON
64 1 3 SEAL (1004710-57) 2556 RON
65 1 3 O RING (1004709-78) 668 RON
66 1 3 PISTON (1004713-00) 12361 RON
67 1 3 CON ROD (1004712-98) 6688 RON
68 1 3 PIN (1004711-77) 1630 RON
69 1 1 O RING (1004712-57) 668 RON
70 1 1 COVER (1004712-97) 9012 RON
71 1 1 O RING (1004710-05) 668 RON
72 1 1 PLUG (1004710-14) 2182 RON
73 1 4 SCREW (1004713-08) 82 RON
74 1 1 CRANKSHAFT (1004712-99) 78485 RON
75 1 1 KEY (1004713-09) 668 RON
76 1 1 BEARING (1004710-77) 9012 RON
77 1 1 RING (1004710-58) 3954 RON
78 1 1 HEAD SA (1004727-73) 139195 RON
79 1 1 PUMP SA (1004755-73) 356963 RON
80 1 1 PLUG (1004713-13) 32327 RON
81 1 1 PRESSURE GAUGE (1004709-00) 15469 RON
82 1 1 VALVE KIT (1004708-85) 13697 RON
83 1 1 PISTON KIT (1004709-26) 27287 RON
84 1 1 SEALS KIT (1004709-27) 9012 RON
85 1 1 SEALS KIT (1004709-28) 20216 RON
86 1 1 GASKET SET (1004709-29) 4355 RON
87 1 1 RING (1004708-92) 1933 RON
88 1 1 VALVE (1004709-13) 125542 RON
89 1 1 SCREW (1004712-72) 668 RON
90 1 1 NUT (1004710-34) 668 RON
91 1 1 TERMINAL BOX (1004729-46) 15469 RON
92 1 1 INSERT (1004712-45) 12361 RON
93 1 1 PIN (1004712-46) 668 RON
94 1 2 PLATE (1004711-87) 668 RON
95 1 1 SPRING (1004712-59) 2556 RON
96 1 1 PISTON (1004712-58) 9012 RON
97 1 1 O RING (1004712-21) 944 RON
98 1 1 O RING (1004709-88) 668 RON
99 1 1 RING (1004712-52) 1318 RON
100 1 1 GUIDE (1004712-60) 15469 RON
101 1 1 O RING (1004710-49) 668 RON
102 1 5 O RING (1004709-75) 668 RON
103 1 1 SHUTTER (1004712-20) 12361 RON
104 1 1 SEAT (1004712-62) 6688 RON
105 1 1 O RING (1004709-91) 668 RON
106 1 1 RING (1004712-61) 944 RON
107 1 2 O RING (1004709-69) 668 RON
108 1 1 SCREW (1004711-61) 944 RON
109 1 1 CONNECTOR (1004712-33) 114 RON
110 1 1 O RING (1004709-78) 668 RON
111 1 1 BALL (1004710-50) 668 RON
112 1 1 SPRING (1004711-70) 668 RON
113 1 1 O RING (1004712-22) 668 RON
114 1 1 VALVE BODY (1004713-47) 32327 RON
115 1 1 O RING (1004710-44) 668 RON
116 1 1 O RING (1004711-65) 668 RON
117 1 1 BODY (1004713-48) 13697 RON
118 1 1 O RING (1004710-11) 668 RON
119 1 1 SCREW (1004712-23) 4827 RON
120 1 1 O RING (1004712-14) 668 RON
121 1 1 SHUTTER (1004712-50) 11337 RON
122 1 1 SPRING (1004712-51) 668 RON
123 1 1 INSERT (1004712-55) 5370 RON
124 1 1 O RING (1004711-57) 668 RON
125 1 1 O RING (1004712-56) 668 RON
126 1 1 COUPLING (1004712-54) 9012 RON
127 1 1 RING (1004712-26) 114 RON
128 1 1 PIN (1004712-25) 3954 RON
129 1 1 SPRING (1004712-24) 668 RON
130 1 1 WASHER (1004712-06) 668 RON
131 1 1 O RING (1004710-63) 944 RON
132 1 1 RING (1004713-50) 2796 RON
133 1 1 O RING (1004709-81) 668 RON
134 1 1 CONNECTOR (1004713-49) 4827 RON
135 1 1 FORK (1004712-09) 1630 RON
136 1 1 CONNECTOR (1004711-71) 15469 RON
137 1 1 O RING (1004709-79) 668 RON
138 1 1 CONNECTOR (1004711-02) 9012 RON
139 1 1 EXTENSION (1004714-08) 5370 RON
140 1 1 O RING (1004709-77) 668 RON
141 1 1 COUPLING (1004710-45) 4355 RON
142 1 1 GASKET SET (1004709-40) 13697 RON
143 1 1 BOX (1004713-97) 11337 RON
144 1 4 SCREW (1004712-47) 668 RON

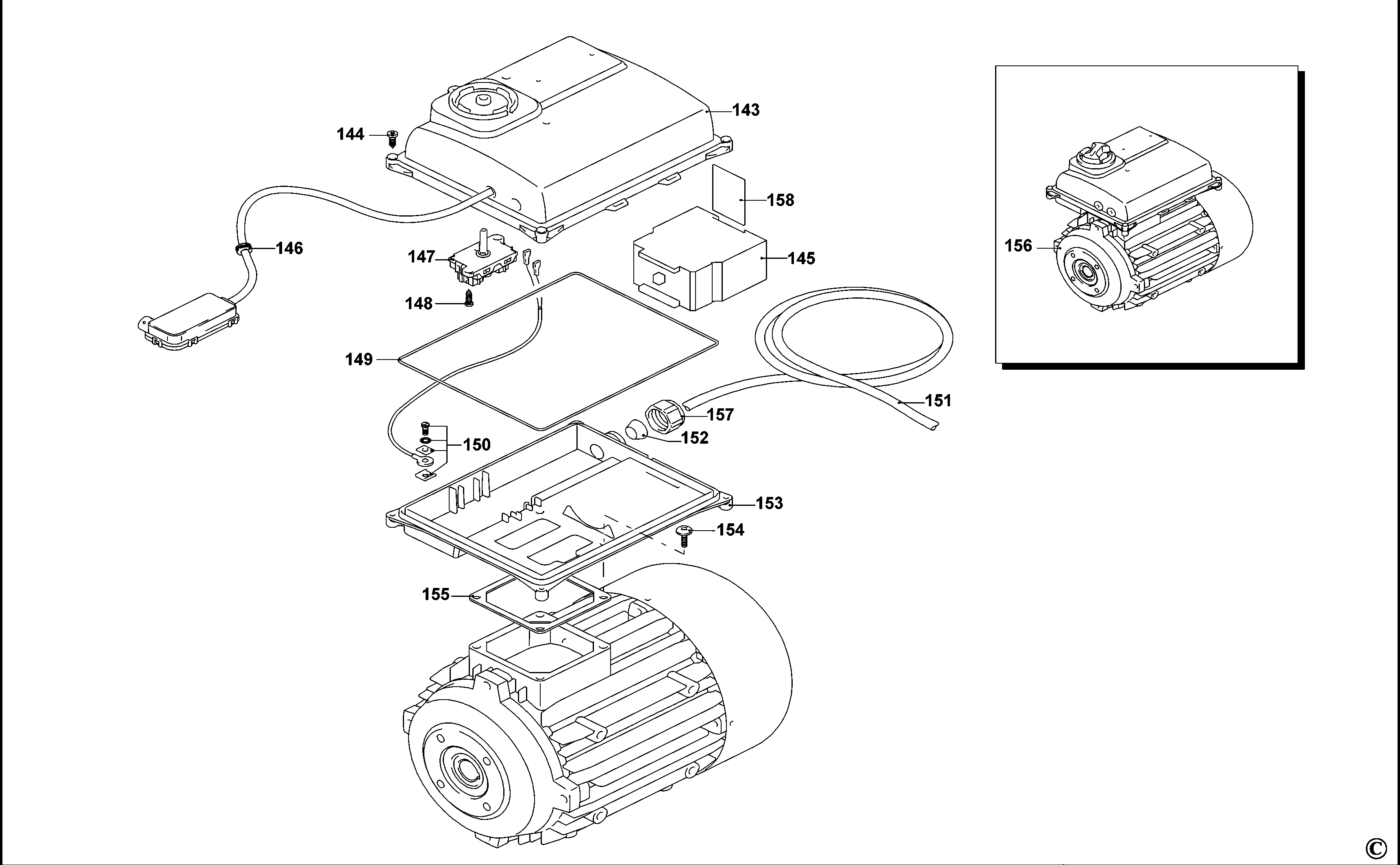

145 1 1 CONTACT (1004712-41) 48037 RON
146 1 1 GLAND (1004712-04) 2182 RON
147 1 1 1004712-80 - Indisponibil
147 1 1 SWITCH (2901920) 23244 RON
148 1 2 SCREW (1004712-01) 668 RON
149 1 1 O RING (1004713-95) 668 RON
150 1 1 CLAMP (1004710-67) 741 RON
151 1 1 CABLE (1004711-76) 33797 RON
152 1 1 GASKET (1004755-74) 668 RON
153 1 1 PLATE (1004713-96) 9012 RON
154 1 4 SCREW (1004714-06) 9012 RON
155 1 1 GASKET (1004711-75) 1933 RON
156 1 1 MOTOR (1004709-45) 392692 RON
157 1 1 GLAND (1004713-94) 3268 RON
158 1 1 GUIDE (1004714-07) 4355 RON

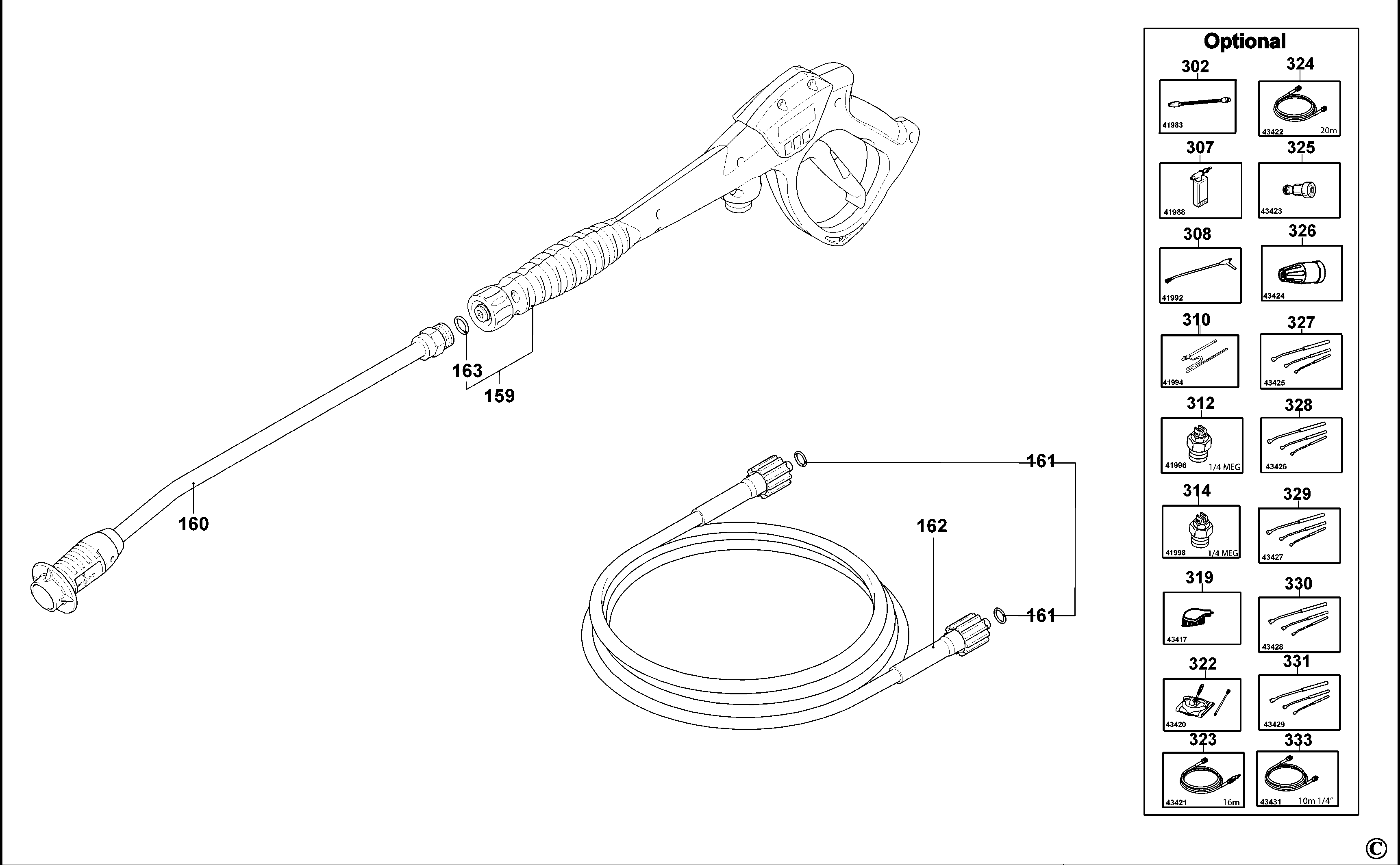

159 1 1 HANDLE SA (1004709-16) 28836 RON
160 1 1 EXTENSION (1004709-21) 23244 RON
161 1 2 O RING (1004712-02) 1318 RON
162 1 1 HOSE (1004714-05) 67932 RON
163 1 1 O RING (1004709-73) 668 RON
302 1 1 EXTENSION (1004719-40) 23244 RON
307 1 1 EXTENSION (1004719-45) 104961 RON
308 1 1 EXTENSION (1004719-46) 48037 RON
310 1 1 EXTENSION (1004719-48) 148269 RON
312 1 1 NOZZLE (1004719-50) 18568 RON
314 1 1 NOZZLE (1004719-52) 18568 RON
319 1 1 BRUSH (1004719-57) 85494 RON
322 1 1 HEAD SA (1004719-60) 200340 RON
323 1 1 HOSE (1004719-61) 36994 RON
324 1 1 1004719-62 - Indisponibil
325 1 1 COUPLING (1004719-63) 36994 RON
326 1 1 COUPLING (1004719-64) 78485 RON
327 1 1 EXTENSION (1004719-65) 20216 RON
328 1 1 EXTENSION (1004719-66) 24962 RON
329 1 1 EXTENSION (1004719-67) 39318 RON
330 1 1 EXTENSION (1004719-68) 32327 RON
331 1 1 EXTENSION (1004719-69) 36994 RON
333 1 1 HOSE (1004719-71) 214180 RON
