Top » Piese de schimb » PIESE DEWALT » DXPW003F Type 1

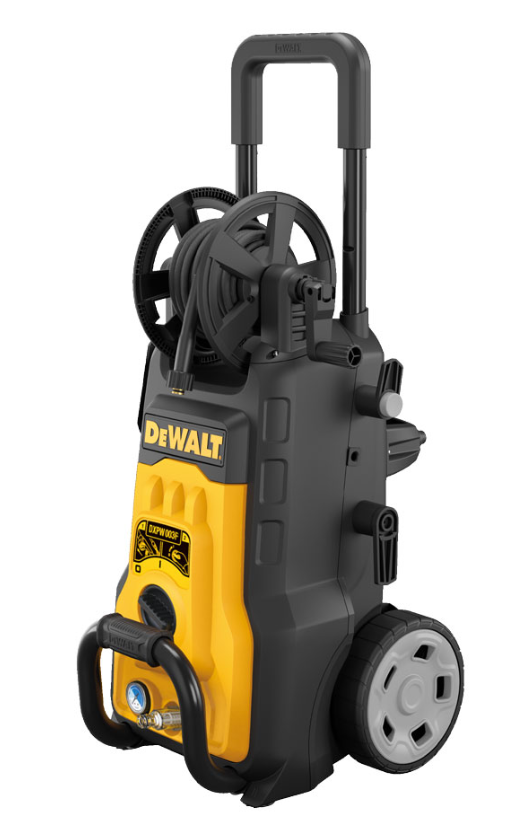

MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003F Type 1
[DXPW003F Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003F Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003F Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003F Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003F Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003F Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003F Type 1
Click pentru a mari

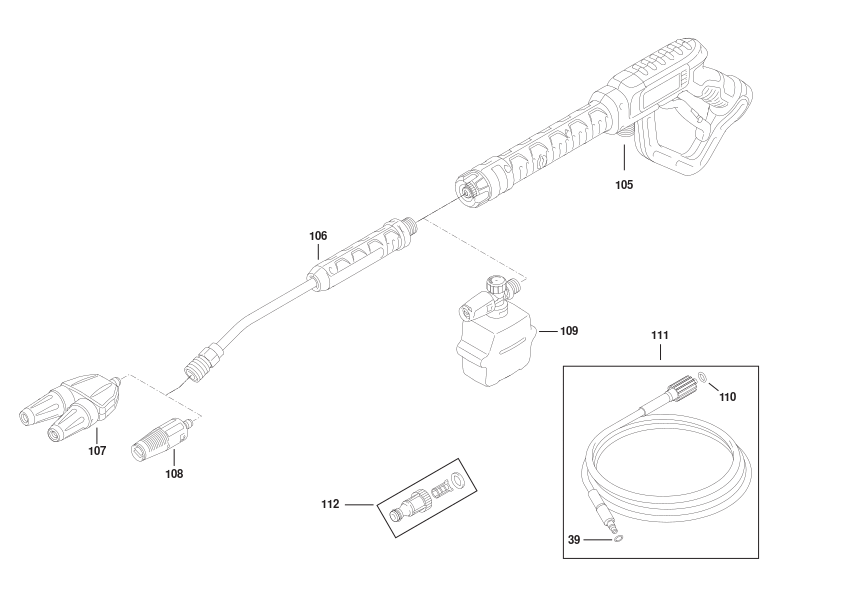

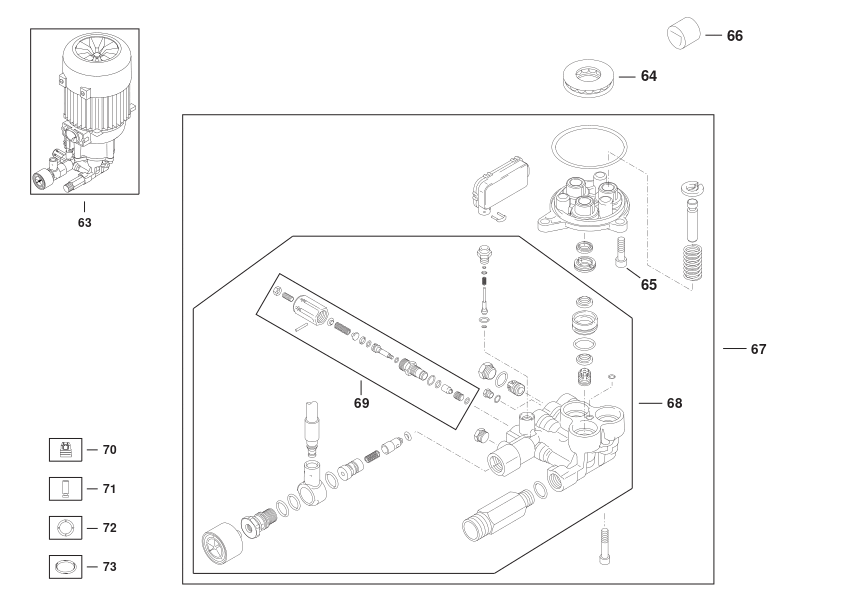

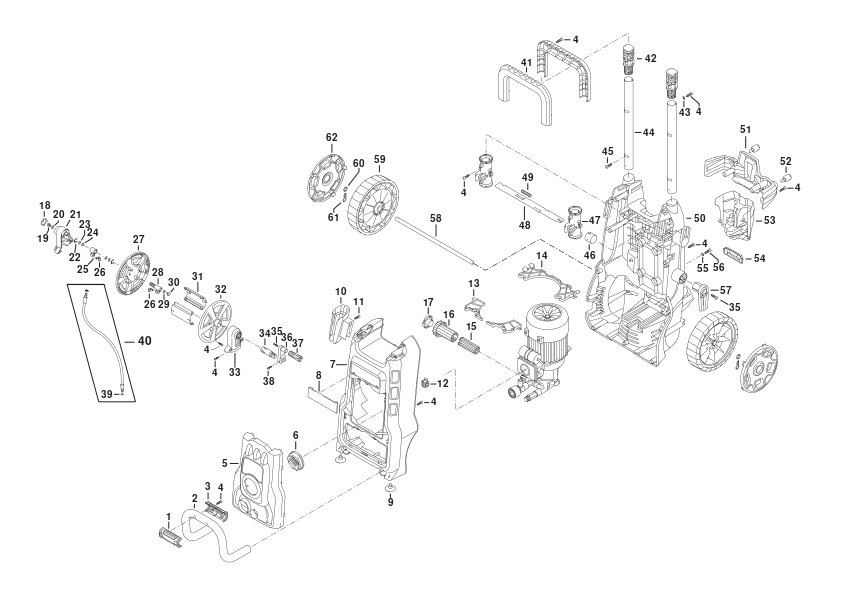

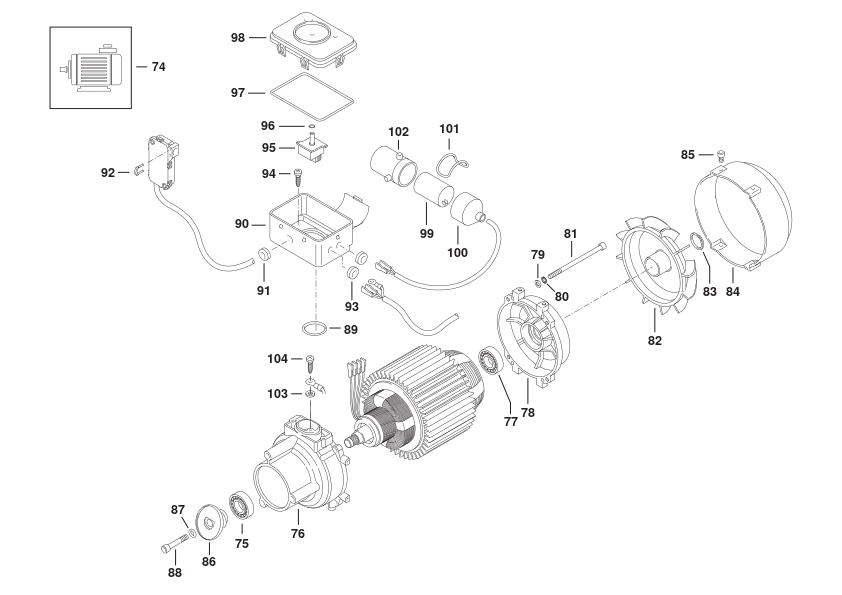

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 4582160 - Indisponibil
2 1 1 4582620 - Indisponibil
3 1 1 4582160 - Indisponibil
4 1 37 SCREW (50943) 1630 RON
5 1 1 4582340 - Indisponibil
6 1 1 KNOB (4581340) 1933 RON
7 1 1 CASING (4581350) 13697 RON
8 1 1 3960830 - Indisponibil
9 1 2 FOOT (4381640) 1318 RON
10 1 1 CARRIER (4580590) 5370 RON
11 1 1 SCREW (4582020) 668 RON
12 1 1 X94ND (1004455-07) 114 RON
13 1 2 4582331 - Indisponibil
14 1 1 4580720 - Indisponibil
15 1 1 3560430 - Indisponibil
16 1 1 3560420 - Indisponibil
17 1 1 4580747 - Indisponibil
18 1 1 4581430 - Indisponibil
19 1 1 SCREW (4581950) 668 RON
20 1 1 WASHER (4581960) 668 RON
21 1 1 COVER (4581420) 3954 RON
22 1 2 RING (4101710) 1772 RON
23 1 2 RING (4200060) 944 RON
24 1 2 O RING (5460660) 668 RON
25 1 1 COUPLING (4101760) 15469 RON
26 1 2 FORK (5140205-34) 668 RON
27 1 1 PLATE (4101770) 741 RON
28 1 1 FITTING (4581020) 18568 RON
29 1 1 O RING (4581970) 668 RON
30 1 1 SCREW (4580450) 668 RON
31 1 2 SUPPORT (4102120) 3954 RON
32 1 1 PLATE (4101680) 10241 RON
33 1 1 COVER (4581410) 3954 RON
34 1 1 PIN (4101750) 2182 RON
35 1 2 SCREW (5460700) 668 RON
36 1 1 LEVER (4101660) 3268 RON
37 1 1 KNOB (5160170) 2556 RON
38 1 1 SCREW (4581980) 668 RON
39 1 3 O RING (4382520) 668 RON
40 1 1 HIGH PRESSURE HOSE (5140205-29) 20216 RON
41 1 1 HANDLE SA (5160470) 27287 RON
42 1 2 ADAPTOR (4581450) 3954 RON
43 1 2 4720780 - Indisponibil
44 1 2 PIPE (4581460) 12361 RON
45 1 2 SCREW (5460810) 668 RON
46 1 1 4220273 - Indisponibil
47 1 2 GUIDE (4821080) 3954 RON
48 1 1 HOOK (4821110) 944 RON
49 1 1 SPRING (4821020) 82 RON
50 1 1 HOUSING (4580560) 20216 RON
51 1 1 HOLDER (4580620) 741 RON
52 1 2 FOOT (1004712-16) 3268 RON
53 1 1 4580766 - Indisponibil
54 1 1 PLUG (4580790) 1318 RON
55 1 4 4384880 - Indisponibil
56 1 4 SCREW (4582010) 668 RON
57 1 1 4220282 - Indisponibil
58 1 1 AXLE (4580880) 12361 RON
59 1 2 5000620 - Indisponibil
60 1 2 WASHER (4980170) 668 RON
61 1 2 PIN (4980160) 944 RON
62 1 2 COVER (4581400) 3954 RON
63 1 1 4582570 - Indisponibil
64 1 1 BEARING (1004744-74) 741 RON
65 1 4 SCREW (2900500) 2182 RON
66 1 4 RUBBER FOOT (5140205-06) 2556 RON
67 1 1 PUMP SA (47056) 188451 RON
68 1 1 HEAD SA (47055) 161583 RON
69 1 1 VALVE KIT (42709) 24962 RON
70 1 1 VALVE KIT (2233) 9012 RON
71 1 1 1004786-71 - Indisponibil
72 1 1 SEALS KIT-OIL SEAL KIT (47510) 741 RON
73 1 1 O RING KIT-GASKET KIT O-RING (47513) 13697 RON
74 1 1 4582590 - Indisponibil
75 1 1 3400800 - Indisponibil
76 1 1 4380400 - Indisponibil
77 1 1 BEARING (1460590) 4827 RON
78 1 1 SHIELD (4380410) 16689 RON
79 1 4 WASHER (2020990) 668 RON
80 1 4 WASHER (5580220) 2556 RON
81 1 4 SCREW (2320090) 82 RON
82 1 1 FAN (5140205-50) 944 RON
83 1 1 RING (5140205-51) 668 RON
84 1 1 FAN COVER (4380820) 10241 RON
85 1 2 SCREW (1460460) 668 RON
86 1 1 PLATE-WOBBLE (4580150) 9012 RON
87 1 1 WASHER (5140205-41) 668 RON
88 1 1 SCREW (5140205-48) 668 RON
89 1 1 O RING (660170) 668 RON
90 1 1 BOX (4380830) 3268 RON
91 1 1 GLAND (1462900) 82 RON
92 1 4 FORK (2022201) 1630 RON
93 1 2 GHIDAJ HW130 (2021480) 2235 RON
94 1 2 Screw M4x12 (2020570) 670 RON
95 1 1 SWITCH (4382540) 9012 RON
96 1 1 O-RING 5x2 (390341) 446 RON
97 1 1 O RING (2180670) 1772 RON
98 1 1 COVER (4380840) 3268 RON
99 1 1 4582600 - Indisponibil
100 1 1 4382450 - Indisponibil
101 1 1 O RING (2320640) 668 RON
102 1 1 4582610 - Indisponibil
103 1 1 Washer 4 (1262400) 21362 RON
104 1 1 SCREW (2021090) 668 RON
105 1 1 4581760 - Indisponibil
106 1 1 4582510 - Indisponibil
107 1 1 5460590 - Indisponibil
108 1 1 LANCE HEAD-ADJUSTABLE JET (4581730) 13697 RON
109 1 1 4581169 - Indisponibil
110 1 1 O-RING 9,13x2,62 HW110/130 (391000) 446 RON
111 1 1 4581170 - Indisponibil
112 1 1 4581170 - Indisponibil
