Top » Piese de schimb » PIESE DEWALT » DXPW003E Type 1

MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003E Type 1
[DXPW003E Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003E Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW003E Type 1
Click pentru a mari

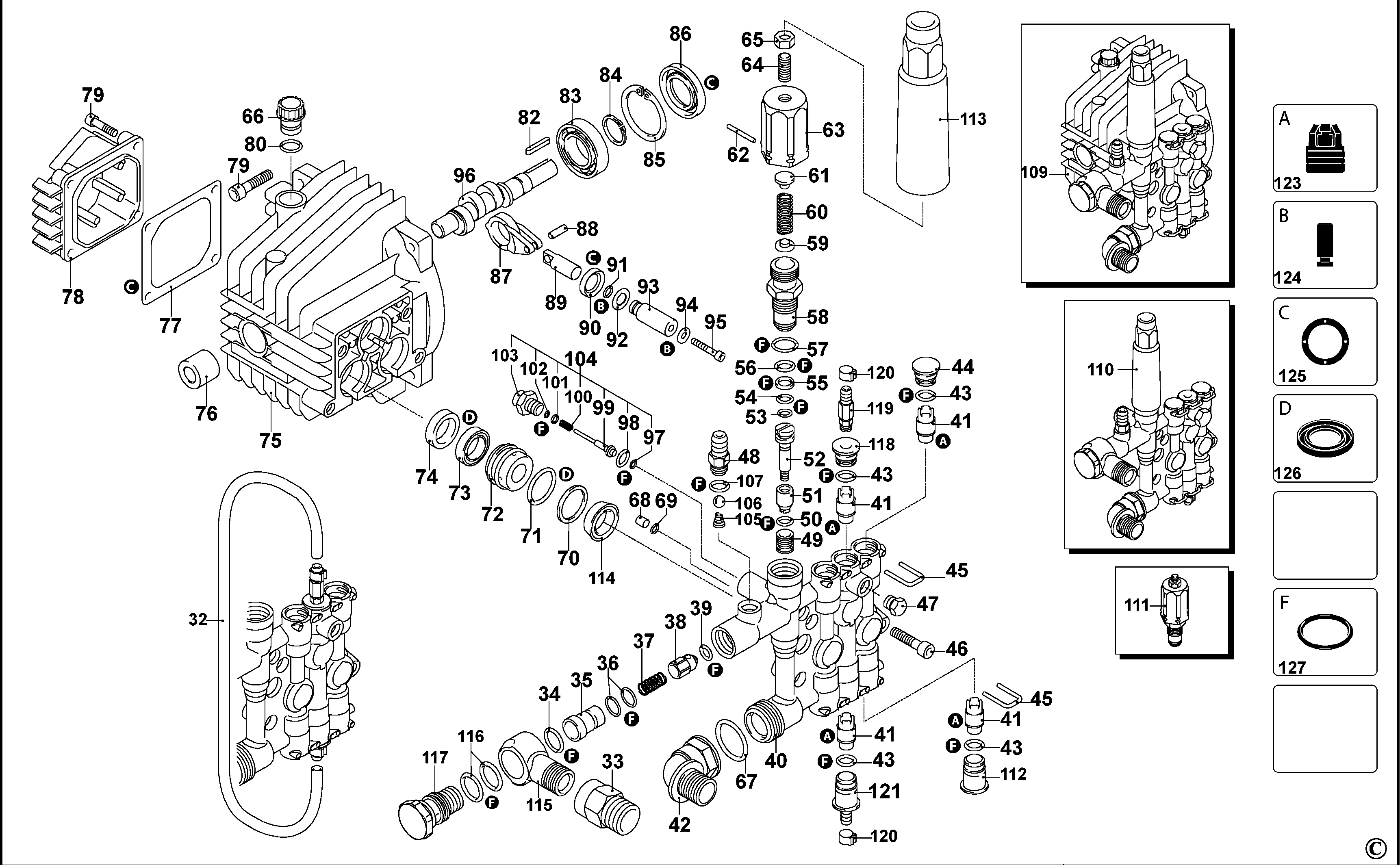

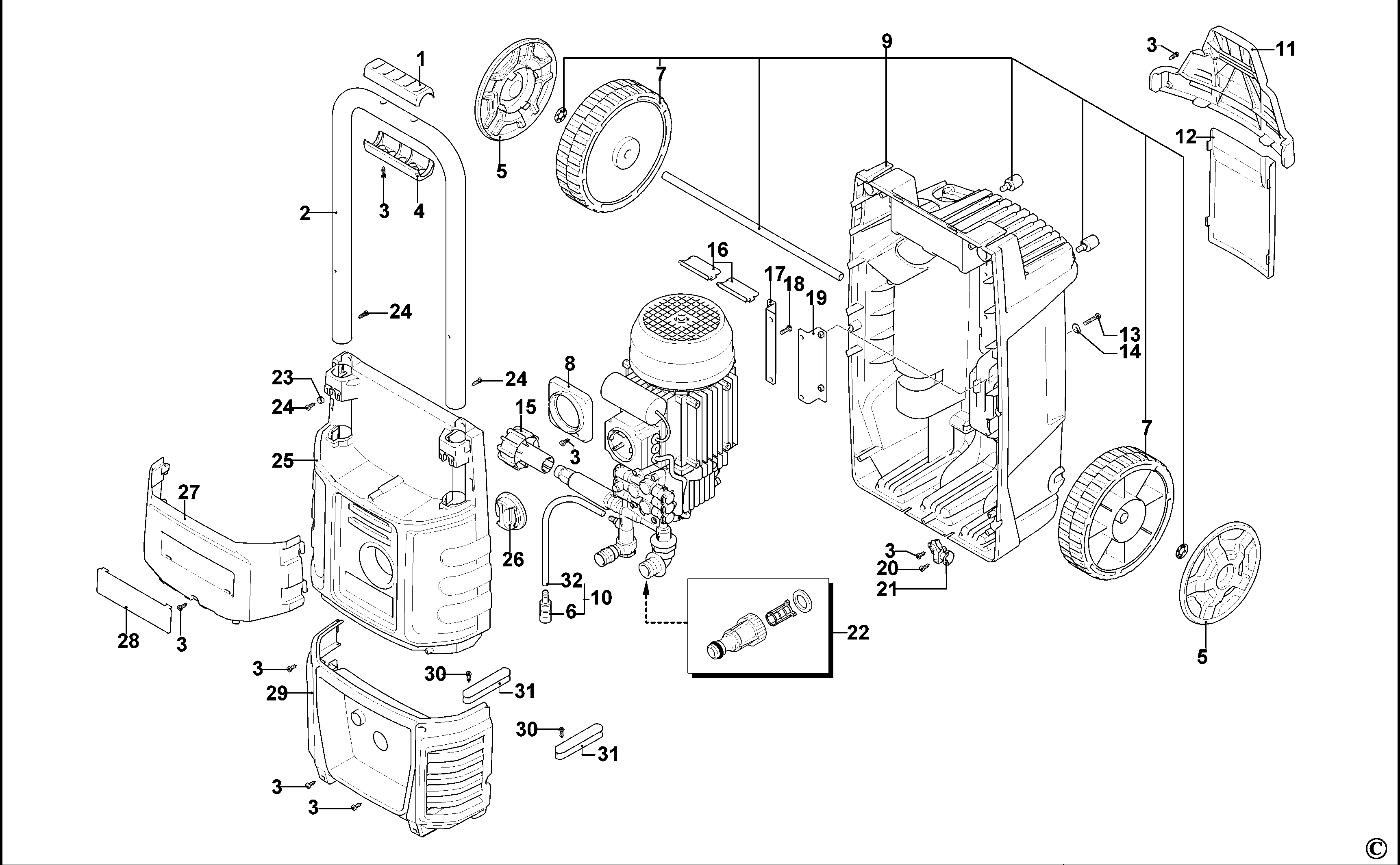

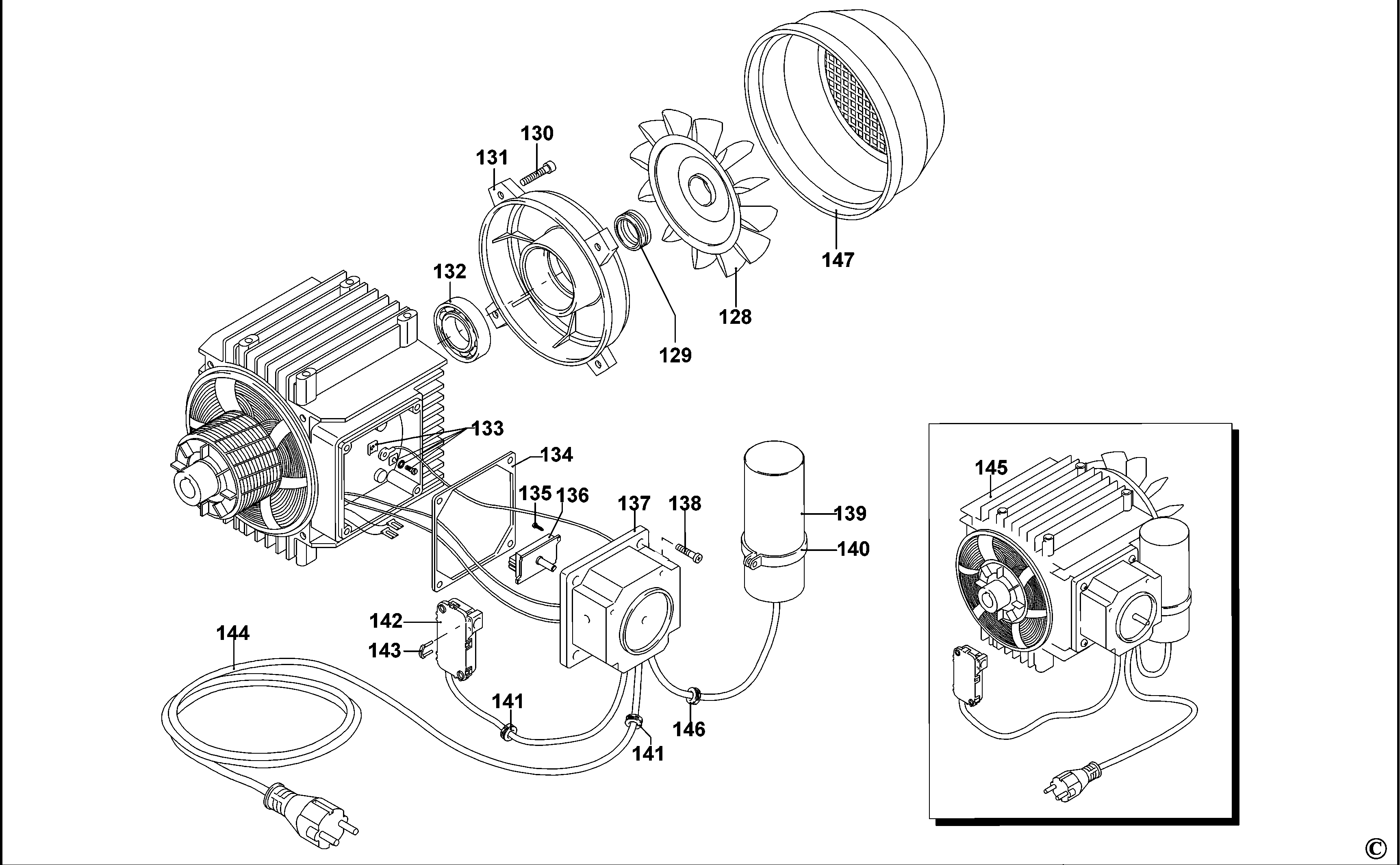

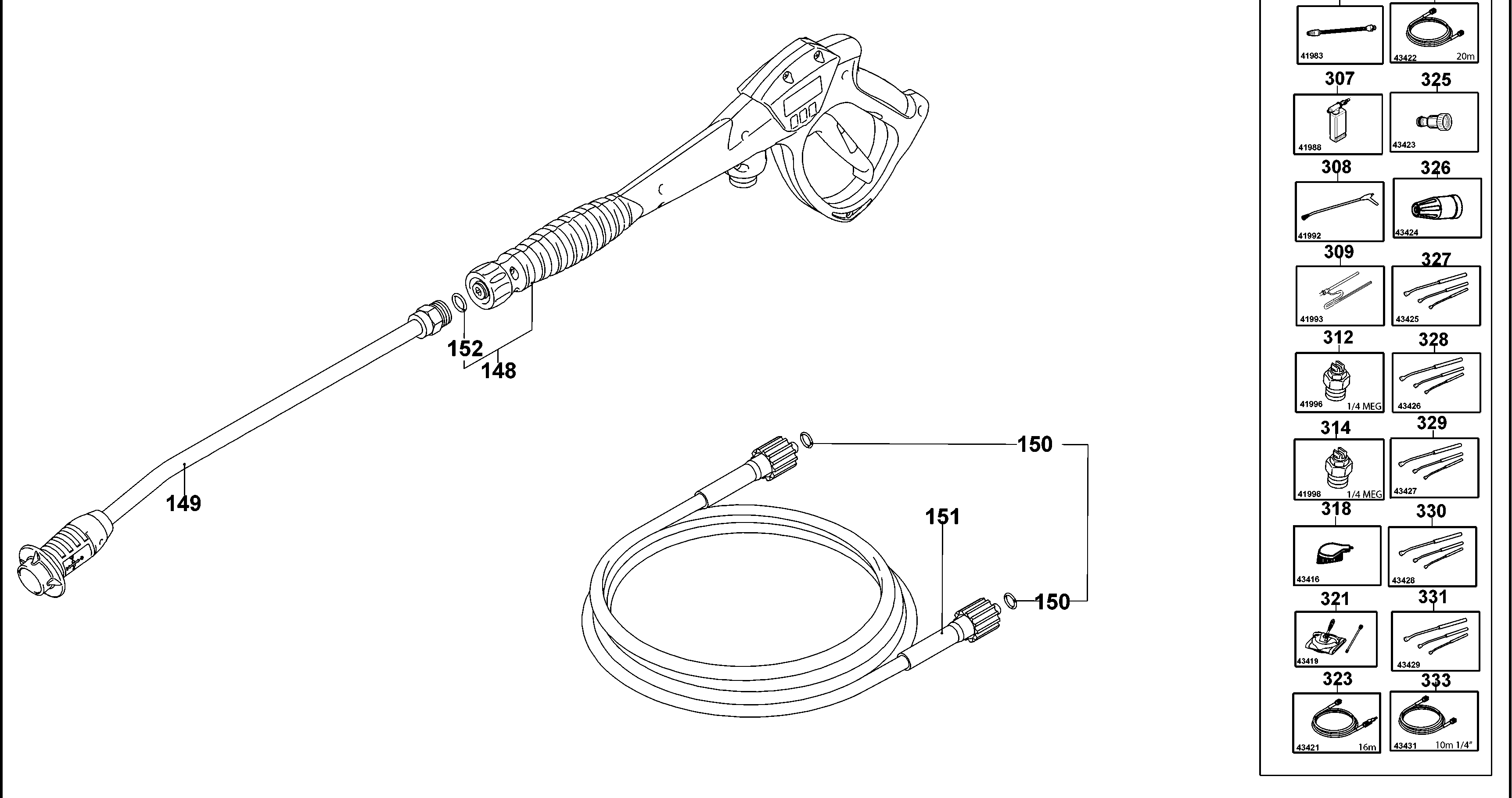

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GUARD (1004713-64) 2796 RON
2 1 1 HANDLE SA (1004713-59) 23244 RON
3 1 17 SCREW (1004712-13) 668 RON
4 1 1 GUARD (1004713-65) 2796 RON
5 1 2 GUARD (1004713-66) 9012 RON
6 1 1 FILTER (1004710-89) 9012 RON
7 1 2 WHEEL (1004714-02) 15469 RON
8 1 1 PLATE (1004727-71) 6688 RON
9 1 1 BASE SA (1004727-78) 52855 RON
10 1 1 HOSE SA (1004710-69) 9012 RON
11 1 1 GUARD (1004713-63) 12361 RON
12 1 1 DOOR (1004714-03) 10241 RON
13 1 4 SCREW (1004712-42) 668 RON
14 1 4 WASHER (1004711-58) 668 RON
15 1 1 KNOB (1004712-40) 3268 RON
16 1 1 GUARD (1004713-84) 2796 RON
17 1 1 BRACKET (1004713-72) 12361 RON
18 1 4 SCREW (1004713-08) 82 RON
19 1 1 BRACKET (1004713-71) 12361 RON
20 1 1 SCREW (1004712-00) 668 RON
21 1 1 GLAND (1004714-09) 3268 RON
22 1 1 COUPLING SA (1004712-93) 3954 RON
22 1 1 1004700-77 - Indisponibil
23 1 1 SPACER (1004713-83) 2182 RON
24 1 4 SCREW (1004712-12) 668 RON
25 1 1 CASING (1004713-69) 18568 RON
26 1 1 KNOB (1004713-73) 3954 RON
27 1 1 GUARD (1004713-62) 13697 RON
28 1 1 GUARD (1004714-01) 9012 RON
29 1 1 GUARD (1004713-70) 18568 RON
30 1 2 SCREW (1004714-17) 668 RON
31 1 2 FOOT (1004714-16) 4827 RON
32 1 1 HOSE SA (1004756-83) 6688 RON
32 1 1 HOSE (1004710-66) 3268 RON
33 1 1 COUPLING (1004710-45) 4355 RON
34 1 1 O RING (1004712-71) 668 RON
35 1 1 PIPE (1004712-86) 741 RON
36 1 2 O RING (1004710-00) 668 RON
37 1 1 SPRING (1004713-55) 668 RON
38 1 1 SHUTTER (1004712-85) 2556 RON
39 1 1 O RING (1004711-49) 668 RON
40 1 1 HEAD (1004711-13) 73079 RON
41 1 6 1004711-19 - Indisponibil
41 1 6 VALVE (1004758-77) 4827 RON
42 1 1 COUPLING (1004712-44) 10241 RON
43 1 6 O RING (1004711-56) 2556 RON
44 1 3 PLUG (1004711-05) 4827 RON
45 1 6 FORK (1004711-04) 4355 RON
46 1 4 SCREW (1004710-08) 668 RON
47 1 1 PLUG (1004709-82) 944 RON
48 1 1 COUPLING (1004711-96) 1630 RON
49 1 1 SEAT (1004710-93) 6688 RON
50 1 1 O RING (1004709-81) 668 RON
51 1 1 PISTON (1004711-46) 5370 RON
52 1 1 PISTON (1004712-07) 741 RON
53 1 1 O RING (1004710-38) 668 RON
54 1 1 O RING (1004709-81) 668 RON
55 1 1 RING (1004710-41) 668 RON
56 1 1 O RING (1004710-05) 668 RON
57 1 1 O RING (1004709-90) 668 RON
58 1 1 GUIDE (1004711-07) 13697 RON
59 1 1 PLATE (1004710-96) 1630 RON
60 1 1 SPRING (1004711-47) 668 RON
61 1 1 PLATE (1004711-87) 668 RON
62 1 1 PIN (1004710-36) 114 RON
63 1 1 INSERT (1004711-08) 12361 RON
64 1 1 SCREW (1004711-90) 668 RON
65 1 1 NUT (1004710-34) 668 RON
66 1 1 PLUG (1004710-98) 5370 RON
67 1 1 O RING (1004711-10) 4355 RON
68 1 1 PLUG (1004711-09) 3954 RON
69 1 1 O RING (1004712-48) 668 RON
70 1 1 RING (1004713-16) 82 RON
71 1 3 O RING (1004709-92) 668 RON
72 1 3 GUIDE (1004711-15) 10241 RON
73 1 3 SEAL (1004710-56) 2556 RON
74 1 3 RING (1004711-03) 3954 RON
75 1 1 BODY (1004711-00) 46247 RON
76 1 1 BUSHING (1004711-16) 6688 RON
77 1 1 O RING (1004710-33) 668 RON
78 1 1 COVER (1004711-01) 9012 RON
79 1 8 SCREW (1004710-60) 668 RON
80 1 1 O RING (1004710-16) 668 RON
81 1 1 PLUG (1004711-18) 6688 RON
82 1 1 KEY (1004710-09) 668 RON
83 1 1 BEARING (1004710-90) 9012 RON
84 1 1 RING (1004709-80) 668 RON
85 1 1 RING (1004709-56) 114 RON
86 1 1 RING (1004710-91) 3954 RON
87 1 3 CON ROD (1004710-79) 6688 RON
88 1 3 PIN (1004710-81) 3268 RON
89 1 3 PISTON (1004710-80) 12361 RON
90 1 3 SEAL (1004710-57) 2556 RON
91 1 3 O RING (1004709-81) 668 RON
92 1 3 PLATE (1004710-87) 1318 RON
93 1 3 PISTON (1004710-94) 38463 RON
94 1 3 WASHER (1004710-88) 668 RON
95 1 3 SCREW (1004710-07) 668 RON
96 1 1 SHAFT SA (1004755-70) 57833 RON
97 1 1 O RING (1004710-43) 668 RON
98 1 1 O RING (1004709-81) 668 RON
99 1 1 PIN (1004712-08) 2796 RON
100 1 1 SPRING (1004712-05) 668 RON
101 1 1 WASHER (1004712-06) 668 RON
102 1 1 O RING (1004710-62) 668 RON
103 1 1 BOLT (1004711-06) 6688 RON
104 1 1 KIT (1004709-35) 15469 RON
105 1 1 SPRING (1004711-70) 668 RON
106 1 1 BALL (1004710-50) 668 RON
107 1 1 O RING (1004709-78) 668 RON
109 1 1 PUMP SA (1004756-84) 263063 RON
110 1 1 HEAD SA (1004756-85) 148269 RON
111 1 1 VALVE KIT (1004709-36) 32327 RON
112 1 3 PLUG (1004711-11) 9012 RON
113 1 1 KNOB (1004713-91) 16689 RON
114 1 3 GASKET (1004713-15) 1318 RON
115 1 1 COUPLING (1004711-17) 15469 RON
116 1 1 O RING (1004744-77) 668 RON
117 1 1 PLUG (1004713-92) 13697 RON
118 1 1 PLUG (1004756-86) 11337 RON
119 1 1 COUPLING (1004756-87) 23244 RON
120 1 2 CLAMP (1004756-88) 12361 RON
121 1 1 PLUG (1004756-90) 15469 RON
123 1 1 1004709-43 - Indisponibil
123 1 1 VALVE KIT (1004757-73) 13697 RON
124 1 1 PISTON KIT (1004708-90) 40734 RON
125 1 1 SEALS KIT (1004709-37) 10241 RON
126 1 1 SEALS KIT (1004709-44) 13697 RON
127 1 1 GASKET SET (1004756-89) 741 RON
128 1 1 FAN (1004710-55) 4355 RON
129 1 1 SEAL (1004710-85) 2182 RON
130 1 4 SCREW (1004711-14) 668 RON
131 1 1 SHIELD (1004711-12) 13697 RON
132 1 1 BEARING (1004710-84) 4827 RON
133 1 1 CLAMP (1004710-67) 741 RON
134 1 1 GASKET (1004710-86) 1630 RON
135 1 2 SCREW (1004712-01) 668 RON
136 1 1 1004712-80 - Indisponibil
136 1 1 SWITCH (2901920) 23244 RON
137 1 1 TERMINAL BOX (1004729-46) 15469 RON
138 1 4 SCREW (1004710-64) 668 RON
139 1 1 CAPACITOR (1004711-95) 15469 RON
140 1 1 CLAMP (1004711-97) 1318 RON
141 1 2 GLAND (1004712-04) 2182 RON
142 1 1 TERMINAL BOX (1004729-46) 15469 RON
143 1 1 FORK (1004712-09) 1630 RON
144 1 1 CORDSET (1004714-18) 18568 RON
145 1 1 MOTOR SA (1004755-71) 308517 RON
146 1 1 GLAND (1004711-55) 668 RON
147 1 1 COVER (1004710-92) 5370 RON
148 1 1 HANDLE SA (1004709-16) 28836 RON
149 1 1 EXTENSION (1004709-20) 23244 RON
150 1 2 O RING (1004712-02) 1318 RON
151 1 1 HOSE (1004714-04) 51127 RON
152 1 1 O RING (1004709-73) 668 RON
302 1 1 EXTENSION (1004719-40) 23244 RON
307 1 1 EXTENSION (1004719-45) 104961 RON
308 1 1 EXTENSION (1004719-46) 48037 RON
309 1 1 EXTENSION (1004719-47) 462423 RON
312 1 1 NOZZLE (1004719-50) 18568 RON
314 1 1 NOZZLE (1004719-52) 18568 RON
318 1 1 BRUSH (1004719-56) 85494 RON
321 1 1 HEAD SA (1004719-59) 200340 RON
323 1 1 HOSE (1004719-61) 36994 RON
324 1 1 1004719-62 - Indisponibil
325 1 1 COUPLING (1004719-63) 36994 RON
326 1 1 COUPLING (1004719-64) 78485 RON
327 1 1 EXTENSION (1004719-65) 20216 RON
328 1 1 EXTENSION (1004719-66) 24962 RON
329 1 1 EXTENSION (1004719-67) 39318 RON
330 1 1 EXTENSION (1004719-68) 32327 RON
331 1 1 EXTENSION (1004719-69) 36994 RON
333 1 1 HOSE (1004719-71) 214180 RON
