Top » Piese de schimb » PIESE DEWALT » DXPW002ME Type 1

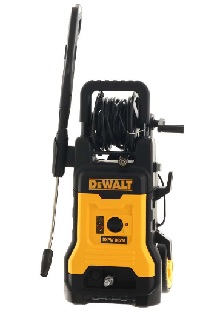

MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002ME Type 1
[DXPW002ME Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002ME Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002ME Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002ME Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002ME Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002ME Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002ME Type 1
Click pentru a mari

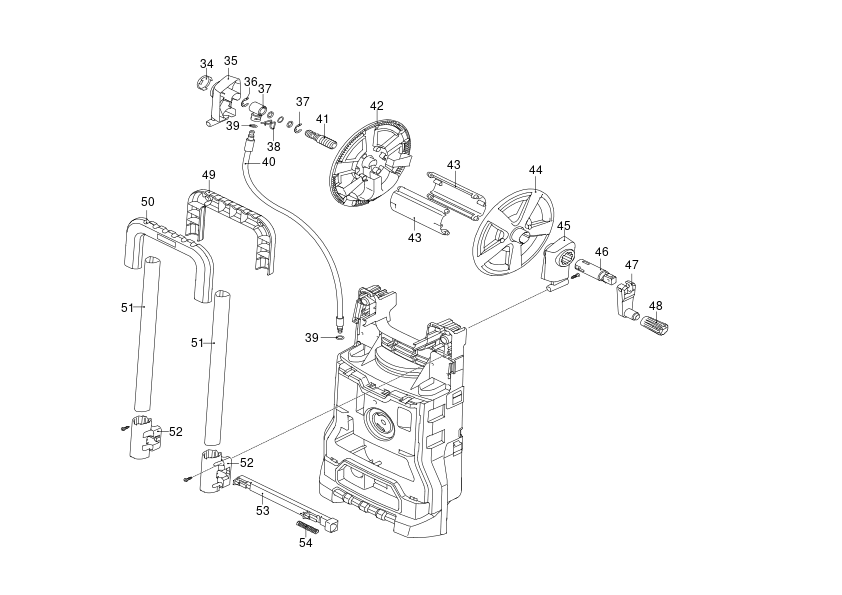

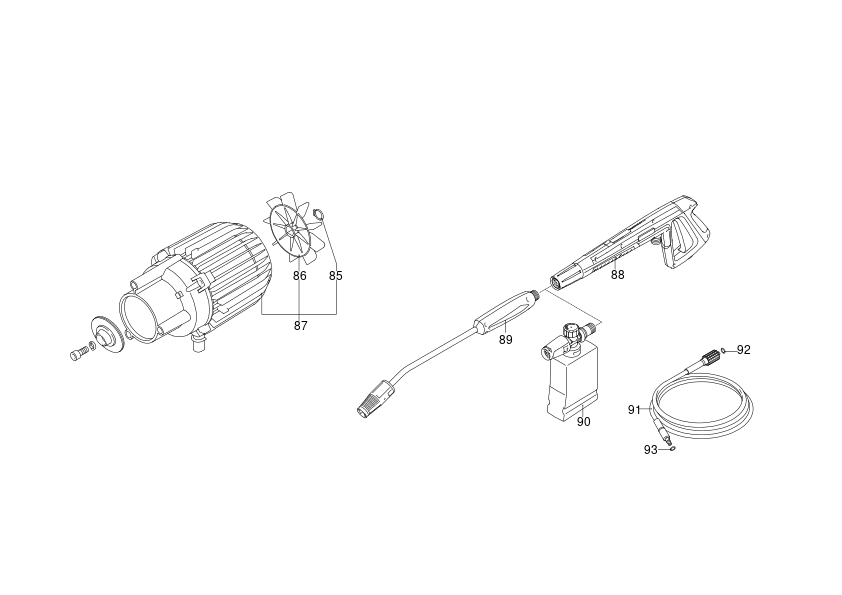

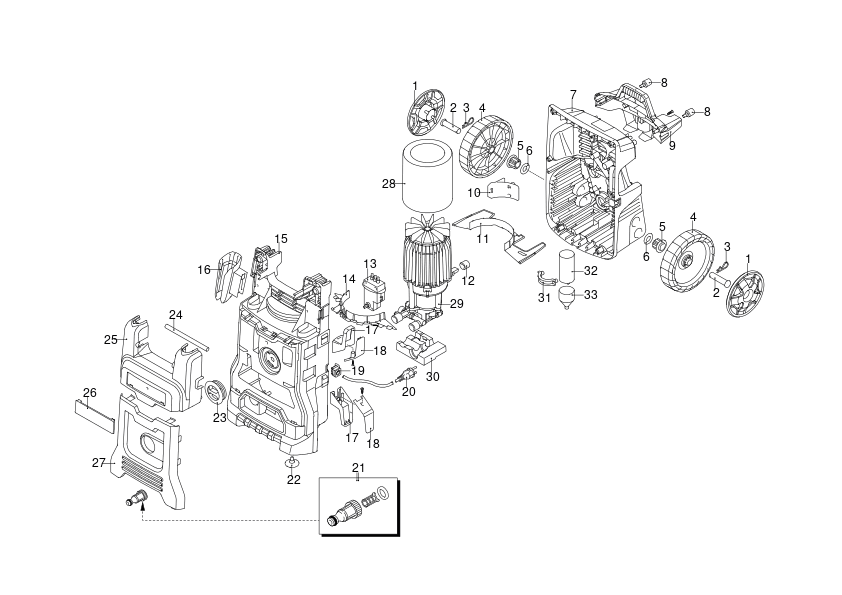

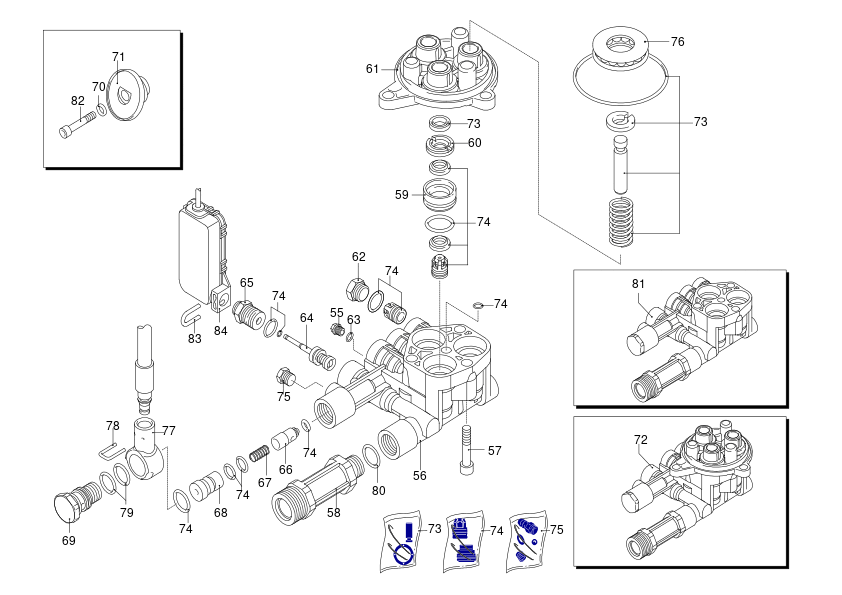

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 GUARD (5160070) 11337 RON
2 1 2 PIN (5160110) 18568 RON
3 1 2 PIN (5160330) 1318 RON
4 1 2 WHEEL (5160360) 32327 RON
5 1 2 FITTING (5160100) 1630 RON
6 1 2 WASHER (5160340) 82 RON
7 1 1 BASE SA (4380491) 20216 RON
8 1 2 FOOT (1004712-16) 3268 RON
9 1 1 CARRIER (4380540) 9012 RON
9 1 1 4380990 - Indisponibil
10 1 1 4380800 - Indisponibil
10 1 1 GUARD (5140205-72) 2182 RON
11 1 1 4381880 - Indisponibil
11 1 1 5140205-93 - Indisponibil
12 1 2 PUMP SA (1004744-82) 462423 RON
13 1 1 4381740 - Indisponibil
13 1 1 BOX (5140205-05) 11337 RON
14 1 1 GUARD (5160160) 3268 RON
15 1 1 CASING SA (5160020) 18568 RON
16 1 1 CARRIER (4580590) 5370 RON
17 1 2 CARRIER (4720520) 11337 RON
18 1 2 GUARD (4720510) 9012 RON
19 1 1 3440370 - Indisponibil
19 1 1 FAN (5140205-50) 944 RON
20 1 1 CABLE (3441120) 25728 RON
21 1 1 COUPLING SA (1004712-93) 3954 RON
22 1 1 FOOT (4381640) 1318 RON
23 1 1 KNOB (5160090) 1318 RON
24 1 1 GUIDE (5160080) 3268 RON
25 1 1 BASE (5160030) 10241 RON
26 1 1 GUARD (1004714-01) 9012 RON
27 1 1 GUARD (5160040) 10241 RON
28 1 1 FAN COVER (4382990) 24962 RON
29 1 1 PUMP SA (5160320) 385497 RON
30 1 1 BASE BRACKET (5160140) 6688 RON
31 1 1 KNOB (4101060) 6688 RON
32 1 1 CAPACITOR (4383260) 18568 RON
33 1 1 4101080 - Indisponibil
33 1 1 CONNECTOR (5140205-78) 82 RON
34 1 1 CABLE & CAPACITOR (4820410) 2556 RON
35 1 1 BRACKET (4720160) 6688 RON
36 1 2 RING (4101710) 1772 RON
37 1 1 COUPLING (4101760) 15469 RON
38 1 1 4101520 - Indisponibil
38 1 1 FORK (5140205-34) 668 RON
39 1 2 O RING (1004744-79) 668 RON
40 1 1 4381240 - Indisponibil
40 1 1 HIGH PRESSURE HOSE (5140205-29) 20216 RON
41 1 1 FITTING (4101690) 18568 RON
42 1 1 PLATE (4101770) 741 RON
43 1 2 SUPPORT (4101730) 3268 RON
44 1 1 PLATE (4101680) 10241 RON
45 1 1 BRACKET (4720150) 6688 RON
46 1 1 PIN (4101750) 2182 RON
47 1 1 LEVER (4101660) 3268 RON
48 1 1 KNOB (5160170) 2556 RON
49 1 1 5160060 - Indisponibil
49 1 1 HANDLE SA (5160470) 27287 RON
50 1 1 5160050 - Indisponibil
50 1 1 HANDLE SA (5160470) 27287 RON
51 1 2 PIPE (5160120) 9012 RON
52 1 2 GUIDE (4720120) 15469 RON
53 1 1 HOOK (4720100) 11337 RON
54 1 1 SPRING (4821020) 82 RON
55 1 1 PLUG (3720730) 741 RON
56 1 1 HEAD SA (3400980) 214180 RON
57 1 3 SCREW (1004709-97) 944 RON
58 1 1 COUPLING (5160130) 27287 RON
59 1 3 BUSHING (1004712-69) 5370 RON
60 1 3 BUSH (1004743-67) 668 RON
61 1 1 GUIDE (1004713-41) 12361 RON
62 1 3 PLUG (1004712-65) 2796 RON
63 1 1 O RING (1682800) 668 RON
64 1 1 SPRING (1004744-68) 16689 RON
65 1 1 FITTING (1004712-77) 9012 RON
66 1 1 SHUTTER (1004712-85) 2556 RON
67 1 1 SPRING (1004710-37) 1630 RON
68 1 1 VALVE (3401100) 4355 RON
69 1 1 PLUG (1004713-92) 13697 RON
70 1 1 3081750 - Indisponibil
70 1 1 WASHER (5140205-41) 668 RON
71 1 1 4382090 - Indisponibil
71 1 1 5140205-49 - Indisponibil
72 1 1 PUMP SA (4389412) 139195 RON
73 1 1 PISTONS & SEALS KIT (1004744-71) 18568 RON
74 1 1 VALVES & SEALS KIT (1004744-72) 9012 RON
75 1 1 PLUG (1004709-82) 944 RON
76 1 1 BEARING (1004744-74) 741 RON
77 1 1 COUPLING (3960430) 16689 RON
78 1 1 FORK (4240270) 3954 RON
79 1 2 O RING (1004744-77) 668 RON
80 1 1 O RING (1004709-90) 668 RON
81 1 1 HEAD SA (1004785-67) 327869 RON
82 1 1 1004701-09 - Indisponibil
82 1 1 SCREW (5140205-48) 668 RON
83 1 1 FORK (1004712-09) 1630 RON
84 1 1 3409611 - Indisponibil
84 1 1 BOX (46954) 25728 RON
85 1 1 1004553-08 - Indisponibil
85 1 1 RING (5140205-51) 668 RON
86 1 1 3440370 - Indisponibil
86 1 1 FAN (5140205-50) 944 RON
87 1 1 MOTOR SA (5160380) 176482 RON
88 1 1 HANDLE (4383511) 30769 RON
89 1 1 EXTENSION (5160290) 25728 RON
90 1 1 TANK (5160250) 15469 RON
91 1 1 HOSE SA, REINFORCED (5160240) 35435 RON
92 1 1 O RING (1004709-73) 668 RON
93 1 1 3083400 - Indisponibil
93 1 1 O-RING (5140193-42) 668 RON
