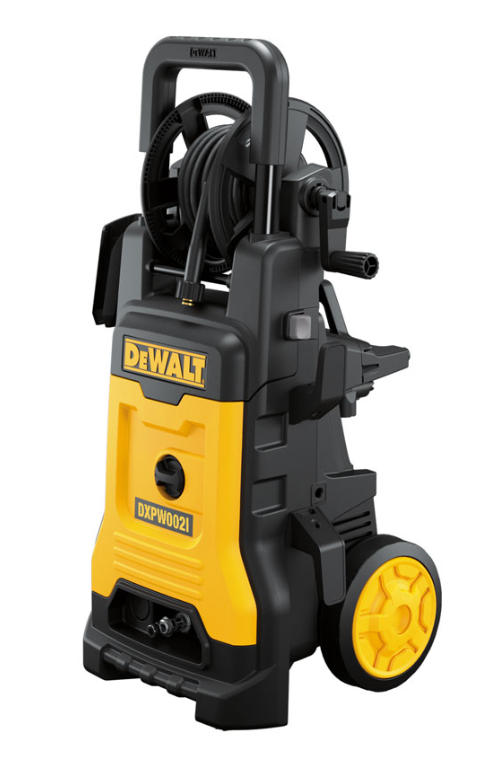

MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002I Type 1
[DXPW002I Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002I Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002I Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002I Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002I Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002I Type 1
Click pentru a mari

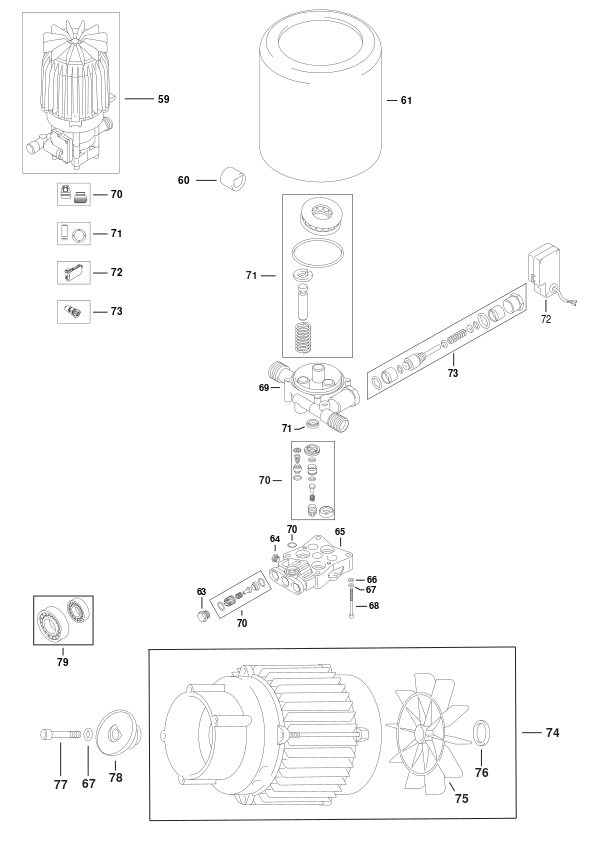

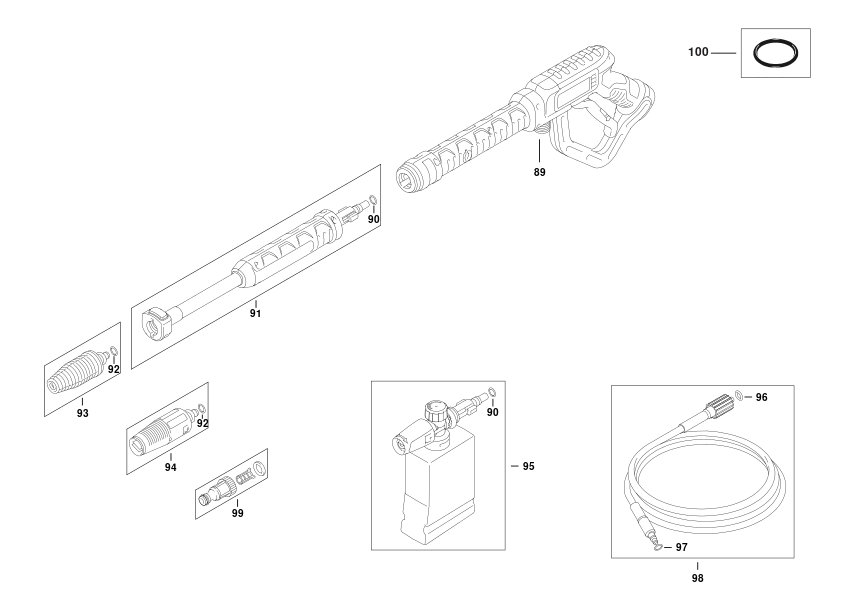

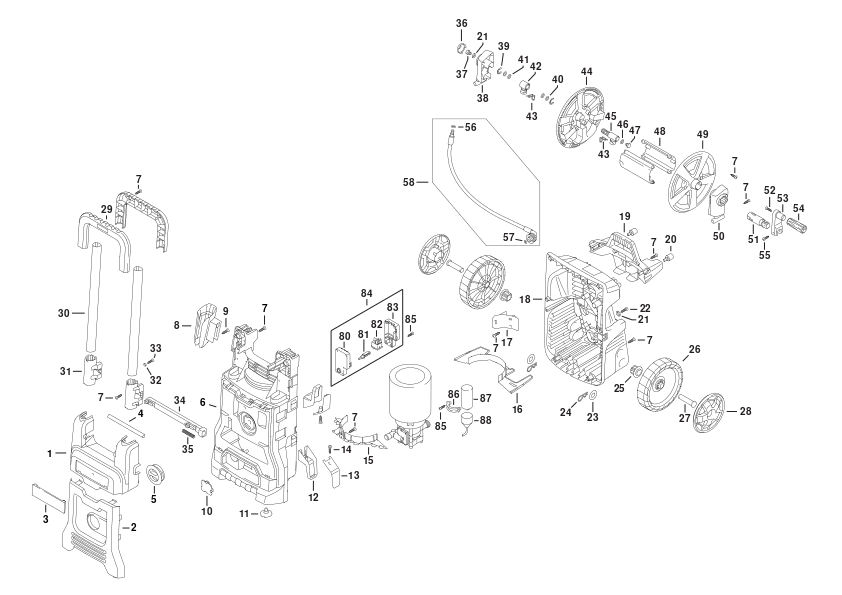

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BASE (5160030) 10241 RON
2 1 1 GUARD (5160040) 10241 RON
3 1 1 3960830 - Indisponibil
4 1 1 GUIDE (5160080) 3268 RON
5 1 1 KNOB (5160090) 1318 RON
6 1 1 CASING SA (5160020) 18568 RON
7 1 32 SCREW (50943) 1630 RON
8 1 1 CARRIER (4580590) 5370 RON
9 1 1 SCREW (4582020) 668 RON
10 1 1 5160550 - Indisponibil
11 1 2 FOOT (4381640) 1318 RON
12 1 2 CARRIER (4720520) 11337 RON
13 1 2 GUARD (4720510) 9012 RON
14 1 2 SCREW (5480500) 668 RON
15 1 1 GUARD (5160160) 3268 RON
16 1 1 5140205-93 - Indisponibil
17 1 1 GUARD (5140205-72) 2182 RON
18 1 1 BASE SA (4380491) 20216 RON
19 1 1 CARRIER (4380540) 9012 RON
20 1 2 FOOT (1004712-16) 3268 RON
21 1 3 WASHER (4581960) 668 RON
22 1 2 SCREW (4582010) 668 RON
23 1 2 WASHER (5160340) 82 RON
24 1 2 PIN (5160330) 1318 RON
25 1 2 FITTING (5160100) 1630 RON
26 1 2 WHEEL (5160360) 32327 RON
27 1 2 PIN (5160110) 18568 RON
28 1 2 GUARD (5160070) 11337 RON
29 1 1 HANDLE SA (5160470) 27287 RON
30 1 2 PIPE (5160120) 9012 RON
31 1 2 GUIDE (4720120) 15469 RON
32 1 2 4720780 - Indisponibil
33 1 2 SCREW (5460810) 668 RON
34 1 1 1004786-69 - Indisponibil
35 1 1 SPRING (4821020) 82 RON
36 1 1 CABLE & CAPACITOR (4820410) 2556 RON
37 1 1 SCREW (4581950) 668 RON
38 1 1 BRACKET (4720160) 6688 RON
39 1 2 RING (4101710) 1772 RON
40 1 2 RING (4200060) 944 RON
41 1 2 O RING (5460660) 668 RON
42 1 1 COUPLING (4101760) 15469 RON
43 1 2 FORK (5140205-34) 668 RON
44 1 1 PLATE (4101770) 741 RON
45 1 1 FITTING (4581020) 18568 RON
46 1 1 O RING (4581970) 668 RON
47 1 1 SCREW (4580450) 668 RON
48 1 2 SUPPORT (4102120) 3954 RON
49 1 1 PLATE (4101680) 10241 RON
50 1 1 BRACKET (4720150) 6688 RON
51 1 1 PIN (4101750) 2182 RON
52 1 1 SCREW (5460700) 668 RON
53 1 1 LEVER (4101660) 3268 RON
54 1 1 KNOB (5160170) 2556 RON
55 1 1 SCREW (4581980) 668 RON
56 1 1 O RING (4382520) 668 RON
57 1 1 O-RING (5140205-58) 114 RON
58 1 1 HOSE (4384860) 13697 RON
59 1 1 5160950 - Indisponibil
60 1 2 RUBBER FOOT (5140205-06) 2556 RON
61 1 1 FAN COVER (5460690) 5370 RON
63 1 3 PLUG (5140205-37) 3954 RON
64 1 1 SCREW (5140205-38) 668 RON
65 1 1 5160740 - Indisponibil
66 1 4 WASHER (5140205-40) 668 RON
67 1 5 WASHER (5140205-41) 668 RON
68 1 4 SCREW (5140205-42) 944 RON
69 1 1 5160730 - Indisponibil
70 1 1 SERVICE KIT (1004455-19) 27287 RON
71 1 1 5160790 - Indisponibil
72 1 1 KIT (4384430) 10241 RON
73 1 1 VALVE KIT (4384310) 13697 RON
74 1 1 MOTOR SA (4223530) 91363 RON
75 1 1 FAN (5460680) 2556 RON
76 1 1 RING (5140205-51) 668 RON
77 1 1 SCREW (5140205-48) 668 RON
78 1 1 5160930 - Indisponibil
79 1 1 BEARING-KIT (43056) 16689 RON
80 1 1 COVER (3086150) 1772 RON
81 1 1 PIN (3086330) 114 RON
82 1 1 SWITCH SA (1004700-67) 741 RON
83 1 1 BOX (3086140) 1772 RON
84 1 1 BOX (5140205-05) 11337 RON
85 1 5 SCREW (3085940) 668 RON
86 1 1 VALVE-G1/4 T16,5 (4101070) 11337 RON
87 1 1 5140205-77 - Indisponibil
88 1 1 CONNECTOR (5140205-78) 82 RON
89 1 1 SPRAY SA (4581750) 28836 RON
90 1 2 O-RING (5140193-41) 668 RON
91 1 1 EXTENSION (4581780) 13697 RON
92 1 2 O-RING (5140206-02) 668 RON
93 1 1 5520600 - Indisponibil
94 1 1 HEAD SA (4382460) 21676 RON
95 1 1 4383503 - Indisponibil
96 1 1 O-RING 9,13x2,62 HW110/130 (391000) 446 RON
97 1 1 O-RING (5140193-42) 668 RON
98 1 1 5160750 - Indisponibil
99 1 1 COUPLING SA (1004712-93) 3954 RON
100 1 1 47781 - Indisponibil
