Top » Piese de schimb » PIESE DEWALT » DXPW002CE KART Type 1

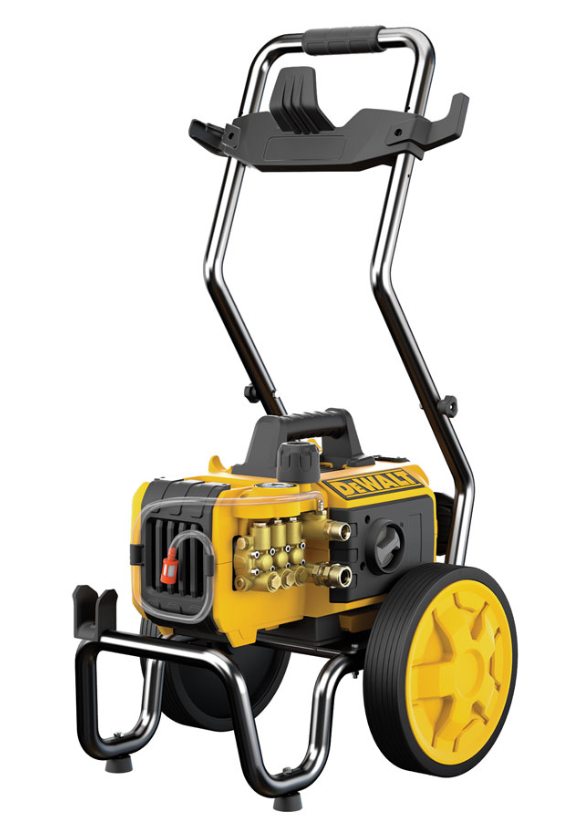

MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002CE KART Type 1
[DXPW002CE KART Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002CE KART Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002CE KART Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002CE KART Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002CE KART Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002CE KART Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW002CE KART Type 1
Click pentru a mari

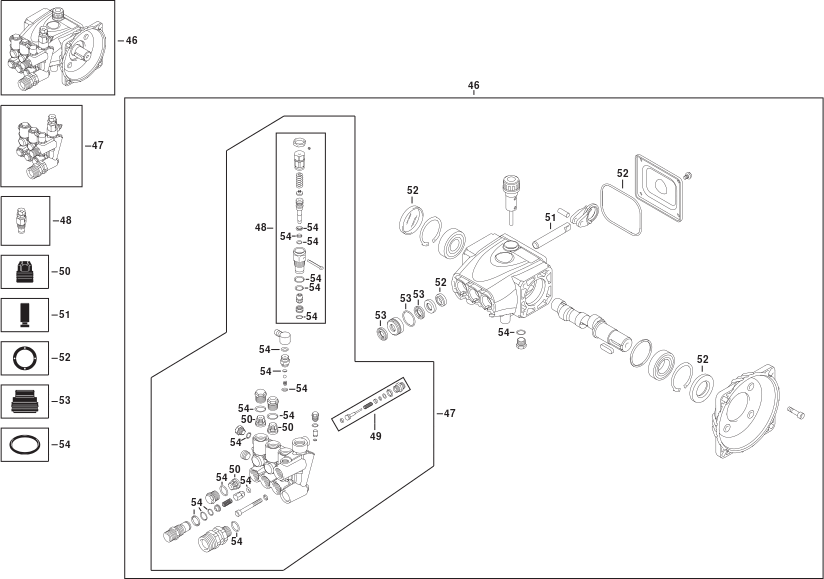

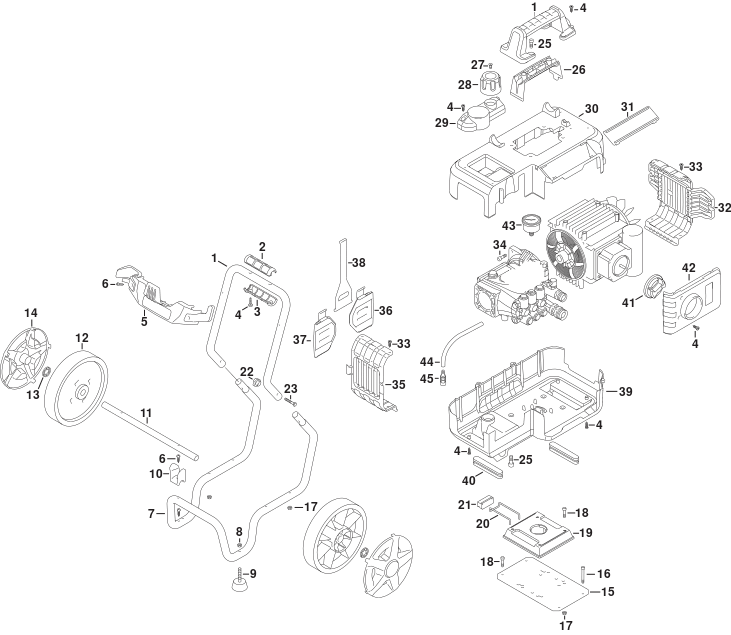

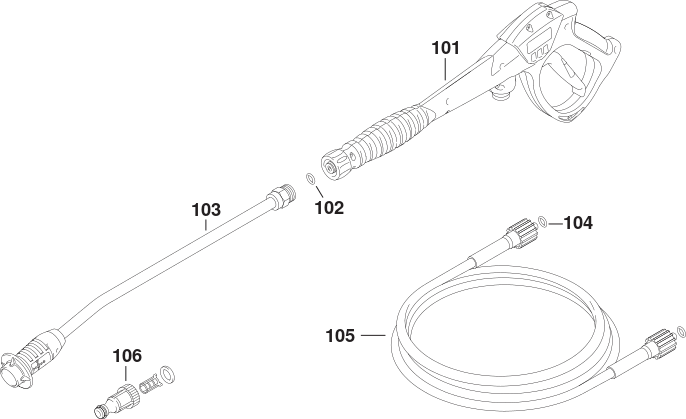

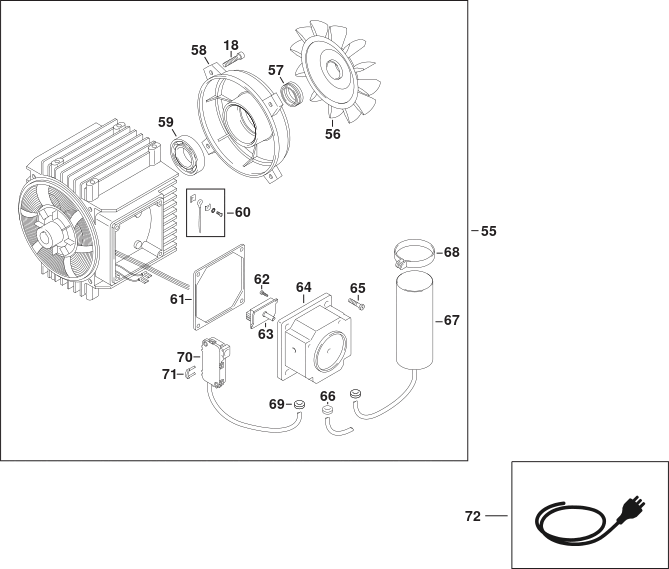

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRAME (4320331) 28836 RON
2 1 1 Knob HW151 (3580180) 190 RON
3 1 1 MANER INFERIOR HW151 (3580090) 1229 RON
4 1 2 SURUB 5X16 HW131 (2100300) 446 RON
5 1 1 CARRIER (4320050) 9012 RON
6 1 3 SCREW (1004712-12) 668 RON
7 1 1 FRAME (4320011) 51127 RON
8 1 2 NUT (3000170) 668 RON
9 1 2 DAMPER (4320220) 741 RON
10 1 1 CARRIER (3600070) 2796 RON
11 1 1 PIPE (4320041) 13697 RON
12 1 2 4320280 - Indisponibil
13 1 2 WASHER (380620) 82 RON
14 1 2 GUARD (4320272) 9012 RON
15 1 1 PLATE (4320031) 10241 RON
16 1 2 2840310 - Indisponibil
17 1 8 NUT (2480320) 668 RON
18 1 10 SCREW (1004711-14) 668 RON
19 1 1 BRACKET (1345370) 10241 RON
20 1 1 HOUSING (1345470) 11337 RON
21 1 1 BUTTON (1345360) 5370 RON
22 1 2 KNOB (1004774-14) 3954 RON
23 1 2 SCREW (1004774-15) 668 RON
24 1 1 HANDLE (1004743-79) 741 RON
25 1 8 SCREW (1004710-12) 668 RON
26 1 1 GUARD (1004743-80) 6688 RON
27 1 1 SCREW (1004743-72) 668 RON
28 1 1 KNOB (1004743-85) 4355 RON
29 1 1 GUARD (1004743-86) 6688 RON
30 1 1 COVER-TOP (1004743-75) 18568 RON
31 1 1 3960830 - Indisponibil
32 1 1 GUARD (1004743-82) 9012 RON
33 1 4 SCREW (1004714-17) 668 RON
34 1 4 SCREW (1004710-60) 668 RON
35 1 1 GUARD (1004743-81) 9012 RON
36 1 1 SUPPORT (1004743-83) 4827 RON
37 1 1 SUPPORT (1004743-77) 4827 RON
38 1 1 CLAMP (1004743-84) 6688 RON
39 1 1 BASE SA (1004743-76) 18568 RON
40 1 2 FOOT (1004714-16) 4827 RON
41 1 1 KNOB (1004713-73) 3954 RON
42 1 1 GUARD (1004743-78) 741 RON
43 1 1 PRESSURE GAUGE (41851) 18568 RON
44 1 1 HOSE (1004710-70) 2556 RON
45 1 1 FILTER (1004710-89) 9012 RON
46 1 1 PUMP SA (1004743-58) 236862 RON
47 1 1 HEAD SA (46065) 161583 RON
48 1 1 46935 - Indisponibil
49 1 1 46936 - Indisponibil
50 1 1 VALVES AND SEALS KIT (1004744-27) 6688 RON
51 1 1 PISTON KIT (1004744-15) 42426 RON
52 1 1 SEALS KIT (1004743-59) 9012 RON
53 1 1 47536 - Indisponibil
54 1 1 GASKET SET (1004744-28) 4827 RON
55 1 1 MOTOR SA (1004743-64) 327869 RON
56 1 1 FAN (1004710-55) 4355 RON
57 1 1 SEAL (1004710-85) 2182 RON
58 1 1 SHIELD (1004711-12) 13697 RON
59 1 1 BEARING (1004710-84) 4827 RON
60 1 1 CLAMP (1004710-67) 741 RON
61 1 1 GASKET (1004710-86) 1630 RON
62 1 2 SCREW (1004712-01) 668 RON
63 1 1 SWITCH (2901920) 23244 RON
64 1 1 BOX (1004713-52) 4355 RON
65 1 4 SCREW (1004710-64) 668 RON
66 1 1 GHIDAJ HW130 (2021480) 2235 RON
67 1 1 CAPACITOR (1004711-95) 15469 RON
68 1 1 CLAMP (1004711-97) 1318 RON
69 1 2 GLAND (1462900) 82 RON
70 1 1 BOX (1004743-65) 18568 RON
71 1 1 FORK (2022201) 1630 RON
72 1 1 CORDSET (1004713-56) 20216 RON
101 1 1 HANDLE SA (1004709-16) 28836 RON
102 1 1 O-RING 9,13x2,62 HW110/130 (391000) 446 RON
103 1 1 EXTENSION (1004743-61) 23244 RON
104 1 2 O RING (1004712-02) 1318 RON
105 1 1 HOSE (1004714-05) 67932 RON
106 1 1 COUPLING SA (1004712-93) 3954 RON
