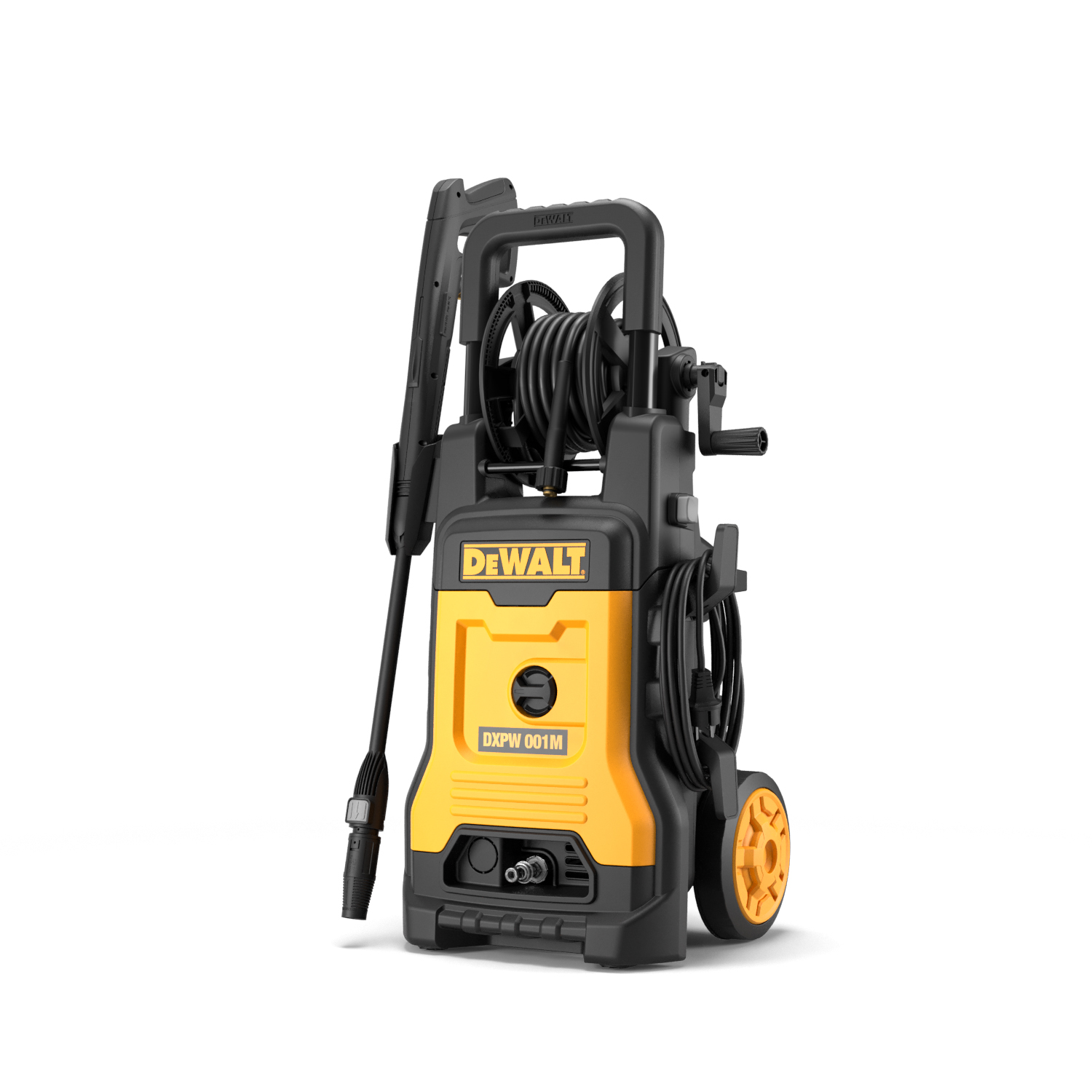

MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001ME Type 1
[DXPW001ME Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001ME Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001ME Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001ME Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001ME Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001ME Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001ME Type 1
Click pentru a mari

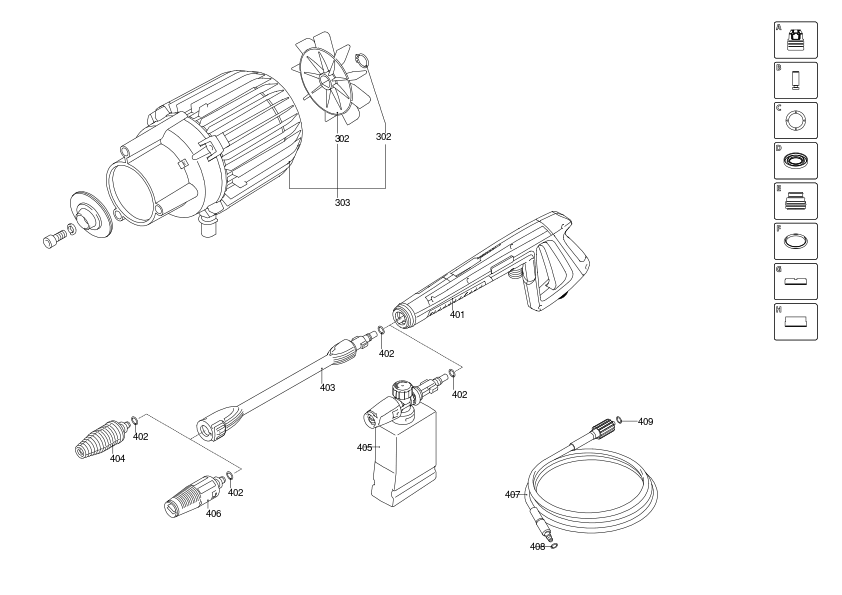

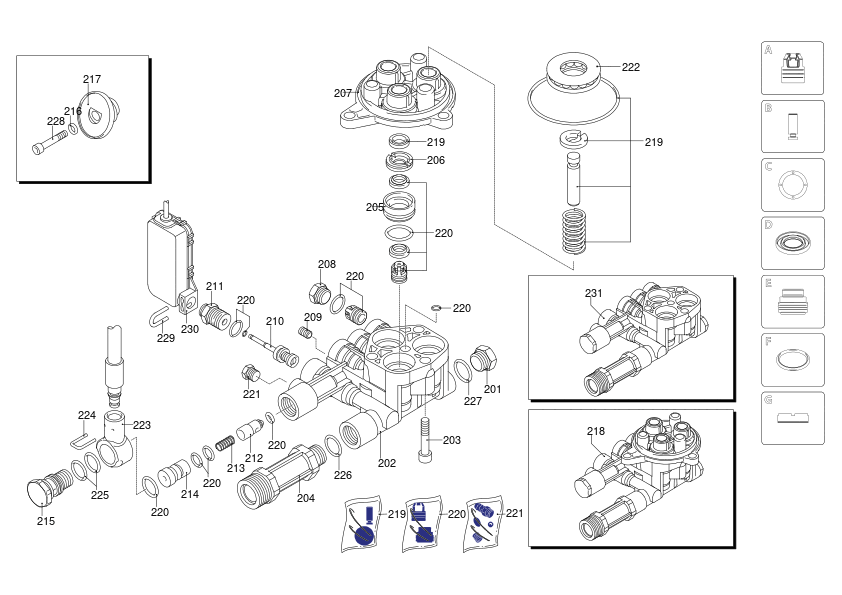

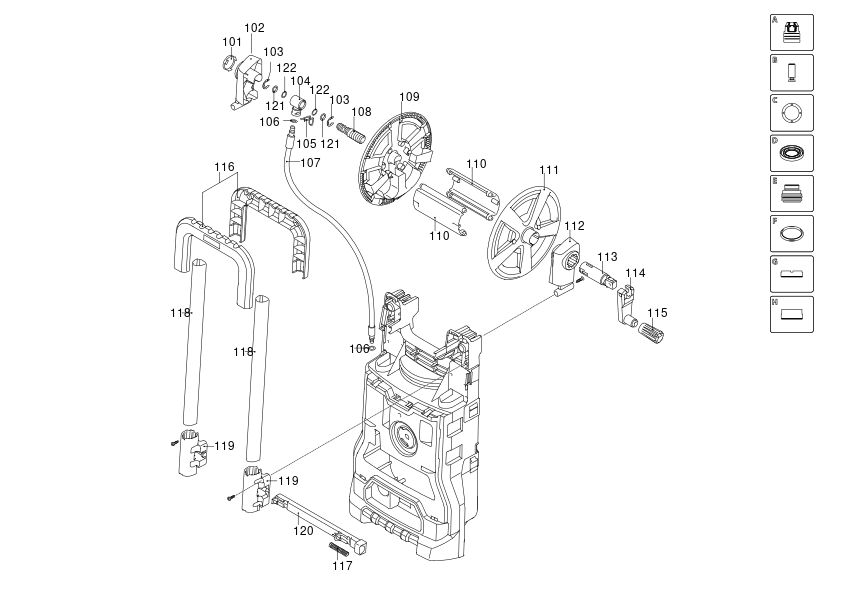

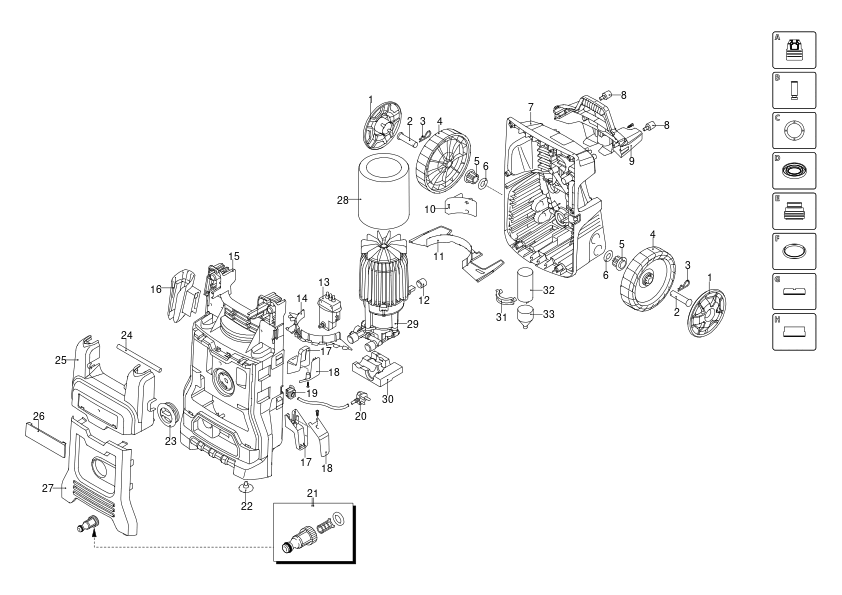

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 GUARD (5160070) 11337 RON
2 1 2 PIN (5160110) 18568 RON
3 1 2 PIN (5160330) 1318 RON
4 1 2 WHEEL (5160360) 32327 RON
5 1 2 FITTING (5160100) 1630 RON
6 1 2 WASHER (5160340) 82 RON
7 1 1 BASE SA (4380491) 20216 RON
8 1 2 FOOT (1004712-16) 3268 RON
9 1 1 CARRIER (4380540) 9012 RON
9 1 1 4380990 - Indisponibil
10 1 1 4380800 - Indisponibil
10 1 1 GUARD (5140205-72) 2182 RON
11 1 1 4381880 - Indisponibil
11 1 1 5140205-93 - Indisponibil
12 1 2 PUMP SA (1004744-82) 462423 RON
13 1 1 4381740 - Indisponibil
13 1 1 BOX (5140205-05) 11337 RON
14 1 1 GUARD (5160160) 3268 RON
15 1 1 CASING SA (5160020) 18568 RON
16 1 1 CARRIER (4580590) 5370 RON
17 1 2 CARRIER (4720520) 11337 RON
18 1 2 GUARD (4720510) 9012 RON
19 1 1 X94ND (1004455-07) 114 RON
20 1 1 CORDSET (3082090) 20216 RON
21 1 1 COUPLING SA (1004712-93) 3954 RON
22 1 1 FOOT (4381640) 1318 RON
23 1 1 KNOB (5160090) 1318 RON
24 1 1 GUIDE (5160080) 3268 RON
25 1 1 BASE (5160030) 10241 RON
26 1 1 GUARD (1004714-01) 9012 RON
27 1 1 GUARD (5160040) 10241 RON
28 1 1 FAN COVER (4382990) 24962 RON
29 1 1 MOTOR AND PUMP SA (5160310) 462423 RON
30 1 1 BASE BRACKET (5160140) 6688 RON
31 1 1 KNOB (4101060) 6688 RON
32 1 1 CAPACITOR (4383260) 18568 RON
33 1 1 4101080 - Indisponibil
33 1 1 CONNECTOR (5140205-78) 82 RON
101 1 1 CABLE & CAPACITOR (4820410) 2556 RON
102 1 1 BRACKET (4720160) 6688 RON
103 1 2 RING (4101710) 1772 RON
104 1 1 COUPLING (4101760) 15469 RON
105 1 1 4101520 - Indisponibil
105 1 1 FORK (5140205-34) 668 RON
106 1 2 O RING (1004744-79) 668 RON
107 1 1 4381240 - Indisponibil
107 1 1 HIGH PRESSURE HOSE (5140205-29) 20216 RON
108 1 1 FITTING (4101690) 18568 RON
109 1 1 PLATE (4101770) 741 RON
110 1 2 SUPPORT (4101730) 3268 RON
111 1 1 PLATE (4101680) 10241 RON
112 1 1 BRACKET (4720150) 6688 RON
113 1 1 PIN (4101750) 2182 RON
114 1 1 LEVER (4101660) 3268 RON
115 1 1 KNOB (5160170) 2556 RON
116 1 1 HANDLE SA (5160470) 27287 RON
117 1 1 SPRING (4821020) 82 RON
118 1 2 PIPE (5160120) 9012 RON
119 1 2 GUIDE (4720120) 15469 RON
120 1 1 HOOK (4720100) 11337 RON
121 1 2 RING (4200060) 944 RON
122 1 2 O RING (1004709-69) 668 RON
201 1 1 PLUG (3720730) 741 RON
202 1 1 2900200 - Indisponibil
203 1 3 SCREW (800220) 2182 RON
204 1 1 COUPLING (5160130) 27287 RON
205 1 3 BUSHING (2840550) 11337 RON
206 1 3 BUSH (1004743-67) 668 RON
207 1 1 GUIDE-Piston guide (3400020) 24962 RON
208 1 3 2840130 - Indisponibil
209 1 1 SCREW (2840830) 3268 RON
210 1 1 SPRING (1004744-68) 16689 RON
210 1 1 2909004 - Indisponibil
211 1 1 2900130 - Indisponibil
212 1 1 Shutter HW151 (2901070) 2124 RON
213 1 1 Spring HW151 (1080091) 781 RON
214 1 1 VALVE (3401100) 4355 RON
215 1 1 PLUG (1004713-92) 13697 RON
216 1 1 3081750 - Indisponibil
216 1 1 WASHER (5140205-41) 668 RON
217 1 1 PLATE (3400510) 5370 RON
218 1 1 5170049-66 - Indisponibil
218 1 1 PUMP (3409430) 176482 RON
219 1 1 PISTONS & SEALS KIT (1004744-71) 18568 RON
219 1 1 3400420 - Indisponibil
220 1 1 VALVES & SEALS KIT (1004744-72) 9012 RON
220 1 1 3400430 - Indisponibil
221 1 1 PLUG (1004709-82) 944 RON
222 1 1 BEARING (1004744-74) 741 RON
222 1 1 3400540 - Indisponibil
223 1 1 COUPLING (3960430) 16689 RON
224 1 1 FORK (4240270) 3954 RON
225 1 2 O RING (1004744-77) 668 RON
226 1 1 O RING (1004709-90) 668 RON
227 1 1 O RING (1004710-05) 668 RON
228 1 1 3081950 - Indisponibil
228 1 1 SCREW (5140205-48) 668 RON
229 1 1 FORK (1004712-09) 1630 RON
230 1 1 BOX (46954) 25728 RON
231 1 1 HEAD (5170049-67) 99395 RON
301 1 1 3441000 - Indisponibil
301 1 1 RING (5140205-51) 668 RON
302 1 1 3440370 - Indisponibil
302 1 1 FAN (5140205-50) 944 RON
303 1 1 MOTOR (5160370) 308517 RON
401 1 1 BLOW TUBE SA (5170049-44) 25728 RON
402 1 4 3083700 - Indisponibil
402 1 4 O-RING (5140193-41) 668 RON
403 1 1 EXTENSION (5170049-45) 11337 RON
404 1 1 4101170 - Indisponibil
404 1 1 LANCE HEAD (5140160-57) 21676 RON
405 1 1 TANK (5170049-46) 18568 RON
406 1 1 NOZZLE (4381830) 9012 RON
407 1 1 HOSE SA, REINFORCED (5160240) 35435 RON
408 1 1 3083400 - Indisponibil
408 1 1 O-RING (5140193-42) 668 RON
409 1 1 O RING (1004709-73) 668 RON
