Top » Piese de schimb » PIESE DEWALT » DXPW001E Type 1

MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001E Type 1
[DXPW001E Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001E Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001E Type 1
Click pentru a mari

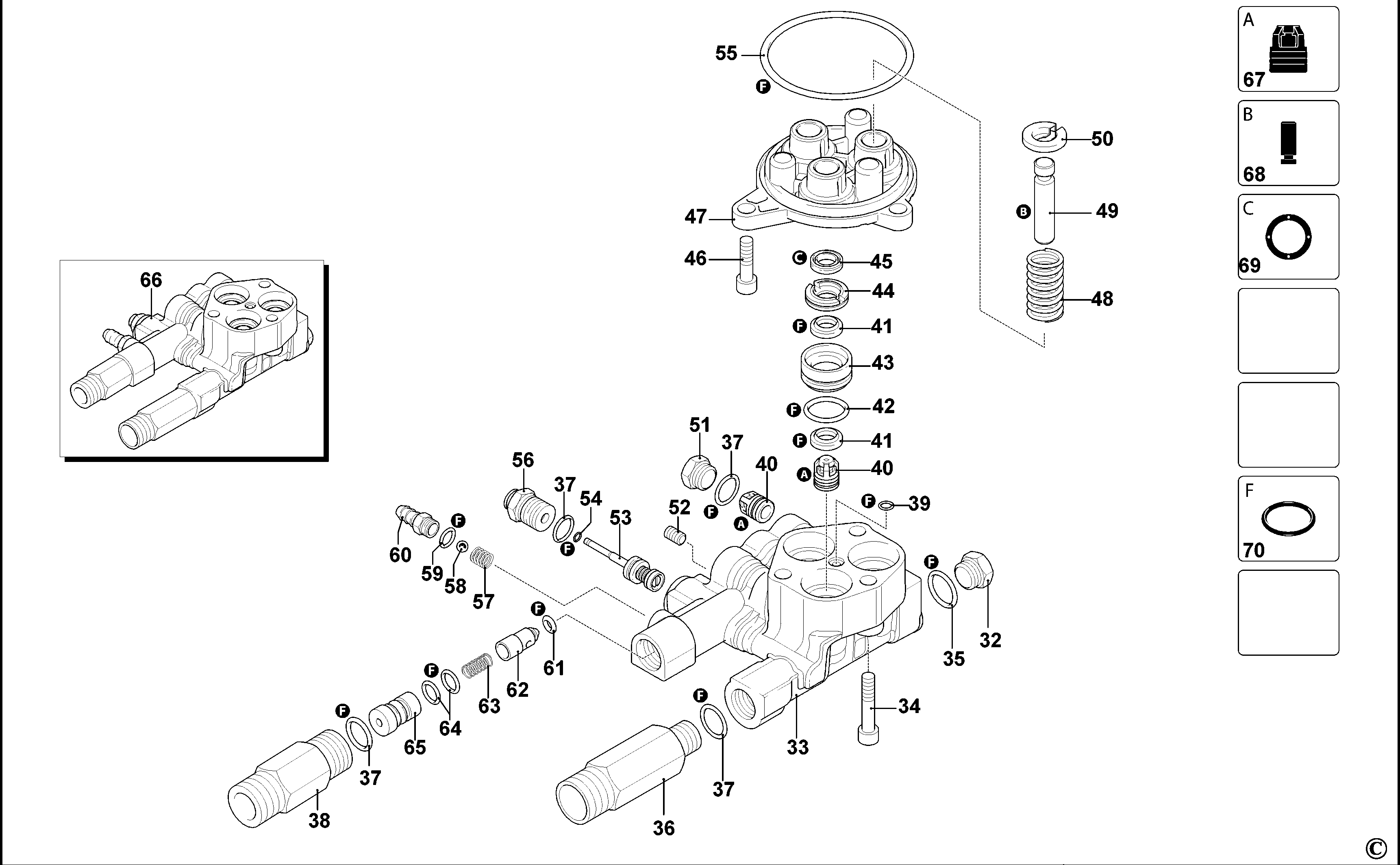

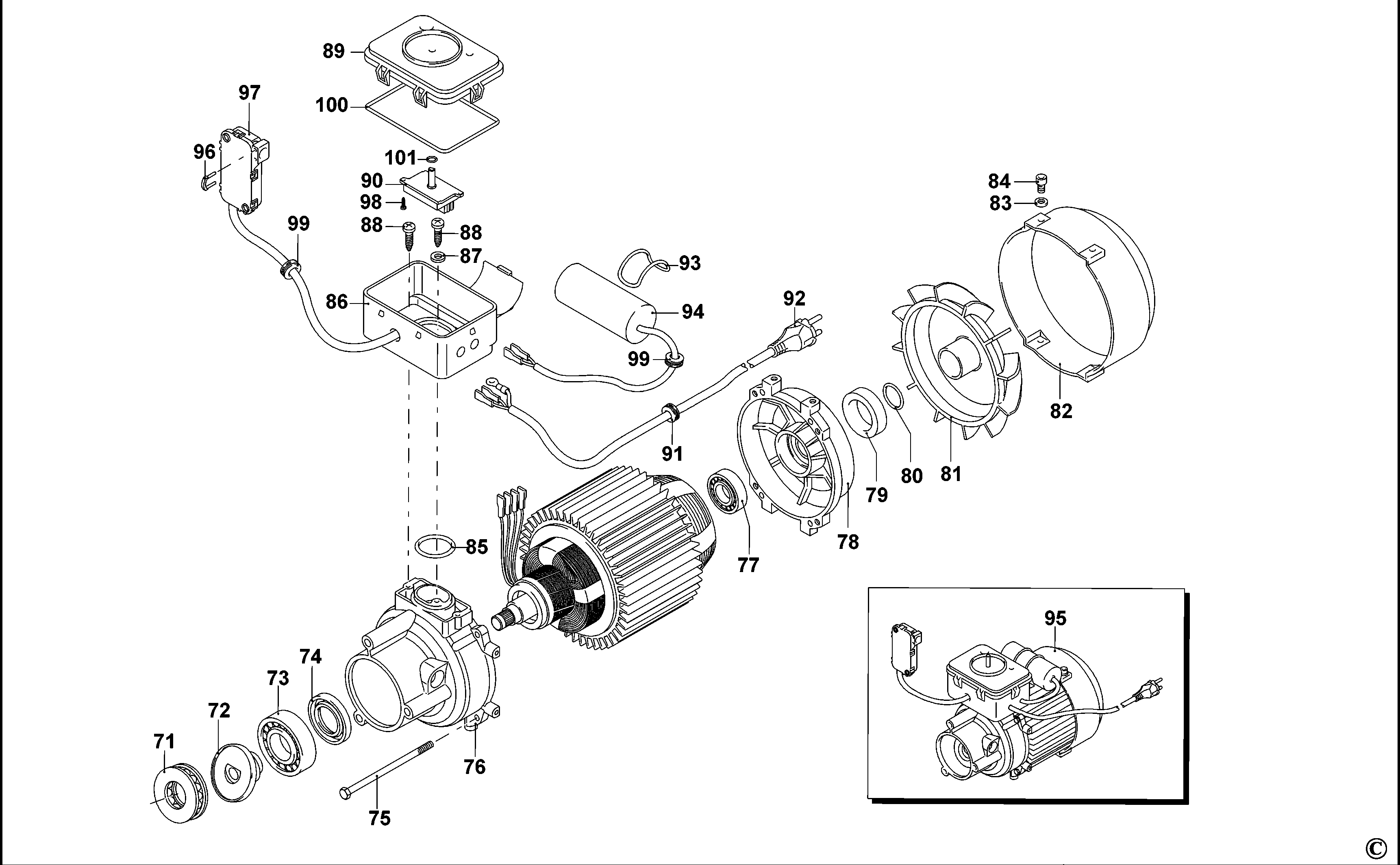

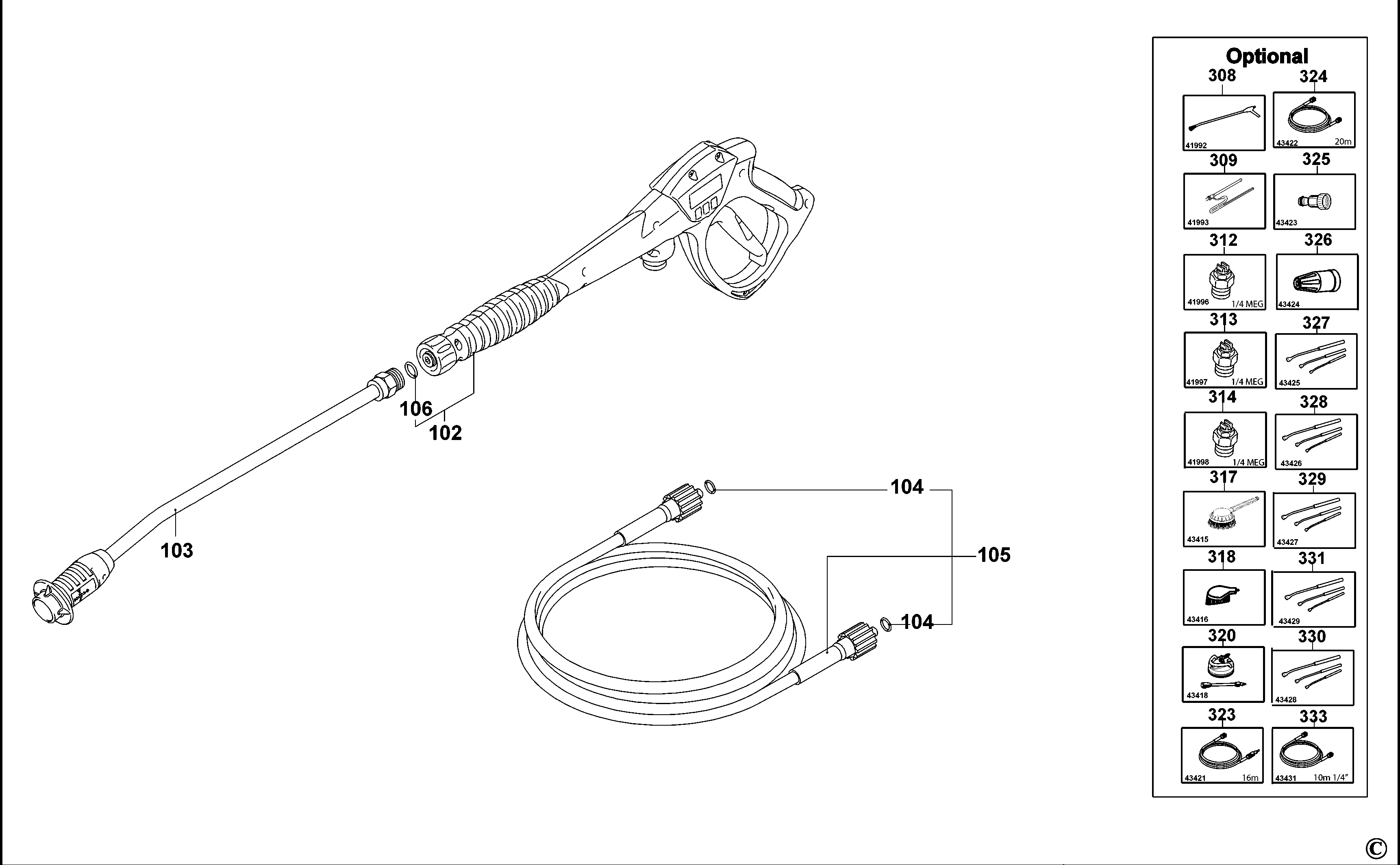

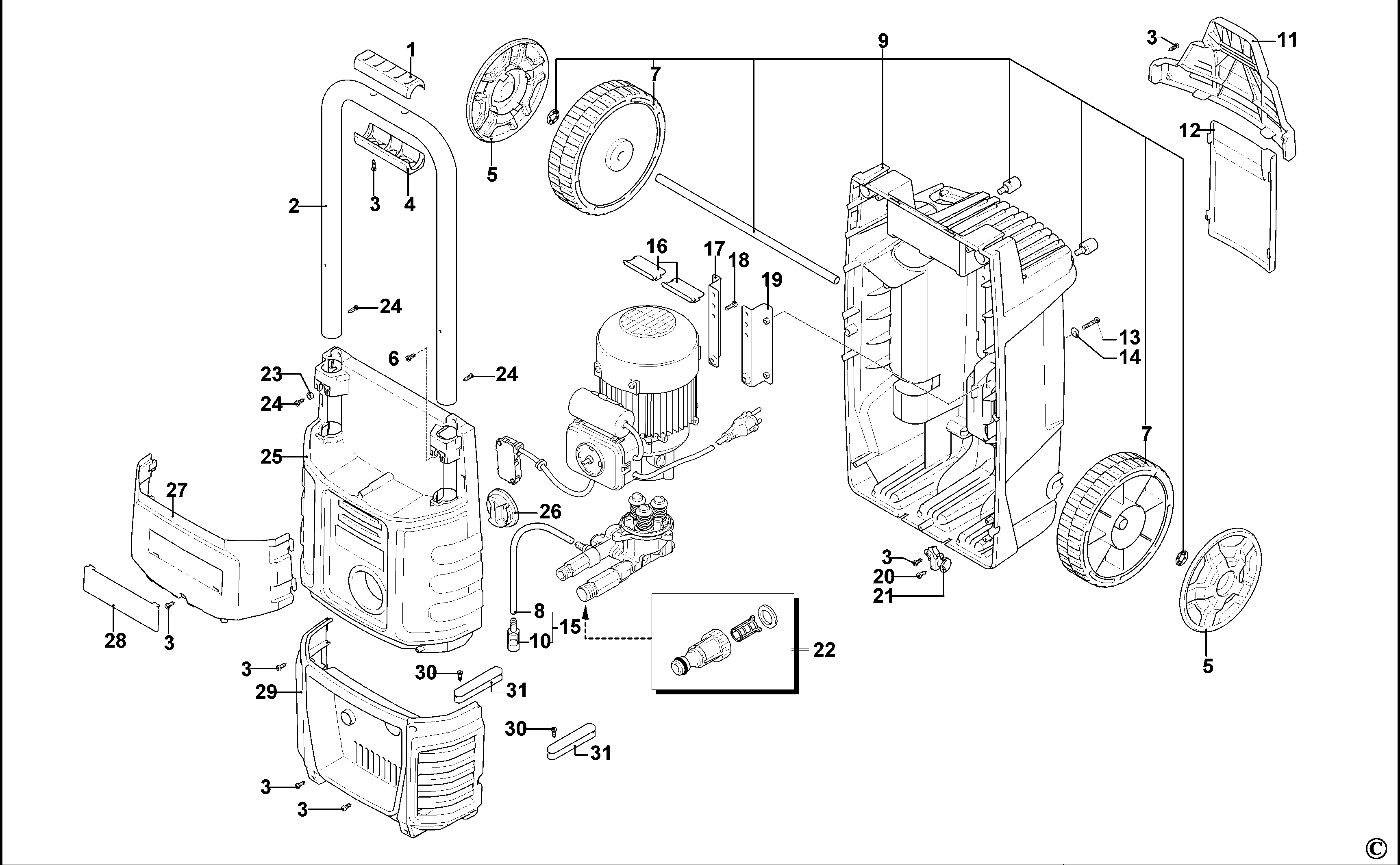

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GUARD (1004713-64) 2796 RON
2 1 1 HANDLE SA (1004713-59) 23244 RON
3 1 1 SCREW (1004712-13) 668 RON
4 1 1 GUARD (1004713-65) 2796 RON
5 1 1 GUARD (1004713-66) 9012 RON
6 1 2 SCREW (1004727-70) 668 RON
7 1 1 WHEEL (1004714-02) 15469 RON
8 1 1 HOSE (1004710-66) 3268 RON
9 1 1 BASE SA (1004727-78) 52855 RON
10 1 1 FILTER (1004710-89) 9012 RON
11 1 1 GUARD (1004713-63) 12361 RON
12 1 1 DOOR (1004714-03) 10241 RON
13 1 1 SCREW (1004712-42) 668 RON
14 1 1 WASHER (1004711-58) 668 RON
15 1 1 HOSE SA (1004710-69) 9012 RON
16 1 1 GUARD (1004713-84) 2796 RON
17 1 1 BRACKET (1004713-68) 35435 RON
18 1 1 SCREW (1004712-34) 668 RON
19 1 1 BRACKET (1004713-67) 35435 RON
20 1 1 SCREW (1004712-00) 668 RON
21 1 1 GLAND (1004714-09) 3268 RON
22 1 1 COUPLING SA (1004712-93) 3954 RON
22 1 1 1004700-77 - Indisponibil
23 1 1 SPACER (1004713-83) 2182 RON
24 1 1 SCREW (1004712-12) 668 RON
25 1 1 CASING (1004713-60) 18568 RON
26 1 1 KNOB (1004713-73) 3954 RON
27 1 1 GUARD (1004713-62) 13697 RON
28 1 1 GUARD (1004714-01) 9012 RON
29 1 1 GUARD (1004713-61) 20216 RON
30 1 1 SCREW (1004714-17) 668 RON
31 1 1 FOOT (1004714-16) 4827 RON
32 1 1 PLUG (1004710-14) 2182 RON
33 1 1 HEAD (1004712-79) 38463 RON
34 1 3 SCREW (1004709-97) 944 RON
35 1 1 O RING (1004710-05) 668 RON
36 1 1 PIPE (1004713-58) 13697 RON
37 1 6 O RING (1004709-90) 668 RON
38 1 1 PIPE (1004713-57) 13697 RON
39 1 1 O RING (1004713-42) 668 RON
40 1 6 1004712-74 - Indisponibil
40 1 1 VALVE (2849051) 10241 RON
41 1 6 SEAL (1004712-18) 944 RON
42 1 3 O RING (1004709-93) 668 RON
43 1 3 BUSHING (1004712-69) 5370 RON
44 1 3 BUSHING (1004712-68) 1630 RON
45 1 3 SEAL (1004711-74) 114 RON
46 1 3 SCREW (1004712-82) 944 RON
47 1 1 GUIDE (1004713-41) 12361 RON
48 1 3 SPRING (1004712-87) 1318 RON
49 1 3 PISTON (1004712-67) 5370 RON
50 1 3 LOCK (1004712-64) 668 RON
51 1 3 PLUG (1004712-73) 3268 RON
52 1 1 SCREW (1004712-70) 1630 RON
53 1 1 SPRING SA (1004712-89) 15469 RON
54 1 1 O RING (1004710-43) 668 RON
55 1 1 O RING (1004712-92) 668 RON
56 1 1 FITTING (1004712-77) 9012 RON
57 1 1 SPRING (1004711-70) 668 RON
58 1 1 BALL (1004710-50) 668 RON
59 1 1 O RING (1004709-78) 668 RON
60 1 1 COUPLING (1004711-96) 1630 RON
61 1 1 O RING (1004711-50) 668 RON
62 1 1 SHUTTER (1004712-85) 2556 RON
63 1 1 SPRING (1004713-55) 668 RON
64 1 1 O RING (1004710-00) 668 RON
65 1 1 VALVE (3700200) 9012 RON
66 1 1 1004713-43 - Indisponibil
66 1 1 HEAD SA (43136) 91363 RON
67 1 1 VALVE KIT (1004708-87) 9012 RON
68 1 1 PISTON KIT (1004708-88) 741 RON
69 1 1 SEALS KIT (1004709-23) 5370 RON
70 1 1 GASKET SET (1004709-24) 9012 RON
71 1 1 BEARING (1004712-78) 741 RON
72 1 1 PLATE (1004712-88) 9012 RON
73 1 1 BEARING (1004711-81) 13697 RON
74 1 1 SEAL (1004711-52) 3954 RON
75 1 1 SCREW (1004712-31) 1772 RON
76 1 1 BODY (1004714-14) 18568 RON
77 1 1 BEARING (1004711-53) 114 RON
78 1 1 COVER (1004711-45) 16689 RON
79 1 1 SEAL (1004711-54) 1318 RON
80 1 1 O RING (1004709-75) 668 RON
81 1 1 FAN (1004711-48) 668 RON
82 1 1 CONVEYOR (1004714-15) 9012 RON
83 1 1 WASHER (1004711-73) 668 RON
84 1 1 SCREW (1004711-51) 668 RON
85 1 1 O RING (1004709-87) 668 RON
86 1 1 BOX (1004712-32) 5370 RON
87 1 1 WASHER (1004710-65) 668 RON
88 1 1 SCREW (1004712-03) 668 RON
89 1 1 COVER (1004714-13) 5370 RON
90 1 1 1004712-80 - Indisponibil
90 1 1 SWITCH (2901920) 23244 RON
91 1 1 GLAND (1004712-04) 2182 RON
92 1 1 CORDSET (1004714-18) 18568 RON
93 1 1 O RING (1004712-35) 668 RON
94 1 1 CAPACITOR (1004711-98) 15469 RON
95 1 1 MOTOR SA (1004755-66) 277356 RON
95 1 1 1004709-50 - Indisponibil
96 1 1 FORK (1004712-09) 1630 RON
97 1 1 TERMINAL BOX (1004729-44) 6688 RON
98 1 2 SCREW (1004712-01) 668 RON
99 1 2 GLAND (1004712-04) 2182 RON
100 1 1 O RING (1004712-17) 1630 RON
101 1 1 O RING (1004709-71) 668 RON
102 1 1 HANDLE SA (1004709-16) 28836 RON
103 1 1 EXTENSION (1004709-41) 24962 RON
104 1 1 O RING (1004712-02) 1318 RON
105 1 1 HOSE (1004714-04) 51127 RON
106 1 1 O RING (1004709-73) 668 RON
308 1 1 EXTENSION (1004719-46) 48037 RON
309 1 1 EXTENSION (1004719-47) 462423 RON
312 1 1 NOZZLE (1004719-50) 18568 RON
313 1 1 NOZZLE (1004719-51) 18568 RON
317 1 1 BRUSH (1004719-55) 63720 RON
318 1 1 BRUSH (1004719-56) 85494 RON
320 1 1 BRUSH (1004719-58) 73079 RON
323 1 1 HOSE (1004719-61) 36994 RON
324 1 1 1004719-62 - Indisponibil
325 1 1 COUPLING (1004719-63) 36994 RON
326 1 1 COUPLING (1004719-64) 78485 RON
327 1 1 EXTENSION (1004719-65) 20216 RON
328 1 1 EXTENSION (1004719-66) 24962 RON
329 1 1 EXTENSION (1004719-67) 39318 RON
330 1 1 EXTENSION (1004719-68) 32327 RON
331 1 1 EXTENSION (1004719-69) 36994 RON
333 1 1 HOSE (1004719-71) 214180 RON
