Top » Piese de schimb » PIESE DEWALT » DXPW001DTS-E Type 1

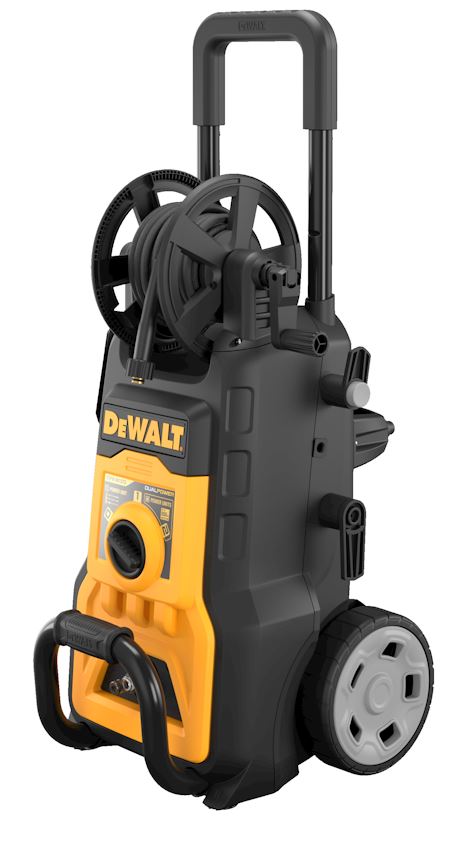

MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001DTS-E Type 1
[DXPW001DTS-E Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001DTS-E Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001DTS-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001DTS-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001DTS-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001DTS-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001DTS-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001DTS-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001DTS-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001DTS-E Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara

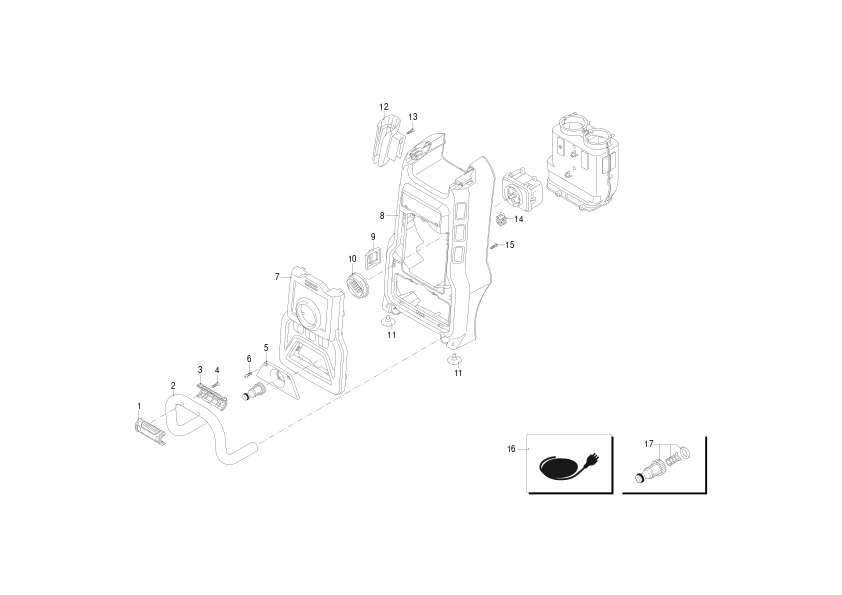

1 1 1 GUARD (4581380) 3268 RON
1 1 1 4582160 - Indisponibil
2 1 1 PIPE (4581330) 15469 RON
3 1 1 GUARD (4581390) 3268 RON
3 1 1 4582160 - Indisponibil
4 1 2 SCREW (50943) 1630 RON
5 1 1 COVER (4581370) 3268 RON
6 1 2 SCREW (50943) 1630 RON
7 1 1 COVER (4581360) 10241 RON
8 1 1 CASING (4581350) 13697 RON
9 1 1 LOCK (4581440) 1933 RON
10 1 1 KNOB (4581340) 1933 RON
11 1 2 FOOT (4381640) 1318 RON
12 1 1 CARRIER (4580590) 5370 RON
13 1 1 SCREW (5480500) 668 RON
14 1 1 X94ND (1004455-07) 114 RON
15 1 3 SCREW (50943) 1630 RON
16 1 1 CARRIER (4580590) 5370 RON
17 1 1 COUPLING SA (1004712-93) 3954 RON

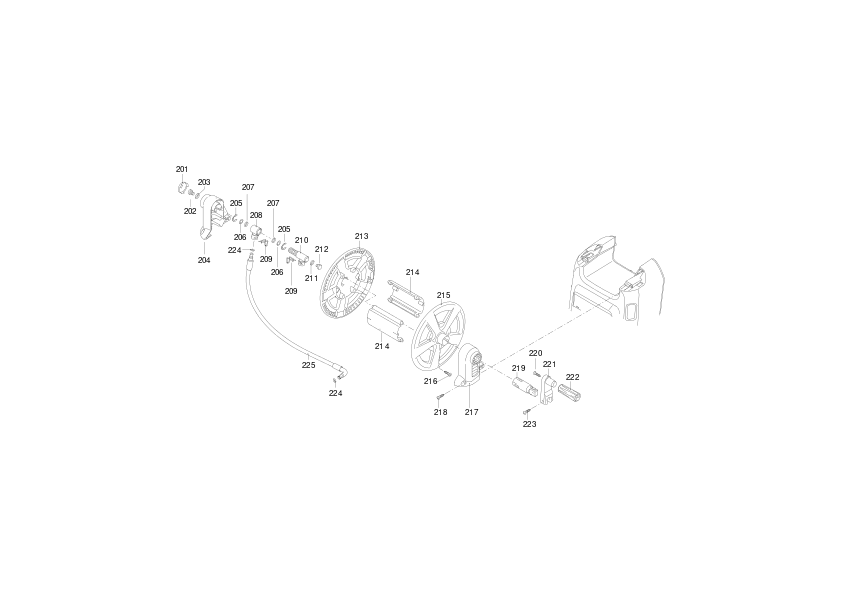

201 1 1 CABLE & CAPACITOR (4820410) 2556 RON
202 1 1 SCREW (4581950) 668 RON
203 1 1 WASHER (4581960) 668 RON
204 1 1 COVER (4581420) 3954 RON
205 1 2 RING (4101710) 1772 RON
206 1 2 RING (4200060) 944 RON
207 1 2 O RING (1004709-69) 668 RON
208 1 1 COUPLING (4101760) 15469 RON
209 1 1 FORK (5140205-34) 668 RON
210 1 1 FITTING (4581020) 18568 RON
211 1 1 O RING (4581970) 668 RON
212 1 1 SCREW (4580450) 668 RON
213 1 1 PLATE (4101770) 741 RON
214 1 2 SUPPORT (4101730) 3268 RON
215 1 1 PLATE (4101680) 10241 RON
216 1 4 SCREW (50943) 1630 RON
217 1 1 COVER (4581410) 3954 RON
218 1 2 SCREW (50943) 1630 RON
219 1 1 PIN (4101750) 2182 RON
220 1 1 SCREW (1004714-17) 668 RON
221 1 1 LEVER (4101660) 3268 RON
222 1 1 HANDLE (4101678) 2796 RON
223 1 1 SCREW (4581980) 668 RON
224 1 2 O RING (1004744-79) 668 RON
225 1 1 HOSE (4581060) 18568 RON

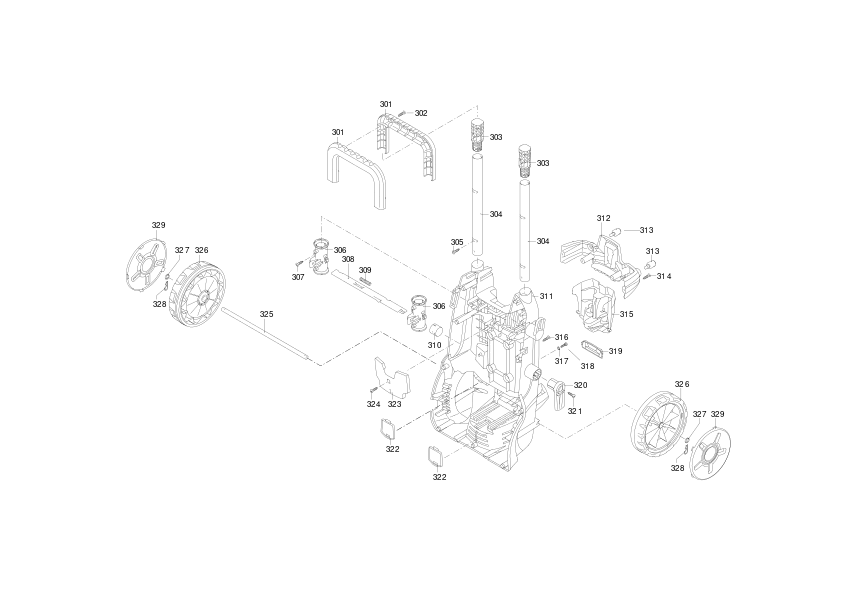

301 1 1 HANDLE SA (5160470) 27287 RON
302 1 4 SCREW (50943) 1630 RON
303 1 2 ADAPTOR (4581450) 3954 RON
304 1 2 PIPE (4581460) 12361 RON
305 1 2 SCREW (3081390) 944 RON
306 1 2 GUIDE (4821080) 3954 RON
307 1 4 SCREW (50493) 3954 RON
308 1 1 HOOK (4821110) 944 RON
309 1 1 SPRING (4821020) 82 RON
310 1 1 LEVER (4220277) 1933 RON
311 1 1 HOUSING (4580560) 20216 RON
312 1 1 HOLDER (4580620) 741 RON
313 1 2 FOOT (1004712-16) 3268 RON
314 1 3 SCREW (50943) 1630 RON
315 1 1 HOLDER (4580763) 5370 RON
316 1 10 SCREW (50943) 1630 RON
317 1 4 WASHER (4581960) 668 RON
318 1 4 SCREW (50943) 1630 RON
319 1 1 PLUG (4580790) 1318 RON
320 1 1 CARRIER (4220288) 2796 RON
321 1 1 SCREW (1004714-17) 668 RON
322 1 1 COVER (4580570) 114 RON
323 1 1 COVER (4580780) 1318 RON
324 1 1 SCREW (50943) 1630 RON
325 1 1 AXLE (4580880) 12361 RON
326 1 2 WHEEL (4381100) 18568 RON
327 1 2 WASHER (4980170) 668 RON
328 1 2 PIN (4980160) 944 RON
329 1 2 COVER (4581400) 3954 RON

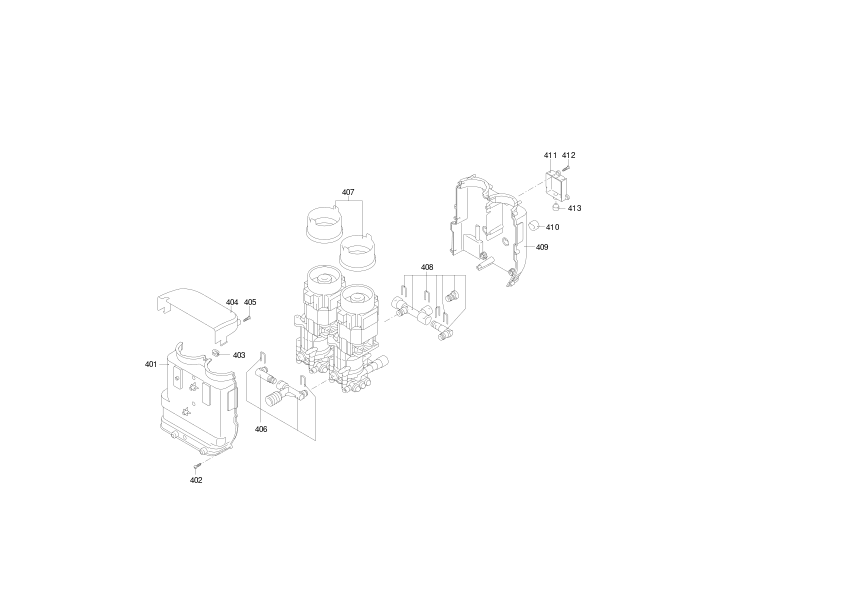

401 1 1 COVER (4581120) 9012 RON
402 1 9 SCREW (5480500) 668 RON
403 1 1 GLAND (4580660) 1630 RON
404 1 1 GUARD (4580840) 3954 RON
405 1 2 SCREW (5480500) 668 RON
406 1 1 KIT (4580900) 9012 RON
407 1 2 GUARD (4380180) 2182 RON
408 1 1 KIT (4580920) 15469 RON
409 1 1 COVER (4581110) 9012 RON
410 1 4 FOOT (4580870) 3954 RON
411 1 1 COVER (4581710) 1933 RON
412 1 2 SCREW (50943) 1630 RON
413 1 1 GLAND (5340420) 944 RON

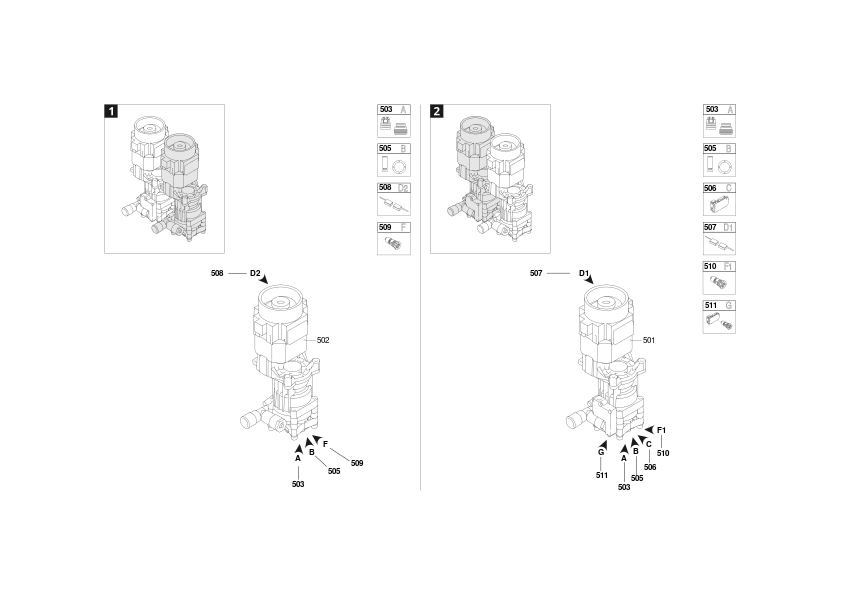

501 1 1 PUMP SA (4581830) 99395 RON
502 1 1 PUMP SA (4581820) 91363 RON
503 1 2 KIT SA (4582030) 10241 RON
505 1 2 PISTONS & SEALS KIT (1004512-11) 12861 RON
506 1 1 KIT SA (4582040) 12361 RON
507 1 1 BRUSH PAIR (3082600) 741 RON
508 1 1 BRUSH PAIR (3082600) 741 RON
509 1 1 KIT SA (4582060) 3954 RON
510 1 1 KIT SA (4582050) 13697 RON
511 1 1 KIT SA (4582070) 18568 RON
601 1 1 COVER (4380840) 3268 RON
602 1 1 O RING (1004712-17) 1630 RON
603 1 1 SWITCH (4580050) 15469 RON
604 1 1 GLAND (4580660) 1630 RON
605 1 1 BOX (4580680) 3268 RON
606 1 3 SCREW (50943) 1630 RON
607 1 1 GLAND (1004712-04) 2182 RON

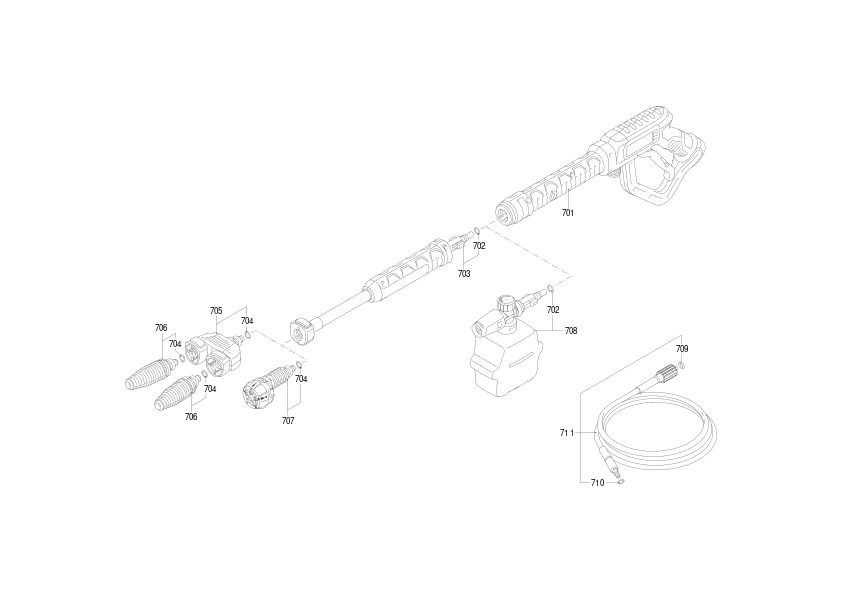

701 1 1 SPRAY SA (4581750) 28836 RON
702 1 2 O-RING (5140193-41) 668 RON
703 1 1 EXTENSION (4581780) 13697 RON
704 1 4 O-RING (5140206-02) 668 RON
705 1 1 HOLDER (4581800) 13697 RON
706 1 2 NOZZLE (4580990) 10241 RON
707 1 1 HEAD (4581790) 23244 RON
708 1 1 4580982 - Indisponibil
708 1 1 TANK (4580981) 18568 RON
709 1 1 O RING (1004712-02) 1318 RON
710 1 1 O RING (3083390) 668 RON
711 1 1 HOSE (4582080) 24962 RON
