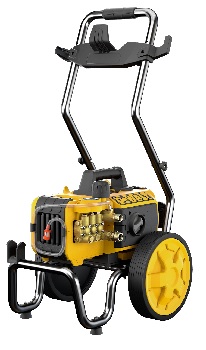

MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001CE Type 1
[DXPW001CE Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001CE Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001CE Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001CE Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001CE Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DXPW001CE Type 1
Click pentru a mari

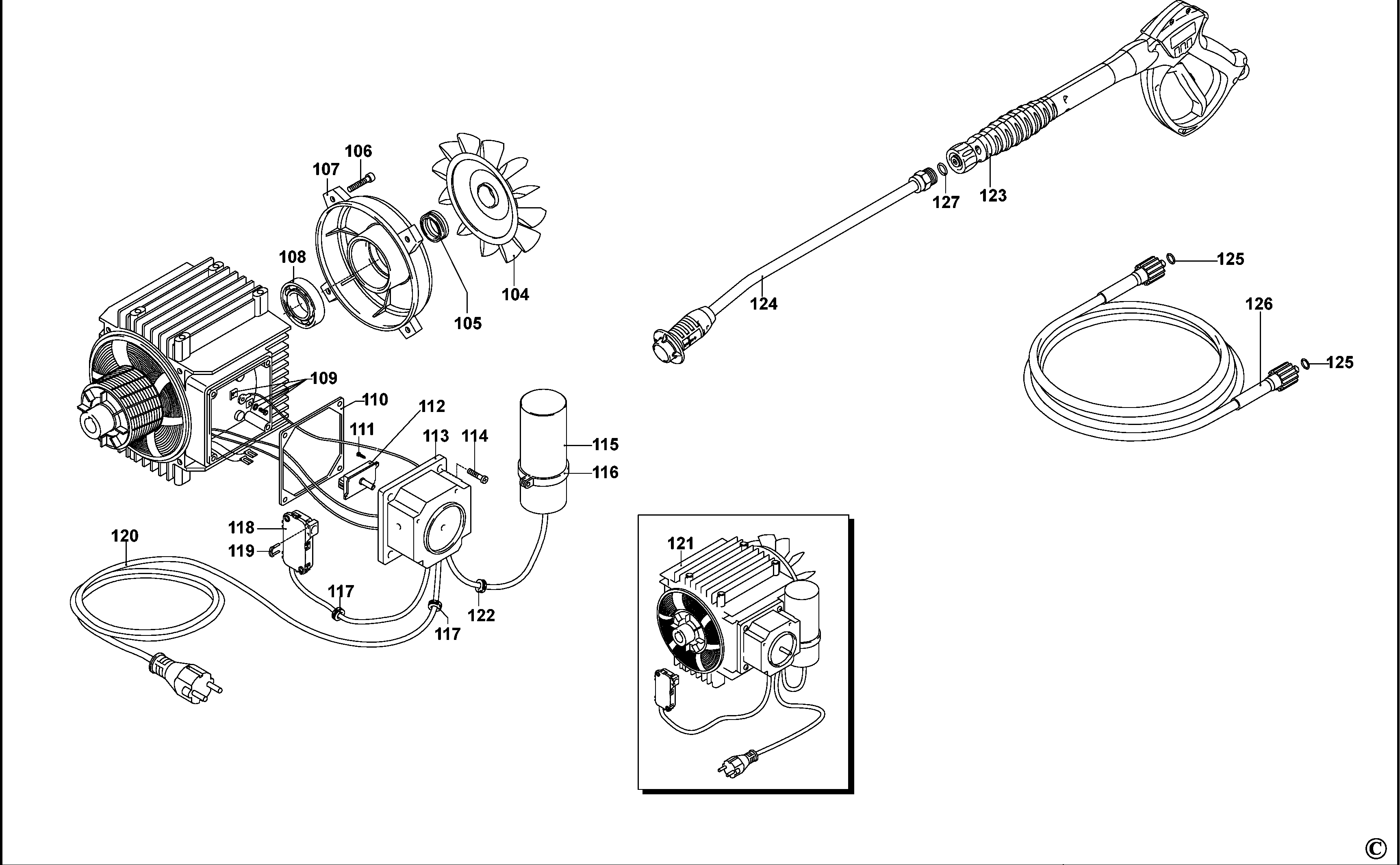

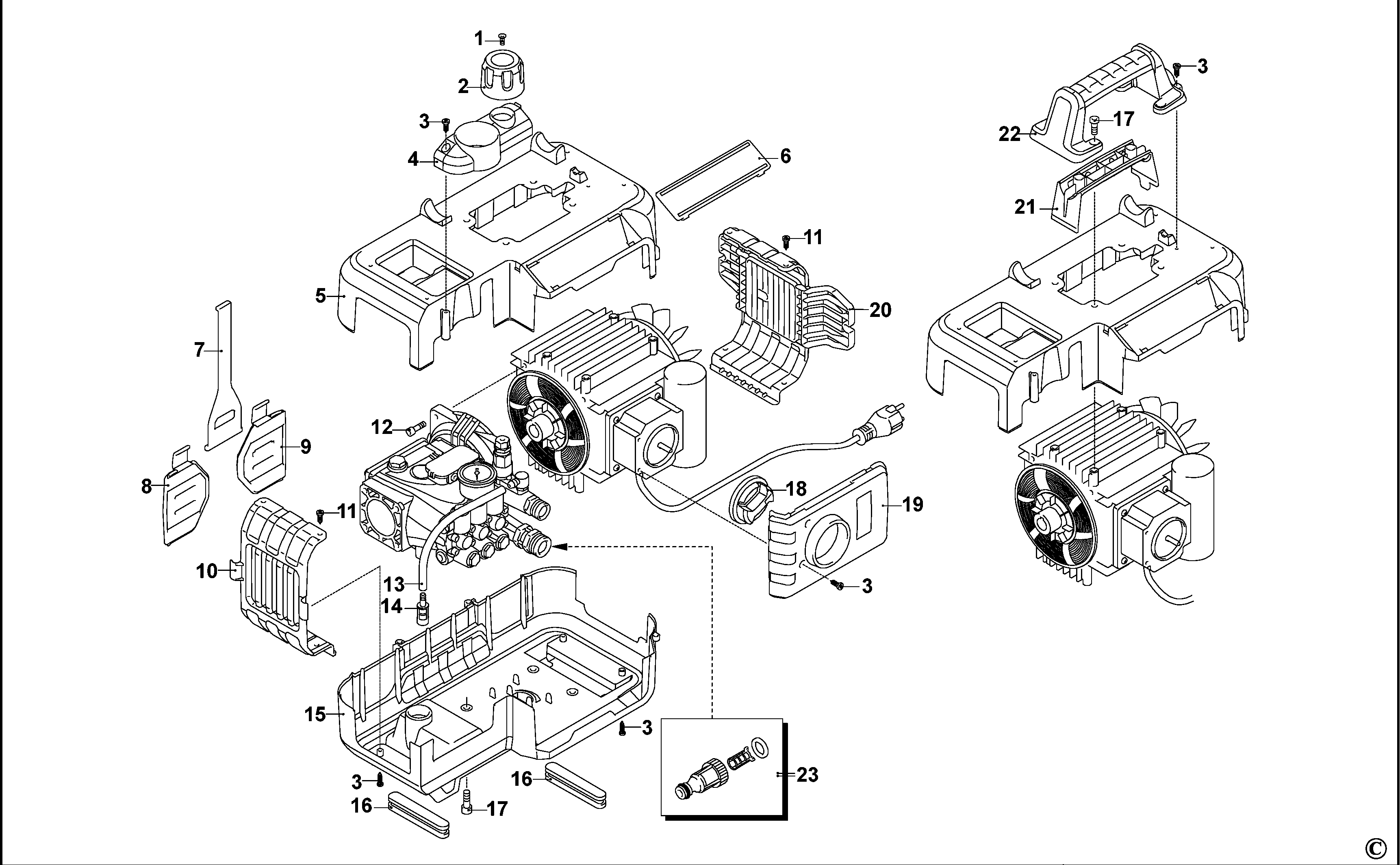

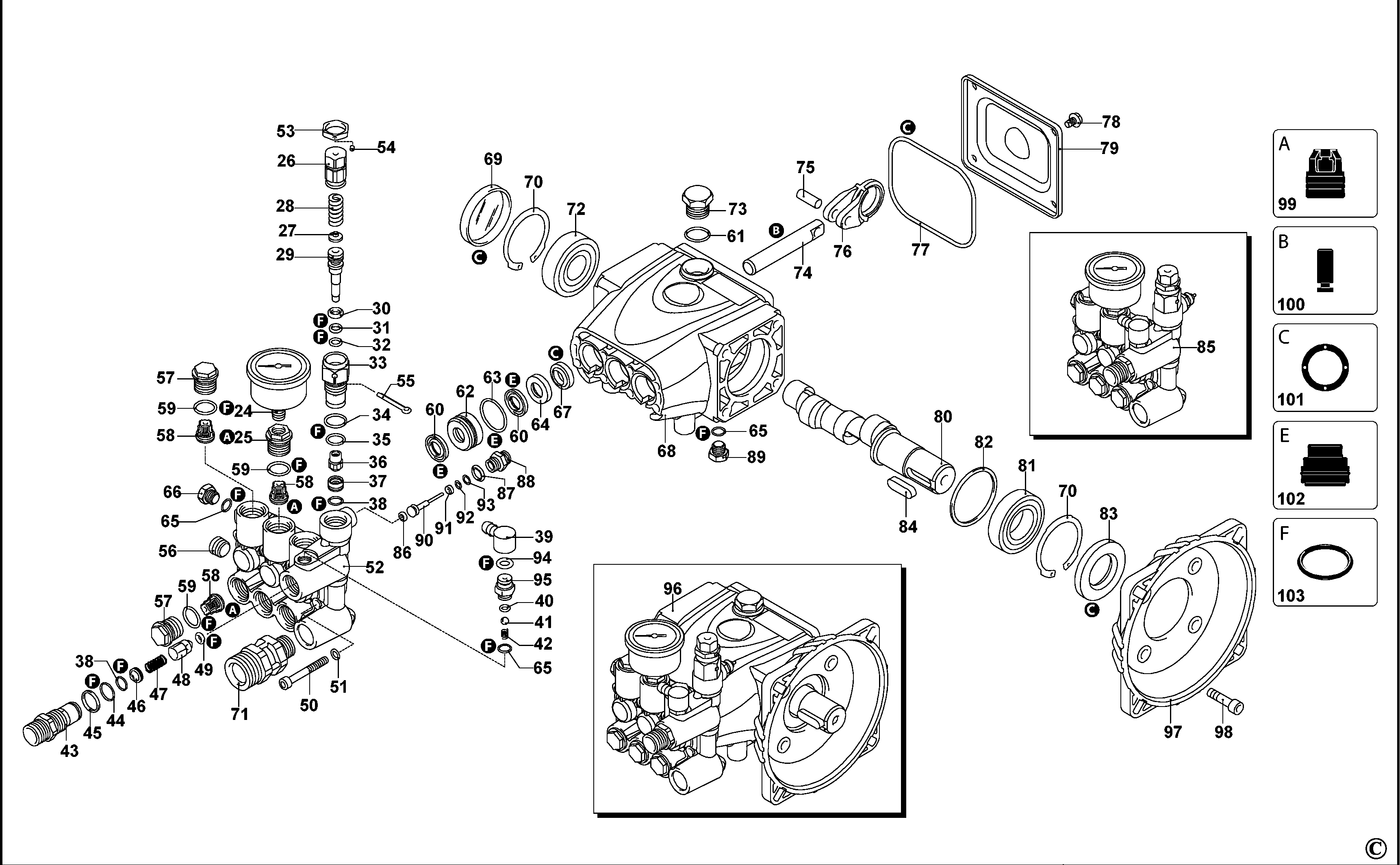

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW (1004743-72) 668 RON
2 1 1 KNOB (1004743-85) 4355 RON
3 1 11 SCREW (1004712-13) 668 RON
4 1 1 GUARD (1004743-86) 6688 RON
5 1 1 COVER-TOP (1004743-75) 18568 RON
6 1 1 GUARD (1004714-01) 9012 RON
7 1 1 CLAMP (1004743-84) 6688 RON
8 1 1 SUPPORT (1004743-77) 4827 RON
9 1 1 SUPPORT (1004743-83) 4827 RON
10 1 1 GUARD (1004743-81) 9012 RON
11 1 4 SCREW (1004714-17) 668 RON
12 1 4 SCREW (1004710-60) 668 RON
13 1 1 HOSE (1004710-70) 2556 RON
14 1 1 FILTER (1004710-89) 9012 RON
15 1 1 BASE SA (1004743-76) 18568 RON
16 1 2 FOOT (1004714-16) 4827 RON
17 1 8 SCREW (1004710-12) 668 RON
18 1 1 KNOB (1004713-73) 3954 RON
19 1 1 GUARD (1004743-78) 741 RON
20 1 1 GUARD (1004743-82) 9012 RON
21 1 1 GUARD (1004743-80) 6688 RON
22 1 1 HANDLE (1004743-79) 741 RON
23 1 1 COUPLING SA (1004712-93) 3954 RON
23 1 1 1004700-77 - Indisponibil
24 1 1 PRESSURE GAUGE (1004730-85) 16689 RON
25 1 1 PLUG (1004744-22) 24962 RON
26 1 1 SCREW (1004743-73) 3954 RON
27 1 1 PLATE (1004711-87) 668 RON
28 1 1 SPRING (1004744-07) 944 RON
29 1 1 PISTON (1004743-98) 5370 RON
30 1 1 O RING (1004712-21) 944 RON
31 1 1 O RING (1004709-88) 668 RON
32 1 1 RING (1004712-52) 1318 RON
33 1 1 GUIDE (1004743-74) 15469 RON
34 1 1 O RING (1004709-90) 668 RON
35 1 1 O RING (1004710-05) 668 RON
36 1 1 PISTON (1004743-70) 4355 RON
37 1 1 SEAT (1004744-35) 1933 RON
38 1 2 O RING (1004711-57) 668 RON
39 1 1 CONNECTOR (1004712-33) 114 RON
40 1 1 O RING (1004709-78) 668 RON
41 1 1 BALL (1004710-50) 668 RON
42 1 1 SPRING (1004711-70) 668 RON
43 1 1 COUPLING (1004743-66) 15469 RON
44 1 1 O RING (1004712-56) 668 RON
45 1 1 O RING (1004709-75) 668 RON
46 1 1 INSERT (1004712-49) 2556 RON
47 1 1 SPRING (1004712-51) 668 RON
48 1 1 SHUTTER (1004744-23) 9012 RON
49 1 1 O RING (1004712-14) 668 RON
50 1 8 SCREW (1004711-14) 668 RON
51 1 8 WASHER (1004743-96) 668 RON
52 1 1 HEAD (1004743-88) 85494 RON
53 1 1 NUT (1004744-30) 3954 RON
54 1 1 SCREW (1004743-71) 668 RON
55 1 1 PIN (1004712-46) 668 RON
56 1 2 PLUG (1004744-34) 2556 RON
57 1 6 PLUG (1004712-65) 2796 RON
58 1 6 1004712-74 - Indisponibil
58 1 1 VALVE (2849051) 10241 RON
59 1 6 O RING (2841520) 668 RON
60 1 6 SEAL (1004712-18) 944 RON
61 1 1 O RING (1004709-90) 668 RON
62 1 3 BUSHING (1004712-69) 5370 RON
63 1 3 O RING (1004709-93) 668 RON
64 1 3 BUSH (1004743-67) 668 RON
65 1 3 O RING (1004744-43) 668 RON
66 1 1 PLUG (1004743-68) 4827 RON
67 1 3 SEAL (1004711-74) 114 RON
68 1 1 PUMP SA (1004743-87) 42426 RON
69 1 1 COVER (1004743-97) 3954 RON
70 1 2 RING (1004744-04) 668 RON
71 1 1 COUPLING (1004744-06) 11337 RON
72 1 1 BEARING (1004743-95) 9012 RON
73 1 1 PLUG (1004711-91) 1933 RON
74 1 3 PISTON (1004743-90) 16689 RON
75 1 3 PIN (1004743-91) 82 RON
76 1 3 CON ROD (1004743-92) 11337 RON
77 1 1 O RING (1004743-93) 82 RON
78 1 4 SCREW (1004744-01) 668 RON
79 1 1 COVER (1004743-89) 9012 RON
80 1 1 SHAFT (1004744-03) 42426 RON
81 1 1 BEARING (1004743-94) 9012 RON
82 1 1 RING (1004743-99) 6688 RON
83 1 1 SEAL (1004744-00) 4355 RON
84 1 1 KEY (1004711-28) 668 RON
85 1 1 1004744-09 - Indisponibil
85 1 1 HEAD SA (46065) 161583 RON
86 1 1 O RING (1004710-44) 668 RON
87 1 1 O RING (1004709-81) 668 RON
88 1 1 PLUG (1004744-08) 4827 RON
89 1 1 PLUG (1004743-68) 4827 RON
90 1 1 PIN (1004744-05) 3954 RON
91 1 1 WASHER (1004712-06) 668 RON
92 1 1 O RING (1004710-62) 668 RON
93 1 1 RING (1004713-50) 2796 RON
94 1 1 O RING (1004709-79) 668 RON
95 1 1 CONNECTOR (1004711-02) 9012 RON
96 1 1 PUMP SA (1004743-58) 236862 RON
97 1 1 FLANGE (1004743-69) 20216 RON
98 1 4 SCREW (1004710-12) 668 RON
99 1 1 VALVES AND SEALS KIT (1004744-27) 6688 RON
100 1 1 PISTON KIT (1004744-15) 42426 RON
101 1 1 SEALS KIT (1004743-59) 9012 RON
102 1 1 SEALS KIT (1004744-26) 6688 RON
103 1 1 GASKET SET (1004744-28) 4827 RON
104 1 1 FAN (1004710-55) 4355 RON
105 1 1 SEAL (1004710-85) 2182 RON
106 1 4 SCREW (1004744-37) 668 RON
107 1 1 SHIELD (1004744-19) 13697 RON
108 1 1 BEARING (1004710-84) 4827 RON
109 1 1 CLAMP (1004710-67) 741 RON
110 1 1 GASKET (1004710-86) 1630 RON
111 1 2 SCREW (1004712-01) 668 RON
112 1 1 1004712-80 - Indisponibil
112 1 1 SWITCH (2901920) 23244 RON
113 1 1 BOX (1004713-52) 4355 RON
114 1 4 SCREW (1004710-64) 668 RON
115 1 1 CAPACITOR (1004744-17) 15469 RON
116 1 1 CLAMP (1004711-97) 1318 RON
117 1 2 GLAND (1004712-04) 2182 RON
118 1 1 BOX (1004743-65) 18568 RON
119 1 1 FORK (1004744-38) 668 RON
120 1 1 CORDSET (1004714-18) 18568 RON
121 1 1 MOTOR SA (1004755-35) 277356 RON
121 1 1 1004743-63 - Indisponibil
122 1 1 GLAND (1004711-55) 668 RON
123 1 1 HANDLE SA (1004709-16) 28836 RON
124 1 1 NOZZLE (1004743-60) 23244 RON
125 1 2 O RING (1004712-02) 1318 RON
126 1 1 HOSE (1004714-04) 51127 RON
127 1 1 O RING (1004709-73) 668 RON
