Top » Piese de schimb » PIESE DEWALT » DCMPW1600N Type 1

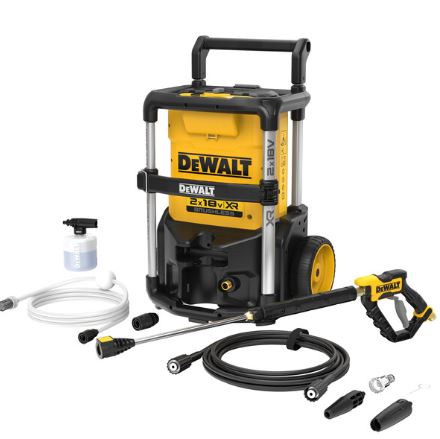

MASINA DE SPALAT CU PRESIUNE DEWALT DCMPW1600N Type 1
[DCMPW1600N Type 1]
MASINA DE SPALAT CU PRESIUNE DEWALT DCMPW1600N Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE DEWALT DCMPW1600N Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DCMPW1600N Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DCMPW1600N Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DCMPW1600N Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DCMPW1600N Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DCMPW1600N Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE DEWALT DCMPW1600N Type 1
Click pentru a mari

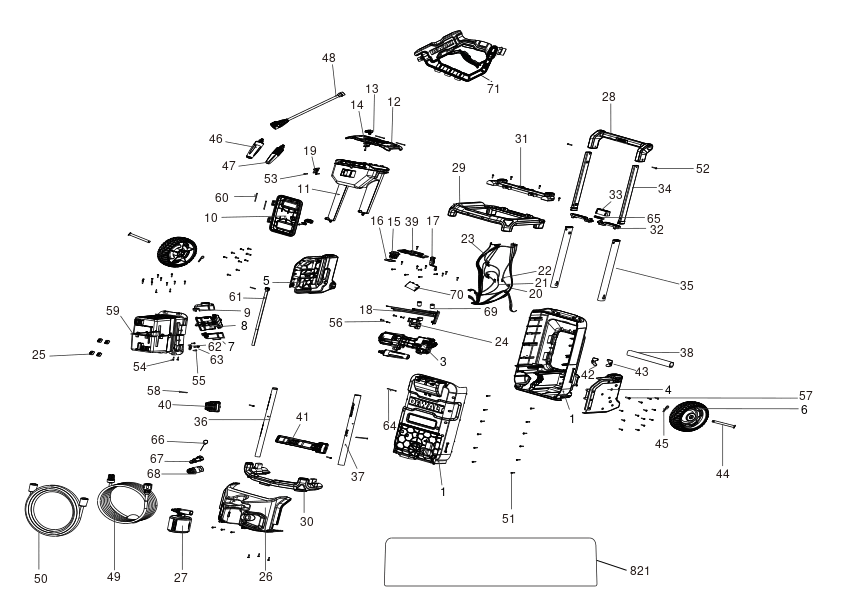

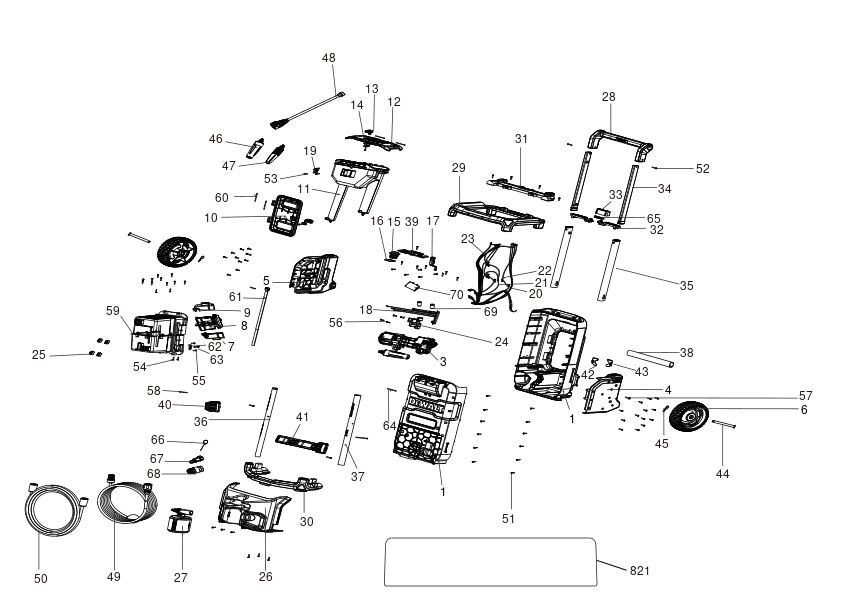

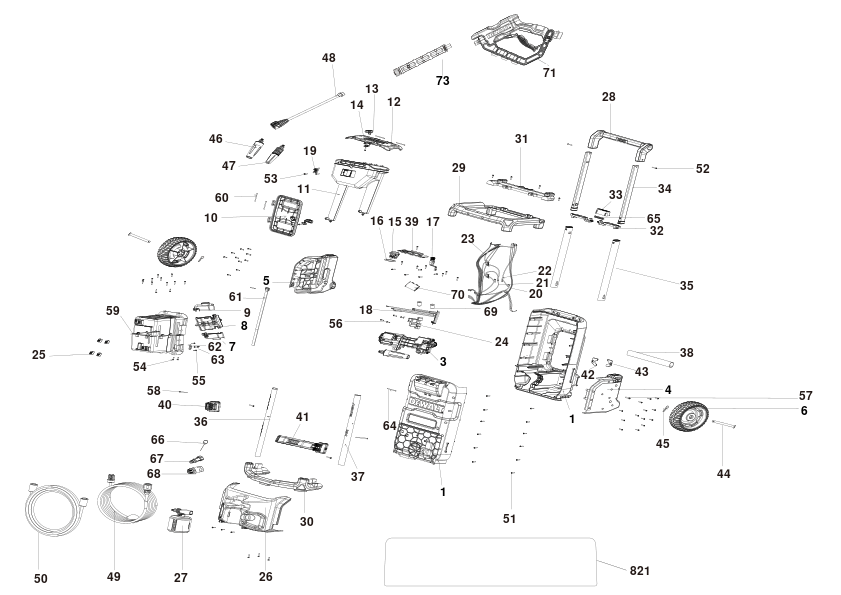

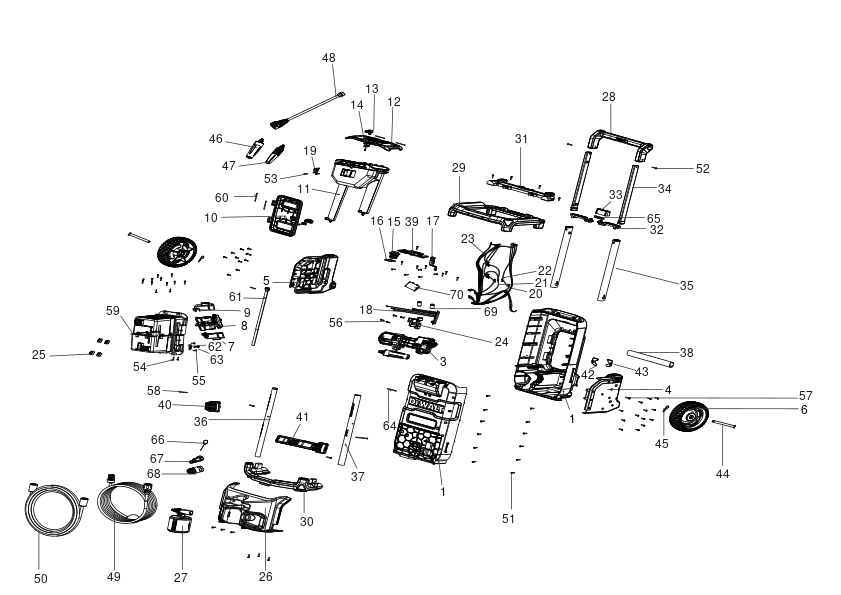

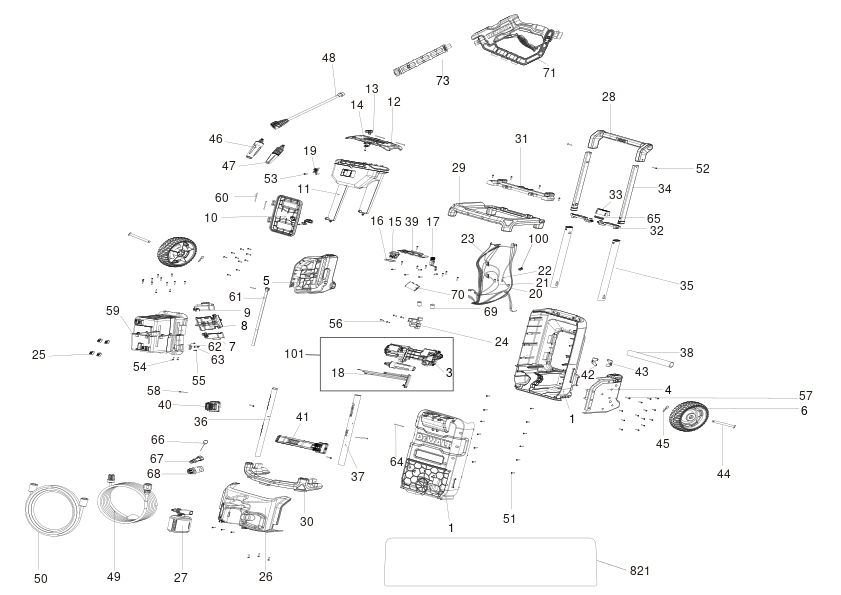

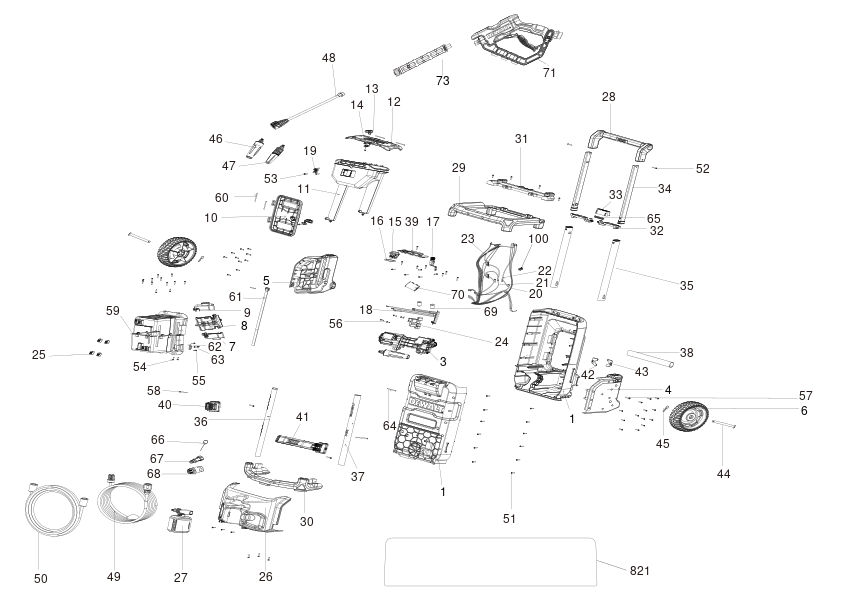

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA110076) 32327 RON
3 1 1 MOTOR & PUMP SA (NA379406) 200340 RON
3 1 1 NB442590 - Indisponibil
4 1 1 PLATE RH (NA181855) 6688 RON
5 1 1 PLATE LH (NA181854) 6688 RON
6 1 2 WHEEL (NA209968) 15469 RON
7 1 1 RAIL (N802707) 82 RON
8 1 1 RAIL (N802708) 2182 RON
9 1 1 RAIL (N802709) 82 RON
10 1 1 DOOR (NA345540) 741 RON
11 1 1 SUPPORT BRACKET (NA298212) 25728 RON
12 1 1 DOOR (NA298213) 6688 RON
13 1 1 KNOB (NA246335) 668 RON
14 1 1 LATCH (NA014926) 588 RON
15 1 1 SWITCH (NA265514) 10241 RON
16 1 1 GASKET (NA230647) 668 RON
17 1 1 SWITCH (NA156844) 13697 RON
18 1 1 CONTROL MODULE SA (NA383590) 52855 RON
18 1 1 NB442590 - Indisponibil
19 1 1 PCB SA (NA131334) 9012 RON
20 1 1 WIRE HARNESS (NA154981) 4355 RON
21 1 1 WIRE HARNESS (NA226735) 3954 RON
22 1 1 WIRE HARNESS (NA226728) 12361 RON
23 1 1 WIRE HARNESS (NA268792) 15469 RON
24 1 1 COVER (NA157013) 1318 RON
25 1 4 CONNECTOR (N840419) 2796 RON
26 1 1 COVER (NA152775) 10241 RON
27 1 1 TANK (NA248184) 6688 RON
28 1 1 HANDLE (NA108408) 9012 RON
29 1 1 FRAME (NA110899) 15469 RON
30 1 1 FRAME (NA110900) 13697 RON
31 1 1 COVER (NA108407) 3268 RON
32 1 1 LOCK (NA108410) 82 RON
33 1 1 BUTTON (NA108402) 1318 RON
34 1 1 TUBE (NA206051) 3954 RON
35 1 1 TUBE (NA206049) 3954 RON
36 1 1 TUBE (NA327376) 4355 RON
37 1 1 TUBE (NA327389) 4355 RON
38 1 1 SUPPORT. REAR (NA187659) 2556 RON
39 1 1 PANEL (NA173556) 82 RON
40 1 1 LATCH (NA263396) 5370 RON
41 1 1 HINGE (NA265241) 741 RON
42 1 1 COLLAR (NA247824) 588 RON
43 1 1 COLLAR (NA247012) 588 RON
44 1 2 PIN (NA264915) 2182 RON
45 1 2 COTTER PIN (90570598) 588 RON
46 1 1 NOZZLE (NA356793) 6688 RON
47 1 1 NOZZLE (N925061) 5370 RON
48 1 1 TUBE (NA211470) 24962 RON
49 1 1 HOSE SA (NA382886) 10241 RON
50 1 1 HOSE SA (NA325129) 18568 RON
51 1 38 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
52 1 2 SCREW (330019-05) 558 RON
53 1 2 SCREW (N427493) 588 RON
54 1 2 SCREW-M2.2 X 12 (N857589) 588 RON
55 1 2 SCREW PLASTIC (330019-41) 588 RON
56 1 4 SCREW (90500654) 558 RON
57 1 2 SCREW (330019-73) 588 RON
58 1 2 SCREW (N563693) 588 RON
59 1 1 BATTERY COVER (NA264887) 9012 RON
60 1 2 PIN (NA374079) 588 RON
61 1 1 STRAP (NA083089) 944 RON
62 1 1 CLAMP (NA175630) 588 RON
63 1 1 PIN (NA187967) 588 RON
64 1 1 PIVOT (N838937) 588 RON
65 1 1 SPRING (NA263239) 588 RON
66 1 1 NEEDLE (NA064137) 588 RON
67 1 1 FILTER (NA007081) 2182 RON
68 1 1 CONNECTOR (NA089813) 3268 RON
69 1 2 PIN (NA232967) 2796 RON
70 1 2 CORE (NA377673) 12361 RON
71 1 1 HANDLE SA (NA407670) 21676 RON
73 1 1 HANDLE TUBE SA (NA006819) 10241 RON
100 1 1 SWITCH (90600458) 2182 RON
101 1 1 NB442590 - Indisponibil
821 1 1 RATING LABEL (NA334854) 1772 RON
