Top » Piese de schimb » PIESE DEWALT » DCM848 Type 1

MASINA DE POLISAT DEWALT DCM848 Type 1
[DCM848 Type 1]
MASINA DE POLISAT DEWALT DCM848 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE POLISAT DEWALT DCM848 Type 1
Click pentru a mari
MASINA DE POLISAT DEWALT DCM848 Type 1
Click pentru a mari

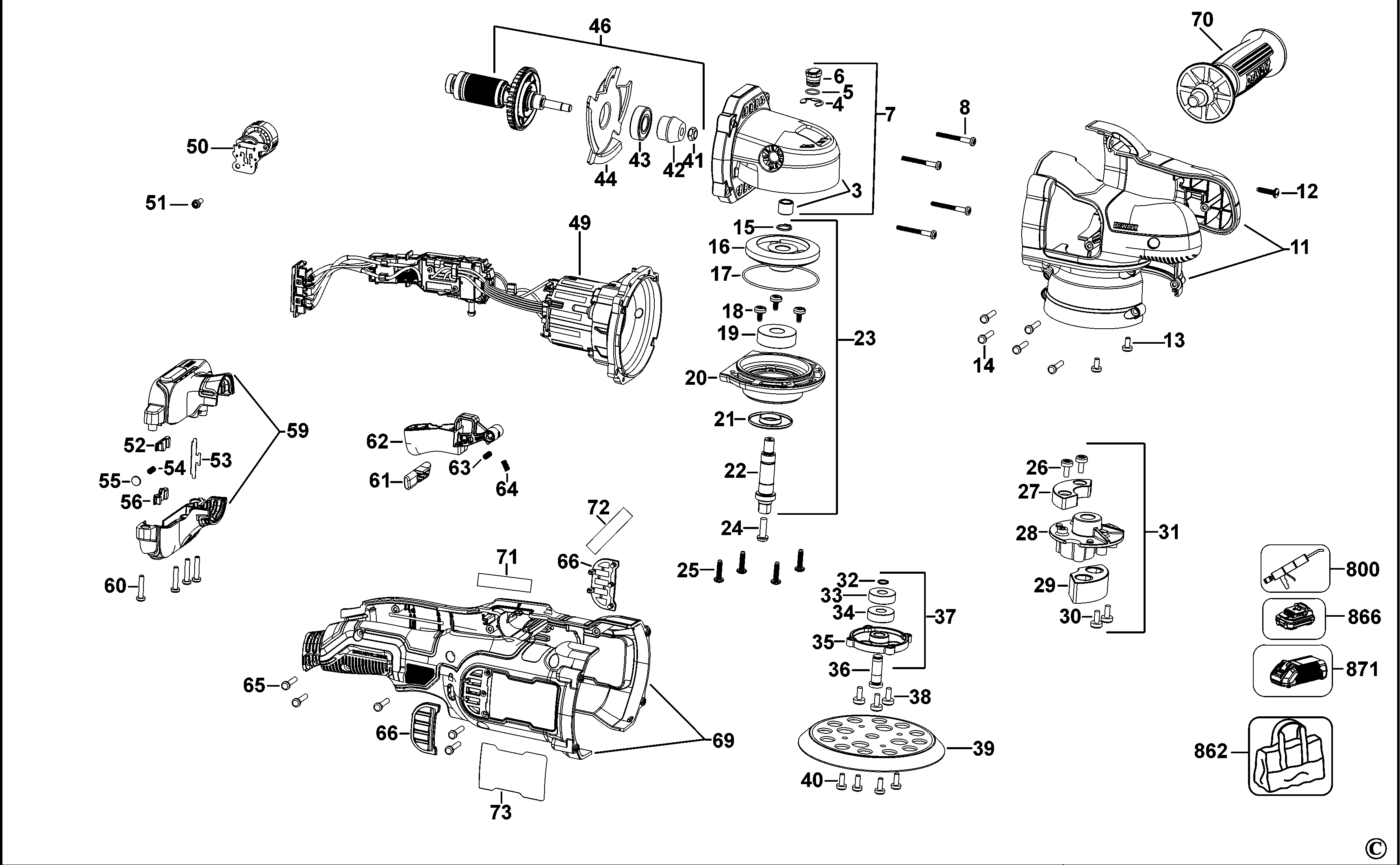

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 GEARCASE SA (N765930) 15469 RON
7 1 1 GEARCASE SA (N758866) 18568 RON
8 1 4 SCREW (N412210) 588 RON
11 1 1 GEARCASE SA (N657547) 5370 RON
12 1 1 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
13 1 2 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
14 1 5 SCREW (90611830) 588 RON
14 1 5 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
15 1 1 RETAINER (N044709) 588 RON
16 1 1 Gear (N625453) 9012 RON
17 1 1 O RING (N039445) 588 RON
18 1 3 SCREW (330045-56) 588 RON
19 1 1 BEARING (605040-23) 2795 RON
20 1 1 GEARCASE COVER (N039386) 741 RON
21 1 1 PLATE (N022610) 668 RON
22 1 1 SPINDLE (N631068) 3954 RON
23 1 1 GEARCASE COVER SA (N758867) 23244 RON
24 1 1 SCREW (631609-01) 558 RON
25 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
26 1 2 SCREW (330045-56) 588 RON
27 1 1 WEIGHT (N664036) 1772 RON
28 1 1 HOUSING (N641676) 5370 RON
29 1 1 WEIGHT (N633117) 2796 RON
30 1 2 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
31 1 1 ECCENTRIC SA (N758868) 11337 RON
32 1 1 CIRCLIP (037653-00) 558 RON
33 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
34 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
35 1 1 PLATE (N614534) 2182 RON
36 1 1 PIN (N616211) 1630 RON
37 1 1 BEARING HOLDER (N758869) 5370 RON
38 1 3 SCREW (330045-56) 588 RON
39 1 1 PAD (N649086) 4827 RON
40 1 4 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
41 1 1 NUT (604484-00) 558 RON
42 1 1 PINION (N625502) 4355 RON
43 1 1 BEARING (N079012) 190 RON
44 1 1 RETAINING PLATE (N022834) 190 RON
46 1 1 ROTOR SA (N758870) 44688 RON
49 1 1 STATOR SA (N758865) 125542 RON
50 1 1 POTENTIOMETER SA (N651860) 5370 RON
51 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
52 1 1 INSERT (N728012) 588 RON
53 1 1 STRIKE PLATE (N467560) 588 RON
54 1 1 SPRING GUIDE (N091479) 558 RON
55 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
56 1 1 INSERT (N728013) 588 RON
59 1 1 FOOT SA (N705398) 3268 RON
60 1 4 SCREW (90611830) 588 RON
60 1 4 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
61 1 1 LOCK KNOB (N631848) 588 RON
62 1 1 TRIGGER LOCK-ON (N606472) 944 RON
63 1 1 SPRING (N165498) 558 RON
64 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
65 1 5 SCREW (90611830) 588 RON
65 1 5 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
66 1 2 COVER (N631849) 1772 RON
69 1 1 HANDLE SA (N705392) 741 RON
70 1 1 SIDE HANDLE (N058043) 2347 RON
71 1 1 BRAND LABEL (N460653) 588 RON
72 1 1 LABEL (N696374) 588 RON
73 1 1 N696348 - Indisponibil
73 1 1 RATING LABEL (NA050132) 668 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
862 1 1 SOFT TOOL BAG (624807-01) 18568 RON
862 1 1 BAG-SOFT BAG (NA705142) 15469 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
