Top » Piese de schimb » PIESE DEWALT » DCM200E2T Type 1

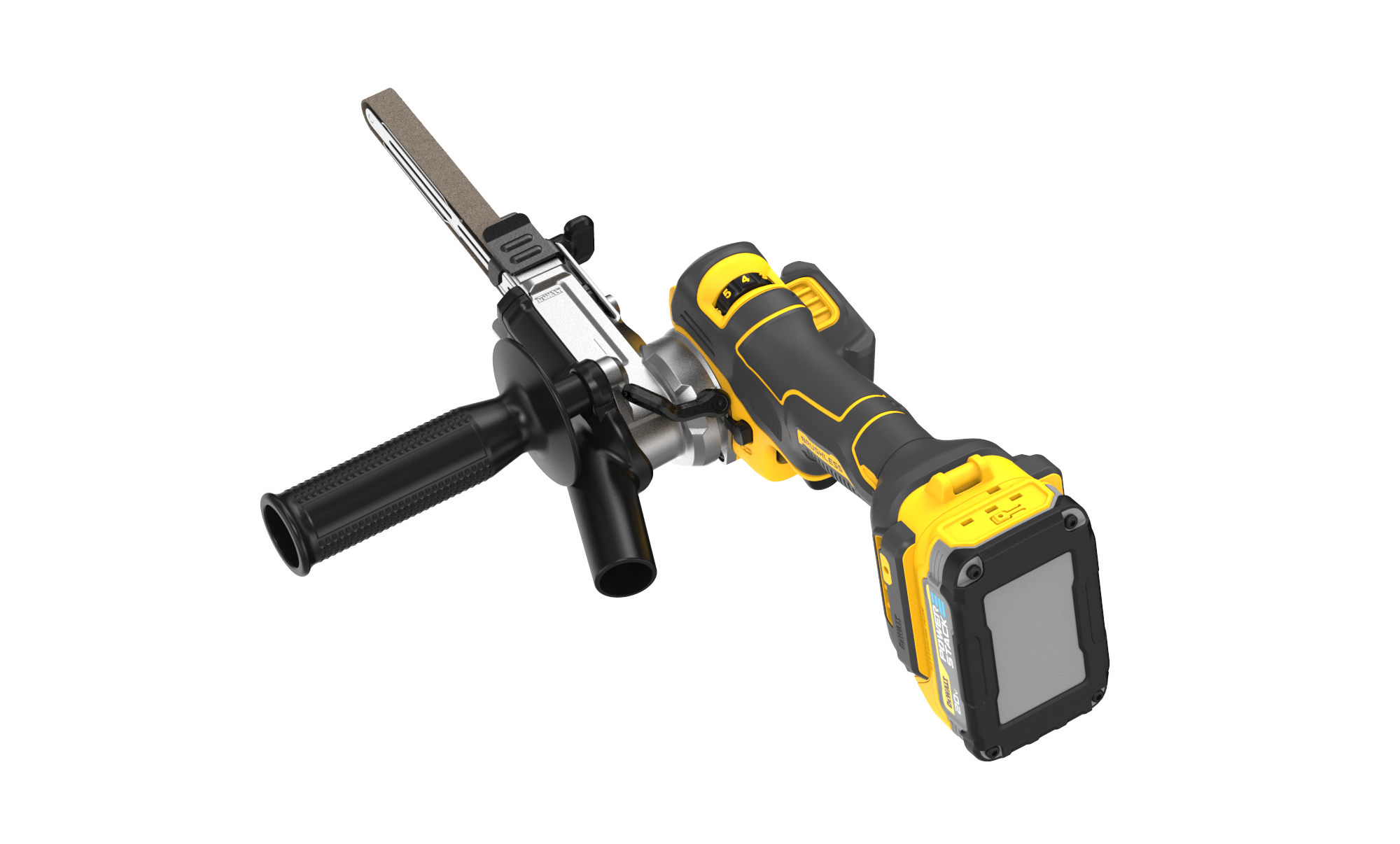

MASINA DE PILIT ELECTRICA DEWALT DCM200E2T Type 1
[DCM200E2T Type 1]
MASINA DE PILIT ELECTRICA DEWALT DCM200E2T Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE PILIT ELECTRICA DEWALT DCM200E2T Type 1
Click pentru a mari
MASINA DE PILIT ELECTRICA DEWALT DCM200E2T Type 1
Click pentru a mari

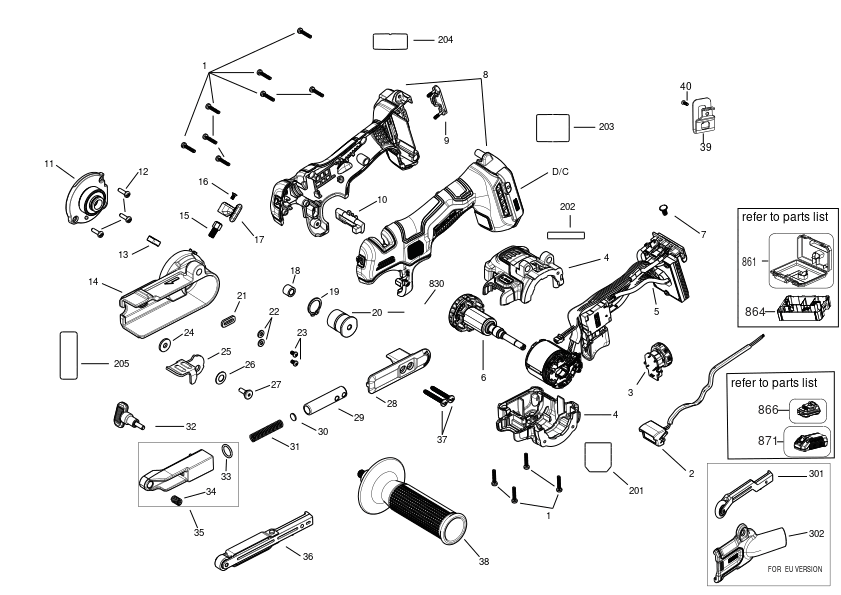

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 12 SCREW PLASTIC THD FORM (330019-00) 558 RON
2 1 1 LED (NA120308) 3954 RON
3 1 1 SPEED REGULATOR (NA153477) 6688 RON
4 1 1 HOUSING MOTOR (NA205214) 3268 RON
5 1 1 MOTOR & SWITCH SA (NA373986) 73079 RON
6 1 1 ROTOR SA (NA417434) 24962 RON
7 1 1 TERMINAL BLOCK (NA105798) 1933 RON
8 1 1 HOUSING SA (NA168576) 6688 RON
9 1 1 COVER (NA283517) 20216 RON
9 1 1 COVER (NA612330) 82 RON
10 1 1 BUTTON LOCK-OFF (NA104040) 2796 RON
11 1 1 BRAKE ADAPTER (NA395380) 16689 RON
12 1 3 SCREW (NA363158) 588 RON
13 1 1 BLOCK (NA103719) 588 RON
14 1 1 BODY-BAND FILE BODY (NA205186) 12361 RON
15 1 1 SCREW (NA114682) 944 RON
16 1 1 SCREW (NA356205) 588 RON
17 1 1 LEVER LOCK (NA205191) 3268 RON
18 1 1 SLEEVE (NA205257) 1772 RON
19 1 1 COLLAR (NA089363) 588 RON
20 1 1 WHEEL DRIVING (NA205194) 4355 RON
21 1 1 PLASTIC INSERT (NA323171) 668 RON
22 1 2 WASHER (N462739) 588 RON
23 1 2 SCREW (NA377988) 588 RON
24 1 1 WASHER PLAIN (640591-00) 558 RON
25 1 1 CAM LEVER (NA089592) 1933 RON
26 1 1 SPRING (NA103863) 588 RON
27 1 1 SCREW (NA089588) 588 RON
28 1 1 COVER (NA089590) 5370 RON
29 1 1 PIN (NA089586) 2796 RON
30 1 1 FELT (NA322803) 588 RON
31 1 1 SPRING (NA107488) 588 RON
32 1 1 MAINSCREW SA-SA TRACKING SCREW (NA089589) 1772 RON
33 1 1 O RING (NA089595) 588 RON
34 1 1 SPRING (NA234451) 588 RON
35 1 1 ARM (NA395274) 9012 RON
36 1 1 ARM STROKE-SA CONTACT ARM, STRAIGHT, 1/2 (NA395278) 15469 RON
37 1 2 SCREW METAL THREAD FORM M4 * 30 T20 (330045-09) 558 RON
38 1 1 SIDE HANDLE (N401305) 2556 RON
201 1 1 RATING LABEL (NA321907) 588 RON
202 1 1 WARNING LABEL (NA321909) 588 RON
203 1 1 LABEL (NA321915) 588 RON
204 1 1 LABEL (NA335891) 588 RON
205 1 1 LABEL (NA392823) 588 RON
301 1 1 DCM2012OS - Indisponibil
301 1 1 ARM (NA399461) 12361 RON
302 1 1 DCM200DC - Indisponibil
302 1 1 SHROUD (NA225323) 944 RON
830 1 1 SERVICE TOOLING KIT (NA375089) 5370 RON
861 1 1 KITBOX (N475700) 18568 RON
864 1 1 TRAY (NA177408) 18568 RON
866 1 2 BATTERY 18V 1.6AH 28.8WH (NA132874) 91363 RON
871 1 1 CHARGER (NA373501) 38463 RON
3001 1 1 ARM (NA399461) 12361 RON
3002 1 1 SHROUD (NA225323) 944 RON
