Top » Piese de schimb » PIESE DEWALT » DCF961H2T Type 1

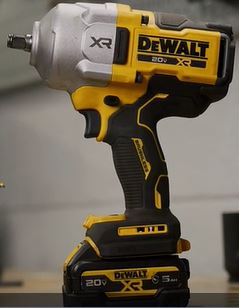

MASINA DE INSURUBAT CU IMPACT CU ACUMULATOR DEWALT DCF961H2T Type 1
[DCF961H2T Type 1]
MASINA DE INSURUBAT CU IMPACT CU ACUMULATOR DEWALT DCF961H2T Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE INSURUBAT CU IMPACT CU ACUMULATOR DEWALT DCF961H2T Type 1
Click pentru a mari
MASINA DE INSURUBAT CU IMPACT CU ACUMULATOR DEWALT DCF961H2T Type 1
Click pentru a mari

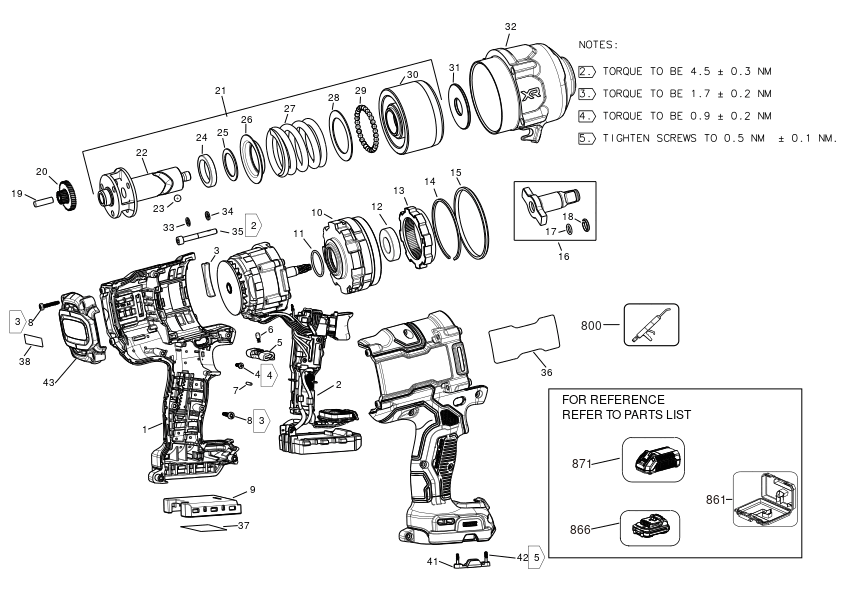

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA233933) 10241 RON
2 1 1 MOTOR & SWITCH SA (NA325986) 176482 RON
3 1 4 MOUNT (N864724) 588 RON
4 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
5 1 1 ACTUATOR FWD/REV (N865539) 588 RON
6 1 1 INDEXING BOLT (N403227) 588 RON
7 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
8 1 11 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
9 1 1 ISOLATOR (NA169892) 2182 RON
10 1 1 GEARCASE (N846042) 11337 RON
11 1 1 O RING (N411414) 588 RON
12 1 1 BEARING (N158641) 3268 RON
12 1 1 NB452231 - Indisponibil
13 1 1 INTERGEAR (N846040) 741 RON
14 1 1 RING (N888542) 82 RON
15 1 1 RUBBER SEAL (N846523) 944 RON
16 1 1 ANVIL ASSEMBLY (NA325987) 35435 RON
17 1 1 RING P2674 (050056-00) 558 RON
18 1 1 SPRING RING (086947-00) 893 RON
19 1 3 PIN (N756784) 668 RON
20 1 3 Gear (NA031992) 6688 RON
21 1 1 TRANSMISSION SA-SA MECHANISM (NA325989) 139195 RON
22 1 1 NA201540 - Indisponibil
22 1 1 CARRIER (NA391783) 32327 RON
23 1 2 BALL STEEL (NA091720) 588 RON
24 1 1 BUMPER (N745990) 944 RON
25 1 1 WASHER (N745989) 588 RON
26 1 1 WASHER (N745984) 668 RON
27 1 1 SPRING (N745982) 741 RON
28 1 1 WASHER THRUST (N745996) 668 RON
29 1 30 BALL STEEL (000475-00) 558 RON
29 1 30 NB449518 - Indisponibil
30 1 1 IMPACTOR (NA100963) 49114 RON
31 1 1 WASHER (N735836) 588 RON
32 1 1 NOSE SA (NA325990) 21676 RON
33 1 4 WASHER (90607886) 10241 RON
34 1 4 WASHER (N783664) 588 RON
35 1 4 NA407885 - Indisponibil
35 1 4 SCREW (N808793) 588 RON
36 1 1 NA247944 - Indisponibil
36 1 1 RATING LABEL (NA695504) 588 RON
37 1 1 LABEL (NA352845) 588 RON
38 1 1 LABEL (NA352854) 588 RON
41 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
42 1 2 SCREW (N831593) 588 RON
43 1 1 END CAP (N893052) 1772 RON
43 1 1 END CAP (NA714523) 1318 RON
800 1 1 GREASE (284778-00) 49771 RON
861 1 1 KITBOX DWST1-17807 (N279261) 30769 RON
866 1 2 BATTERY 18V - 5.0AH - 90WH (NA283204) 277356 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
