Top » Piese de schimb » PIESE DEWALT » DCD470 Type 1

MASINA DE GAURIT IN UNGHI DEWALT DCD470 Type 1
[DCD470 Type 1]
MASINA DE GAURIT IN UNGHI DEWALT DCD470 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT IN UNGHI DEWALT DCD470 Type 1
Click pentru a mari
MASINA DE GAURIT IN UNGHI DEWALT DCD470 Type 1
Click pentru a mari

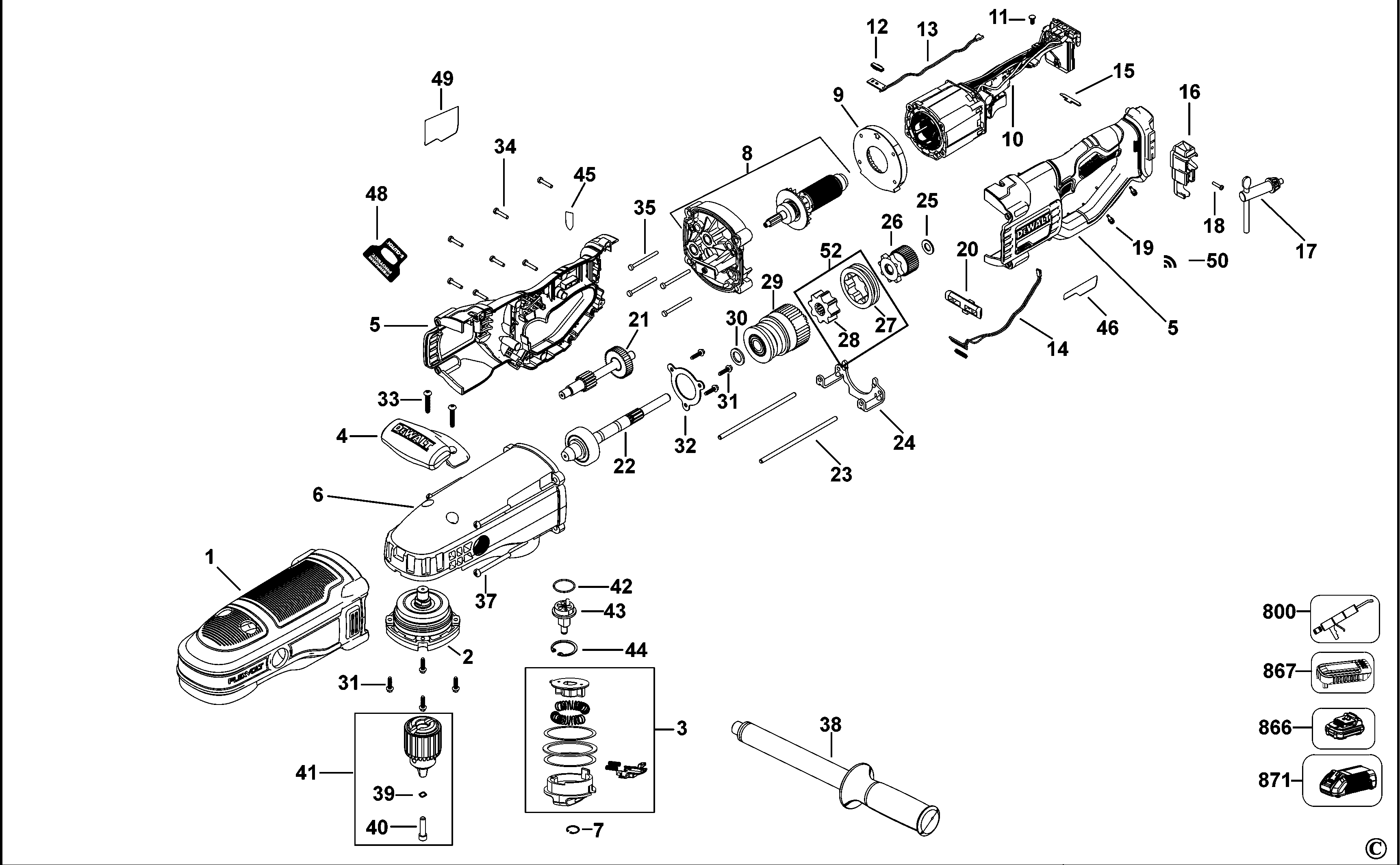

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BOOT (N527895) 10241 RON
2 1 1 SPINDLE SA (N657904) 46247 RON
3 1 1 SELECTOR SA (N657899) 4827 RON
4 1 1 HANDLE (N514195) 3268 RON
5 1 1 CLAMSHELL SET (N526649) 11337 RON
5 1 1 CLAMSHELL SA (NA156280) 13697 RON
6 1 1 GEARCASE SA (N657910) 57833 RON
7 1 1 RETAINER (N565055) 588 RON
8 1 1 ROTOR SA (N657914) 49827 RON
9 1 1 BAFFLE (N528987) 1630 RON
10 1 1 N657925 - Indisponibil
10 1 1 MOTOR & SWITCH SA (NA183823) 263063 RON
11 1 1 N453857 - Indisponibil
11 1 1 TERMINAL BLOCK (NA105798) 1933 RON
12 1 2 LENS (N394333) 588 RON
13 1 1 LED LIGHT (N537831) 3268 RON
14 1 1 LED LIGHT (N591383) 3268 RON
15 1 1 STRIKE PLATE (N467560) 588 RON
16 1 1 KEY HOLDER (N657938) 1318 RON
17 1 1 N551177 - Indisponibil
17 1 1 CHUCK KEY (NA015988) 3268 RON
18 1 1 SCREW (N576469) 588 RON
19 1 2 NUT STOP ELASTIC M3 X 0.5 (330021-11) 558 RON
20 1 1 ACTUATOR FWD/REV (N508751) 588 RON
21 1 1 SHAFT SA (N657911) 12361 RON
22 1 1 SHAFT SA (N657906) 27287 RON
23 1 2 RAIL (N533213) 944 RON
24 1 1 SELECTOR FORK (N657934) 2182 RON
25 1 1 WASHER (N514628) 588 RON
26 1 1 GEAR SA (N657912) 12361 RON
27 1 1 N507317 - Indisponibil
27 1 1 RING SA (N689294) 9012 RON
28 1 1 N507315 - Indisponibil
28 1 1 RING SA (N689294) 9012 RON
29 1 1 CLUTCH SA (N657913) 48037 RON
30 1 1 WASHER (N544267) 588 RON
31 1 4 SCREW (N559186) 588 RON
32 1 1 BEARING PLATE (N517599) 944 RON
33 1 2 SCREW (N561739) 588 RON
34 1 7 SCREW (90611830) 588 RON
34 1 7 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
35 1 4 SCREW PLASTIC THREAD FORM M3.5 * 45 T15 (330019-08) 558 RON
37 1 4 SCREW (330019-74) 588 RON
38 1 1 HANDLE SIDE SA (N657940) 15469 RON
39 1 1 WASHER (N568902) 588 RON
40 1 1 SCREW DW130 TYPE 2 (447735-02) 781 RON
41 1 1 CHUCK SA (N690172) 25728 RON
42 1 1 O RING (N561479) 588 RON
43 1 1 CAM (N824395) 2556 RON
44 1 1 CIRCLIP (N561503) 588 RON
45 1 1 RIGHT XR FLEXVOLT LABEL DCS575/DCS576 EA (N459249) 1318 RON
46 1 1 BRAND LABEL (N595234) 588 RON
48 1 1 LABEL (N595233) 588 RON
49 1 1 RATING PLATE (N677428) 668 RON
50 1 1 LABEL (N631606) 588 RON
52 1 1 N666465 - Indisponibil
52 1 1 RING SA (N689294) 9012 RON
800 1 1 GREASE (286436-00) 70239 RON
866 1 1 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
