Top » Piese de schimb » PIESE DEWALT » DCH416NT Type 1

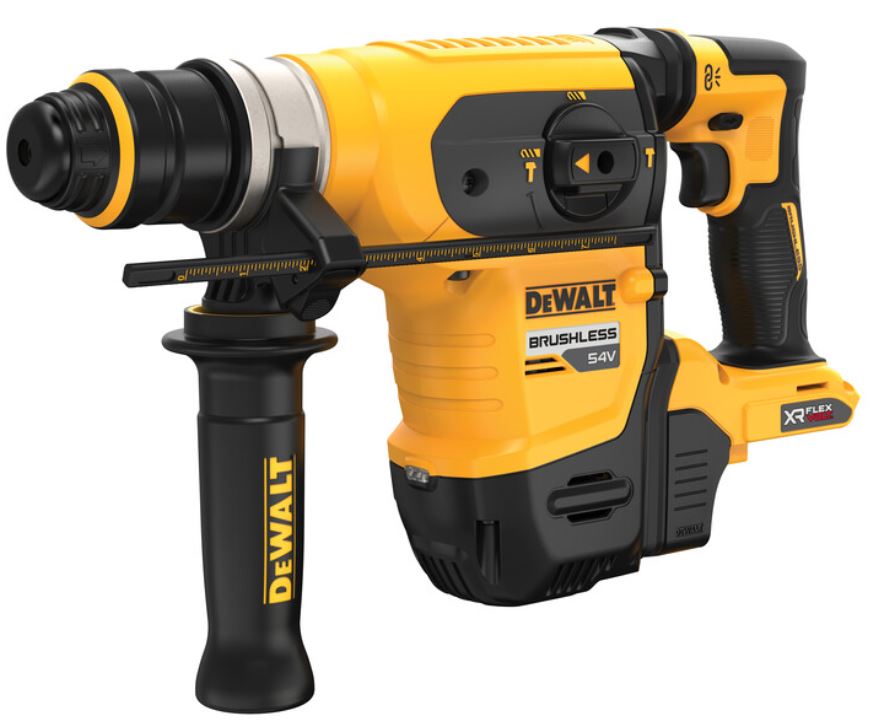

MASINA DE GAURIT CU PERCUTIE DEWALT DCH416NT Type 1
[DCH416NT Type 1]
MASINA DE GAURIT CU PERCUTIE DEWALT DCH416NT Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE DEWALT DCH416NT Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH416NT Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH416NT Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH416NT Type 1
Click pentru a mari

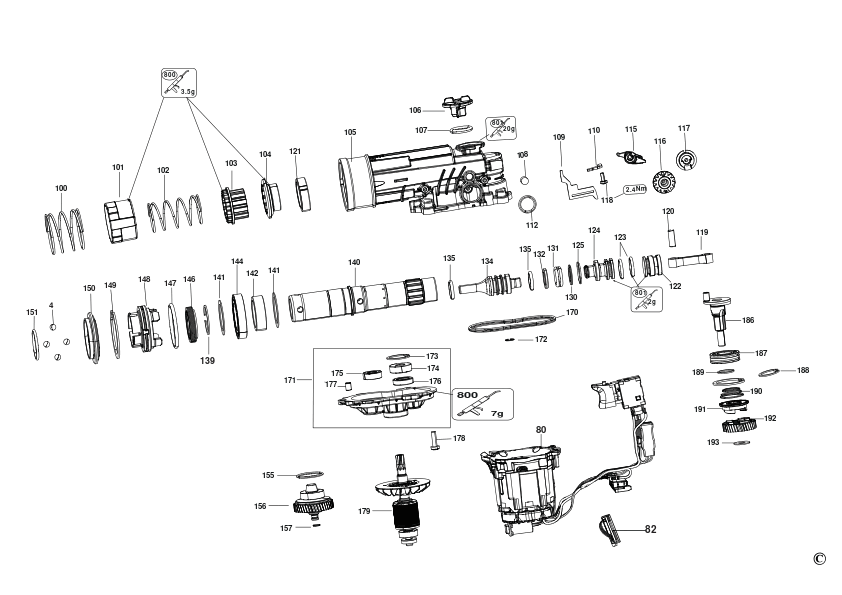

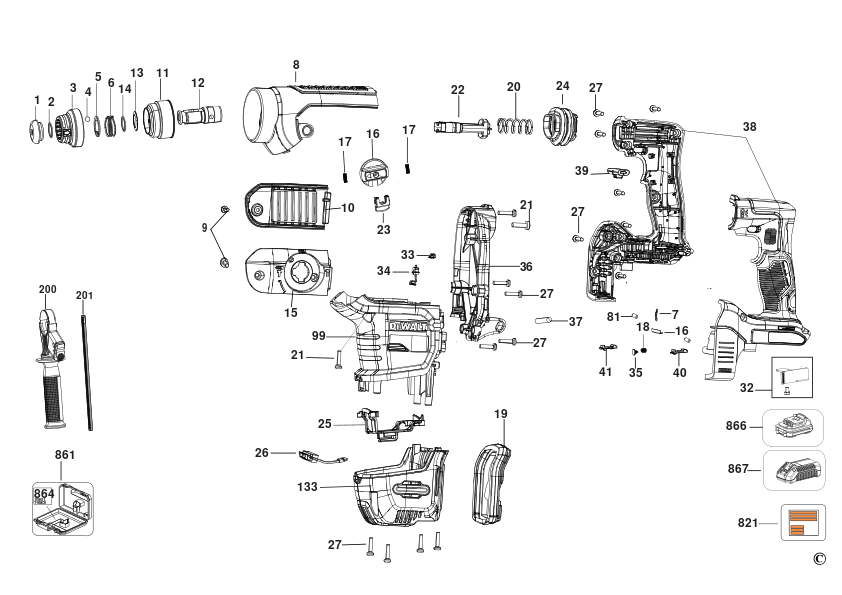

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SEAL LIP (323489-00) 893 RON
2 1 1 RING SNAP 21 (579212-00) 781 RON
3 1 1 TUBE (N910599) 5370 RON
4 1 5 BALL 7.0 (583890-00) 781 RON
5 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
6 1 1 SPRING BEVEL (N038938) 781 RON
7 1 1 SPRING DETENT (N400082) 2182 RON
8 1 1 SA FRONT COVER (MOULD) (N106154) 4137 RON
9 1 2 SCREW TAPTITE M4X10 ANU-LOCK (324006-14) 558 RON
10 1 1 COVER RH (N897271) 1933 RON
11 1 1 SA SLEEVE STD 4KG (MOULD) (N275419) 5031 RON
12 1 1 SA SPINDLE SDS QCC (SERVICE) (N379503) 10512 RON
13 1 1 CUP SPRING SPINDLE (N016357) 558 RON
14 1 1 CIRCLIP (N514338) 2182 RON
15 1 1 COVER LH (N897270) 5370 RON
15 1 1 NB452028 - Indisponibil
16 1 1 MODE CHANGE KNOB 4KG (PURCH) (N150304) 1117 RON
17 1 2 SPRING (1008957-00) 558 RON
18 1 1 SPRING (N119679) 558 RON
19 1 1 BELLOWS (N427167) 1772 RON
20 1 1 SPRING AV 4KG HANDLE (N106188) 893 RON
21 1 6 SCREW PAN HEAD M5*18 (324007-11) 558 RON
22 1 1 LIMIT STOP (N152623) 3018 RON
23 1 1 SA RELEASE BUTTON (MOULD) (N192178) 1117 RON
24 1 1 UPPER FOLD BELLOW 4KG (N106221-00) 2347 RON
25 1 1 HOLDER (N762797) 944 RON
26 1 1 SA DUAL LED 74MM (N829171) 3954 RON
27 1 18 SCREW PLSTIC THD FORM M4.06X18 (330019-80) 558 RON
28 1 1 000000-11 - Indisponibil
32 1 1 HOOK SA (N914798) 9012 RON
33 1 1 WINDOW (N764406) 588 RON
34 1 1 SA INDICATOR LED (N452980) 2556 RON
35 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
36 1 1 HANDLE COVER (N647449) 4355 RON
37 1 1 HANDLE ROD (N159443) 893 RON
38 1 1 HANDLE SA (N914793) 12361 RON
39 1 1 BAR (N431292) 82 RON
40 1 1 INSERT (N728012) 588 RON
41 1 1 INSERT (N728013) 588 RON
80 1 1 MOTOR SA-+ Switch (N914800) 10889 RON
81 1 2 RUBBER PAD (N186764) 588 RON
82 1 1 MODULE (N592861) 16689 RON
85 1 1 SPINDLE (N934551) 96047 RON
99 1 1 HOUSING MOTOR (N647446) 741 RON
100 1 1 SPRING.CPRSN 2.2/44. (323395-07) 781 RON
101 1 1 LOCKING SLEEVE 4KG (N106220) 190 RON
102 1 1 SPRING MODE CHANGE 4KG (N106166) 893 RON
103 1 1 SLEEVE SHIFTING 4KG (N106162) 5591 RON
105 1 1 SA MAIN HOUSING 4KG (SERVICE) (N379411) 4825 RON
106 1 1 GREASE CAP 4KG (MOULD) (N106179) 1452 RON
107 1 1 O-RING 18 X 4.5 (N252840) 5591 RON
109 1 1 ACTIVATION PLATE (N147987) 190 RON
110 1 1 MODE CHANGE PLATE (N106187) 1117 RON
112 1 1 O-RING 16 X 2.5 (323711-05) 558 RON
115 1 1 MODE CHANGE FORK 4KG (N149242) 781 RON
116 1 1 ECCENTRIC 4KG (N149241) 1788 RON
117 1 1 MODE CHANGE GEAR (N150303) 105 RON
118 1 1 SCREW TAPTITE M4X10 ANU-LOCK (324006-14) 558 RON
119 1 1 CON ROD (N885431) 2556 RON
120 1 1 PIN PISTON 4KG (N123257) 2124 RON
122 1 1 SA PISTON (SERVICE) (N379413) 5591 RON
123 1 2 O-RING 18 X 3 (N106150) 1452 RON
124 1 1 RAM (N407083) 13697 RON
125 1 1 N881894 - Indisponibil
125 1 1 SNAP RING 24x2 (SERVICE) (NA228655) 4355 RON
130 1 1 WASHER (NA228658) 5370 RON
131 1 1 REBOUND DAMPER 4KG (N179781) 2347 RON
132 1 1 WASHER (NA228664) 4827 RON
133 1 1 END CAP (N684082) 5370 RON
134 1 1 BEAT PIECE (N534183) 16689 RON
135 1 2 O-RING 16 X 3.5 (N181843) 2124 RON
139 1 1 CIRCLIP SW32 (586762-00) 781 RON
140 1 1 SPINDLE (NA225863) 78485 RON
141 1 2 WASHER DAMPER 5KG (1005982-00) 558 RON
142 1 1 SA SPINDLE DAMPER 4KG (MOULD) (N218372) 190 RON
144 1 1 SINTER BEARING 32 (N106168) 3466 RON
146 1 1 SEAL SPINDLE 32X42X7/9 (1007828-00) 5591 RON
147 1 1 O-RING 46X4 (N218672) 6821 RON
148 1 1 BEARING HOLDER (N122310) 1452 RON
149 1 1 SAFETY RING 55 (N181847) 893 RON
150 1 1 SA FRONT CAP 4KG (N184524) 190 RON
151 1 1 RING SNAP 32 (577795-00) 781 RON
155 1 1 O-RING 27.5 X 2 (N252839) 4137 RON
156 1 1 SA CLUTCH (SERVICE) (N379416) 3592 RON
157 1 1 "O RING 5*1.2""" (323711-26) 558 RON
158 1 1 BEARING NEEDLE (330004-02) 1229 RON
170 1 1 GASKET MAIN HOUSING (N106217) 1117 RON
171 1 1 SA GEAR HSG 4KG (SERVICE) (N379417) 3124 RON
172 1 1 CLIP 10 (N148663) 781 RON
173 1 1 SAFETY RING 26 (N219512) 558 RON
174 1 1 BEARING BALL (330003-96) 2795 RON
175 1 1 BEARING BALL cod vechi 477133-00 (N168103) 1788 RON
176 1 1 SEAL RADIAL 12/28/6 (327141-05) 3466 RON
177 1 1 SLEEVE (327575-00) 781 RON
178 1 5 SCREW PAN HEAD M5*18 (324007-11) 558 RON
179 1 1 ARMATURE (N914797) 48037 RON
186 1 1 SA CRANK SHAFT (SERVICE) (N379421) 25164 RON
187 1 1 BEARING BALL 173510 (323872-06) 5591 RON
188 1 1 RING SAFETY 35 (324821-04) 781 RON
189 1 1 CIRCLIP 17 (N181846) 558 RON
190 1 1 CONICAL SPRING (N199272) 781 RON
191 1 1 SLEEVE (N542579) 4827 RON
192 1 1 SA CRANK GEAR 36 (SERVICE) (N379422) 9282 RON
193 1 1 CRANK WASHER (N106163) 781 RON
200 1 1 HANDLE SIDE SA (N899166) 15469 RON
201 1 1 STOP DEPTH (798846-02) 893 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
821 1 1 RATING PLATE (NA595402) 1630 RON
826 1 1 LABEL PERFORM PROTECT 42MMX14MM (N196274) 781 RON
866 1 1 000000-04 - Indisponibil
867 1 1 000000-04 - Indisponibil
880 1 1 SERVICE KIT (NA296510) 33797 RON
881 1 1 SPINDLE (NA225863) 78485 RON
