Top » Piese de schimb » PIESE DEWALT » DCH334 Type 1

MASINA DE GAURIT CU PERCUTIE DEWALT DCH334 Type 1
[DCH334 Type 1]
MASINA DE GAURIT CU PERCUTIE DEWALT DCH334 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE DEWALT DCH334 Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH334 Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH334 Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH334 Type 1
Click pentru a mari

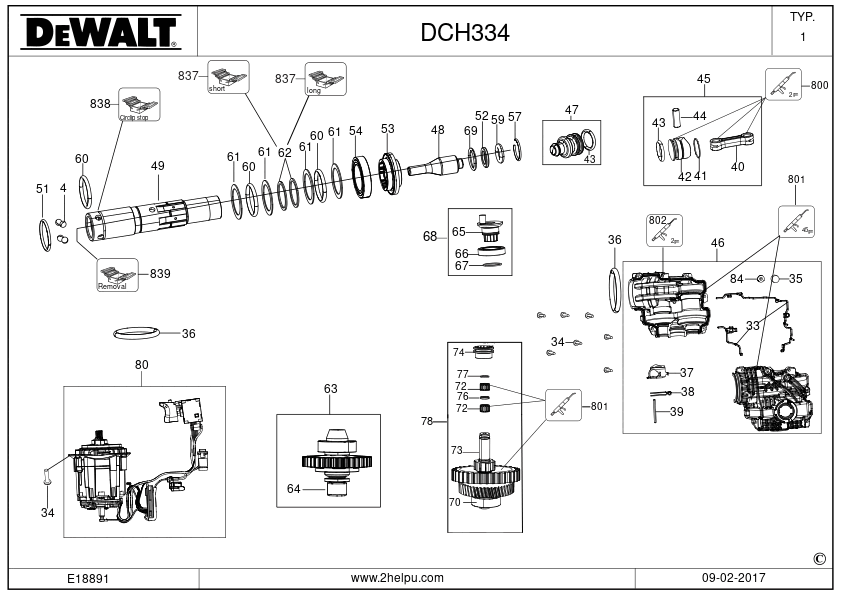

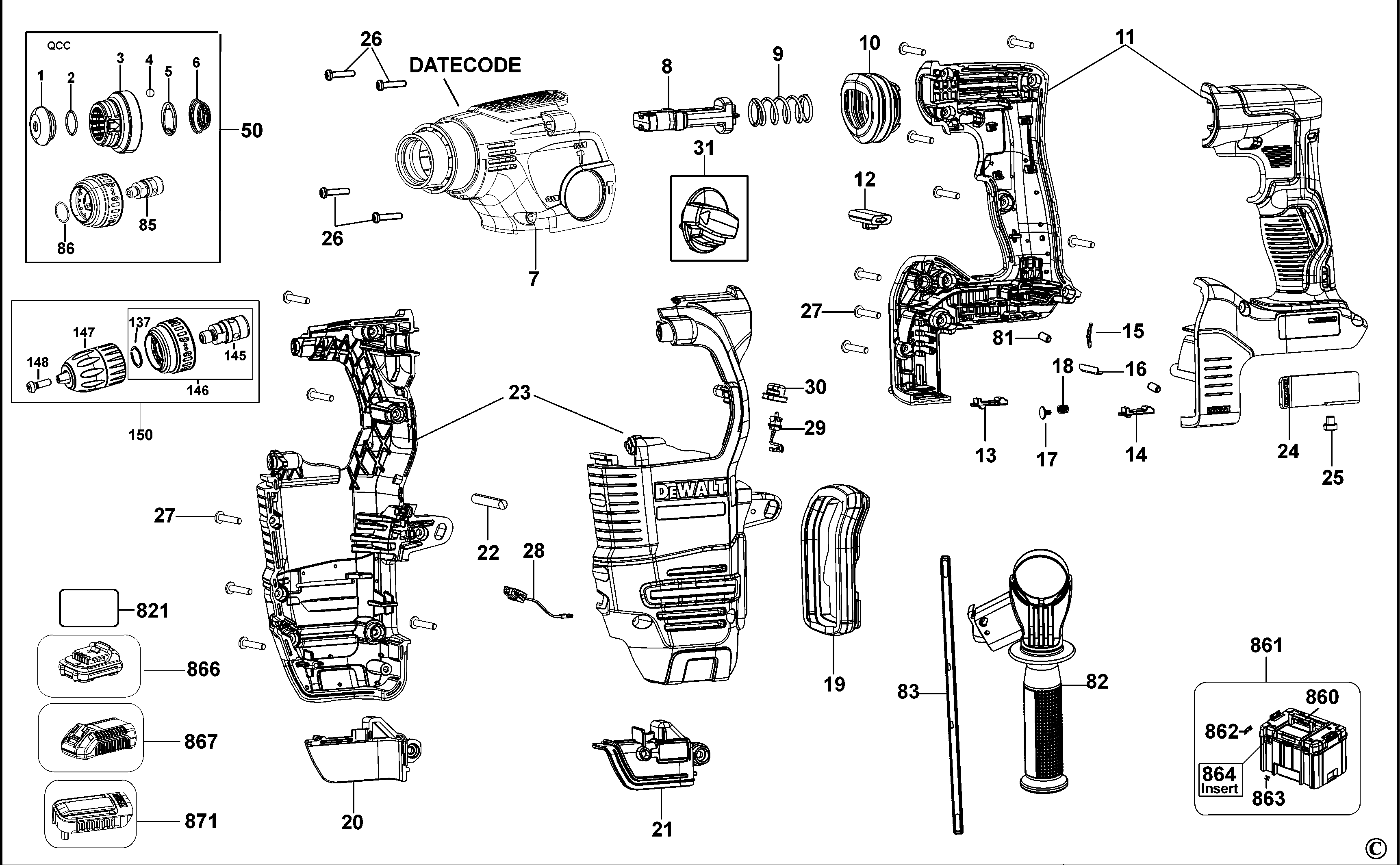

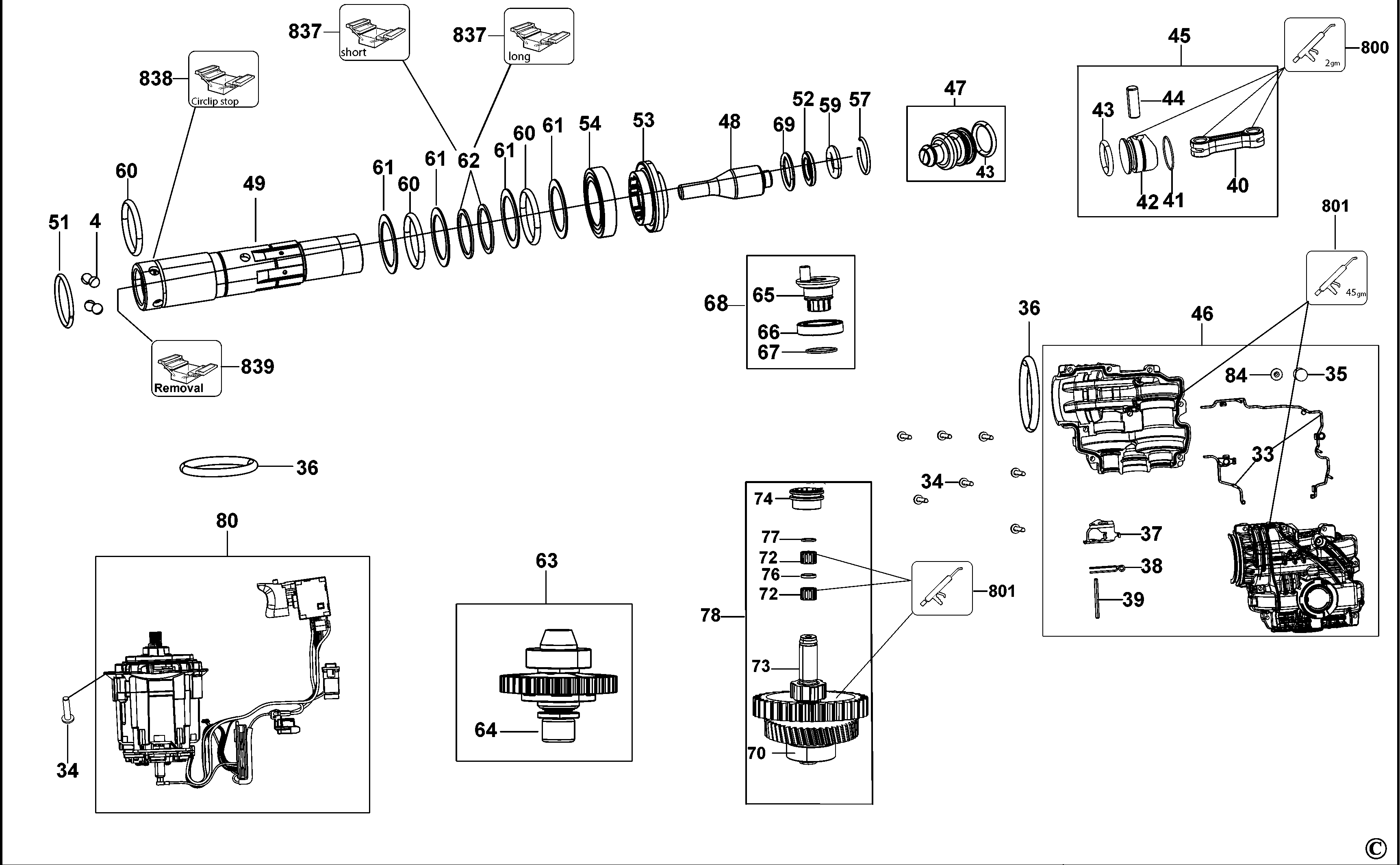

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SEAL LIP (323489-00) 893 RON
2 1 1 RING SNAP 21 (579212-00) 781 RON
3 1 1 TUBE (N910599) 5370 RON
3 1 1 N874872 - Indisponibil
3 1 1 SLIDING TUBE (N038727) 4137 RON
4 1 5 BALL 7.0 (583890-00) 781 RON
5 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
6 1 1 SPRING BEVEL (N038938) 781 RON
7 1 1 SERVICE KIT SA FRONT HSG +SEAL +BEARING (N627223) 23244 RON
7 1 1 N470774 - Indisponibil
8 1 1 LIMIT STOP (N152623) 3018 RON
9 1 1 SPRING AV 4KG HANDLE (N106188) 893 RON
10 1 1 UPPER FOLD BELLOW SCH (N106221-01) 2795 RON
11 1 1 HANDLE SA (N914794) 15469 RON
11 1 1 N466894 - Indisponibil
12 1 1 BAR (N431292) 82 RON
13 1 1 INSERT (N728013) 588 RON
13 1 1 ANTIVIBE RAIL INSERT ASSEMBLY SIDE (N438439) 588 RON
14 1 1 INSERT (N728012) 588 RON
14 1 1 ANTIVIBE RAIL INSERT COVER SIDE (N438438) 588 RON
15 1 1 SPRING DETENT (N400082) 2182 RON
16 1 1 STEEL-LATCH DCH ZODIAC (N094649) 105 RON
17 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
18 1 1 SPRING (N119679) 558 RON
19 1 1 BELLOWS (N427167) 1772 RON
20 1 1 END CAP (N461796) 1318 RON
21 1 1 END CAP (N461797) 1318 RON
22 1 1 HANDLE ROD (N159443) 893 RON
23 1 1 MOTOR HOUSING SA (N466997) 15469 RON
24 1 1 BELT HOOK SDS PL HP (N461541) 5370 RON
24 1 1 HOOK SA (N914798) 9012 RON
25 1 1 BAYONET LOCK BELT HOOK (N400130) 588 RON
26 1 4 SCREW .TEMP (330019-20) 558 RON
27 1 17 SCREW PLSTIC THD FORM M4.06X18 (330019-80) 558 RON
28 1 1 N445349 - Indisponibil
28 1 1 SA DUAL LED 74MM (N829171) 3954 RON
29 1 1 SA INDICATOR LED (N452980) 2556 RON
30 1 1 GUIDE LIGHT ALC DRILL (656183-00) 893 RON
31 1 1 SELECTOR SA (N267567) 2182 RON
33 1 1 N433272 - Indisponibil
33 1 1 SEAL SA (NA384556) 2796 RON
34 1 12 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
35 1 1 FELT-1 (N038257) 558 RON
36 1 2 N423558 - Indisponibil
36 1 2 O RING (N876828) 944 RON
37 1 1 PLATE (N431392) 1933 RON
38 1 1 N663642 - Indisponibil
38 1 1 SPRING MODE SWITCH (1005795-00) 558 RON
38 1 1 SPRING (NA387490) 588 RON
39 1 1 PIN (N433763) 668 RON
40 1 1 N390874 - Indisponibil
40 1 1 CON ROD 3 kg PM (N579068) 2182 RON
41 1 1 000000-11 - Indisponibil
41 1 1 N415558 - Indisponibil
42 1 1 N388972 - Indisponibil
42 1 1 N510098 - Indisponibil
42 1 1 N517447 - Indisponibil
42 1 1 PISTON (NA602332) 2796 RON
43 1 2 O RING (N394408) 944 RON
44 1 1 PIN PISTON 4KG (N123257) 2124 RON
45 1 1 N505552 - Indisponibil
45 1 1 PISTON KIT (NA710282) 12361 RON
46 1 1 N460616 - Indisponibil
46 1 1 GEARCASE SA (N616792) 57833 RON
46 1 1 N505551 - Indisponibil
47 1 1 RAM SA (N505553) 6688 RON
48 1 1 BEATPIECE 3KG QCC 2 (N459291) 741 RON
49 1 1 SA MAIN SPINDLE 3KG QCC KIT (SERVICE) (N544185) 23244 RON
50 1 1 SA TOOLHOLDER QCC SERVICE (N591846) 33797 RON
50 1 1 SA TOOLHLDER (SERVICE) (N379398) 34336 RON
51 1 1 RING SNAP 32 (577795-00) 781 RON
52 1 1 O RING (N412168) 4355 RON
53 1 1 BEVEL GEAR (N406771) 741 RON
54 1 1 BEARING BALL 6906 (479478-00) 4472 RON
57 1 1 CIRCLIP (N413186) 588 RON
58 1 1 N478906 - Indisponibil
59 1 1 WASHER (N502900) 114 RON
60 1 3 O RING (N421627) 1772 RON
61 1 4 WASHER (N395027) 668 RON
62 1 2 CIRCLIP (N422601) 944 RON
63 1 1 CLUTCH SA (N605730) 33797 RON
64 1 1 BEARING NEEDLE (330004-06) 1452 RON
65 1 1 CRANKSHAFT (N452829) 11337 RON
66 1 1 BEARING (N427179) 9012 RON
67 1 1 CLIP (N453028) 1630 RON
68 1 1 CRANKSHAFT (N505555) 24962 RON
69 1 1 WASHER (N388939) 1318 RON
70 1 1 BEARING (N110358) 2347 RON
72 1 2 BEARING CAGE (N427177) 1772 RON
73 1 1 N513678 - Indisponibil
73 1 1 TRANSMISSION SA (N593071) 33797 RON
74 1 1 COLLAR (N264669) 2182 RON
74 1 1 COLLAR (N821356) 2556 RON
76 1 2 BUSH (N433668) 588 RON
77 1 1 RING. SNAP 8 (323763-10) 781 RON
78 1 1 TRANSMISSION SA (N593071) 33797 RON
80 1 1 N506028 - Indisponibil
80 1 1 NA077211 - Indisponibil
80 1 1 MOTOR & SWITCH SA (NA077212) 139195 RON
80 1 1 SERVICE KIT (NA336040) 148269 RON
81 1 2 RUBBER PAD (N186764) 588 RON
82 1 1 SA SIDE HANDLE AVC (N413662) 13697 RON
83 1 1 STOP DEPTH (798846-02) 893 RON
84 1 1 AIR CAP (MOULD) (N374339) 781 RON
84 1 1 INSERT (NA000611) 588 RON
85 1 1 SA SPINDLE SDS QCC (SERVICE) (N379503) 10512 RON
86 1 1 CIRCLIP SW20 (N091710) 82 RON
137 1 1 SA C-CLIP 21 4KG HAMMERS (SERVICE) (N515033) 6688 RON
145 1 1 SPINDLE (N403112) 9012 RON
146 1 1 SPINDLE SA (N403284) 15469 RON
147 1 1 "CHUCK KEYLESS 1/2"" UNF 2 SLEEVE" (582512-02) 17335 RON
148 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
150 1 1 CHUCK AND SPINDLE SA (N403113) 21676 RON
800 1 1 GREASE GLK 249 NLGI 00 150G TUBE (578970-06) 28296 RON
800 1 1 GREASE GLK 249NLGI 00-80G TUBE (SERVICE) (578970-04) 12861 RON
801 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
802 1 1 SEAL (N770138) 25728 RON
821 1 1 N491448 - Indisponibil
821 1 1 RATING LABEL (NA126915) 1933 RON
837 1 1 S.T.CIRCLIP INSERTER (1003968-99) 40476 RON
837 1 1 S.T.CIRCLIP INSERTER (1003969-99) 40859 RON
838 1 1 S.T.CIRCLIP INSERTER (1003967-99) 21382 RON
839 1 1 S.T.DIS-ASSEMBLY JIG (1003970-99) 7561 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N445186) 39318 RON
862 1 1 LATCH (N409477) 114 RON
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 INSERT (N493397) 741 RON
866 1 1 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
867 1 1 CHARGER QW (N473860) 73079 RON
871 1 1 SAFETY CAP (N462141) 5370 RON
909 1 1 REPAIR KIT (NA473152) 4355 RON
