Top » Piese de schimb » PIESE DEWALT » DCH283 Type 1

MASINA DE GAURIT CU PERCUTIE DEWALT DCH283 Type 1
[DCH283 Type 1]
MASINA DE GAURIT CU PERCUTIE DEWALT DCH283 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE DEWALT DCH283 Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH283 Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH283 Type 1
Click pentru a mari

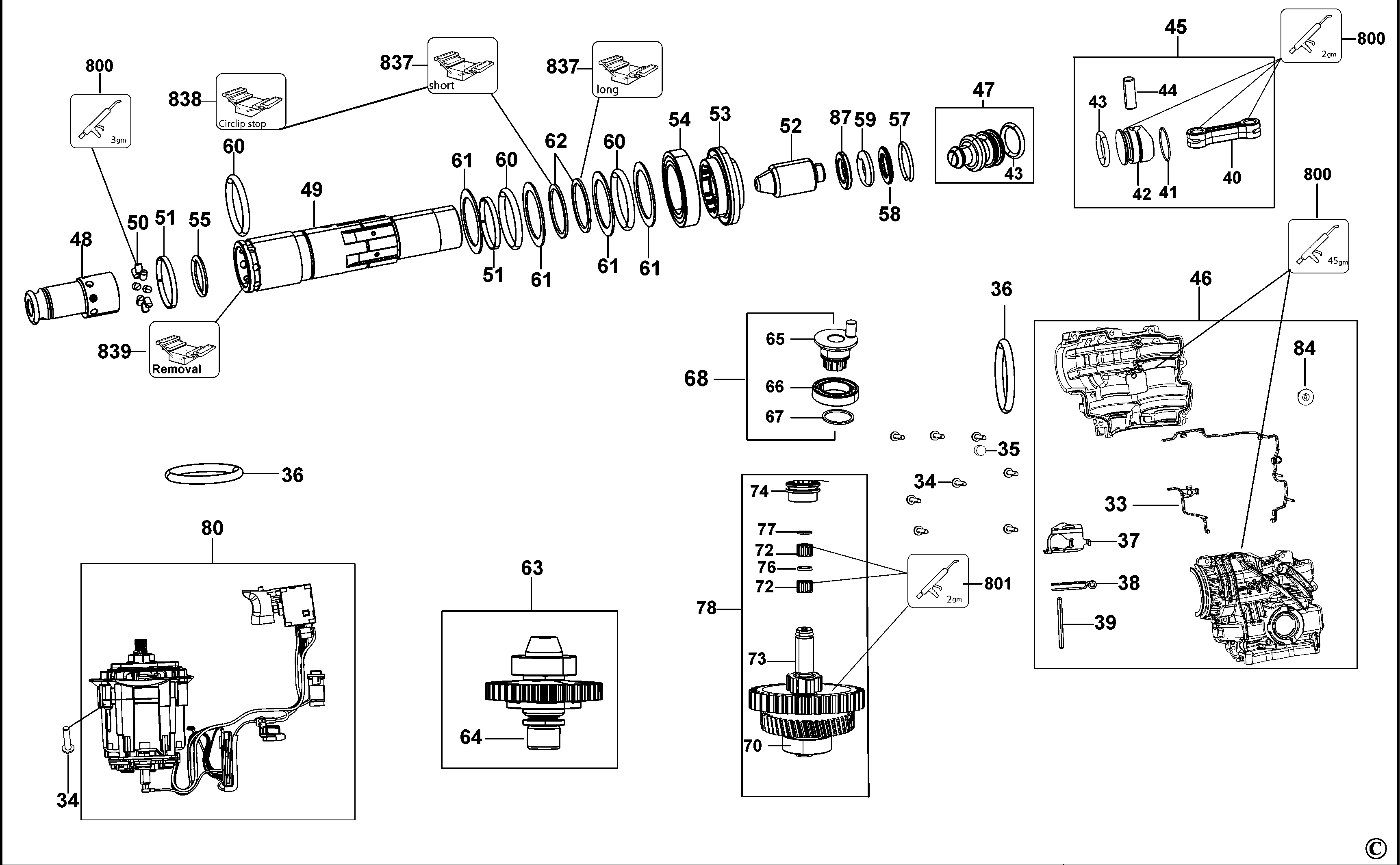

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SEAL LIP (323489-00) 893 RON
2 1 1 RING SNAP 21 (579212-00) 781 RON
3 1 1 TUBE (N910599) 5370 RON
3 1 1 N874872 - Indisponibil
3 1 1 SLIDING TUBE (N038727) 4137 RON
4 1 1 BALL 7.0 (583890-00) 781 RON
5 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
6 1 1 SPRING BEVEL (871690) 558 RON
7 1 1 SERVICE KIT SA FRONT HSG+SEAL+BEARING (N564446) 18568 RON
7 1 1 N470886 - Indisponibil
8 1 1 LIMIT STOP (N152623) 3018 RON
9 1 1 SPRING AV 4KG HANDLE (N106188) 893 RON
10 1 1 UPPER FOLD BELLOW SCH (N106221-01) 2795 RON
11 1 1 SET HANDLE DC 18V (N466949) 9012 RON
12 1 1 BAR (N431292) 82 RON
13 1 1 INSERT (N728013) 588 RON
13 1 1 ANTIVIBE RAIL INSERT ASSEMBLY SIDE (N438439) 588 RON
14 1 1 INSERT (N728012) 588 RON
14 1 1 ANTIVIBE RAIL INSERT COVER SIDE (N438438) 588 RON
15 1 1 SPRING DETENT (N400082) 2182 RON
16 1 1 STEEL-LATCH DCH ZODIAC (N094649) 105 RON
17 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
18 1 1 SPRING (N119679) 558 RON
19 1 1 BELLOWS (N427167) 1772 RON
20 1 1 MOTOR HSG ENDCAP 18V (N462963) 114 RON
22 1 1 HANDLE ROD (N159443) 893 RON
23 1 1 SA SET MOTOR HOUSING DC 18V(MOULD) (N468255) 10241 RON
24 1 1 BELT HOOK SDS PL HP (N461541) 5370 RON
24 1 1 HOOK SA (N914798) 9012 RON
25 1 1 BAYONET LOCK BELT HOOK (N400130) 588 RON
26 1 4 SCREW .TEMP (330019-20) 558 RON
27 1 15 SCREW PLSTIC THD FORM M4.06X18 (330019-80) 558 RON
28 1 1 N445349 - Indisponibil
28 1 1 SA DUAL LED 74MM (N829171) 3954 RON
29 1 1 SA INDICATOR LED (N452980) 2556 RON
30 1 1 GUIDE LIGHT ALC DRILL (656183-00) 893 RON
31 1 1 SELECTOR SA (N267567) 2182 RON
33 1 1 N433272 - Indisponibil
33 1 1 SEAL SA (NA384556) 2796 RON
34 1 12 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
35 1 1 FELT-1 (N038257) 558 RON
36 1 2 N423558 - Indisponibil
36 1 2 O RING (N876828) 944 RON
37 1 1 PLATE (N431392) 1933 RON
38 1 1 N663642 - Indisponibil
38 1 1 SPRING MODE SWITCH (1005795-00) 558 RON
38 1 1 SPRING (NA387490) 588 RON
39 1 1 PIN (N433763) 668 RON
40 1 1 N390874 - Indisponibil
40 1 1 CON ROD 3 kg PM (N579068) 2182 RON
41 1 1 000000-11 - Indisponibil
41 1 1 N415558 - Indisponibil
42 1 1 N388972 - Indisponibil
42 1 1 N510098 - Indisponibil
42 1 1 N517447 - Indisponibil
42 1 1 PISTON (NA602332) 2796 RON
43 1 2 O RING (N394408) 944 RON
44 1 1 PIN PISTON 4KG (N123257) 2124 RON
45 1 1 N505552 - Indisponibil
45 1 1 PISTON KIT (NA710282) 12361 RON
46 1 1 N460616 - Indisponibil
46 1 1 GEARCASE SA (N616792) 57833 RON
46 1 1 N505551 - Indisponibil
47 1 1 RAM SA (N505553) 6688 RON
48 1 1 N463250 - Indisponibil
48 1 1 SPINDLE (N783458) 12361 RON
49 1 1 N463249 - Indisponibil
49 1 1 SPINDLE 3KG OPP SERVICE (N583351) 28836 RON
49 1 1 N543351 - Indisponibil
50 1 8 PIN (N468472) 668 RON
51 1 2 RETAINER (N467014) 668 RON
52 1 1 BEATPIECE 3KG OPP 2 (N459378) 5370 RON
53 1 1 BEVEL GEAR (N406771) 741 RON
54 1 1 BEARING BALL 6906 (479478-00) 4472 RON
55 1 1 O RING (N412167) 944 RON
57 1 1 CIRCLIP (N413186) 588 RON
58 1 1 N478906 - Indisponibil
58 1 1 WASHER (N502900) 114 RON
59 1 1 WASHER (N388939) 1318 RON
59 1 1 O RING (N412168) 4355 RON
60 1 3 O RING (N421627) 1772 RON
61 1 4 WASHER (N395027) 668 RON
62 1 2 CIRCLIP (N422601) 944 RON
63 1 1 CLUTCH SA (N605730) 33797 RON
64 1 1 BEARING NEEDLE (330004-06) 1452 RON
65 1 1 CRANKSHAFT (N452829) 11337 RON
66 1 1 BEARING (N427179) 9012 RON
67 1 1 CLIP (N453028) 1630 RON
68 1 1 CRANKSHAFT (N505555) 24962 RON
70 1 1 BEARING (N110358) 2347 RON
72 1 2 BEARING CAGE (N427177) 1772 RON
73 1 1 N513678 - Indisponibil
73 1 1 TRANSMISSION SA (N593071) 33797 RON
74 1 1 COLLAR (N264669) 2182 RON
74 1 1 COLLAR (N821356) 2556 RON
76 1 1 BUSH (N433668) 588 RON
77 1 1 RING. SNAP 8 (323763-10) 781 RON
78 1 1 TRANSMISSION SA (N593071) 33797 RON
80 1 1 MOTOR SA (N505557) 96047 RON
81 1 2 RUBBER PAD (N186764) 588 RON
82 1 1 SA SIDE HANDLE AVC (N413662) 13697 RON
83 1 1 STOP DEPTH (798846-02) 893 RON
84 1 1 AIR CAP (MOULD) (N374339) 781 RON
84 1 1 INSERT (NA000611) 588 RON
87 1 1 WASHER (N388939) 1318 RON
800 1 1 GREASE GLK 249 NLGI 00 150G TUBE (578970-06) 28296 RON
800 1 1 GREASE GLK 249NLGI 00-80G TUBE (SERVICE) (578970-04) 12861 RON
821 1 1 N491320 - Indisponibil
821 1 1 RATING LABEL (NA126910) 82 RON
821 1 1 RATING LABEL (NA126902) 944 RON
837 1 1 S.T.CIRCLIP INSERTER (1003968-99) 40476 RON
837 1 1 S.T.CIRCLIP INSERTER (1003969-99) 40859 RON
838 1 1 S.T.CIRCLIP INSERTER (1003967-99) 21382 RON
839 1 1 S.T.DIS-ASSEMBLY JIG (1003970-99) 7561 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N445186) 39318 RON
862 1 1 LATCH (N409477) 114 RON
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 INSERT (N493397) 741 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
867 1 1 N450536 - Indisponibil
867 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
867 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
909 1 1 REPAIR KIT (NA473152) 4355 RON
