Top » Piese de schimb » PIESE DEWALT » DCH172P2LR Type 1

MASINA DE GAURIT CU PERCUTIE DEWALT DCH172P2LR Type 1
[DCH172P2LR Type 1]
MASINA DE GAURIT CU PERCUTIE DEWALT DCH172P2LR Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE DEWALT DCH172P2LR Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH172P2LR Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH172P2LR Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH172P2LR Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH172P2LR Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH172P2LR Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCH172P2LR Type 1
Click pentru a mari

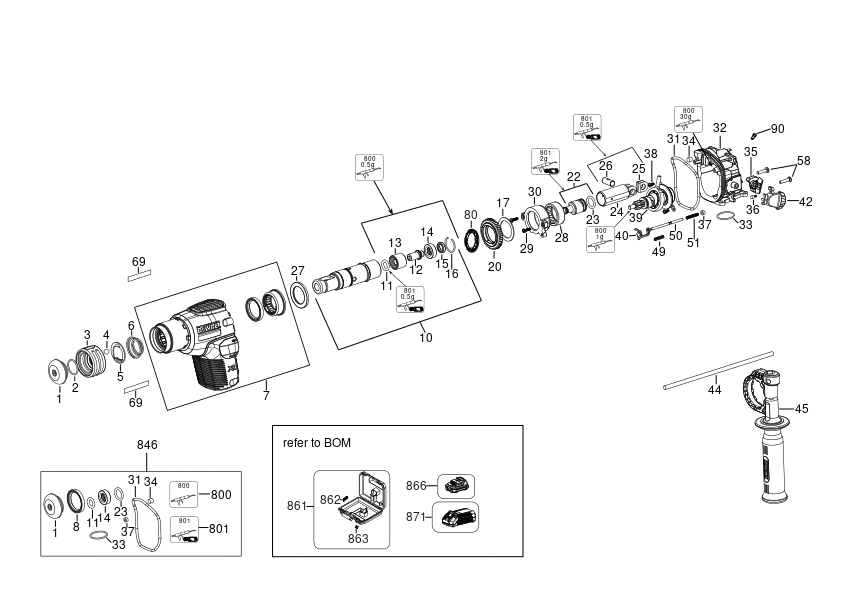

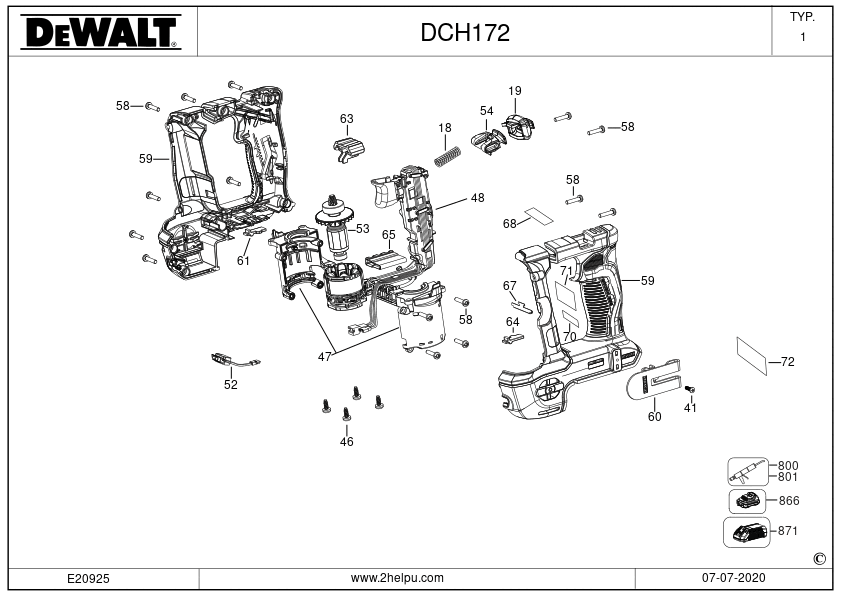

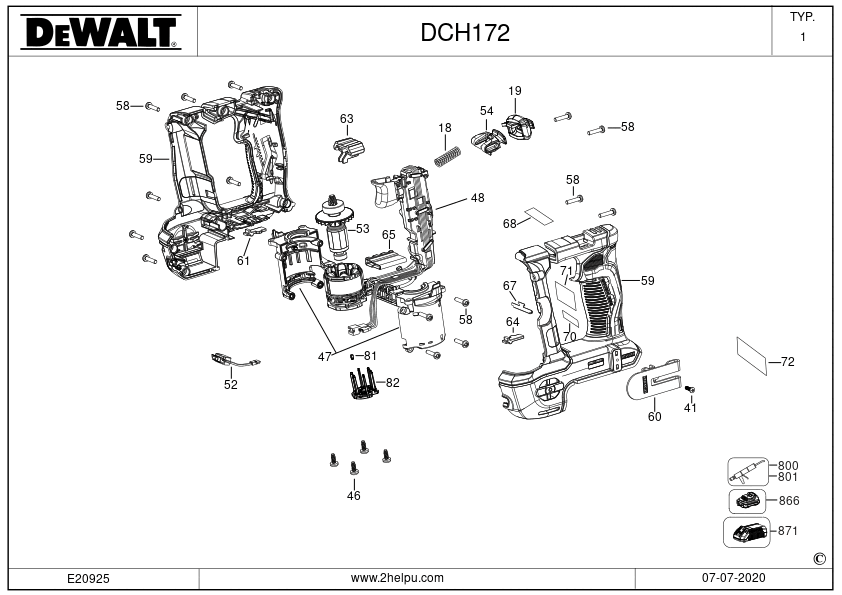

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SEAL LIP (323489-00) 893 RON
2 1 1 RING SNAP 21 (579212-00) 781 RON
3 1 1 SA SLIDING TUBE (N720573) 1933 RON
4 1 1 BALL (N629539) 588 RON
4 1 1 BALL 7.0 (583890-00) 781 RON
5 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
6 1 1 SPRING BEVEL (871690) 558 RON
7 1 1 GEARCASE COVER SA (N911071) 11337 RON
10 1 1 SPINDLE SA (N911077) 21676 RON
11 1 1 O RING (N437972) 588 RON
12 1 1 BEAT PIECE (N911108) 6688 RON
13 1 1 GUIDE (N437968) 2556 RON
14 1 1 RING (N640510) 2796 RON
15 1 1 RING (N640506) 588 RON
16 1 1 LOCKING RING (N437971) 588 RON
17 1 1 WASHER (N454570) 588 RON
18 1 1 SPRING (N744177) 588 RON
19 1 1 BELLOWS (NA143821) 3268 RON
20 1 1 Gear (N911109) 5370 RON
22 1 1 RAM SA (N911113) 9012 RON
23 1 1 O RING (N450311) 668 RON
24 1 1 PISTON (N911116) 741 RON
25 1 1 WASHER SPECIAL (N437964) 588 RON
26 1 1 PIN (N437965) 1772 RON
27 1 1 WASHER (N456160) 1318 RON
28 1 1 BEARING NEEDLE (330004-22) 2556 RON
29 1 2 SCREW (N812348) 588 RON
29 1 2 N812347 - Indisponibil
30 1 1 SERVICE KIT (NA218884) 16689 RON
30 1 1 BEARING HOUSING (NA074360) 4355 RON
31 1 1 O RING (N717951) 588 RON
32 1 1 SERVICE KIT (NA218884) 16689 RON
32 1 1 HOUSING GEAR (NA074359) 11337 RON
33 1 1 O-RING 22X1.5 (1005810-00) 781 RON
33 1 1 O RING 22X2 (N264673) 588 RON
34 1 1 FELT (N742804) 588 RON
35 1 1 SEAL (N932680) 5370 RON
36 1 2 DETENT (326467-00) 558 RON
37 1 1 000000-11 - Indisponibil
37 1 1 FELT SPINDLE (590306-00) 558 RON
38 1 2 SCREW (N812350) 588 RON
39 1 1 INTERSHAFT SA (N911132) 24962 RON
40 1 1 PLATE (NA209262) 1318 RON
41 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
42 1 1 SELECTOR (N738666) 668 RON
44 1 1 DEPTH STOP (N290613) 893 RON
45 1 1 SIDE HANDLE (N808679) 6688 RON
46 1 4 SCREW (N812348) 588 RON
47 1 1 CLAMSHELL SET (N719642) 1630 RON
48 1 1 MOTOR & SWITCH SA (N911210) 39318 RON
49 1 1 SPRING (N458754) 588 RON
50 1 1 PIN (N888958) 1630 RON
51 1 1 SPRING (N773741) 588 RON
52 1 1 LED (N737327) 3268 RON
53 1 1 ROTOR SA (N911214) 15469 RON
54 1 1 PLASTIC INSERT (N763107) 588 RON
58 1 17 Screw M3.5X16 T15 (330019-03) 558 RON
59 1 1 CLAMSHELL SET (N764732) 11337 RON
60 1 1 CLIP (N305589) 1630 RON
61 1 1 BUMPER (N728006) 588 RON
63 1 1 ACTUATOR FWD/REV (N776134) 588 RON
64 1 1 BUMPER (N728008) 588 RON
65 1 1 CABLE CLAMP (N806804) 588 RON
67 1 1 STRIKE PLATE (N467560) 588 RON
68 1 1 LABEL (N838137) 588 RON
69 1 2 BRAND LABEL (N838838) 588 RON
70 1 1 LABEL PERFORM PROTECT 42MMX14MM (N196274) 781 RON
71 1 1 RATING LABEL (NA127419) 588 RON
80 1 1 WASHER (NA045653) 588 RON
81 1 1 PLUG (N593131) 588 RON
82 1 1 ADAPTOR (N694877) 668 RON
90 1 1 CUP (NA181099) 588 RON
300 1 1 SERVICE KIT (NA012362) 20216 RON
300 1 1 SERVICE KIT (NA325022) 67932 RON
301 1 2 STRAP. HOOKED (N537349) 588 RON
302 1 2 BRACKET (NA012391) 5370 RON
303 1 1 CLIP SA (NA012370) 5370 RON
304 1 2 SCREW (N542271) 1630 RON
305 1 2 WASHER (N462739) 588 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
846 1 1 SERVICE KIT (N911220) 11337 RON
861 1 1 KITBOX (N826153) 25728 RON
862 1 1 LATCH (N409477) 114 RON
866 1 2 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
