Top » Piese de schimb » PIESE DEWALT » DCD794P2T Type 10

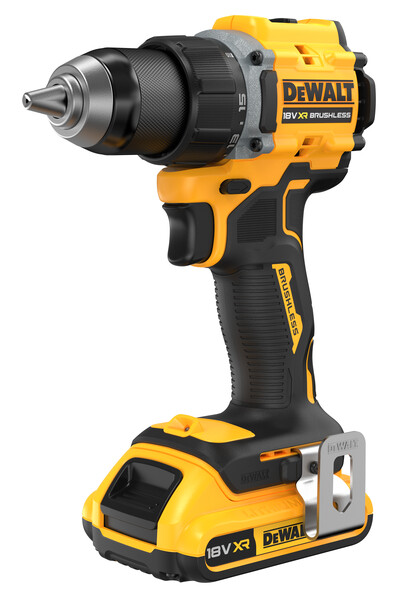

MASINA DE GAURIT CU PERCUTIE DEWALT DCD794P2T Type 10
[DCD794P2T Type 10]
MASINA DE GAURIT CU PERCUTIE DEWALT DCD794P2T Type 10
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE DEWALT DCD794P2T Type 10
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCD794P2T Type 10
Click pentru a mari

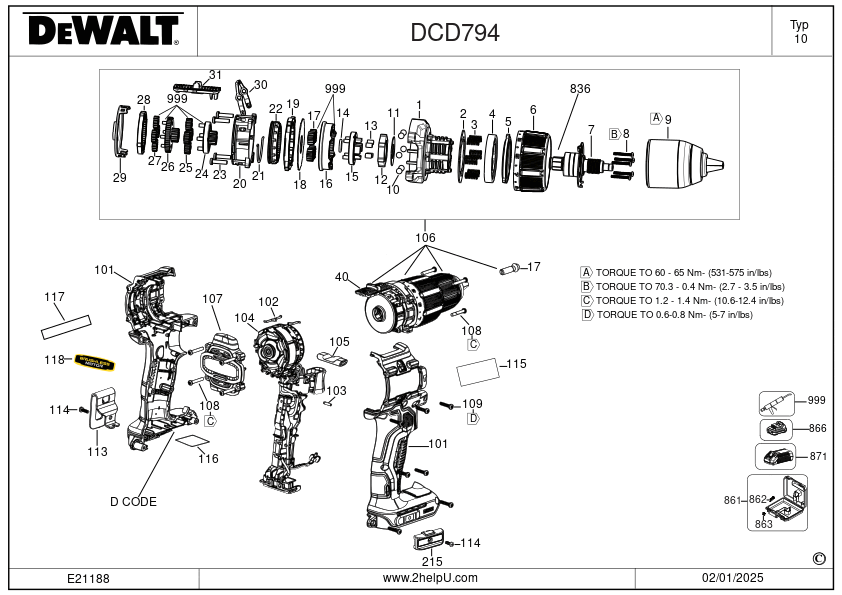

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING-NO BEARING (NA532929) 1933 RON
2 1 1 WASHER (N544404) 588 RON
3 1 12 SPRING (NA028712) 588 RON
4 1 1 HOLDER (N647198) 588 RON
5 1 1 NUT CLUTCH (N543649) 114 RON
6 1 1 COLLAR (N544387) 1318 RON
7 1 1 SPINDLE SA (NA669935) 11337 RON
8 1 5 SCREW (N039795) 558 RON
9 1 1 CHUCK KEYLESS Jacobs 4000 Series - Non-C (N196034) 1891 RON
9 1 1 CHUCK KEYLESS (NA728702) 12361 RON
10 1 6 BALL STEEL (386690-00) 558 RON
11 1 1 WASHER LOCK (N527659) 588 RON
12 1 1 LOCKING RING (N543525) 2182 RON
13 1 4 PIN (N549024) 588 RON
14 1 1 O RING (N548029) 588 RON
15 1 1 CARRIER SA (N678082) 3954 RON
16 1 1 3RD RING GEAR (N551385) 1772 RON
17 1 4 3RD PLANET (N543018) 588 RON
18 1 1 WASHER (N548368) 588 RON
19 1 1 STOP RING (N543943) 1630 RON
20 1 1 TRANSMISSION HOUSING (N544134) 944 RON
21 1 1 RG HOLD WIRE (N542091) 588 RON
22 1 1 2ND RING GEAR (N541279) 1772 RON
23 1 4 SCREW M3 12X13 (N075506) 558 RON
24 1 1 CARRIER SA (N678083) 6688 RON
25 1 4 2ND PLANET (N541277) 588 RON
26 1 1 CARRIER SA (N678084) 5370 RON
27 1 4 1ST PLANET (N541274) 588 RON
28 1 1 1ST RING GEAR (N541276) 944 RON
29 1 1 BACK PLATE (NA160740) 944 RON
30 1 1 SHIFT LINKAGE (NA145823) 82 RON
31 1 1 SELECTOR (NA568354) 2556 RON
101 1 1 CLAMSHELL SET (NA730361) 10241 RON
102 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
103 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
104 1 1 MOTOR SA (NA600668) 91363 RON
105 1 1 ACTUATOR FWD/REV (N399342) 588 RON
106 1 1 TRANSMISSION SA (NA663204) 57833 RON
107 1 1 CAP (NA004706) 1933 RON
108 1 8 SCREW PLASTITE (682211-00) 781 RON
109 1 7 SCREW PLASTITE (682211-00) 781 RON
113 1 1 BELT HOOK (N086039) 1788 RON
114 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
115 1 1 RATING PLATE (NA533309) 82 RON
115 1 1 NB413107 - Indisponibil
116 1 1 LABEL (NA533311) 82 RON
116 1 1 NB413107 - Indisponibil
117 1 1 BRAND LABEL-18V (NA353843) 588 RON
118 1 1 LABEL-BRUSHLESS (NA392494) 588 RON
215 1 1 HOLDER BIT (N475326) 2796 RON
836 1 1 S.T.CHUCK REMOVAL JIG (N503944) 46247 RON
861 1 1 KITBOX (NA396945) 23244 RON
862 1 2 LATCH (N409477) 114 RON
863 1 2 LATCH-METAL (N409476) 1772 RON
866 1 2 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
999 1 1 GREASE (NA360289) 10241 RON
