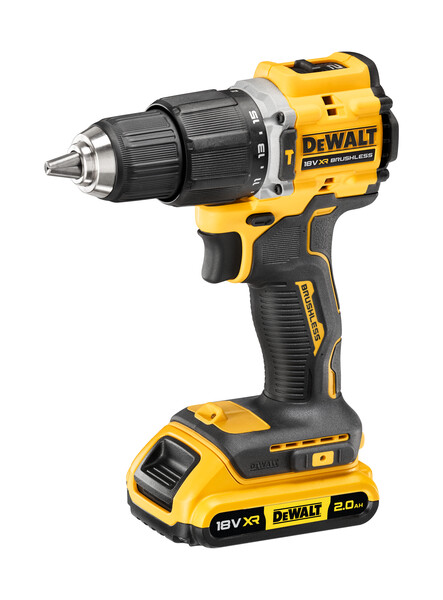

MASINA DE GAURIT CU PERCUTIE DEWALT DCD100YD2T Type 1
[DCD100YD2T Type 1]
MASINA DE GAURIT CU PERCUTIE DEWALT DCD100YD2T Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE DEWALT DCD100YD2T Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE DEWALT DCD100YD2T Type 1
Click pentru a mari

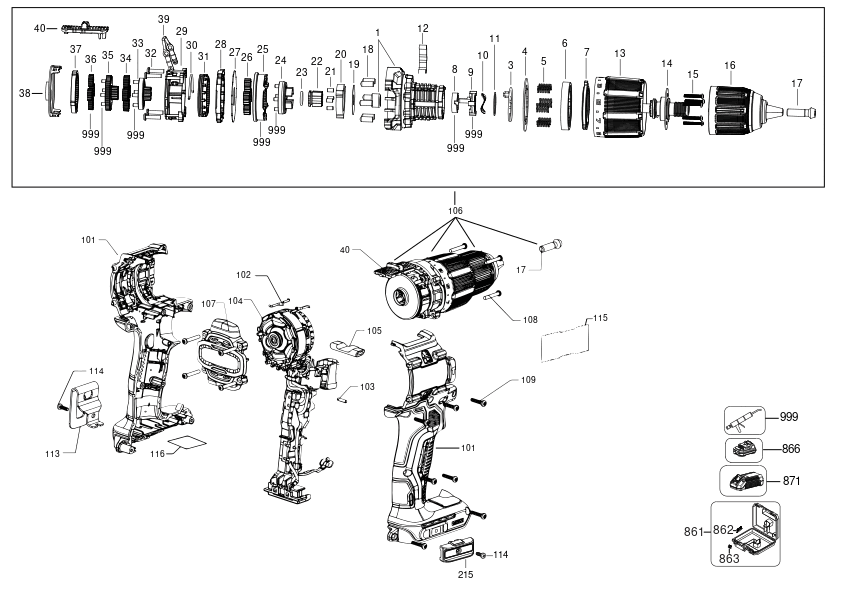

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING (NA549830) 6688 RON
3 1 1 MD-HDD TORSION SPRING (N616763) 588 RON
4 1 1 WASHER (N544404) 588 RON
5 1 12 SPRING (NA028712) 588 RON
6 1 1 HOLDER (N647198) 588 RON
7 1 1 NUT CLUTCH (N543649) 114 RON
8 1 1 MIDWAY RAMP RATCHET (N598613) 2182 RON
9 1 1 MIDWAY LOWER RATCHET (N598614) 1772 RON
10 1 1 MD HDD WAVE WASHER (N618571) 588 RON
11 1 1 BALL BEARING WASHER (N613395) 588 RON
12 1 1 SPRING (N602515) 588 RON
13 1 1 MD HDD CLUTCH COLLAR (N618143) 1933 RON
14 1 1 SPINDLE SA (N696446) 741 RON
15 1 5 SCREW (N039795) 558 RON
16 1 1 JACOBS ULTRA SHORT CHUCK (N576254) 13697 RON
17 1 1 SCREW FOR CHUCK (N092854) 781 RON
18 1 6 CLUTCH PIN (NA298616) 668 RON
19 1 1 SPINDLE LOCK WASHER (N090435) 558 RON
20 1 1 LOCKING RING (N022985) 2795 RON
21 1 4 LOCK PIN 2.98X 5.5 MM (N507193) 588 RON
22 1 1 ANVIL MIDWAY (N645930) 2182 RON
23 1 1 O RING (N560646) 588 RON
24 1 1 CARRIER SA (N696448) 2796 RON
24 1 1 SA 3RD CARRIER MIDWAY HDD (N645932) 2556 RON
25 1 1 3RD RING GEAR (N551385) 1772 RON
26 1 4 3RD PLANET (N543018) 588 RON
27 1 1 WASHER (N548368) 588 RON
28 1 1 STOP RING (N543943) 1630 RON
29 1 1 TRANSMISSION HOUSING (N544134) 944 RON
30 1 1 RG HOLD WIRE (N542091) 588 RON
31 1 1 2ND RING GEAR (N541279) 1772 RON
32 1 4 SCREW M3 12X13 (N075506) 558 RON
33 1 1 CARRIER SA (N678083) 6688 RON
34 1 4 2ND PLANET (N541277) 588 RON
35 1 1 CARRIER SA (N678084) 5370 RON
36 1 4 1ST PLANET (N541274) 588 RON
37 1 1 1ST RING GEAR (N541276) 944 RON
38 1 1 BACK PLATE (NA160740) 944 RON
39 1 1 SHIFT LINKAGE (NA145823) 82 RON
40 1 1 SELECTOR (NA568354) 2556 RON
101 1 1 NA353239 - Indisponibil
101 1 1 CLAMSHELL PAIR (NA730392) 10241 RON
102 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
103 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
104 1 1 MOTOR SA (NA304843) 139195 RON
104 1 1 MOTOR SA (NA600668) 91363 RON
105 1 1 ACTUATOR FWD/REV (N399342) 588 RON
106 1 1 TRANSMISSION SA (NA304764) 78485 RON
106 1 1 TRANSMISSION SA (NA607515) 73079 RON
107 1 1 CAP (NA004706) 1933 RON
108 1 8 SCREW PLASTITE (682211-00) 781 RON
109 1 7 SCREW PLASTITE (682211-00) 781 RON
112 1 1 JACOBS ULTRA SHORT CHUCK (N576254) 13697 RON
113 1 1 HOOK SA (N268241) 1772 RON
114 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
115 1 1 RATING PLATE (NA413957) 588 RON
116 1 1 LABEL (NA413960) 588 RON
215 1 1 HOLDER BIT (N475326) 2796 RON
861 1 1 EU TSTAK RIB KITBOX 5S1P (N442424) 32327 RON
862 1 2 LATCH (N409477) 114 RON
863 1 2 LATCH (P910190) 3466 RON
866 1 1 SA DCB183-XJ SERVICE EURO (SERVICE) (N314783) 80865 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
999 1 1 GREASE (NA360289) 10241 RON
