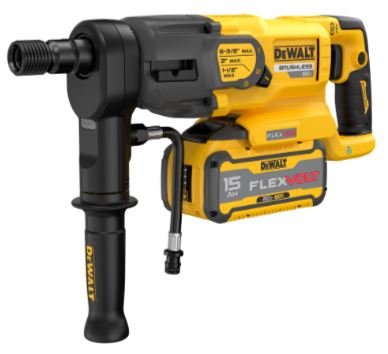

MASINA DE GAURIT CU CAROTA DEWALT DCD150X2 Type 1
[DCD150X2 Type 1]
MASINA DE GAURIT CU CAROTA DEWALT DCD150X2 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU CAROTA DEWALT DCD150X2 Type 1
Click pentru a mari
MASINA DE GAURIT CU CAROTA DEWALT DCD150X2 Type 1
Click pentru a mari
MASINA DE GAURIT CU CAROTA DEWALT DCD150X2 Type 1
Click pentru a mari
MASINA DE GAURIT CU CAROTA DEWALT DCD150X2 Type 1
Click pentru a mari

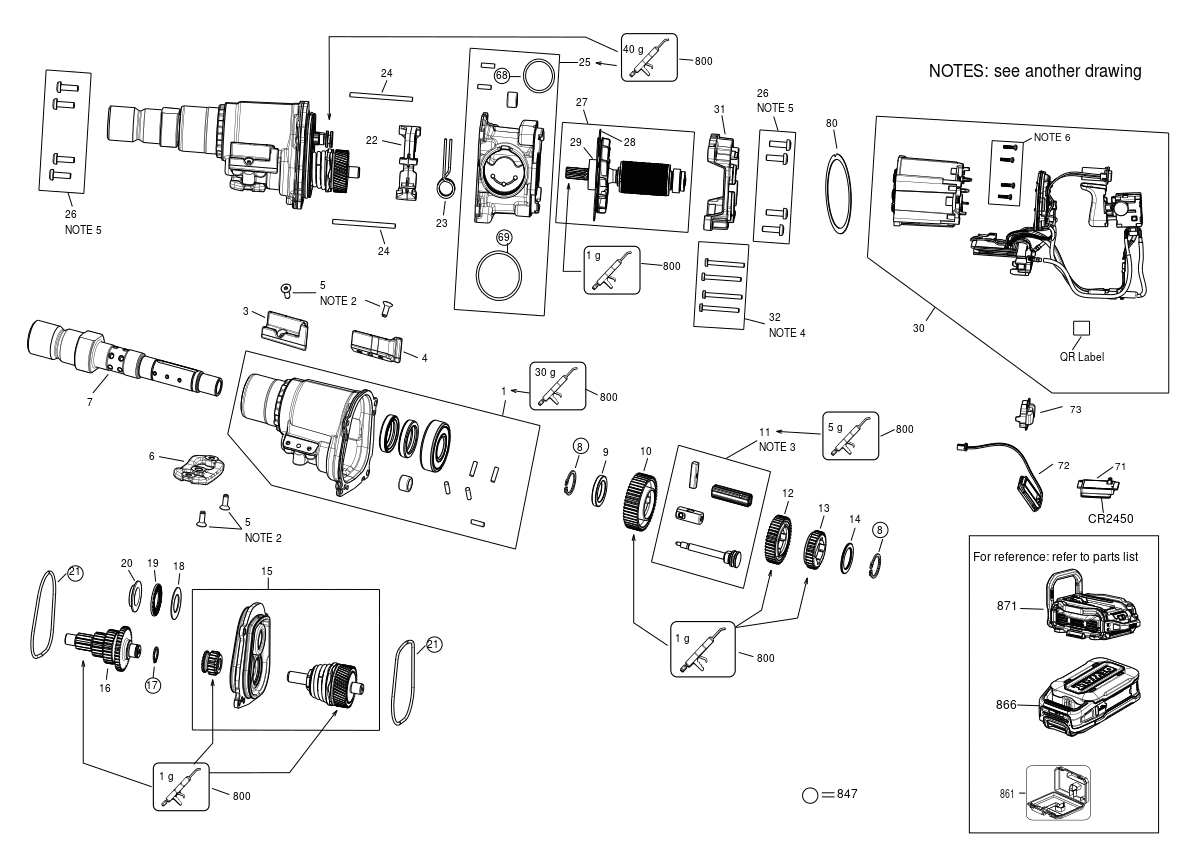

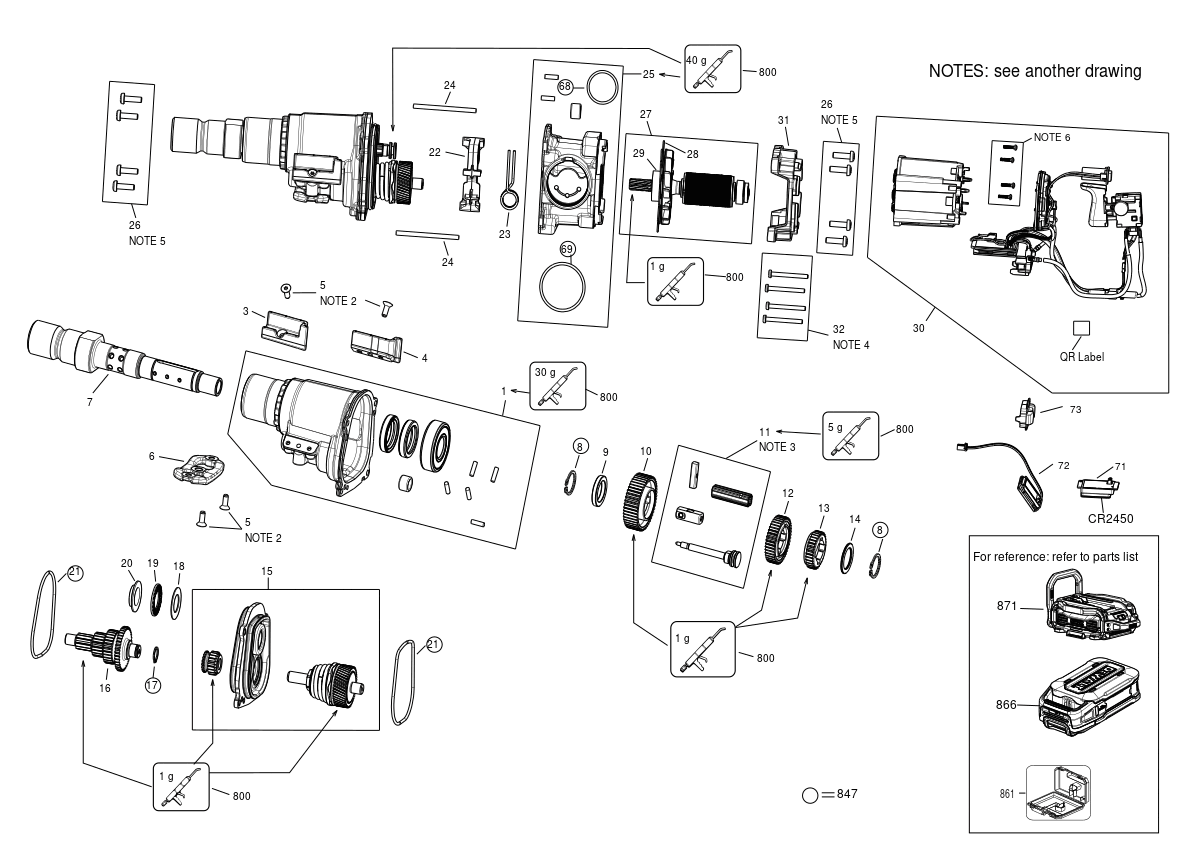

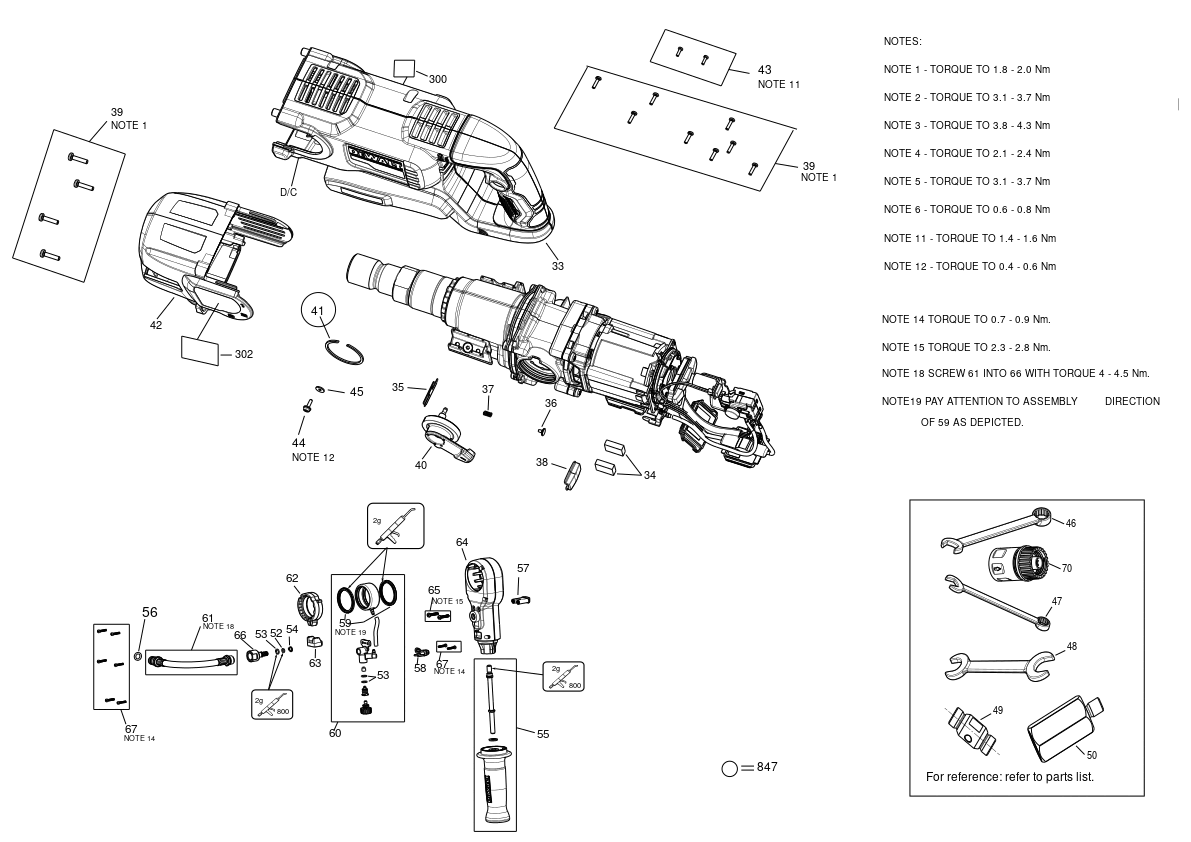

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR HOUSING SA (NA292961) 44688 RON
3 1 1 PLATE LH (NA027727) 18568 RON
4 1 1 PLATE RH (NA161420) 18568 RON
5 1 4 SCREW-SCREW FLAT HEAD M5X13 (NA163074) 588 RON
6 1 1 BRACKET (NA221671) 27287 RON
7 1 1 SPINDLE (N900020) 99395 RON
8 1 2 RING (N533994) 588 RON
9 1 1 BEARING THRUST (NA085774) 4827 RON
10 1 1 Gear (NA018984) 16689 RON
11 1 1 KEY HOLDER (NA292952) 28836 RON
12 1 1 Gear (NA018982) 13697 RON
13 1 1 Gear (NA018980) 741 RON
14 1 1 Gear (NA085790) 3268 RON
15 1 1 HOUSING GEAR SA (NA292959) 125542 RON
16 1 1 SHAFT SA (NA018986) 28836 RON
17 1 1 RETAINING RING (397782-00) 588 RON
18 1 1 WASHER (NA086150) 944 RON
19 1 1 BEARING REAR (NA086149) 2556 RON
20 1 1 WASHER SPECIAL (NA086148) 2796 RON
21 1 2 O RING (N936648) 3954 RON
22 1 1 BRACKET (NA168134) 82 RON
23 1 1 SPRING (NA168146) 588 RON
24 1 2 PIN (NA101809) 82 RON
25 1 1 MOTOR HOUSING SA (NA293257) 27287 RON
26 1 8 SCREW PAN HEAD M5*18 (324007-11) 558 RON
27 1 1 ROTOR SA (NA292957) 39318 RON
28 1 1 PLATE (N936703) 1318 RON
29 1 1 BEARING BALL (330003-83) 2347 RON
30 1 1 MOTOR SWITCH SA (NA706059) 228616 RON
31 1 1 BAFFLE (NA083876) 12361 RON
32 1 4 SCREW (330019-07) 558 RON
33 1 1 HOUSING SA (NA209375) 15469 RON
34 1 2 Pad DW831 (620051-00) 558 RON
35 1 1 STRIKE PLATE (N467560) 588 RON
36 1 1 SPRING GUIDE (N091479) 558 RON
37 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
38 1 1 LENS (NA157275) 1772 RON
39 1 12 SCREW PLSTIC THD FORM M4.06X18 (330019-80) 558 RON
40 1 1 SELECTOR SA (NA697436) 11337 RON
41 1 1 CLIP (NA147582) 588 RON
42 1 1 COVER HOUSING (NA028585) 3268 RON
43 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
44 1 1 SCREW (N429693) 588 RON
45 1 1 GASKET (NA633632) 588 RON
46 1 1 WRENCH (NA229144) 23244 RON
47 1 1 WRENCH (NA229145) 13697 RON
49 1 1 ADAPTOR (NA184809) 9012 RON
52 1 1 RING (90583888) 588 RON
53 1 1 O RING (N128117) 588 RON
54 1 1 RETAINER (N339739) 781 RON
55 1 1 HANDLE SA (NA543859) 16689 RON
56 1 1 O RING (N521031) 588 RON
57 1 2 LOCKING KNOB (NA031336) 9012 RON
58 1 1 CLIP (NA151194) 1772 RON
59 1 2 SEAL (NA338084) 9012 RON
60 1 1 HANDLE KIT (NA543553) 55455 RON
61 1 1 HOSE SA (NA310765) 24962 RON
62 1 1 LOCKING RING (NA173266) 11337 RON
63 1 1 PIECE (NA173901) 741 RON
64 1 1 HOUSING HANDLE (NA175879) 741 RON
65 1 2 SCREW-STAINLESS SCREW PANHEAD M4X20 (NA265307) 588 RON
66 1 1 CONNECTOR (NA292098) 741 RON
67 1 8 SCREW PLASTIC THD FORM (330019-00) 558 RON
68 1 1 O RING (NA355763) 2182 RON
69 1 1 O RING (NA161334) 1772 RON
70 1 1 QUICK CONNECT (N499690) 2182 RON
71 1 1 MODULE (NA707231) 27287 RON
72 1 1 MODULE (NA707233) 15469 RON
73 1 1 LED LIGHT (NA707234) 16689 RON
80 1 1 GASKET (NA713150) 944 RON
302 1 1 LABEL (NA175752) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
847 1 1 SERVICE KIT (NA418947) 13697 RON
861 1 1 KITBOX (NA177440) 49827 RON
866 1 2 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
871 1 1 CHARGER QW (N473860) 73079 RON
