Top » Piese de schimb » PIESE DEWALT » DCD803NT Type 10

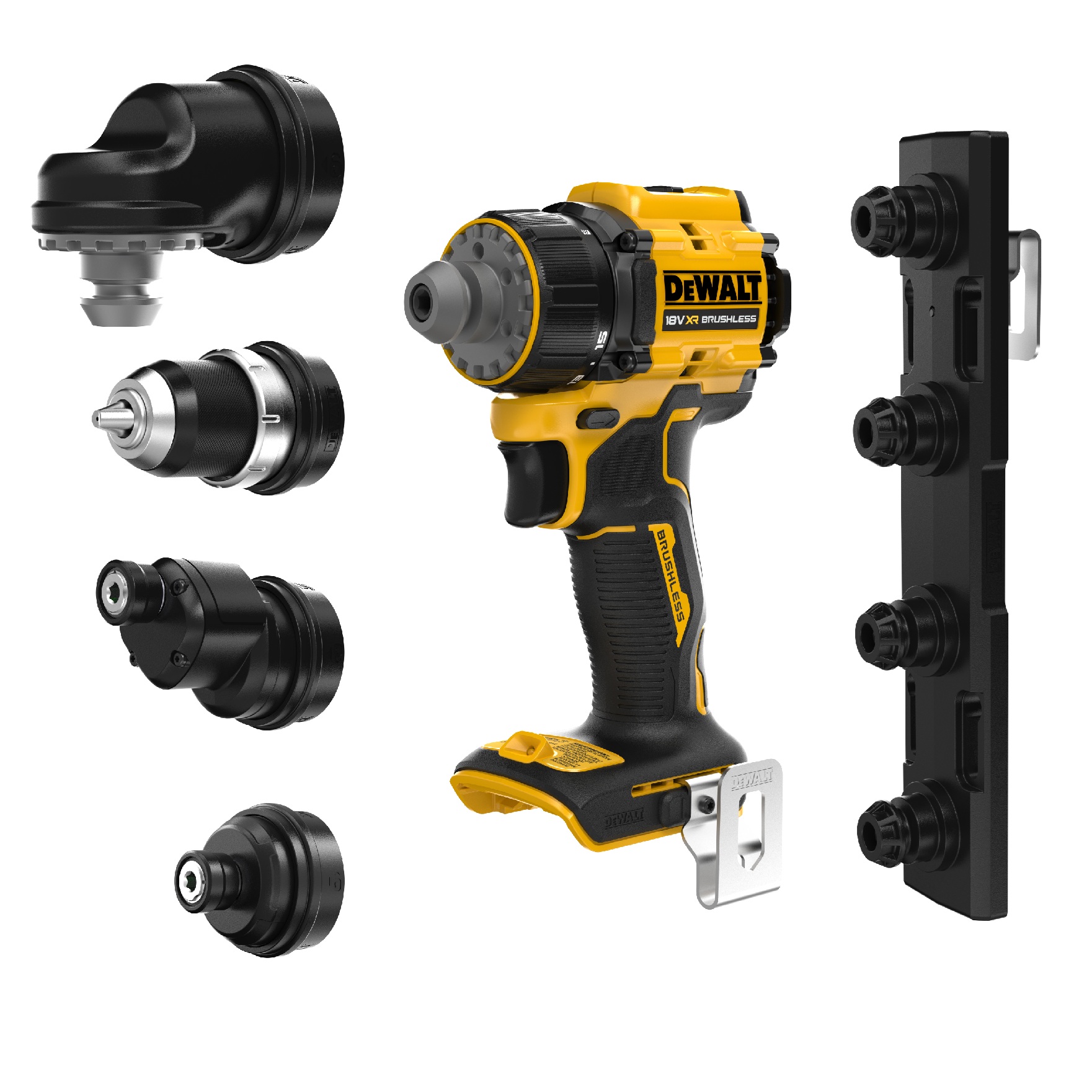

MASINA DE GAURIT CU ACUMULATOR DEWALT DCD803NT Type 10
[DCD803NT Type 10]
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD803NT Type 10
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD803NT Type 10
Click pentru a mari
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD803NT Type 10
Click pentru a mari

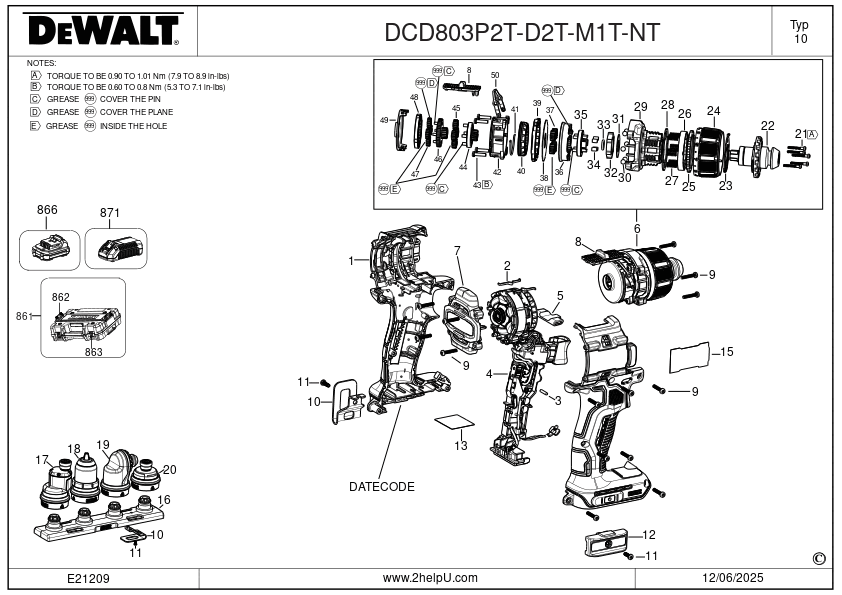

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (NA730361) 10241 RON
2 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
3 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
4 1 1 MOTOR SA (NA600668) 91363 RON
5 1 1 ACTUATOR FWD/REV (N399342) 588 RON
6 1 1 TRANSMISSION SA (NA771363) 36994 RON
7 1 1 CAP (NA004706) 1933 RON
8 1 1 SELECTOR (NA568354) 2556 RON
9 1 15 SCREW PLASTITE (682211-00) 781 RON
10 1 1 BELT HOOK (N086039) 1788 RON
11 1 3 BELT HOOK SCREW M3 (N042665) 558 RON
12 1 1 MAGNET HOLDER (N095778) 3466 RON
13 1 1 BOTTOM FOOT LABEL DCD803 18V (NA738674) 1630 RON
13 1 1 LABEL SHEET-DCD803 LABEL SHEET (NB413105) 82 RON
15 1 1 RATING PLATE-EURO (NA570554) 1318 RON
15 1 1 LABEL SHEET-DCD803 LABEL SHEET (NB413105) 82 RON
16 1 1 HOLDER SA (NA771388) 16689 RON
17 1 1 HEAD SA-OFFSET HEAD (NA771399) 36994 RON
18 1 1 HEAD SA-CHUCK HEAD (NA771400) 33797 RON
19 1 1 HEAD SA-RIGHT ANGLE HEAD (NA771398) 39318 RON
20 1 1 HEAD SA-QUICK RELEASE HEAD (NA771389) 21676 RON
21 1 5 SCREW-M2.6 X 18 PLASTITE TORK 8 (NA577545) 588 RON
22 1 1 SPINDLE SA (NB088938) 23244 RON
23 1 1 DETENT (NA575646) 1630 RON
24 1 1 COLLAR (NA564352) 1630 RON
25 1 1 NUT-CLUTCH (NA564351) 1630 RON
26 1 1 HOLDER-CLUTCH SPRING (NA531099) 588 RON
27 1 12 SPRING (NA028712) 588 RON
28 1 1 WASHER-CLUTCH (NA531194) 114 RON
29 1 1 HOUSING-CLUTCH (NA526659) 944 RON
30 1 6 BALL STEEL (386690-00) 558 RON
31 1 1 WASHER LOCK (N527659) 588 RON
32 1 1 LOCKING RING (N543525) 2182 RON
33 1 1 O RING (N548029) 588 RON
34 1 4 PIN (N549024) 588 RON
35 1 1 CARRIER SA (N678082) 3954 RON
36 1 1 3RD RING GEAR (N551385) 1772 RON
37 1 4 3RD PLANET (N543018) 588 RON
38 1 1 WASHER (N548368) 588 RON
39 1 1 STOP RING (N543943) 1630 RON
40 1 1 2ND RING GEAR (N541279) 1772 RON
41 1 1 RG HOLD WIRE (N542091) 588 RON
42 1 1 TRANSMISSION HOUSING (N544134) 944 RON
43 1 4 SCREW M3 12X13 (N075506) 558 RON
44 1 1 CARRIER SA (N678083) 6688 RON
45 1 4 2ND PLANET (N541277) 588 RON
46 1 1 CARRIER SA (N678084) 5370 RON
47 1 4 1ST PLANET (N541274) 588 RON
48 1 1 1ST RING GEAR (N541276) 944 RON
49 1 1 BACK PLATE (NA160740) 944 RON
50 1 1 SHIFT LINKAGE (NA145823) 82 RON
861 1 1 KITBOX-DEFENDER (NA621420) 21676 RON
862 1 2 LATCH-METAL (N409476) 1772 RON
863 1 2 LATCH (N409477) 114 RON
866 1 1 000000-04 - Indisponibil
871 1 1 000000-04 - Indisponibil
999 1 1 GREASE (N017298) 4825 RON
