MASINA DE GAURIT CU ACUMULATOR DEWALT DCD771D2T Type 1
[DCD771D2T Type 1]
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD771D2T Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD771D2T Type 1
Click pentru a mari
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD771D2T Type 1
Click pentru a mari

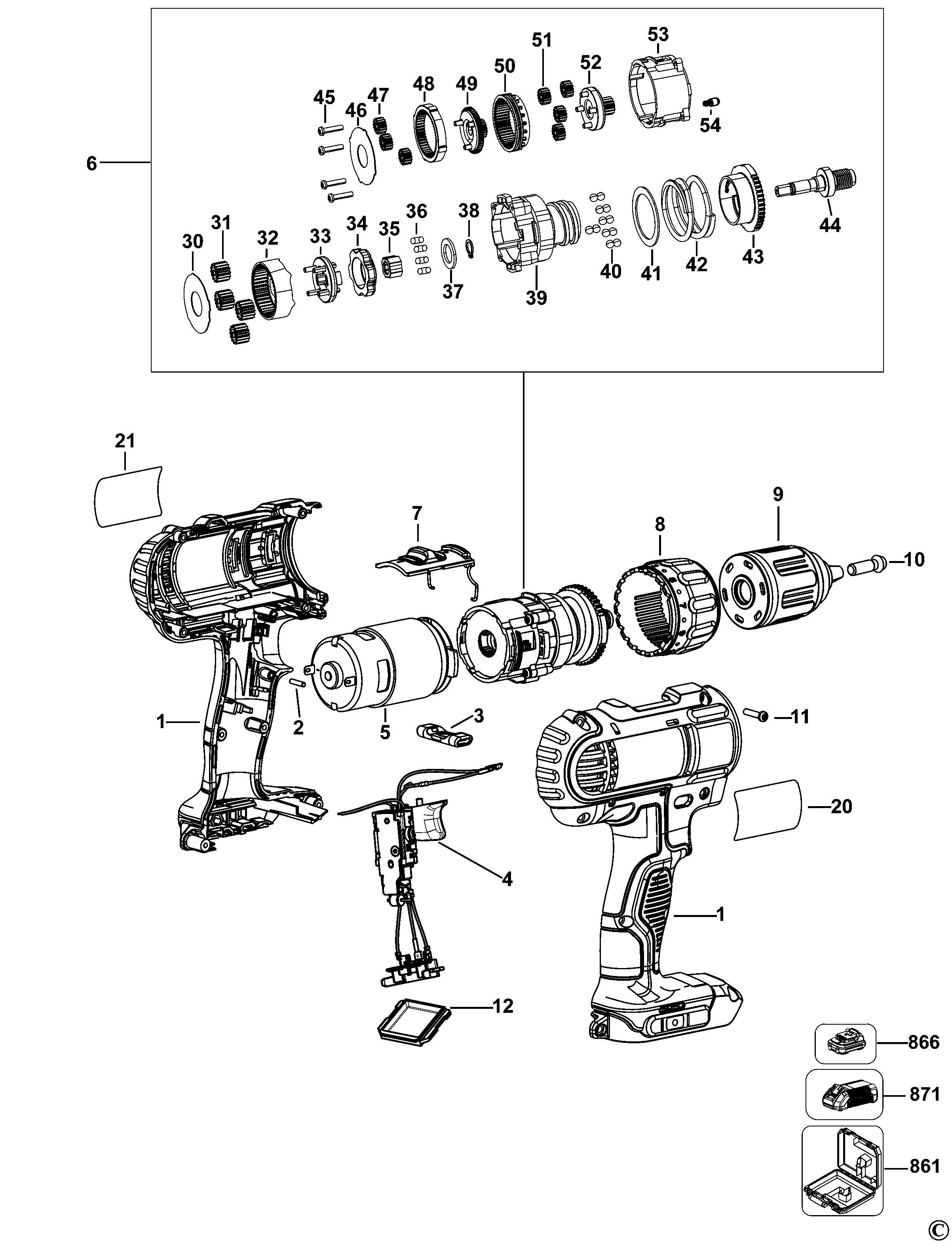

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA XR13 DRILL HOUSINGS EU (N295081) 6688 RON
2 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
3 1 1 ACTUATOR FWD/REV (N151983) 781 RON
4 1 1 SWITCH SA (N868642) 28836 RON
4 1 1 SERVICE KIT (NA706445) 21676 RON
4 1 1 SERVICE KIT (NB430492) 18568 RON
5 1 1 MOTOR SA (N362741) 12861 RON
6 1 1 TRANSMISSION SA (N279940) 17335 RON
7 1 1 SELECTOR SA (N153906) 1117 RON
8 1 1 COLLAR (N207252) 1788 RON
9 1 1 WEIDA SG13 CHUCK cod vechi N230360 (N472497) 14315 RON
10 1 1 SCREW FOR CHUCK (N092854) 781 RON
11 1 8 SCREW PLASTITE (682211-00) 781 RON
12 1 1 N875582 - Indisponibil
20 1 1 NA187255 - Indisponibil
21 1 1 N256260 - Indisponibil
30 1 1 PLATE (N225459) 558 RON
31 1 4 GEAR (N215913) 558 RON
32 1 1 GEAR (N215912) 1229 RON
32 1 1 Gear (NA725597) 944 RON
33 1 1 SA CARRIER 3RD RED (N362740) 190 RON
34 1 1 LOCKING RING (N209232) 1452 RON
35 1 1 ANVIL (N218992) 781 RON
36 1 4 PIN (N236379) 558 RON
37 1 1 WASHER (N223513) 558 RON
38 1 1 RETAINER (N034090) 558 RON
39 1 1 HOUSING SA (N376647) 190 RON
40 1 12 BALL (N510716) 588 RON
41 1 1 WASHER (N256699) 781 RON
42 1 1 SPRING (N210954) 893 RON
43 1 1 NUT (N203616) 893 RON
44 1 1 SPINDLE SA (N376648) 5031 RON
45 1 4 SCREW PLASTITE PHILIPS HEAD (N317559) 558 RON
46 1 1 PLATE (N225458) 558 RON
47 1 3 GEAR (N215916) 558 RON
48 1 1 GEAR (N215917) 1117 RON
48 1 1 Gear (NA725591) 82 RON
49 1 1 SA CARRIER 1ST RED (N362719) 1229 RON
50 1 1 GEAR (N256760) 190 RON
50 1 1 Gear (NA725594) 1318 RON
51 1 4 GEAR (N215916) 558 RON
52 1 1 SA CARRIER 2ND RED (N362739) 1229 RON
53 1 1 HOUSING (N218316) 781 RON
54 1 1 DETENT (326467-00) 558 RON
861 1 1 KITBOX (NA270747) 25728 RON
866 1 2 BATTERY 18V - 2.0AH - 36WH-DCB183-XJ (N546910) 40734 RON
871 1 1 NA373481 - Indisponibil
