Top » Piese de schimb » PIESE DEWALT » DCD706N Type 2

MASINA DE GAURIT CU ACUMULATOR DEWALT DCD706N Type 2
[DCD706N Type 2]
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD706N Type 2
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD706N Type 2
Click pentru a mari
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD706N Type 2
Click pentru a mari
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD706N Type 2
Click pentru a mari
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD706N Type 2
Click pentru a mari

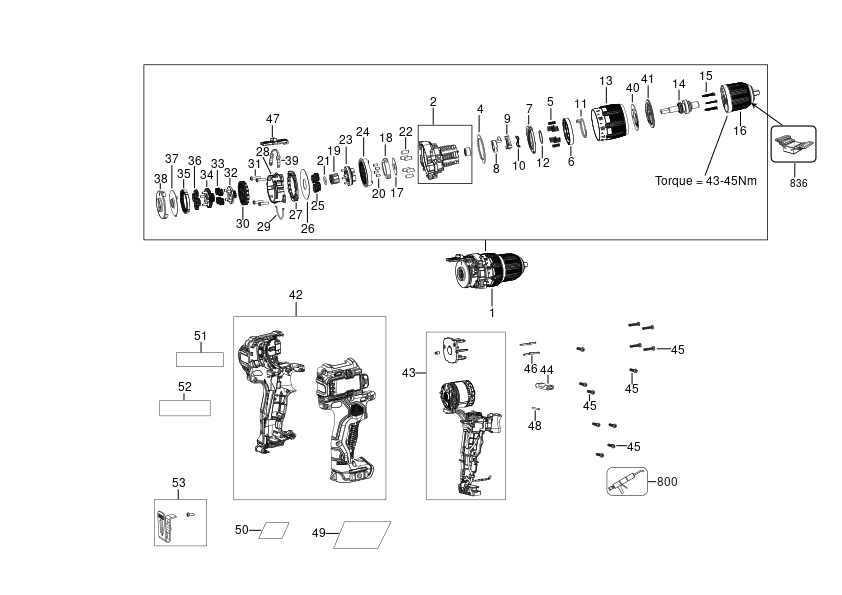

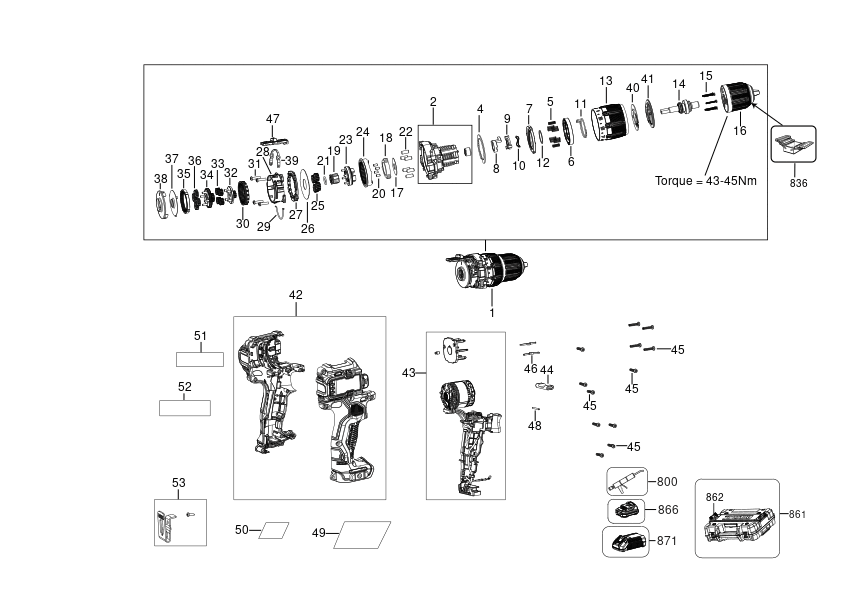

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TRANSMISSION SA (N826225) 38463 RON
2 1 1 HOUSING SA (N726443) 5370 RON
4 1 1 WASHER (N527877) 588 RON
5 1 12 SPRING (N527878) 588 RON
6 1 1 SPRING (N527879) 588 RON
7 1 1 ADJUSTER TORQUE (N527880) 1318 RON
8 1 1 MIDWAY RAMP RATCHET (N598613) 2182 RON
9 1 1 MIDWAY LOWER RATCHET (N598614) 1772 RON
10 1 1 MD HDD WAVE WASHER (N618571) 588 RON
11 1 1 MD-HDD TORSION SPRING (N616763) 588 RON
12 1 1 BALL BEARING WASHER (N613395) 588 RON
13 1 1 COLLAR (N657958) 2556 RON
14 1 1 SPINDLE SA (N725221) 5370 RON
15 1 5 SCREW (N039795) 558 RON
16 1 1 CHUCK KEYLESS (N607028) 12361 RON
17 1 1 SPINDLE LOCK WASHER (N090435) 558 RON
18 1 1 LOCKING RING (N022985) 2795 RON
19 1 1 ANVIL MIDWAY (N645930) 2182 RON
20 1 4 LOCK PIN 2.98X 5.5 MM (N507193) 588 RON
21 1 1 O RING (N703476) 588 RON
22 1 6 PIN (N645931) 588 RON
23 1 1 CARRIER SA (N725223) 1933 RON
24 1 1 Gear (N531435) 2182 RON
25 1 4 Gear (N657897) 588 RON
26 1 1 WASHER (N531627) 588 RON
27 1 1 RING (N531634) 114 RON
28 1 1 HOUSING (N531638) 668 RON
29 1 1 WIRE STEEL (N552206) 588 RON
30 1 1 Gear (N531632) 1630 RON
30 1 1 NA839734 - Indisponibil
31 1 4 SCREW M3 12X13 (N075506) 558 RON
32 1 1 CARRIER SA (N681265) 2796 RON
33 1 4 Gear (N531633) 588 RON
34 1 1 CARRIER SA (N681266) 1772 RON
35 1 1 Gear (N549298) 944 RON
35 1 1 NA839737 - Indisponibil
36 1 4 Gear (N531637) 588 RON
37 1 1 WASHER (N550764) 668 RON
38 1 1 PLATE (N549069) 944 RON
39 1 1 LINK (N551526) 668 RON
40 1 1 WASHER (N530050) 588 RON
41 1 1 COVER (N693235) 1772 RON
42 1 1 CLAMSHELL SET (N652991) 4355 RON
43 1 1 MOTOR SA (NA069432) 28836 RON
44 1 1 ACTUATOR FWD/REV (N399342) 588 RON
45 1 12 SCREW (N463678) 588 RON
46 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
47 1 1 SELECTOR (N725238) 114 RON
48 1 1 PIN (N660916) 588 RON
49 1 1 RATING PLATE (NA092297) 588 RON
50 1 1 LABEL (N665615) 588 RON
51 1 1 BRAND LABEL (N501262) 588 RON
52 1 1 LABEL (N658202) 588 RON
53 1 1 HOOK SA (N702958) 6688 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
836 1 1 S.T.CHUCK REMOVAL JIG (559661-99) 40716 RON
836 1 1 S.T.CHUCK REMOVAL JIG (1003987-99) 25185 RON
836 1 1 S.T.CHUCK REMOVAL JIG (1003988-99) 12967 RON
